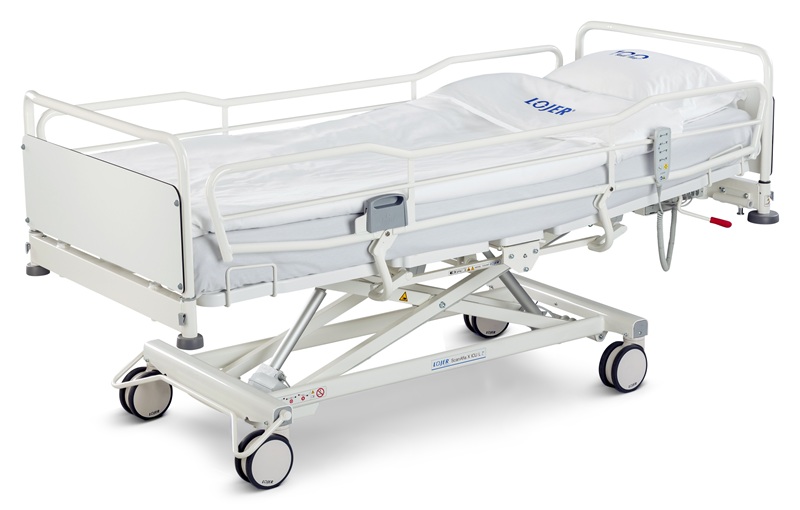

ScanAfia X ICU L Hospital Bed
High-quality and durable hospital bed – also available in a machine-washable version
Main features:
1. Very high load capacity: SWL 340 kg
2. Large twin castors (150 mm) and lightweight design make the bed effortless to move around
3. Impressive 20° anti-Trendelenburg and Trendelenburg adjustment
4. Integrated mattress platform extension

About
The ScanAfia X ICU L hospital bed is highly suitable for a variety of hospital wards. The bed’s exceptional height adjustment range improves ergonomics for healthcare professionals and supports patient self-sufficiency.
In addition to a handset, the nurse control panel (supplied as standard) allows for securing the bed’s functions so that the patient cannot use them. It also enables specialised electronical functions, including the Trendelenburg, CPR and cardiac positions. The sliding mechanism in the back section prevents the patient from slipping toward the foot-end of the bed and improves comfort. Quick-release locks at the head and foot of the bed allow for the rapid detachment of end frames in emergencies. Despite the substantial 340 kg safe working load (SWL), the standard 150 mm twin castors make ScanAfia X ICU L easy and effortless to move around.
The bed is designed for long-term use in hospital environment, and it is available with a width of 80 cm or 90 cm. A washable version of this hospital bed model is also available, complete with a wash cycle counter.

Technical standard features:
- Electric Trendelenburg/ Anti-Trendelengburg, 20°/20°
- Battery backup
- Hand control
- Nurse control panel
- Back section slide
- Electrical CPR-function
- Manual emergency lowering of back section
- Fixing hooks for supporting belts
- Roller bumpers

ScanAfia X ICU L Hospital Bed
Total width (incl. siderails) | 89,5 cm/99,5 cm (mattress platform width 80 cm/90 cm) |
Total length | 217 cm |
Height adjustment | 34 - 84 cm (150 mm twin castors) |
Recommended mattress size | 205 x 78/88 x 13 cm |
Total weight (without rails) | 115 kg / 80 cm, 117 kg / 90 cm |
Castors | Ø150 mm centrally lockable twin castors with directional castor |
Safe Working Load (SWL) | 340 kg |
Electrical system | 24V |
Back section adjustment | 70° |
Thigh section adjustment | 30° |
Calf section adjustment | 18° |
CE-marked | Yes |
Warranty | 2 years |
Country of Manufacture | Finland |
