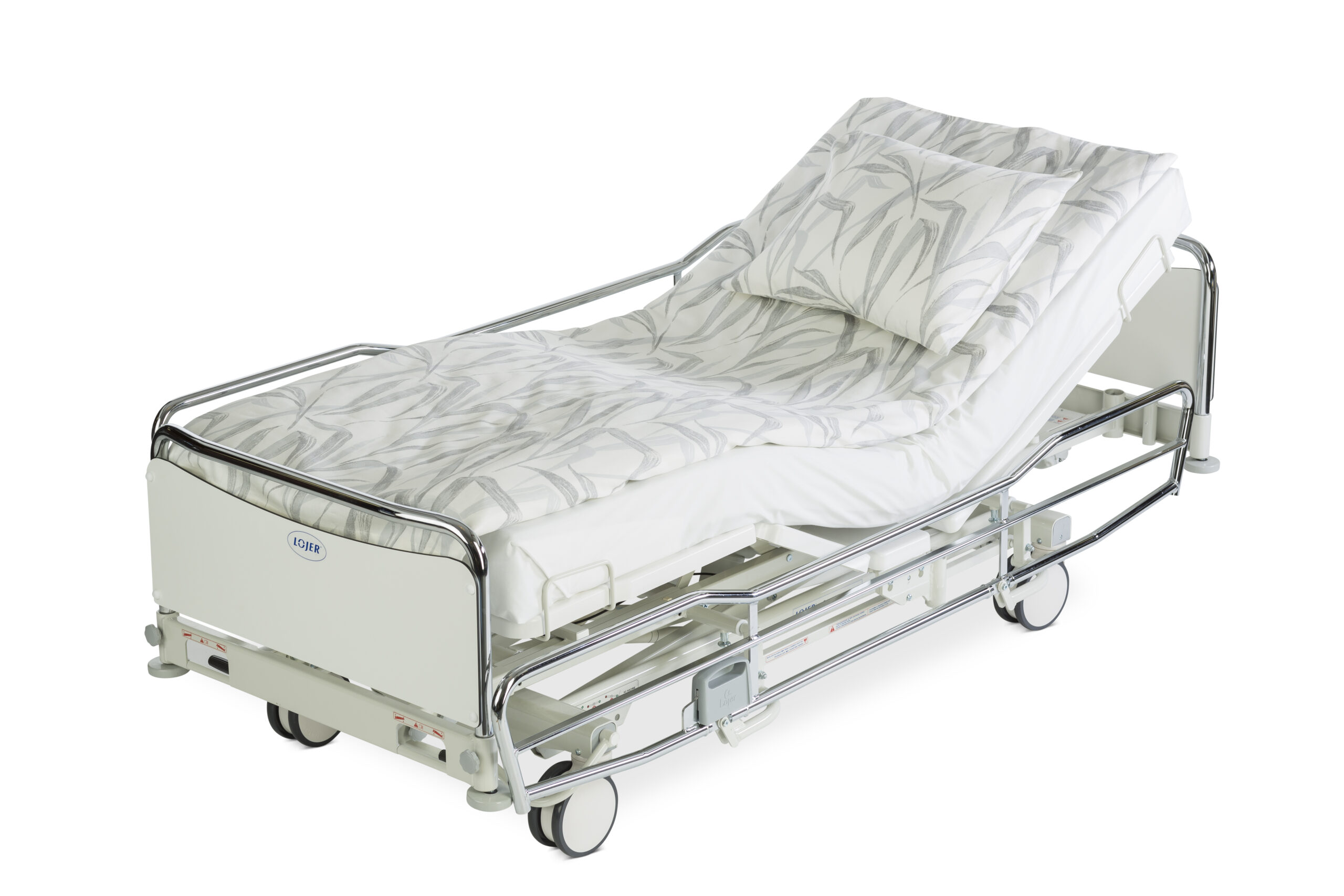

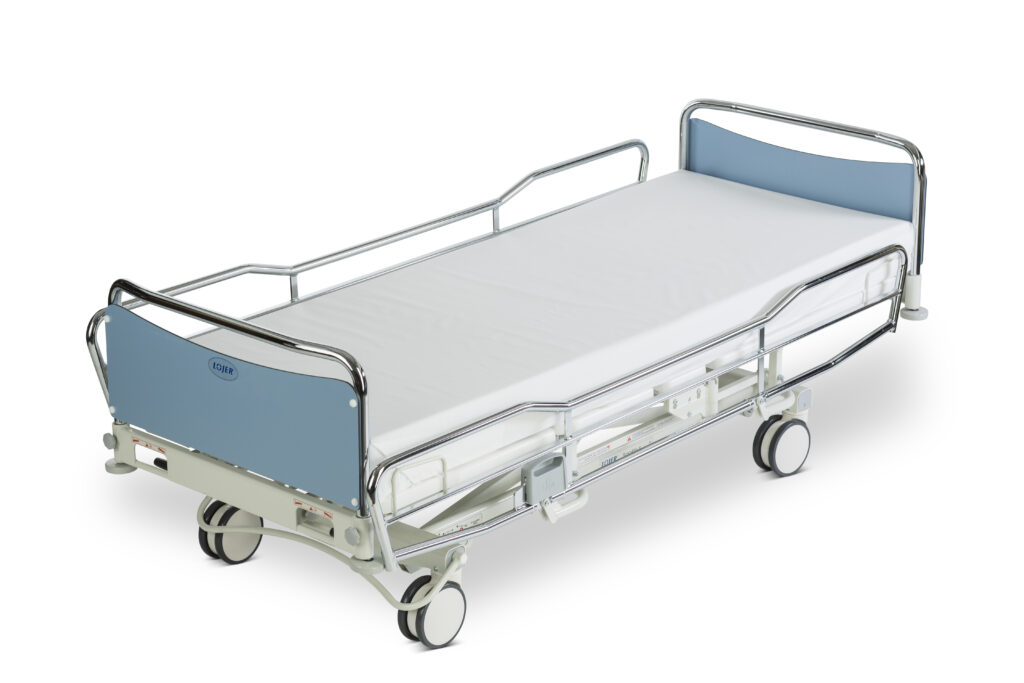

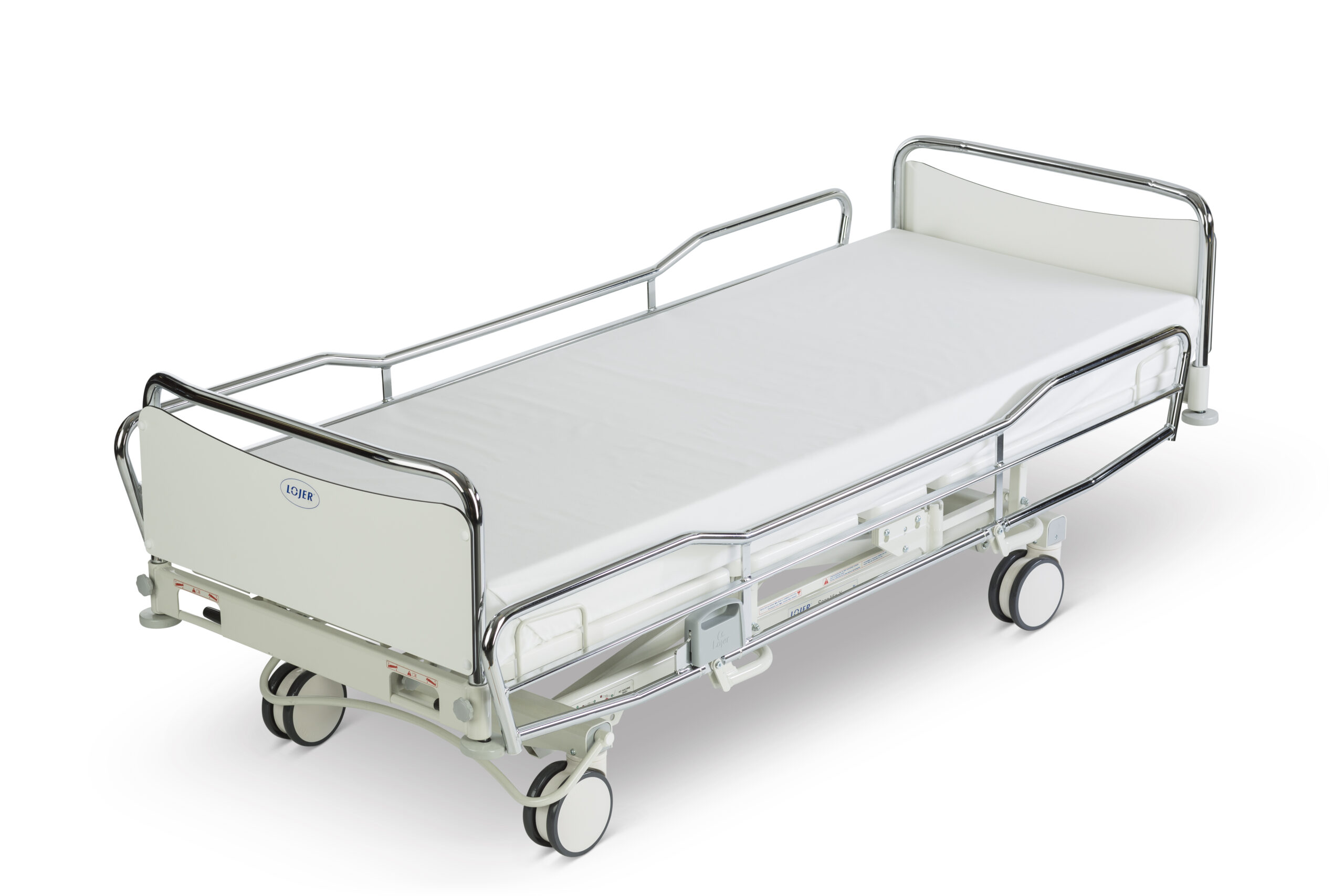

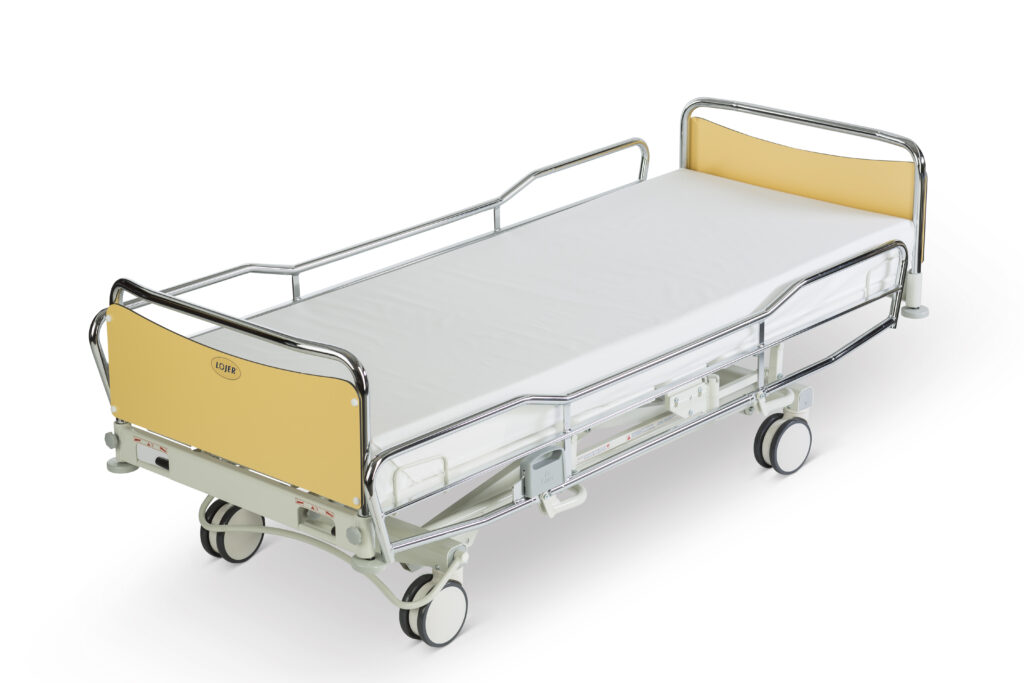

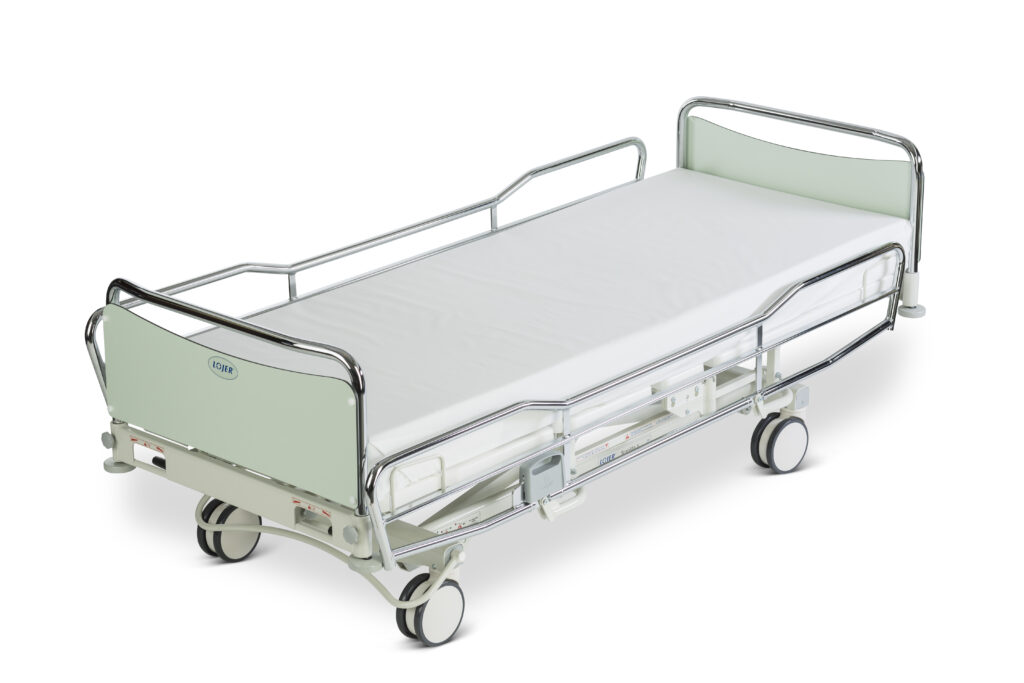

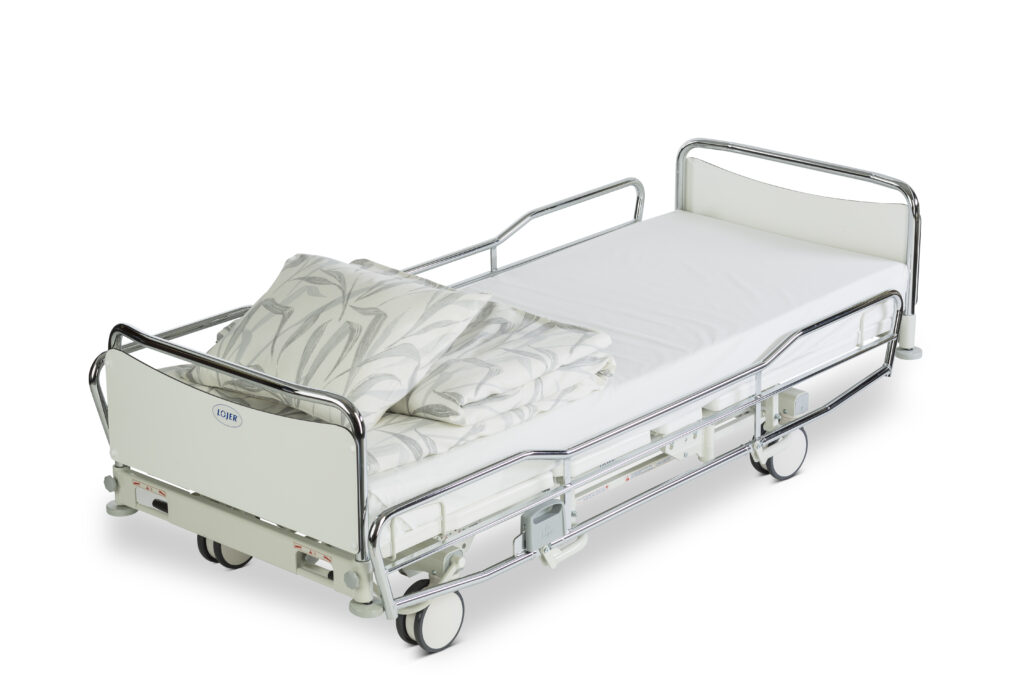

Lojer ScanAfia XS
Low height, wide adjustability and reliable support for inpatient care
Lojer ScanAfia XS is a hospital bed for healthcare professionals in hospitals, health centres and private clinics. Its 32–82 cm height adjustment range supports ergonomic working and helps patients exit the bed more independently.
The bed combines a 260 kg safe working load with a sliding backrest and Trendelenburg / anti-Trendelenburg adjustment. Twin-castor options support easy manoeuvring.
Key benefits
What makes ScanAfia XS different.
Supports ergonomic working
The wide 32–82 cm height adjustment range helps healthcare professionals position the bed at a practical working height.
Supports safer, easier bed access
The 32 cm minimum height supports patient self-sufficiency when exiting the bed.
Combines high load capacity with mobility
The bed has a 260 kg safe working load, with twin-castor options for manoeuvring.
Helps maintain patient position and comfort
The backrest sliding mechanism helps prevent the patient from slipping toward the foot end of the bed.
Provides flexible positioning
Backrest, Trendelenburg and anti-Trendelenburg adjustments are supported, with additional section adjustments in the 4-function configuration.
Key features
- Height adjustment range 32–82 cm
- Safe working load (SWL) 260 kg
- 2-function and 4-function configurations
- 80 cm and 90 cm width configurations
- Backrest adjustment 70°
- Thigh section adjustment 30° and calf section adjustment 11°
on the 4-function model - Trendelenburg 12° and anti-Trendelenburg 20°
- Backrest slide
- Manual emergency lowering of the backrest
- Ø125 mm central locking castors; Ø125 mm and Ø150 mm twin-castor options
Models / Configurations
ScanAfia XS with 2-function and 4-function configurations and 80 cm or 90 cm bed widths.
2-function configuration
- 2-part mattress platform (205 × 80/90 cm), with electrical height and backrest adjustment.
4-function configuration
- 4-part mattress platform (205 × 80/90 cm), with electrical height, backrest, thigh and calf section adjustment.
Technical specifications
| Specification | Value |
|---|---|
| Total width, incl. side rails | 89.5 or 99.5 cm |
| Total length | 215 cm |
| Height adjustment | Min. 32 cm – max. 82 cm, depending on castor size |
| Recommended mattress size | 205 x 78/88 x 13 cm |
| Total weight, without rails | 80 cm wide: 108 kg; 90 cm wide: 110 kg |
| Castors | Ø125 mm central locking; Ø125 mm and Ø150 mm twin castors available as options |
| Safe working load (SWL) | 260 kg |
| Electrical system | 24 V |
| Trendelenburg / anti-Trendelenburg | 12° / 20° |
| Backrest adjustment | 70° |
| Thigh section adjustment | 30° – 4-function model |
| Calf section adjustment | 11° – 4-function model |
| CE marking / MD | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Manufacturer | Lojer / Finland |
Options and accessories
Factory-installed option
- Battery backup
- 5th wheel
- Ø125/150 mm twin castors
- +15 cm extendable model
- Raised rails
- Chrome-plated side rails and bed ends
Accessories

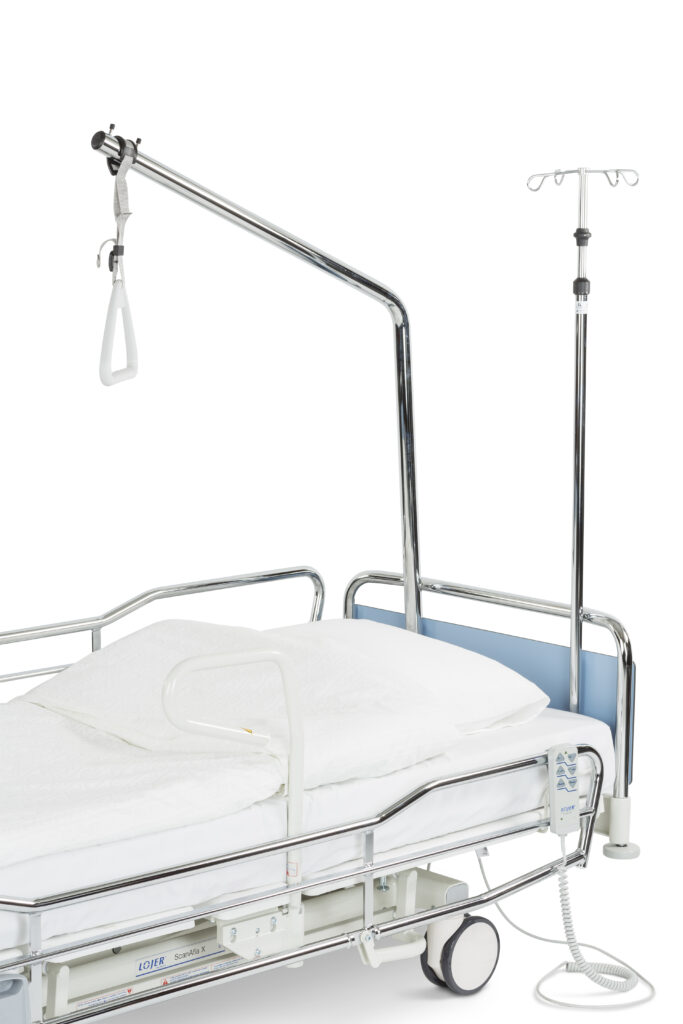

- Lifting pole
- Grab handle
- IV pole
- Foldable bed end
- Nurse control panel
- Electrical CPR function
- Urine bag holder

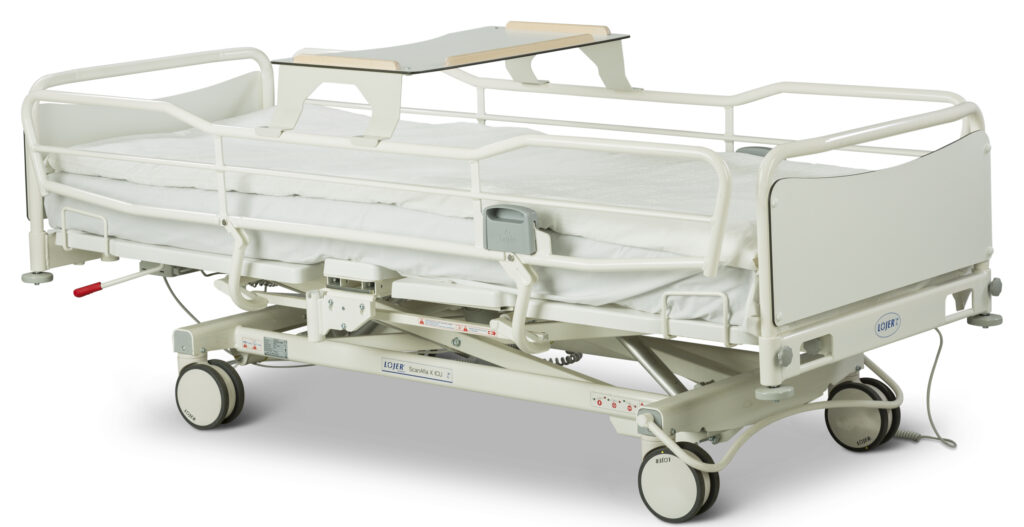

- Overbed dining table
- Headboard
- Monitor and writing stand
- Flexible hand control holder
- Oxygen cylinder holder
