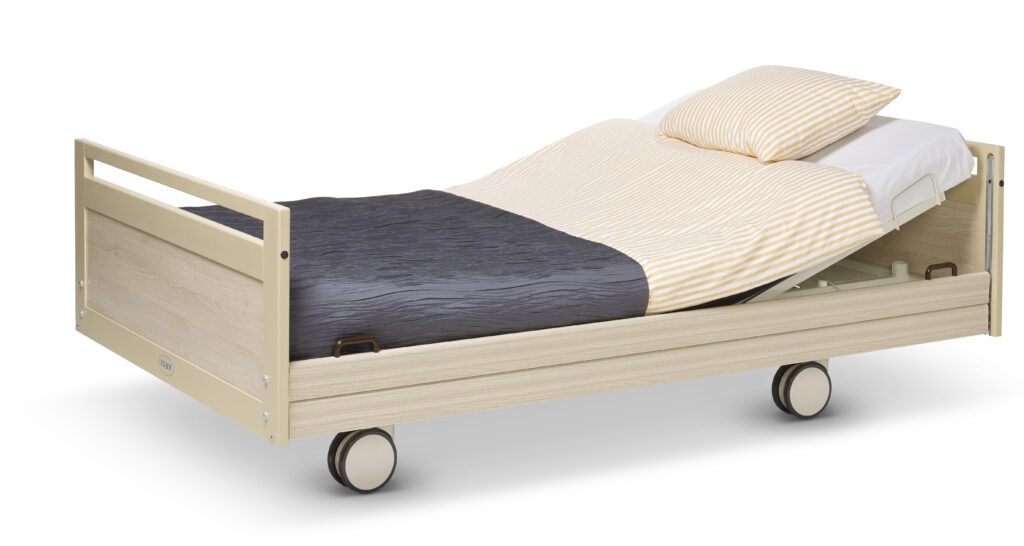

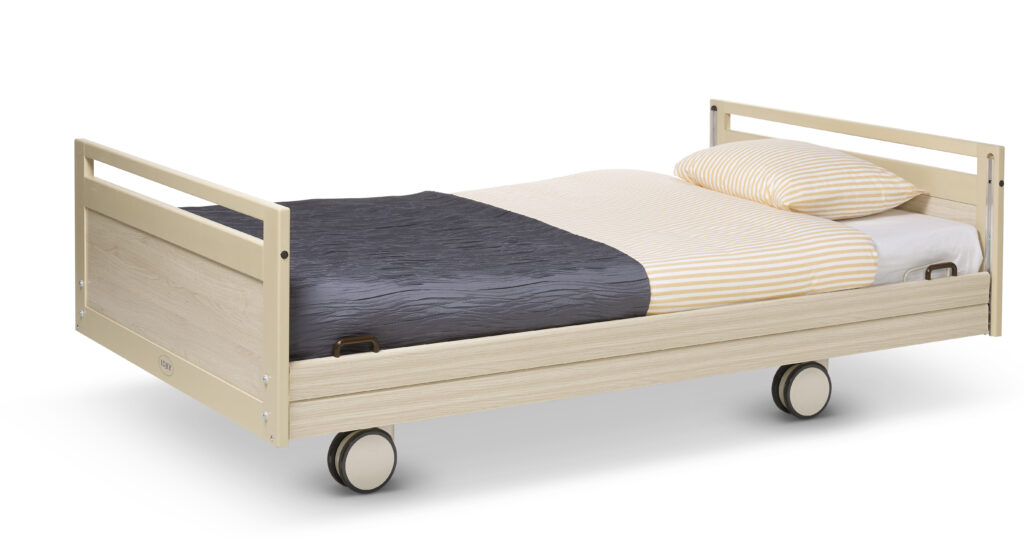

Lojer ScanAfia XL
Extra width and high load capacity with adjustable support for everyday care

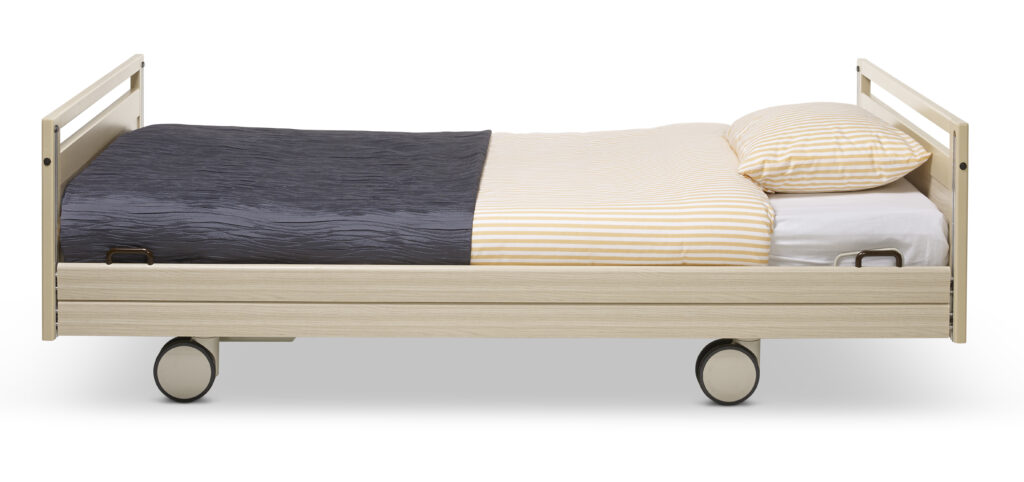

Lojer ScanAfia XL is a special-size nursing bed designed for larger and heavier patients. Its wide four-part bed section, 285 kg safe working load and broad height adjustment range support patient comfort, access and ergonomic care.

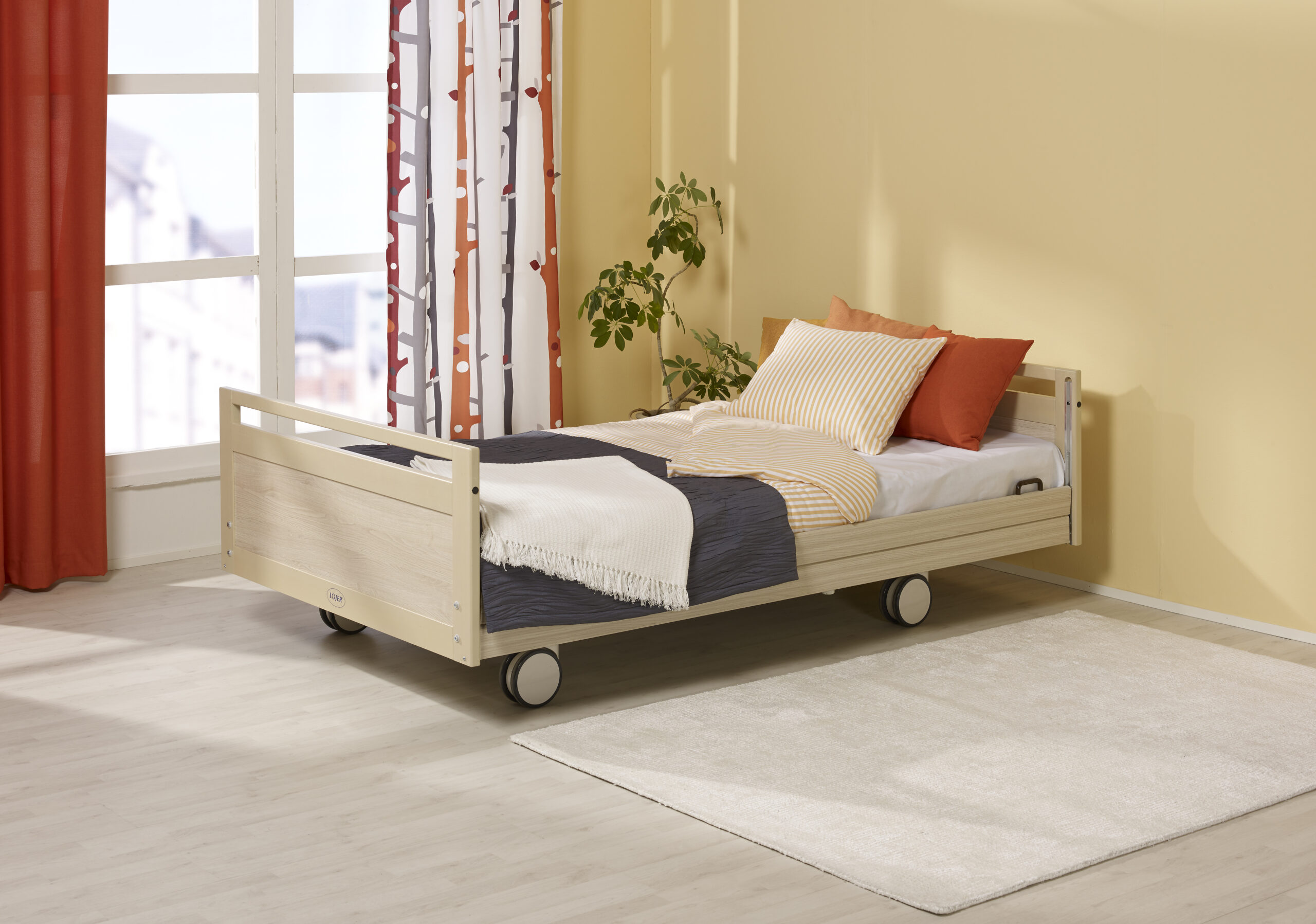

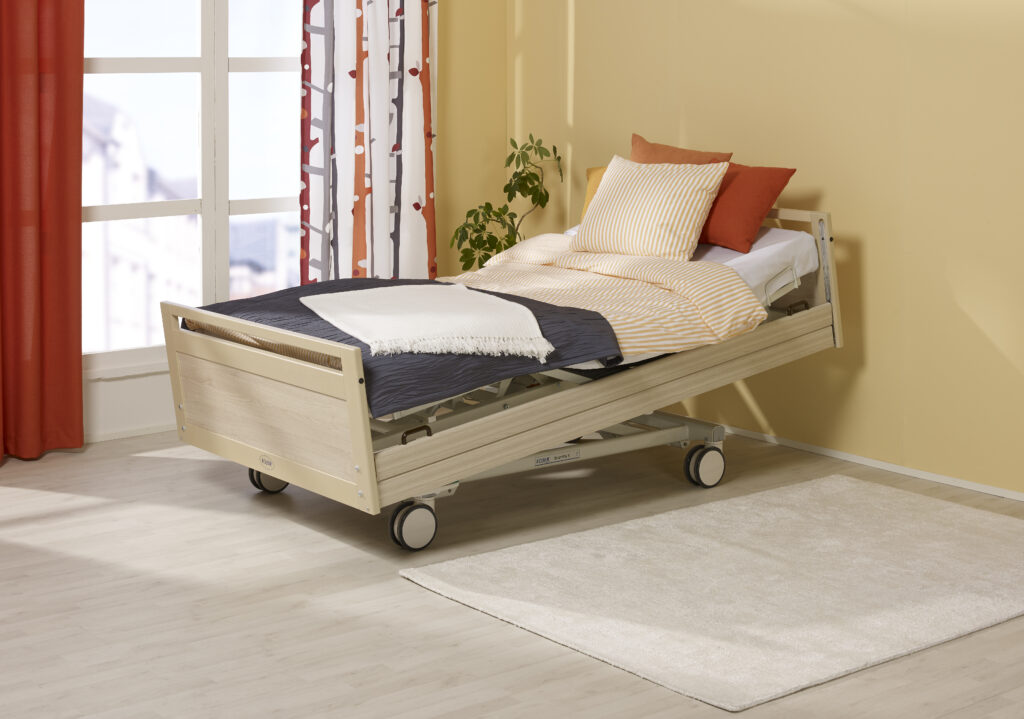

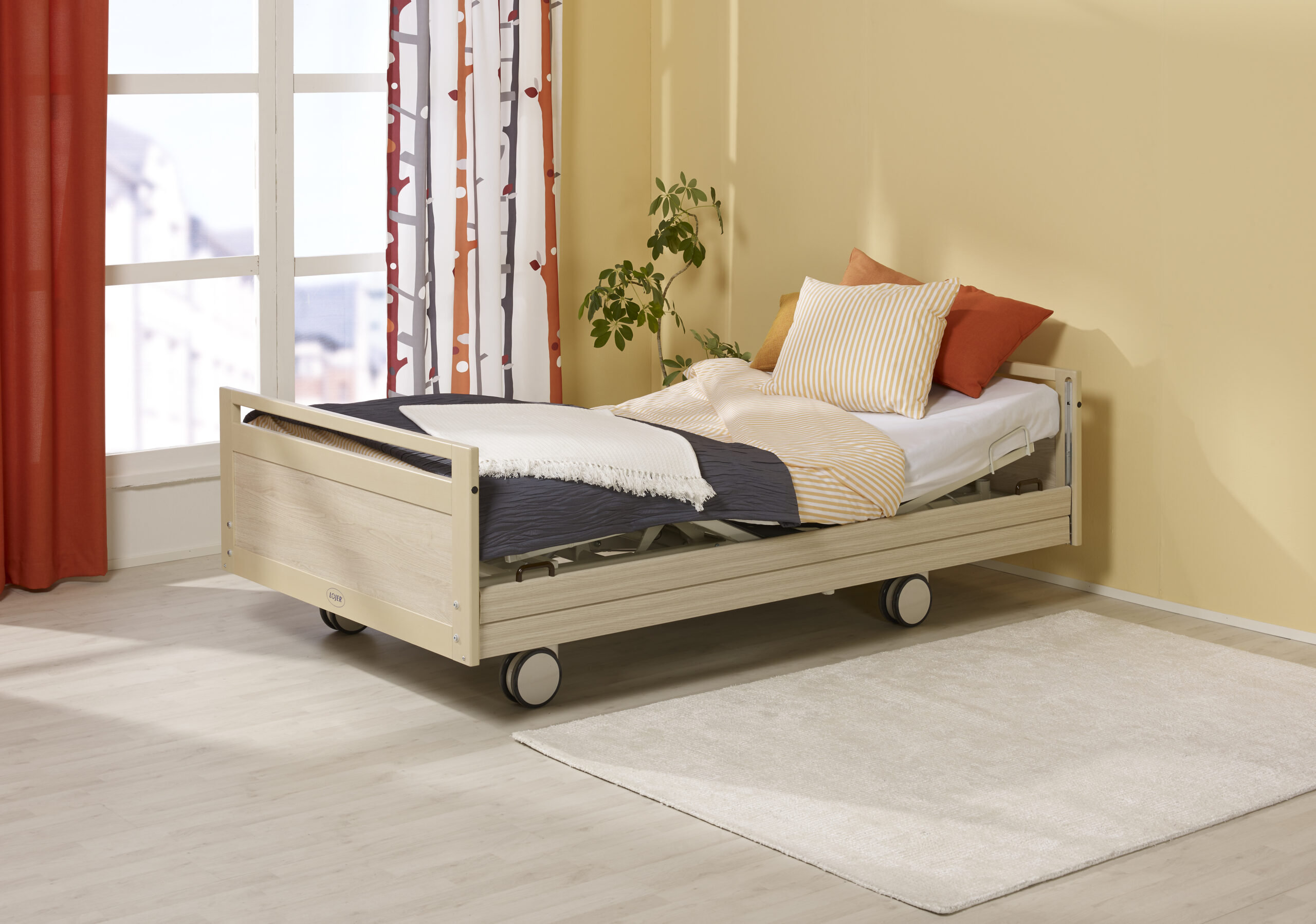

The bed is intended for home and home-like care and other nursing environments. Electric adjustment of height and the back, thigh and calf sections supports flexible positioning, while the sturdy construction and twin castors support everyday handling.
Key benefits
What makes ScanAfia XL different.
More space for the patient
The wide bed section provides additional room while maintaining a stable nursing-bed platform.
Supports heavier patients
A safe working load of 285 kg provides high load capacity for demanding care needs.
Better working height
The wide height adjustment range supports ergonomic working positions and patient self-sufficiency.
Flexible positioning

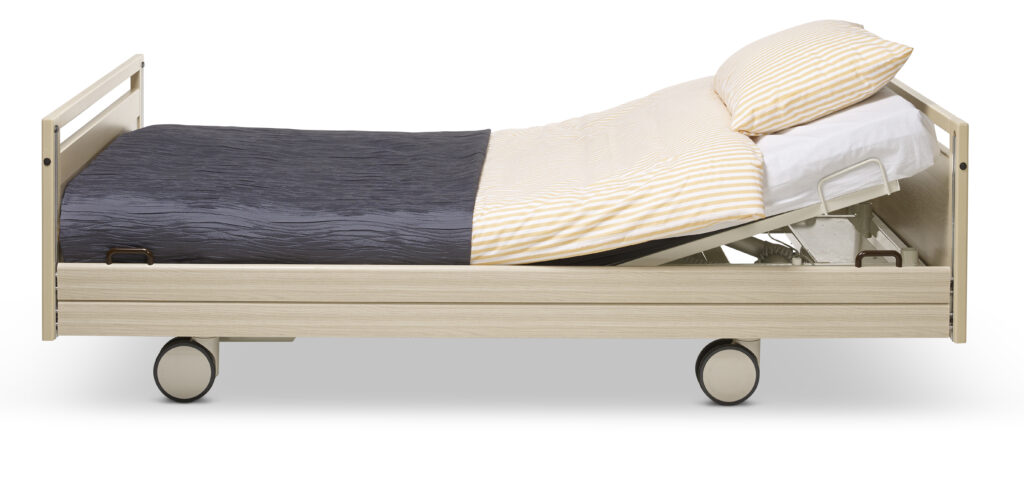

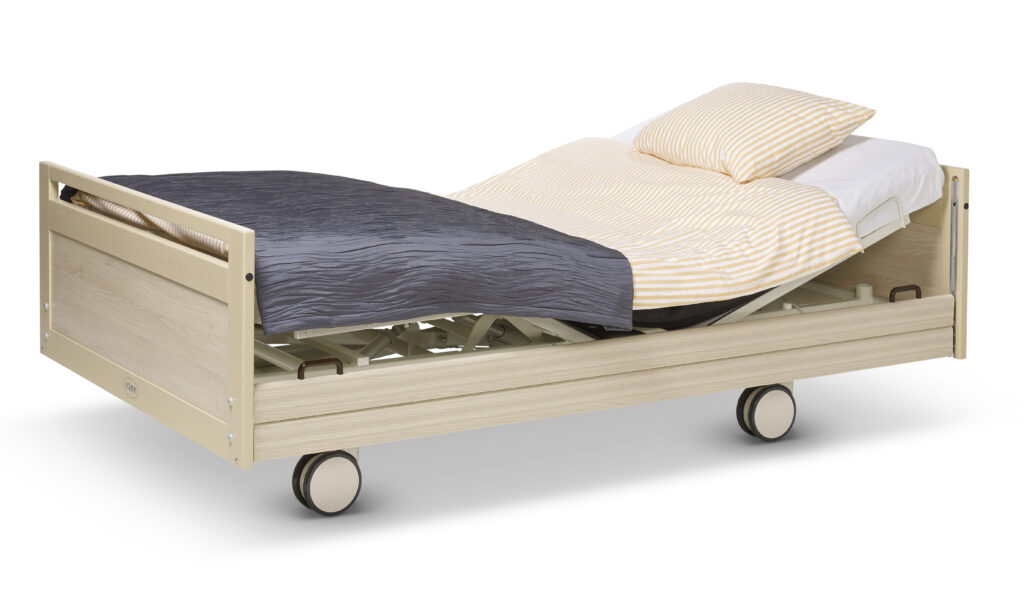

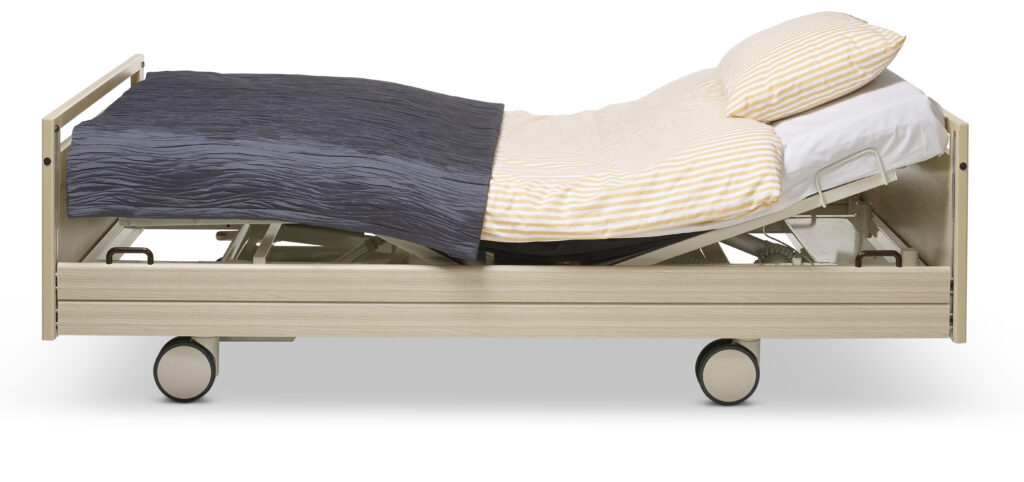

Electric adjustment of the height, back, thigh and calf sections supports day-to-day positioning needs.
Stable and mobile
Twin castors support maneuverability, while the bed is designed to remain sturdy when locked in position.
Key features
- Four-part bed section, 118 x 205 cm
- Electric adjustment of height, back section, thigh section and calf section with hand control
- Safe Working Load (SWL) 285 kg
- Maximum patient weight 250 kg
- Solid wood bed ends in white oak
- Double-locked wooden side rails with locking button
- Manual lowering of the back section

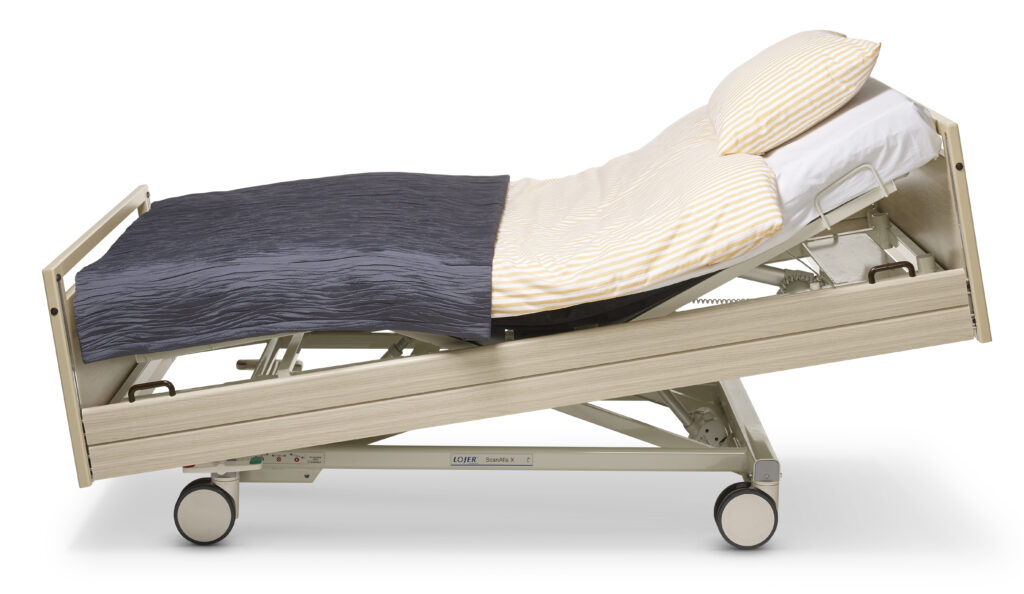

- Anti-Trendelenburg adjustment
- Integrated mounting points for lifting pole and IV pole
- 24V electrical system
- Twin castors for mobility
Models / Configurations
ScanAfia XL is presented as a single model built around the same wide, four-part nursing-bed platform
ScanAfia XL
- Four-part bed section: 118 x 205 cm
- Electric adjustment of height, back section, thigh section and calf section
- Hand-control operation
Technical specifications
| Specification | Value |
|---|---|
| Overall width with rails | 130 cm |
| Overall length | 217 cm |
| Bed section / patient surface | 118 x 205 cm |
| Height adjustment range | Min. 32 cm – max. 82 cm, depending on wheel size and configuration |
| Recommended mattress size | 205 x 118 x 13 cm |
| Total weight, including rails | 145 kg |
| Castors | Ø150 mm twin castors with directional castor |
| Safe Working Load (SWL) | 285 kg |
| Maximum patient weight | 250 kg |
| Electrical system | 24 V |
| Back section adjustment | 70° |
| Thigh section adjustment | 30° |
| Calf section adjustment | 11° |
| Anti-Trendelenburg adjustment | 20° |
| CE marked | Yes |
| Manufacturer | Lojer / Finland |
Options and accessories
Factory-installed option
- Battery back-up
- Ø125 mm twin castors
- Set of bumper
Accessories
- Lifting pole with triangle handle
- Lift support
- IV pole with one hand quick adjustment
- Reading light
- Raised side rail
- Padded side rail cover
- Urine bag holder
- Locking panel (allows functions to be locked to prevent patient use),
- Flexible hand controller holder
