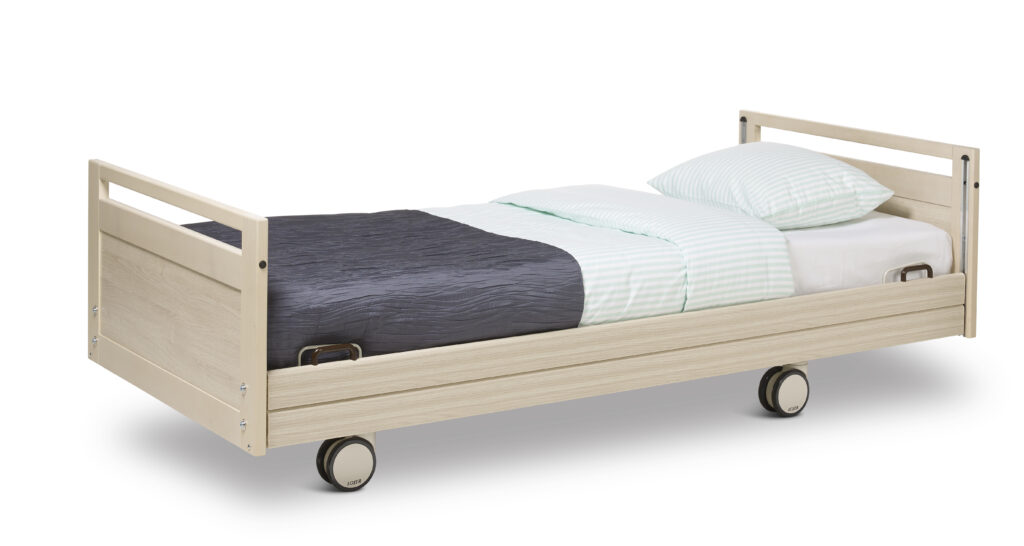

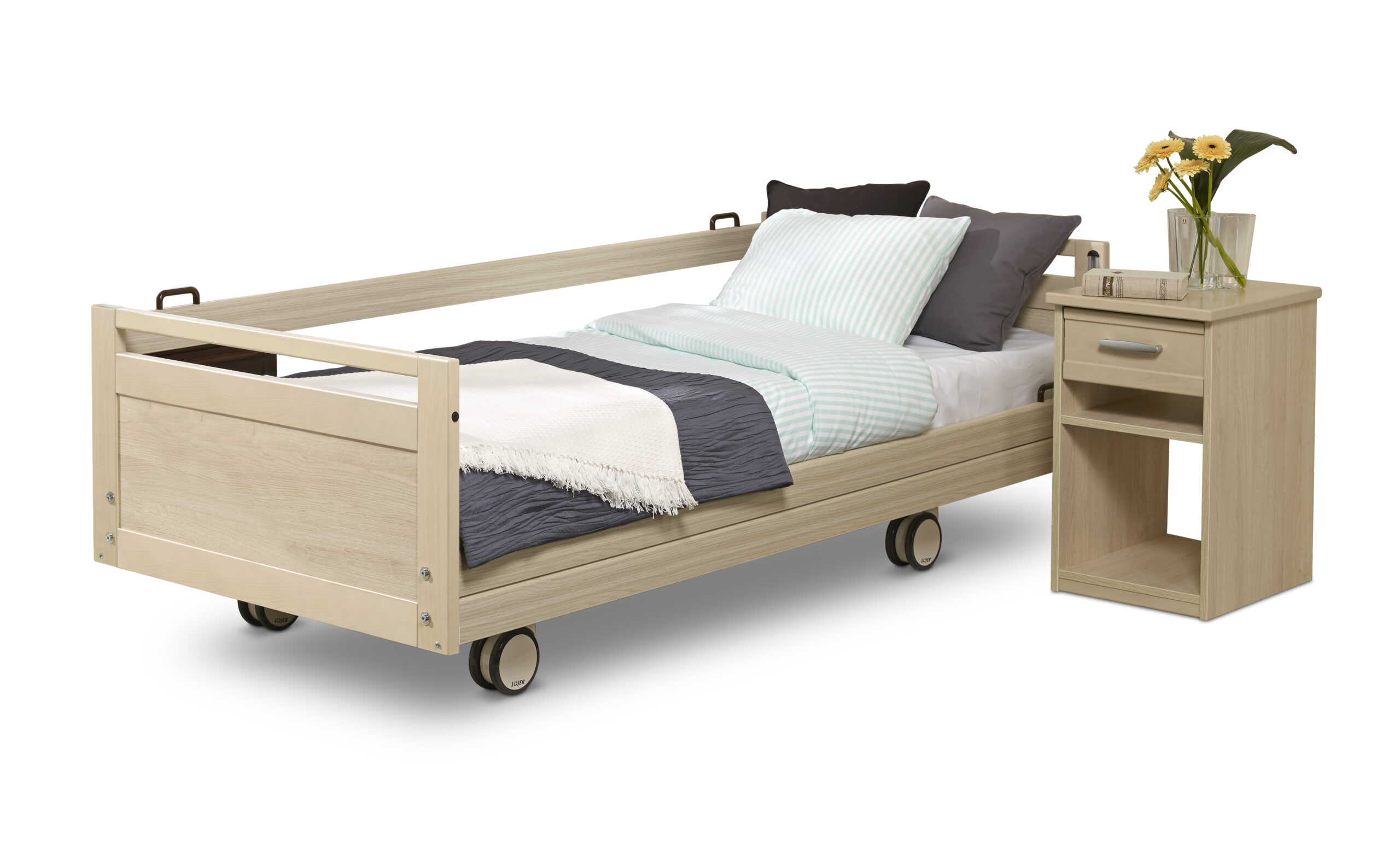

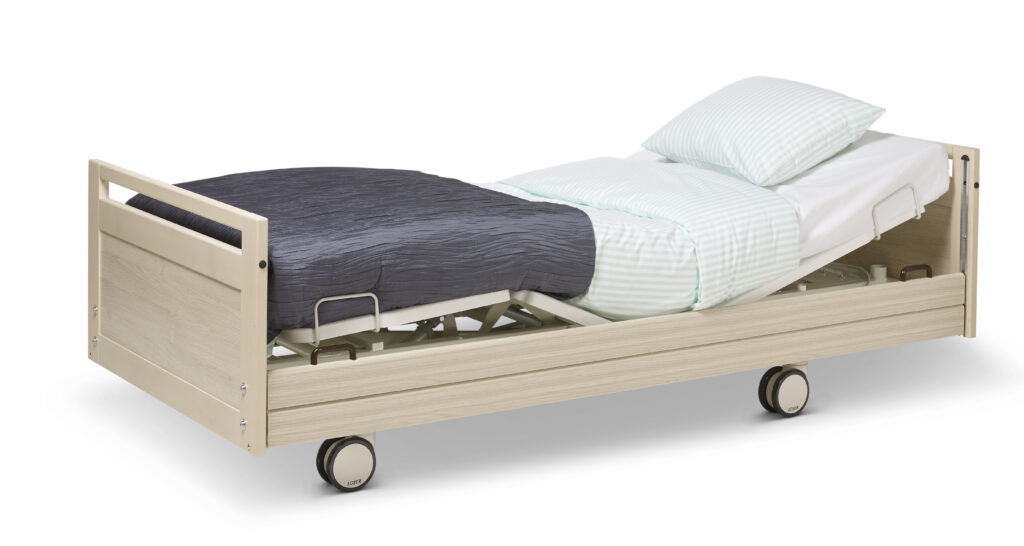

Lojer ScanAfia XHS Nursing Bed
Safe, comfortable care with a low working height and high load capacity
The Lojer ScanAfia XHS Nursing Bed combines a low minimum height, a 260 kg safe working load and a broad height adjustment range to support patient safety, comfort and day-to-day care. It is designed for professional care environments where reliable operation, ease of use and a considered appearance are important.
A sliding back section helps reduce downward movement as the backrest is raised. Centrally lockable castors support manoeuvrability, while the removable mattress platform is designed for easy cleaning and disinfection.
Key benefits
What makes ScanAfia XHS different.
Supports safer patient access

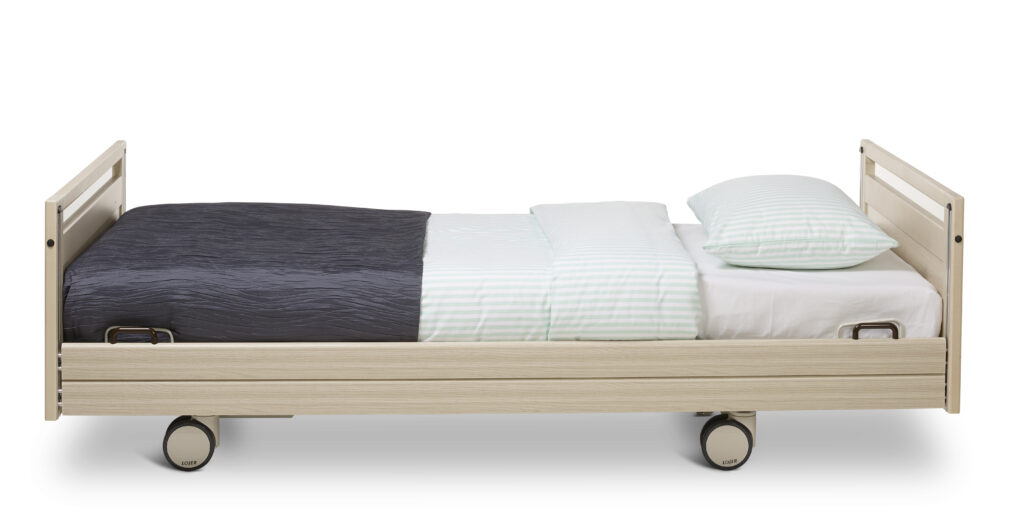

The low minimum height of 32 cm supports patient self-reliance and safer entry to and exit from the bed.
Designed for ergonomic care
Height adjustment from 32 to 82 cm helps healthcare professionals work at a suitable level.
Comfort through positioning

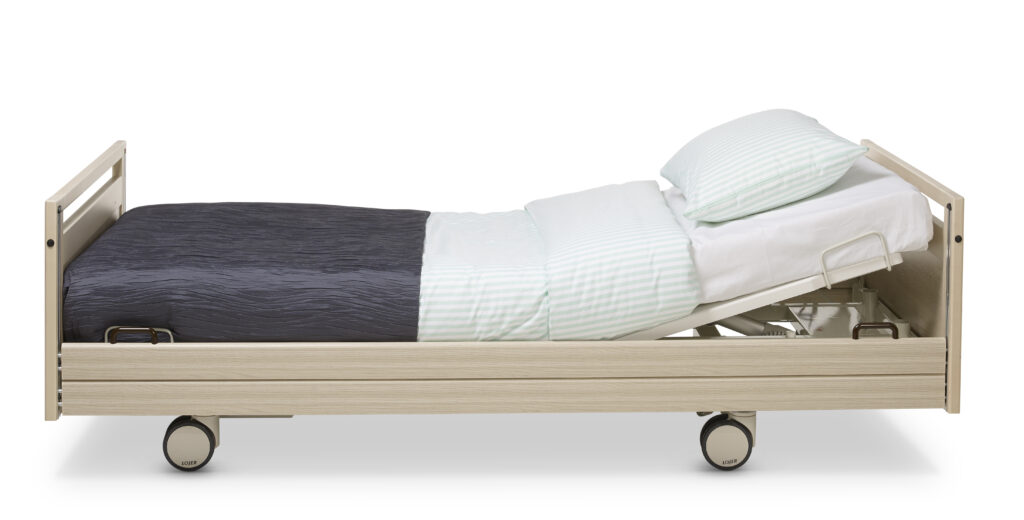

The sliding back section helps prevent the patient from slipping towards the foot end as the backrest is raised.
Easy to move and secure
Centrally lockable castors with directional locking support controlled manoeuvring and positioning.
Built for demanding use
A safe working load of 260 kg and a removable mattress platform support everyday professional use and cleaning.
Key features
- 260 kg safe working load (SWL)
- Height adjustment range 32-82 cm, depending on castor size and type
- Patient surface 205 x 80/90 cm

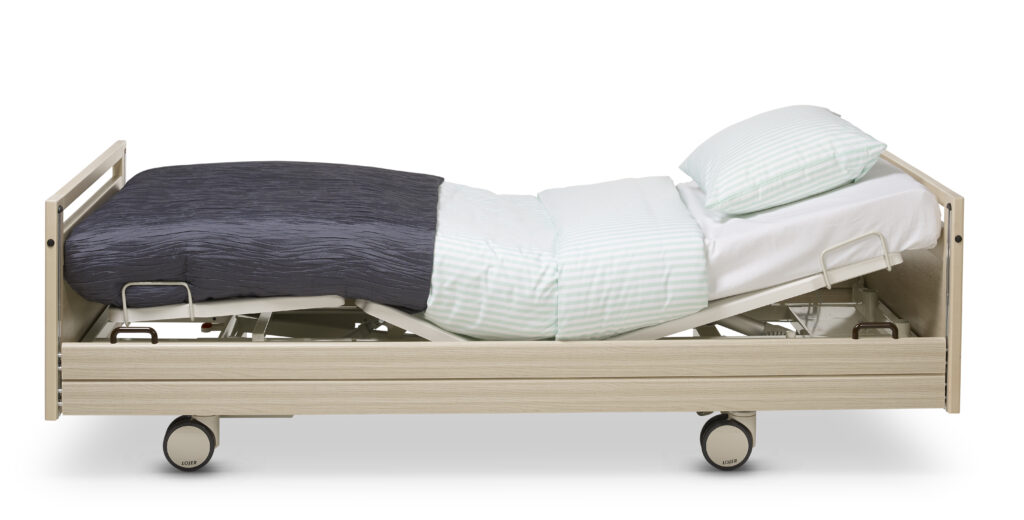

- Electrical height and back section adjustment; 4-part versions also include electrical thigh and calf section adjustment
- Back section adjustment to 70°
- Back section sliding mechanism
- Quick release (CPR) for the back section
- Central locking Ø125 mm castors with directional wheel as standard

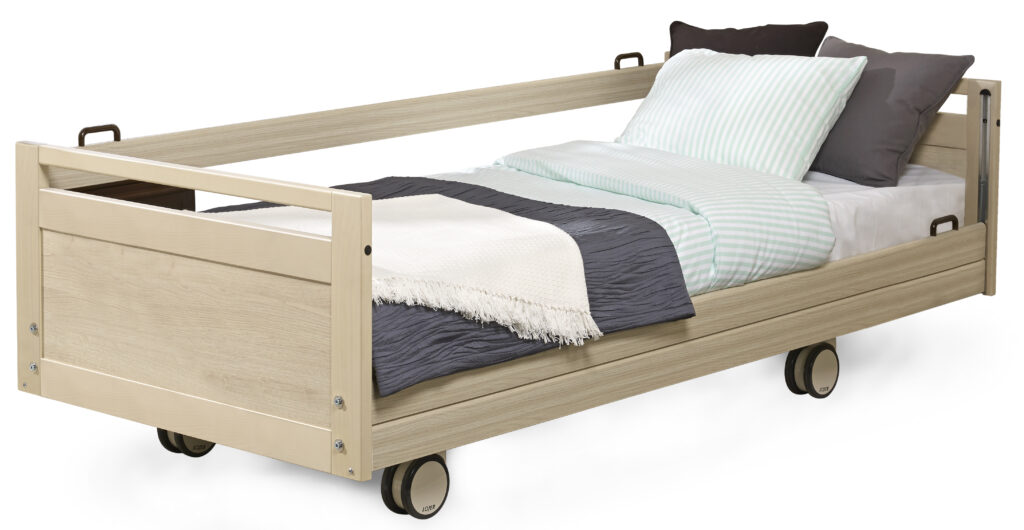

- Double-locking wooden side rails with locking button
- Removable mattress platform
- Fixing points for lifting pole, IV poles and restraining straps
- Vertical raising motion
- Hand control
- Solid wood bed ends
Models / Configurations
All ScanAfia XHS models share the same nursing-bed platform and are offered with 80/90 cm patient surface widths. The approved source groups the range as follows:
ScanAfia XHS 280/290
- 2-part bed section (205 x 80/90 cm)
- Electrical height adjustment
- Electrical back section adjustment
ScanAfia XHS 480/490
- 4-part bed section (205 x 80/90 cm)
- Electrical height adjustment
- Electrical back section adjustment
- Electrical thigh section adjustment
- Electrical calf section adjustment
Technical specifications
MODEL-SPECIFIC CONFIGURATION
| Specification | XHS 280/290 | XHS 480/490 |
|---|---|---|
| Bed section | 2-part | 4-part |
| Patient surface | 205 x 80/90 cm | 205 x 80/90 cm |
| Electrical adjustment | Height; back section | Height; back; thigh; calf sections |
SHARED TECHNICAL SPECIFICATIONS
| Specification | Value |
|---|---|
| Total width with side rails | 92 cm / 102 cm |
| Total length | 217 cm |
| Long model – total length | 227 cm |
| Total weight | 130-132 kg |
| Height adjustment range | Min. 32 cm – max. 82 cm (depending on castor size and type) |
| Recommended mattress size | 78-80 cm or 88-90 cm x 205 cm x 9-13 cm |
| Safe Working Load (SWL) | 260 kg |
| Castors | Central locking Ø125 mm with directional wheel |
| Back section adjustment | 70° |
| Thigh section adjustment | 30° (4-part bed) |
| Calf section adjustment | 11° (4-part bed) |
| Anti-Trendelenburg | 20° (optional 4-part bed) |
| Electrical system | 24 V |
| CE marked | Yes |
| Manufacturer | Lojer / Finland |
Options and accessories
Factory-installed option
- Twin castors Ø125 mm
- Twin castors Ø150 mm
- Anti-Trendelenburg
- Battery back-up
- Set of bumper rollers
- Extendable model (215 cm)
- Bed end options
- Locking panel (allows functions to be locked to prevent patient use), includes hand control
Accessories
- Lifting pole with triangle handle
- Lift support
- IV pole with one-hand quick adjustment
- Reading light
- Raised side rail
- Padded side rail cover
- Urine bag holder
- Reading and dining tray on top of side rails
- Flexible hand control holder
