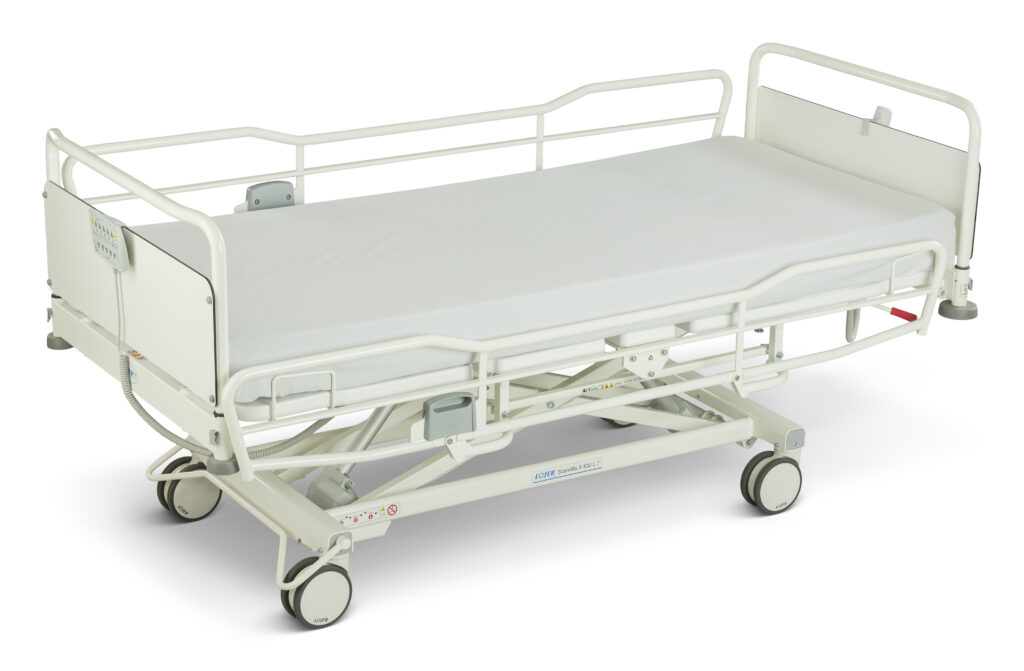

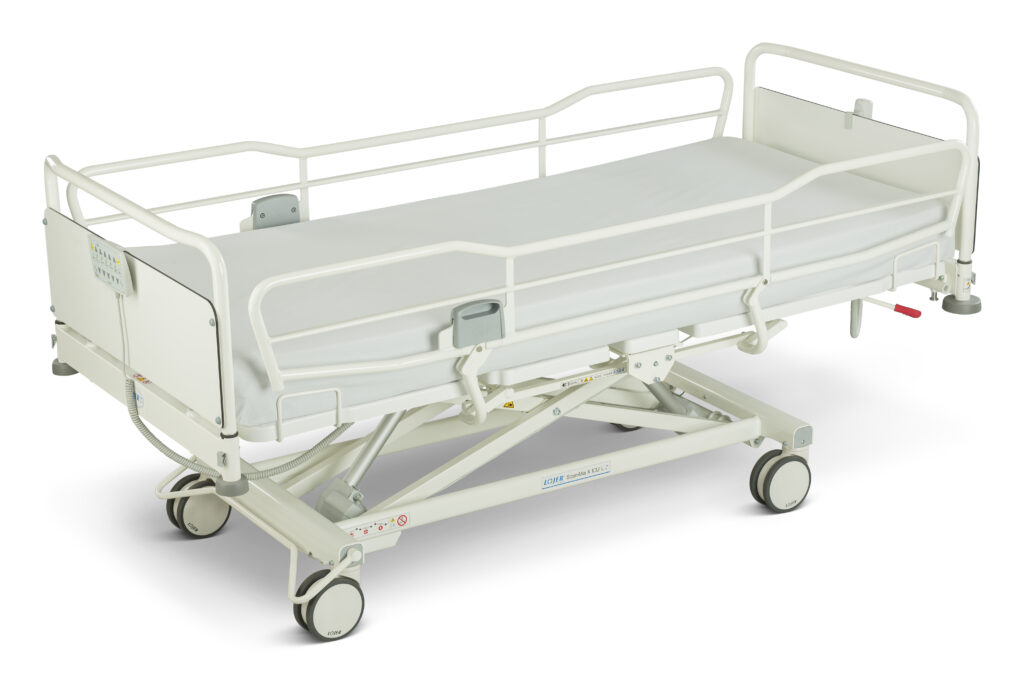

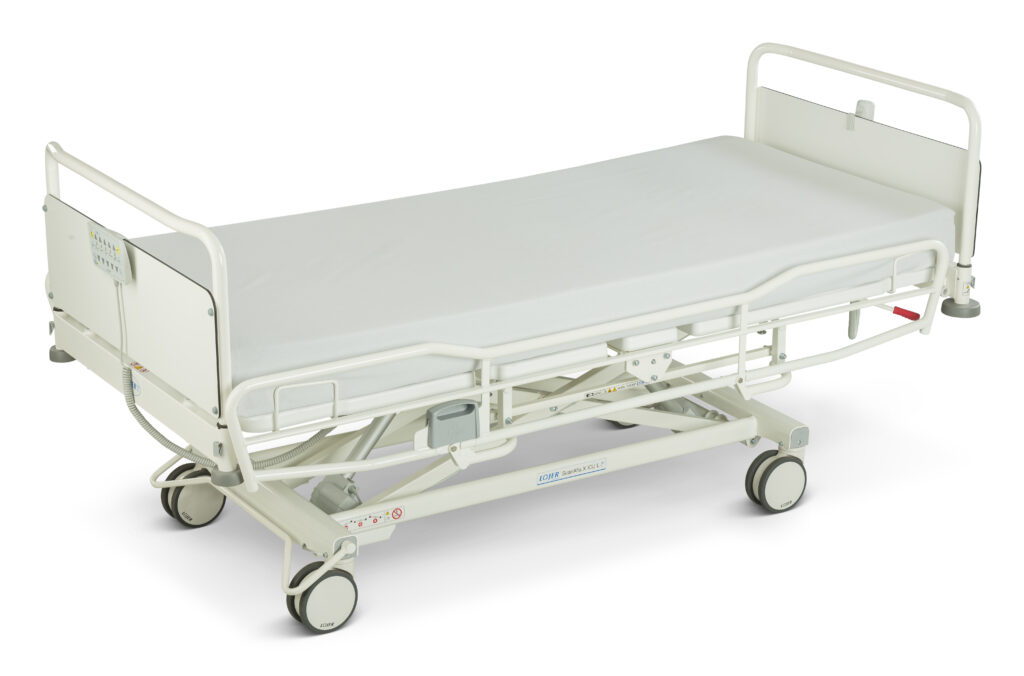

Lojer ScanAfia X ICU L Hospital Bed
High-capacity hospital bed for demanding wards
The ScanAfia X ICU L is a four-function hospital bed designed for long-term use in a hospital environment and suitable for a wide variety of wards. It carries a safe working load of 340 kg, and the standard Ø 150 mm twin castors keep it effortless to move despite that capacity.
The height adjustment range of 34–84 cm improves ergonomics for staff and supports the patient’s ability to get in and out of bed independently. The nurse control panel is supplied as standard: it secures the bed’s functions against use by the patient and gives access to the Trendelenburg, CPR and cardiac positions. A sliding mechanism in the backrest keeps the patient from slipping towards the foot end, quick-release locks at the head and foot allow the bed ends to be detached rapidly in an emergency, and the mattress platform extension is integrated into the bed.
Key benefits
What makes ScanAfia X ICU L different.
340 kg safe working load, still easy to move
A very broad patient population on the standard bed, with Ø 150 mm twin castors and a directional wheel for transport.

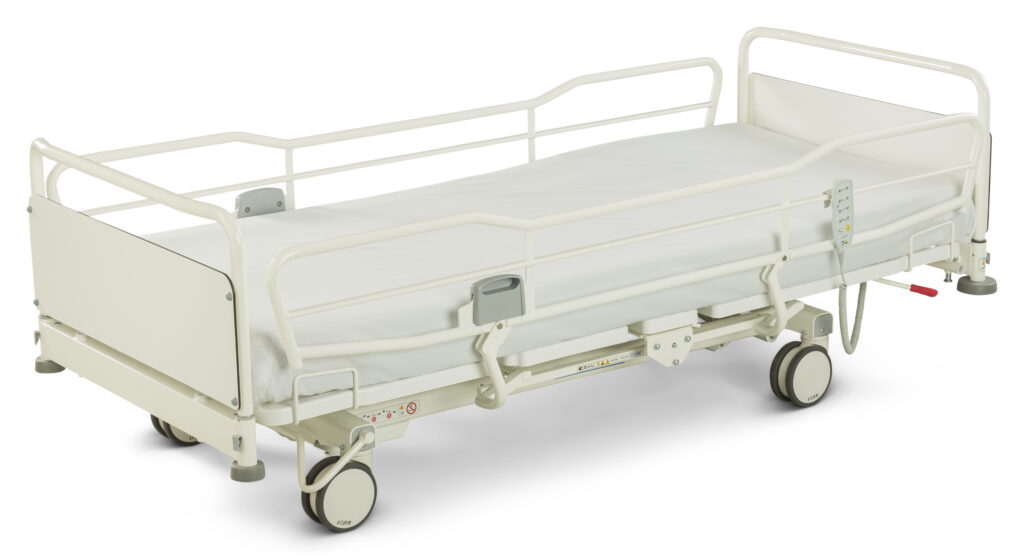

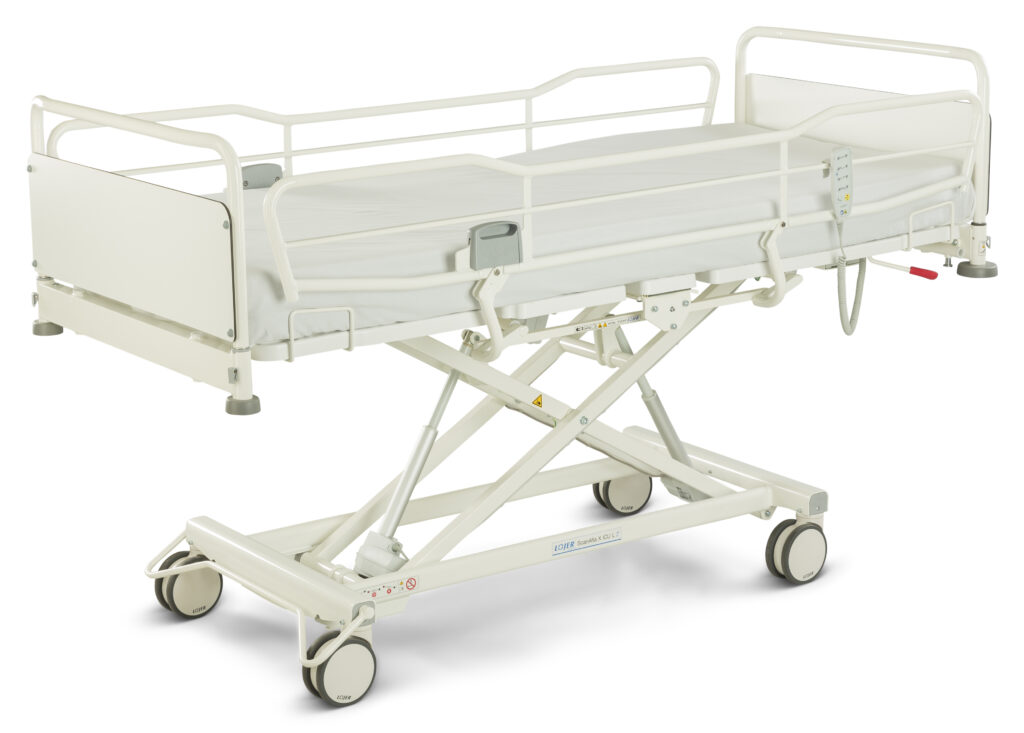

Height range 34–84 cm
A low access height for the patient and a working height set by the nurse.
Nurse control panel as standard
The bed’s functions can be secured against use by the patient, and specialised positions are available from one panel.
Ready for an emergency
Electrical CPR function, cardiac position, manual emergency lowering of the backrest, and quick-release locks at both bed ends.
Integrated mattress platform extension
The bed extends for taller patients without separate parts to fit or store.
Key features
- Four powered functions
- Height adjustment 34–84 cm

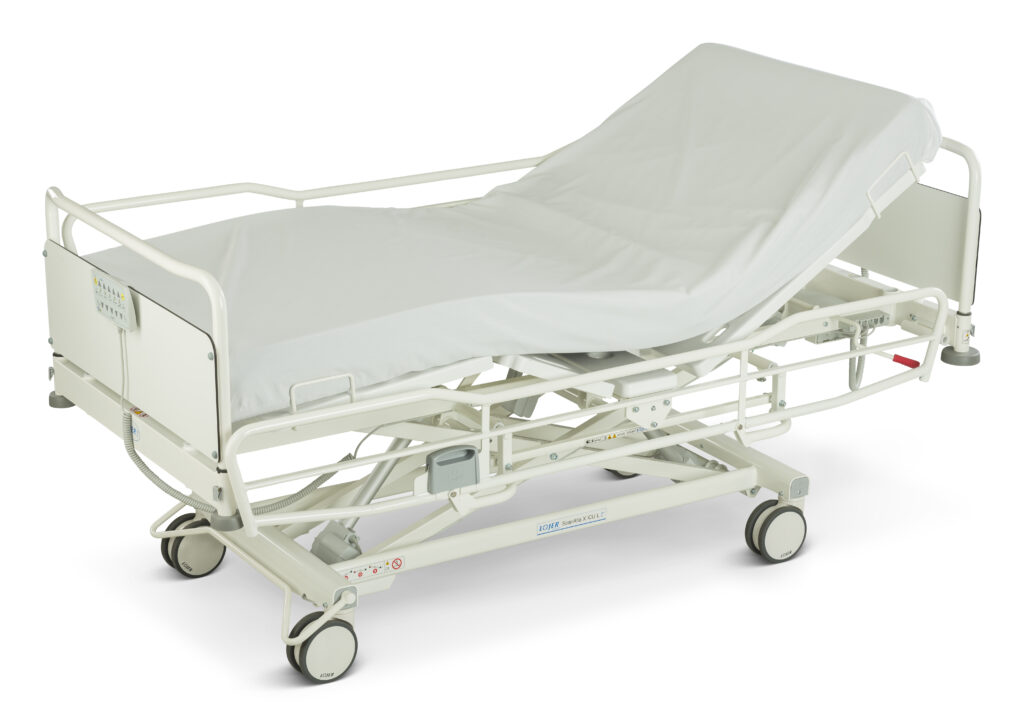

- Backrest 70°, thigh section 30°, calf section 18°

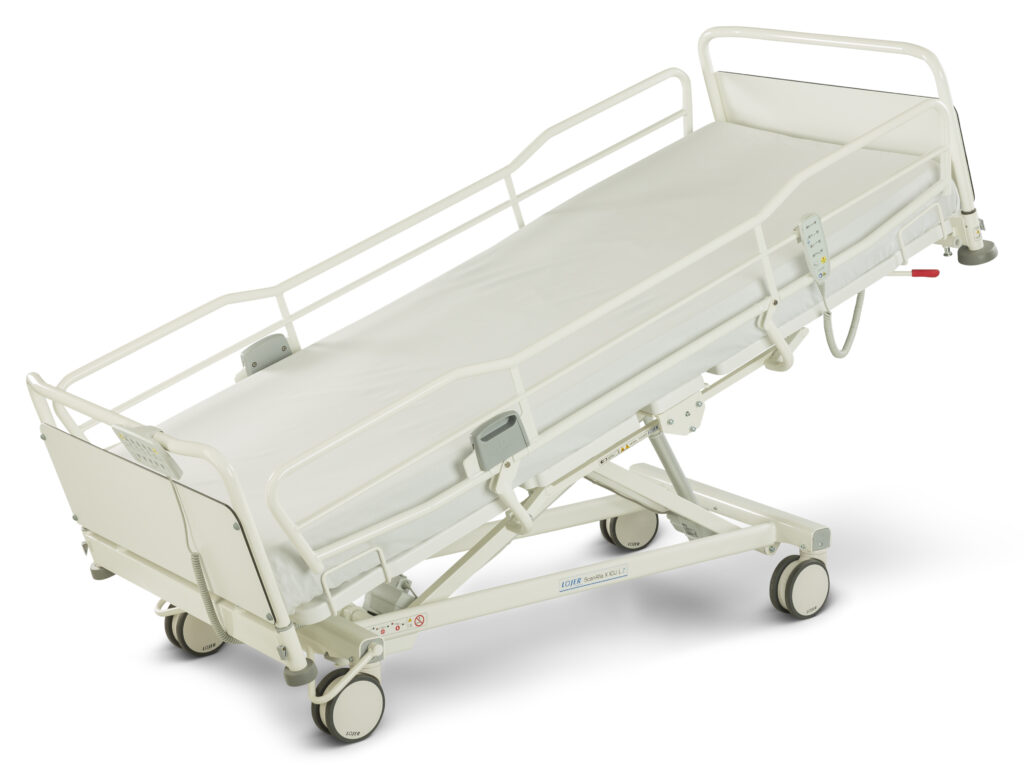

- Trendelenburg 20° and anti-Trendelenburg 20°
- Integrated mattress platform extension
- Backrest slide
- Nurse control panel and hand control, both standard
- Electrical CPR function and cardiac position
- Manual emergency lowering of the backrest
- Quick-release locks at the head and foot for rapid detachment of the bed ends
- Battery backup
- Ø 150 mm central locking twin castors with directional wheel
- Safe working load 340 kg
- Removable bed ends in white, blue, yellow or light green

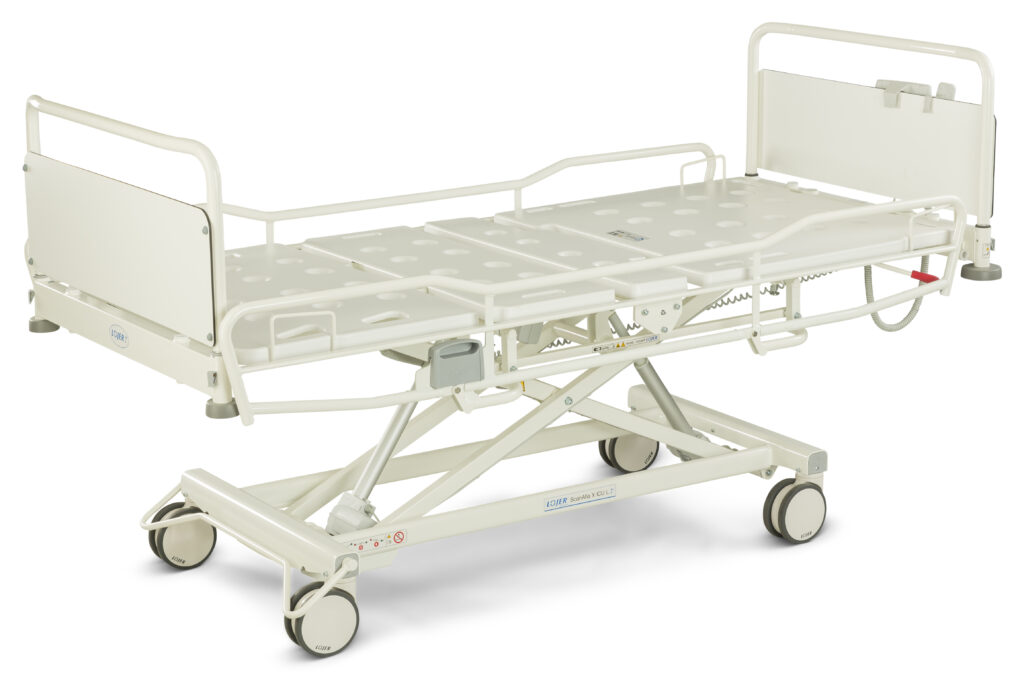

- Side rails, several options available
- Fixing hooks for supporting belts and roller bumpers
Models / Configurations
The ScanAfia X ICU L is one bed platform. The configuration is chosen at order.
- Patient surface width: 80 cm or 90 cm; total width with side rails 89.5 cm or 99.5 cm, and bed weight without rails 115 kg or 117 kg.
- Length: total length 217 cm, extending to 245 cm; patient surface 205 cm, extending to 225 cm.
- Machine-washable version: available with a wash cycle counter for facilities that put beds through a washing process.
Technical specifications
| Specification | Value |
|---|---|
| Total width with side rails | 89.5 cm / 99.5 cm |
| Patient surface width | 80 cm / 90 cm |
| Total length | 217 cm (extended 245 cm) |
| Patient surface length | 205 cm (extended 225 cm) |
| Height adjustment | 34–84 cm |
| Recommended mattress size | 78 / 88 × 205 × 13 cm |
| Total weight (without rails) | 80 cm surface: 115 kg; 90 cm surface: 117 kg |
| Castors | Ø 150 mm central locking twin castors with directional wheel |
| Safe working load (SWL) | 340 kg |
| Electrical system | 24 V |
| Backrest adjustment | 70° |
| Thigh section adjustment | 30° |
| Calf section adjustment | 18° |
| Trendelenburg / anti-Trendelenburg | 20° / 20° |
| Removable bed ends | White, blue, yellow and light green |
| Side rails | Different options available |
| Other standard features | Battery backup; hand control; nurse control panel; backrest slide; electrical CPR function; manual emergency lowering of the backrest; fixing hooks for supporting belts; roller bumpers |
| Standards | IEC 60601-2-52, IEC 60601-1-2 (EMC), SFS-EN 60601-1 |
| CE marking / MD | CE-marked medical device according to MDR 2017/745 class 1 |
| Warranty | 2 years |
| Manufacturer | Lojer / Finland |
Options and accessories
Factory-installed option
- 5th wheel for easier manoeuvring
- Various castor sizes available
- Wash cycle counter
- Lead-acid or lithium-ion battery
- Chrome-plated side rails and bed ends
- Raised rails
Accessories
- Hand control holder
- Grab handle
- Headboard

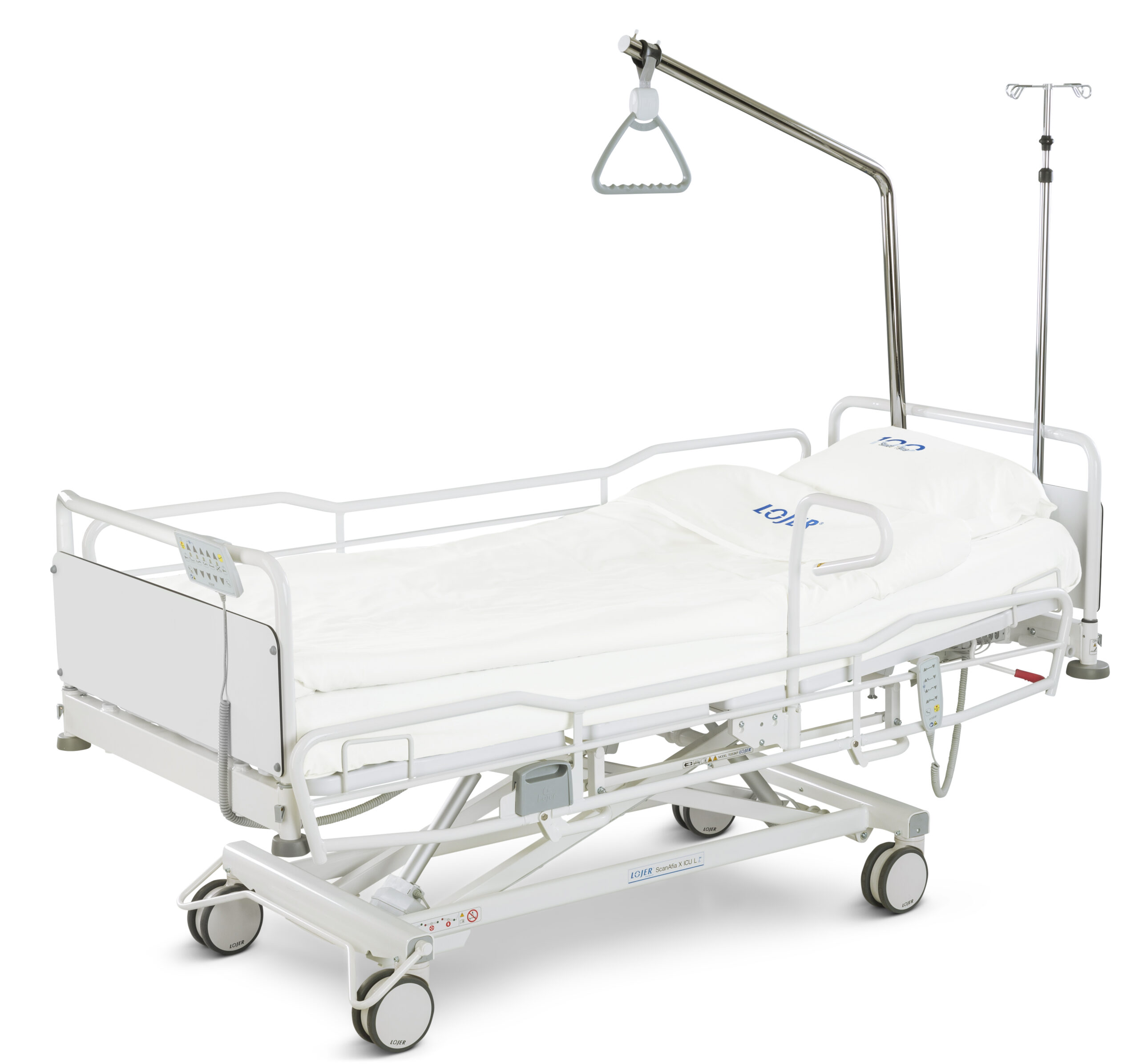

- IV pole
- Lifting pole
- Overbed dining table
- Monitor and writing stand
- Urine bag holder
- Oxygen cylinder holder
- Accessory rail
