Lojer Modux Folding Care Bed
Flexible care bed that folds compactly for transport and storage
Modux is a patented, electrically folding care bed for care environments where compact transport, storage and straightforward setup are important. It folds and unfolds using electric motors at the press of a button, without tools.

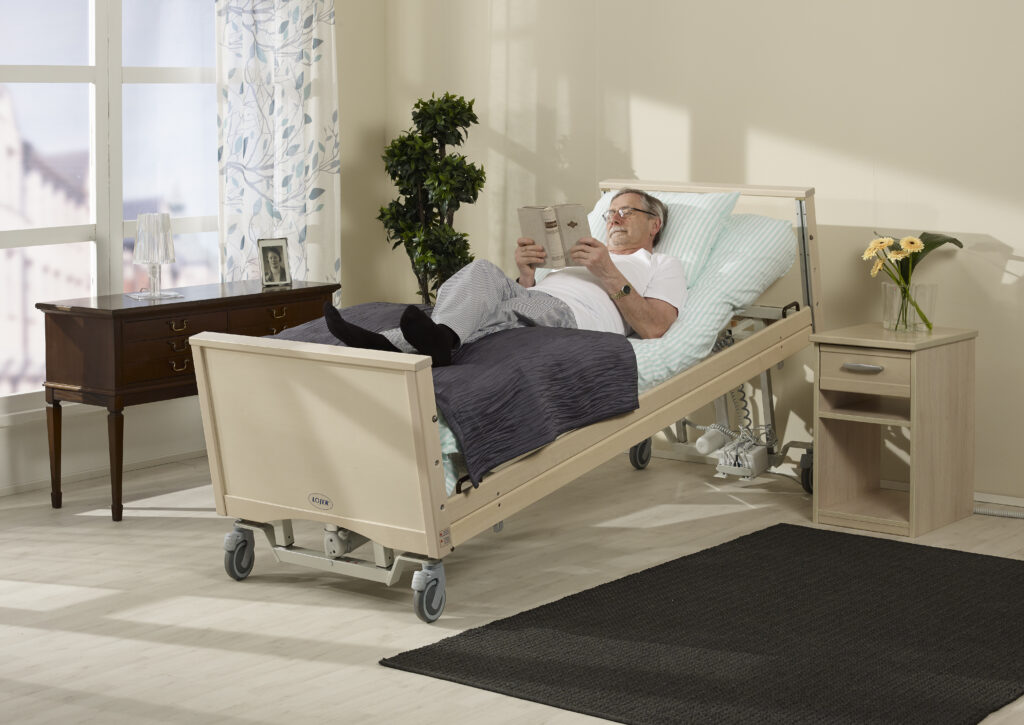

The bed combines a low height, four-section adjustment and a compact folded footprint with standard care-bed functions. It supports patient comfort and ergonomic working for care staff in home care, nursing homes and other care settings.
Key benefits
What makes Modux different.
Quick to set up

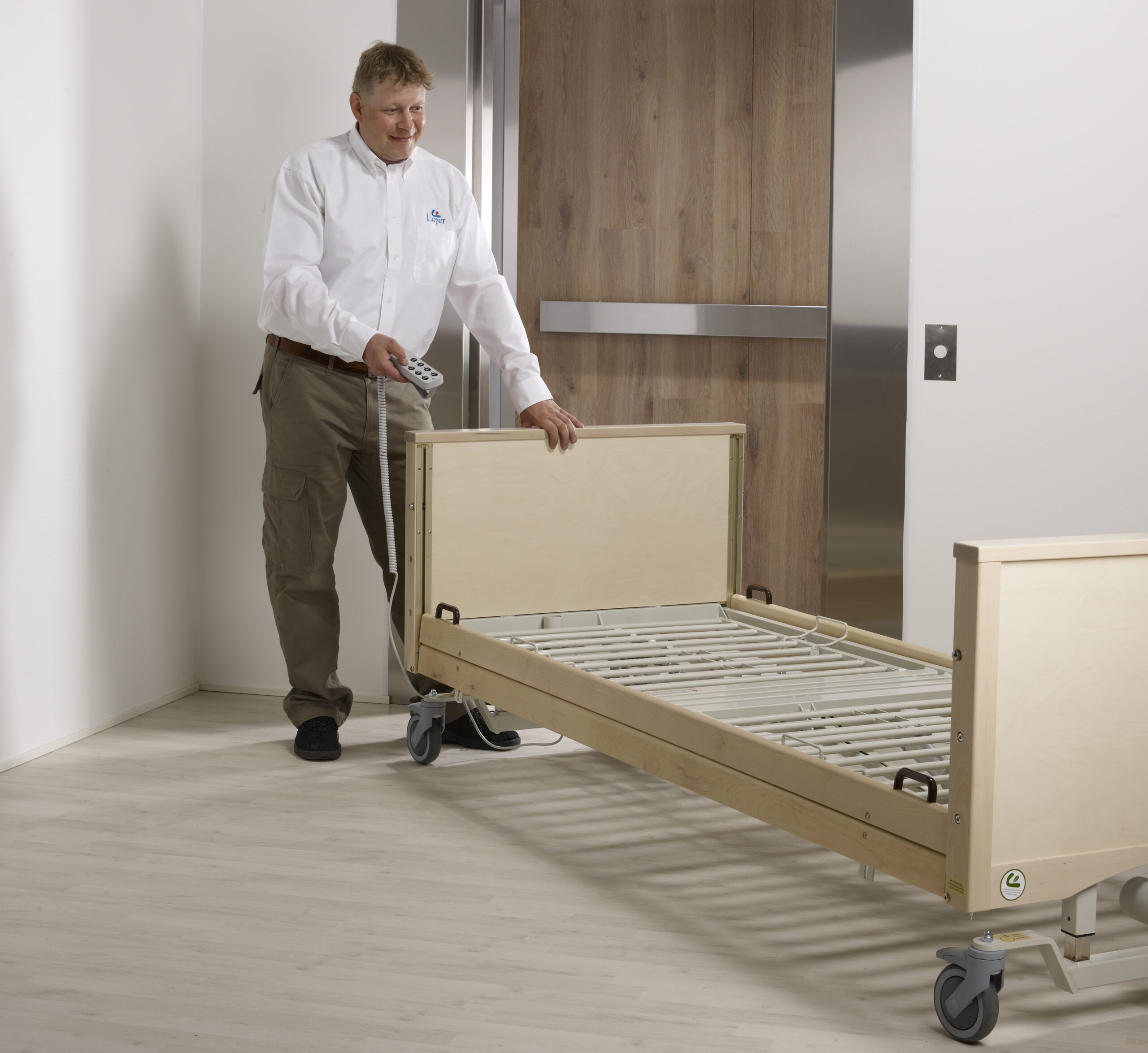

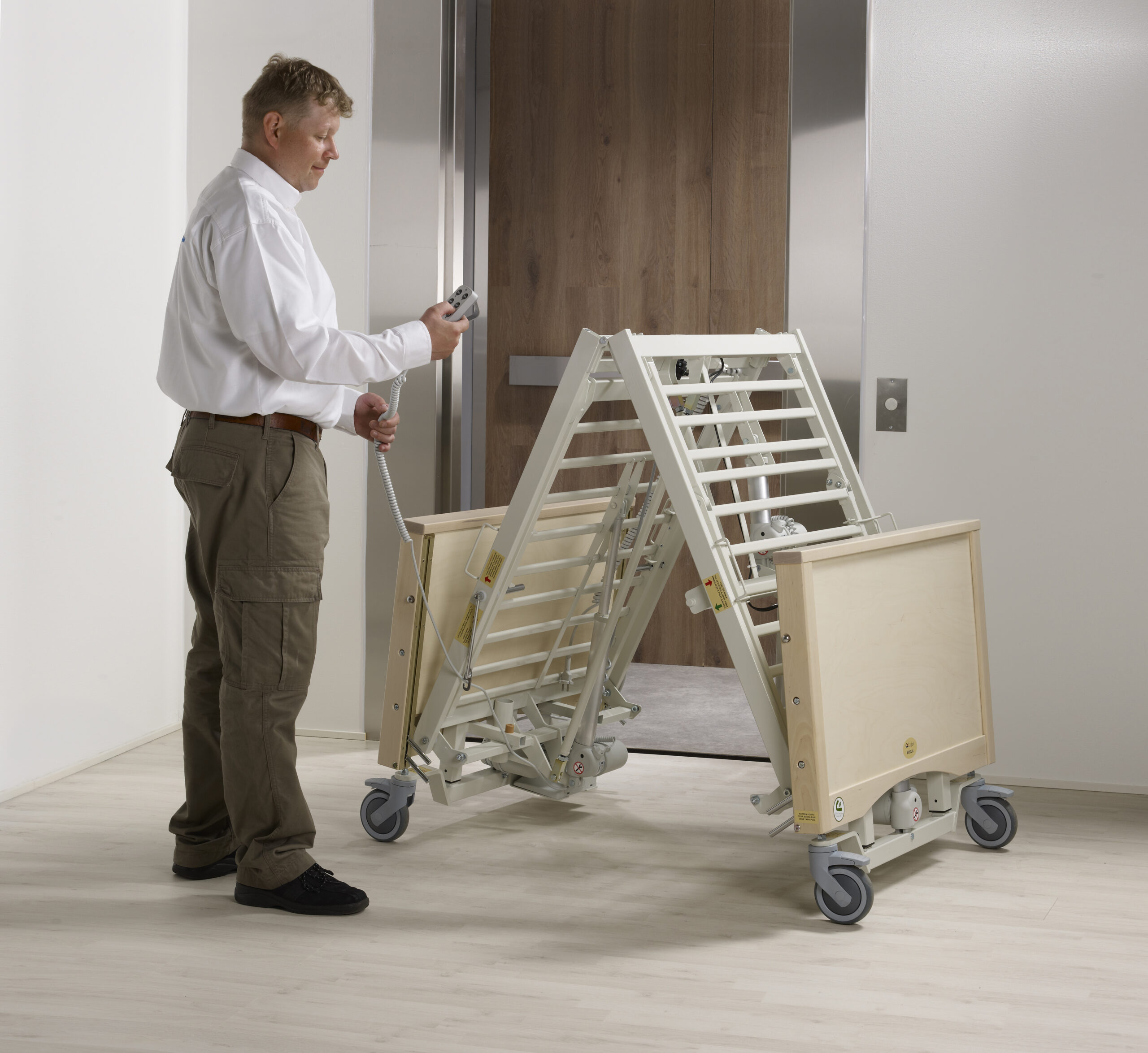

Motorised folding allows the bed to be opened or folded at the press of a button, without tools.

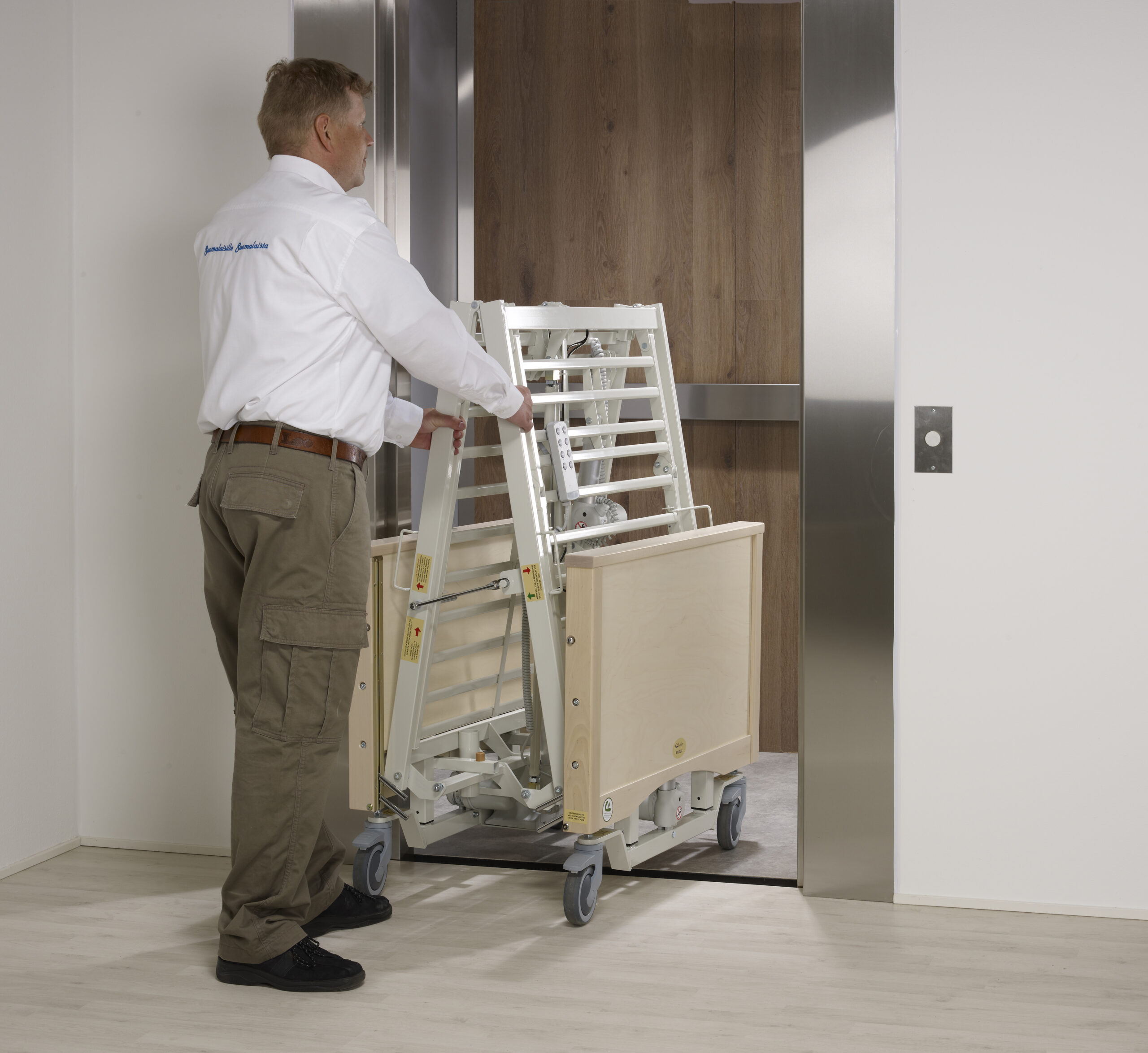

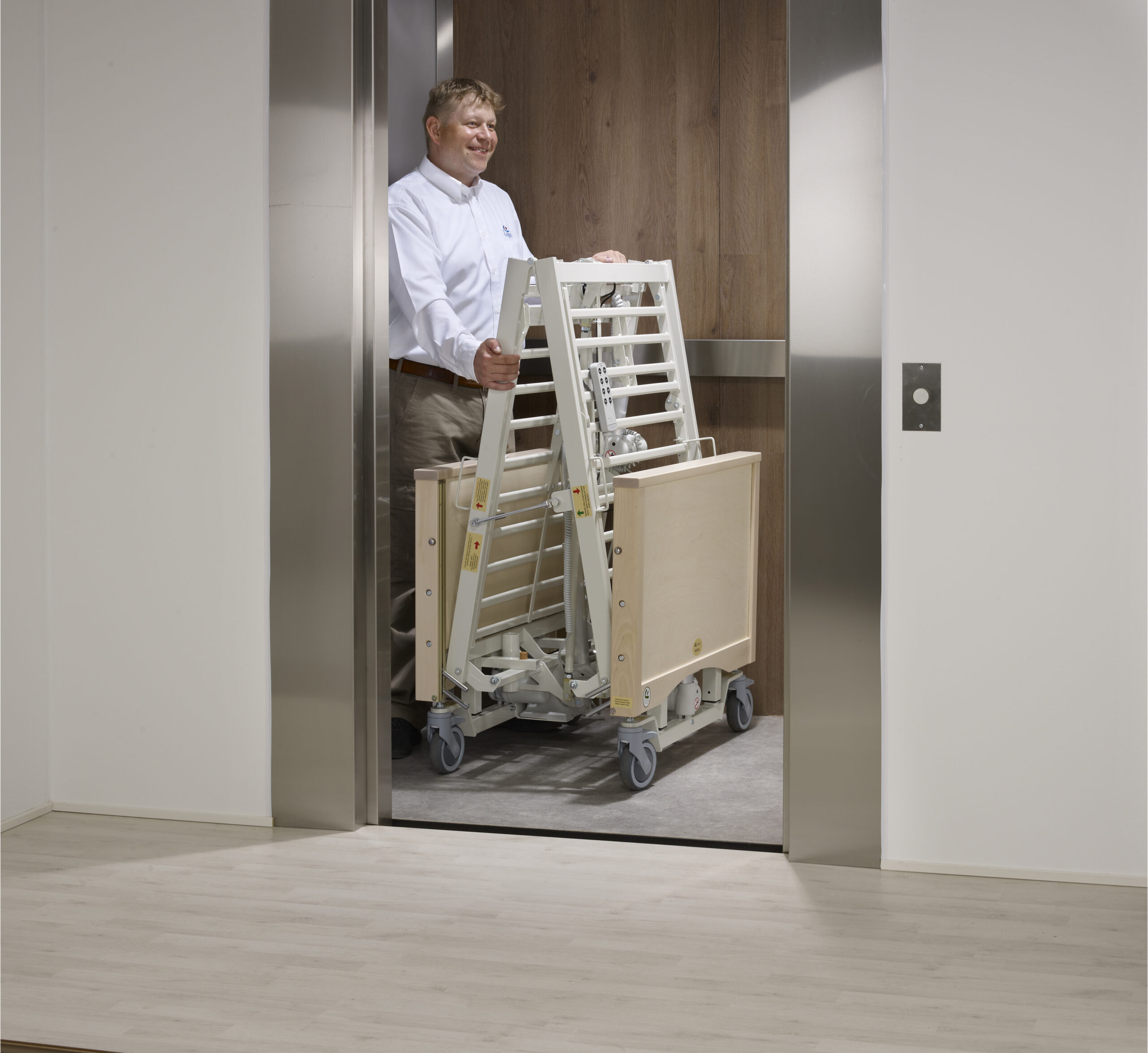

Compact to move and store
The folded transport dimensions are 90/100 x 60 x 127 cm.
Supports ergonomic care
The low height and electric height adjustment support comfortable access and practical working positions.
Flexible positioning
Electric back, thigh and calf section adjustments and anti-Trendelenburg support different care and resting positions.
Choice of bed width
The four-section mattress platform is available in 80 cm and 90 cm widths.
Key features
- Patented electrically folding care-bed structure
- Four-section mattress platform, available in 80 cm and 90 cm widths
- Electric adjustment of height, back section, thigh section and calf section by hand control
- Anti-Trendelenburg adjustment
- Solid birch bed ends

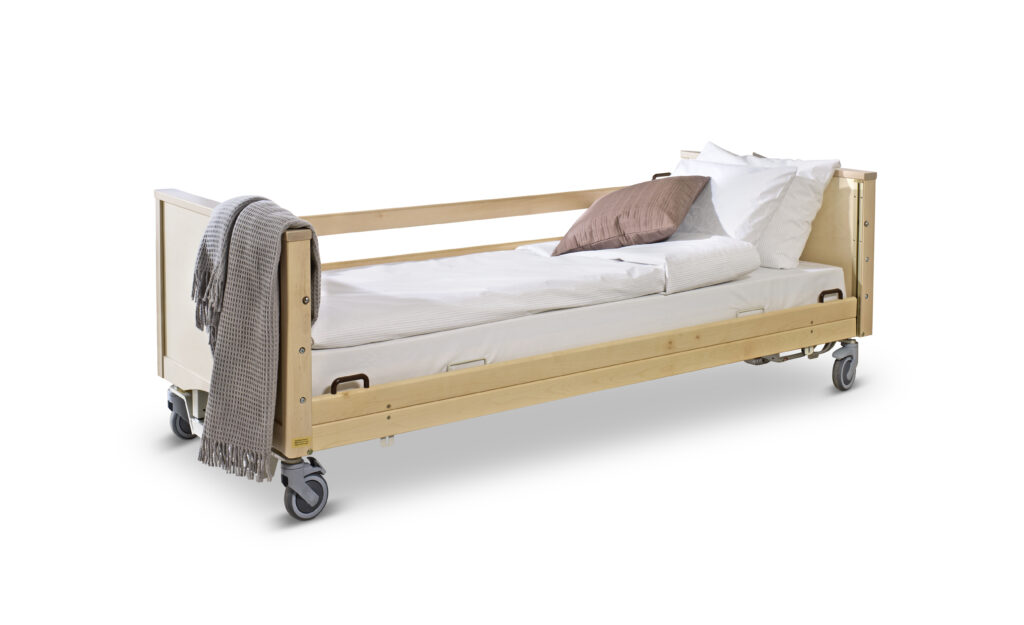

- Double-locking wooden side rails with locking button
- Ø125 mm locking castors as standard
- Integrated head-end fixing for lifting pole and IV pole
- Safe Working Load (SWL) 170 kg
- 24V electrical system
- Manufactured in Finland
Technical specifications
| Specification | Value |
|---|---|
| Transport dimensions | 90/100 x 60 x 127 cm |
| Overall width with rails | 90 or 100 cm |
| Overall length | 223 cm |
| Height adjustment range | 30–69 cm (125 mm castors); 28–67 cm (100 mm castors) |
| Recommended mattress size | 78–80 or 88–90 x 205 x 9–13 cm |
| Total weight | 92 or 96 kg |
| Castors | Ø125 mm locking castors |
| Safe working load (SWL) | 170 kg |
| Electrical system | 24V |
| Back section adjustment | 0–71° |
| Thigh section adjustment | 0–38° |
| Calf section adjustment | 0–12° |
| Anti-Trendelenburg | 0–12° |
| CE marking / MD | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Warranty | 2 years |
| Country of manufacture | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
Options and accessories
Factory-installed options
- Ø100 mm castors
- Ø100/125 mm Centrally locking castors
Accessories
- Lifting pole with triangle handle
- Lift support
- IV pole with one-hand quick adjustment
- Raised siderail
- Padded coating for the siderail
- Reading and dining tray, placed on top of siderails
Models / Configurations
Modux-4
- Mattress platform width: 80 cm or 90 cm
- Recommended mattress size: 78–80 or 88–90 x 205 x 9–13 cm
- Standard castors: Ø125 mm locking castors
