Lojer Merivaara Optima
Birthing Bed
Safe, comfortable and ergonomic childbirth at every stage of labour
The Optima is a birthing bed designed for all stages of childbirth, and for situations where special medical attention is required. It has been developed with the mother, the midwife and the obstetrician in mind, with the focus on ergonomics, safety and mobility.
As a labour and delivery bed, it offers multiple delivery positions in a single unit, which gives the mother a greater level of comfort, and the midwife can access the mother from different positions, which improves both ergonomics and safety. Electric and manual Trendelenburg and a manual backrest quick release add to patient safety, the clear frame construction supports easy cleaning, and the bed can also be used for transport within the hospital.
Key benefits
What makes Optima different.
Multiple delivery positions in one unit
Sitting, upright, lateral and kneeling positions on the same bed, with no transfer between units.
Immediate access to the mother
The midwife reaches the mother in every position, which improves both safety and working ergonomics.
One bed for the whole stay
Labour, delivery, recovery and transport within the hospital
Safety in the adjustments
Electric and manual Trendelenburg and a manual backrest quick release, with the option to lock the electric adjustments.
Easy to keep clean
A clear frame construction with surfaces that can be cleaned and disinfected between patients.
Key features
- Electric height adjustment, 58–95,5 cm
- Backrest adjustment, 0–75°, with manual quick release
- Leg section height adjustment 0–25 cm and angle adjustment 0–16°

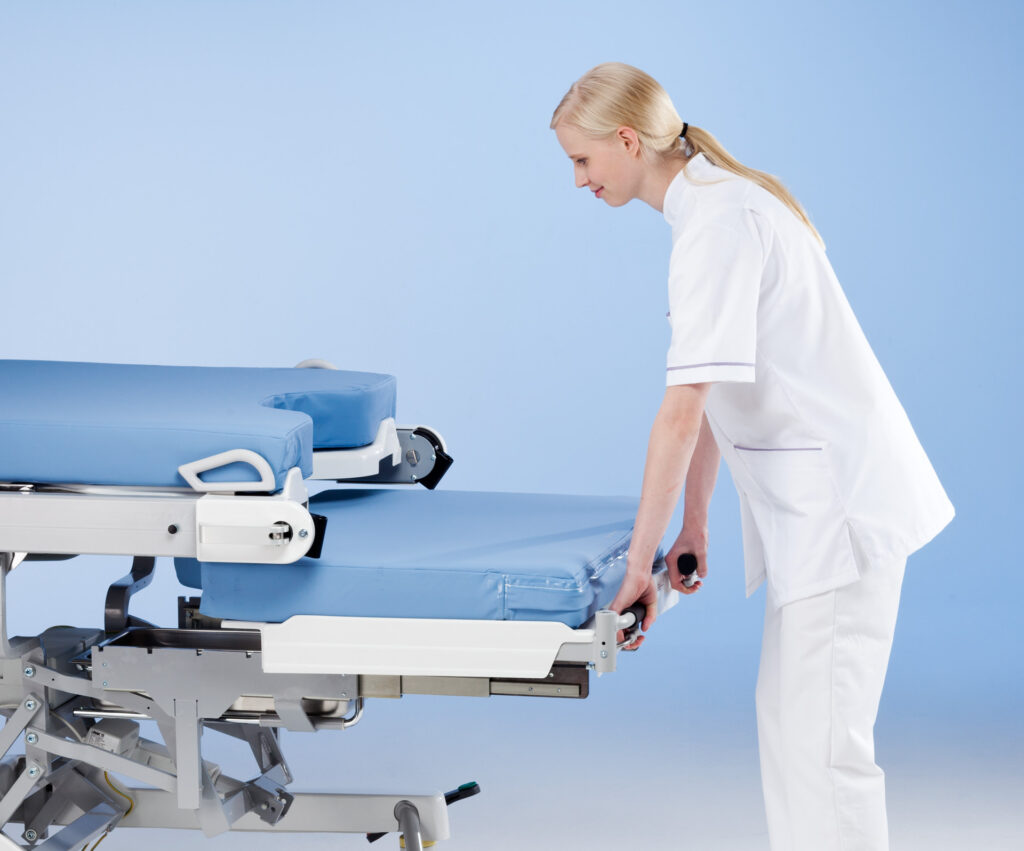

- Movable leg section, in and out, slides under the bed together with the mattress
- Trendelenburg 12°, electric and manual
- Hand control as standard
- Central locking Ø 150 mm castors with braking bar
- Push handles for the patient
- Stainless steel bowl, 12 litres, pushed under the leg section and pulled out when needed
- Battery operation
- Mattress set designed for Optima available
Birthing positions supported:
- Sitting: wide foot rests, grab handles and a wide range of leg section adjustments.
- Upright with squatting bar: squatting bar for arm support or standing support, and a slide-in leg section for more space.
- Lateral: a wide range of leg rest adjustments with convenient locking of the clamps.
- Kneeling: wide adjustment of the seat section and backrest, and a slide-in leg section for space around the bed.
Models / Configurations

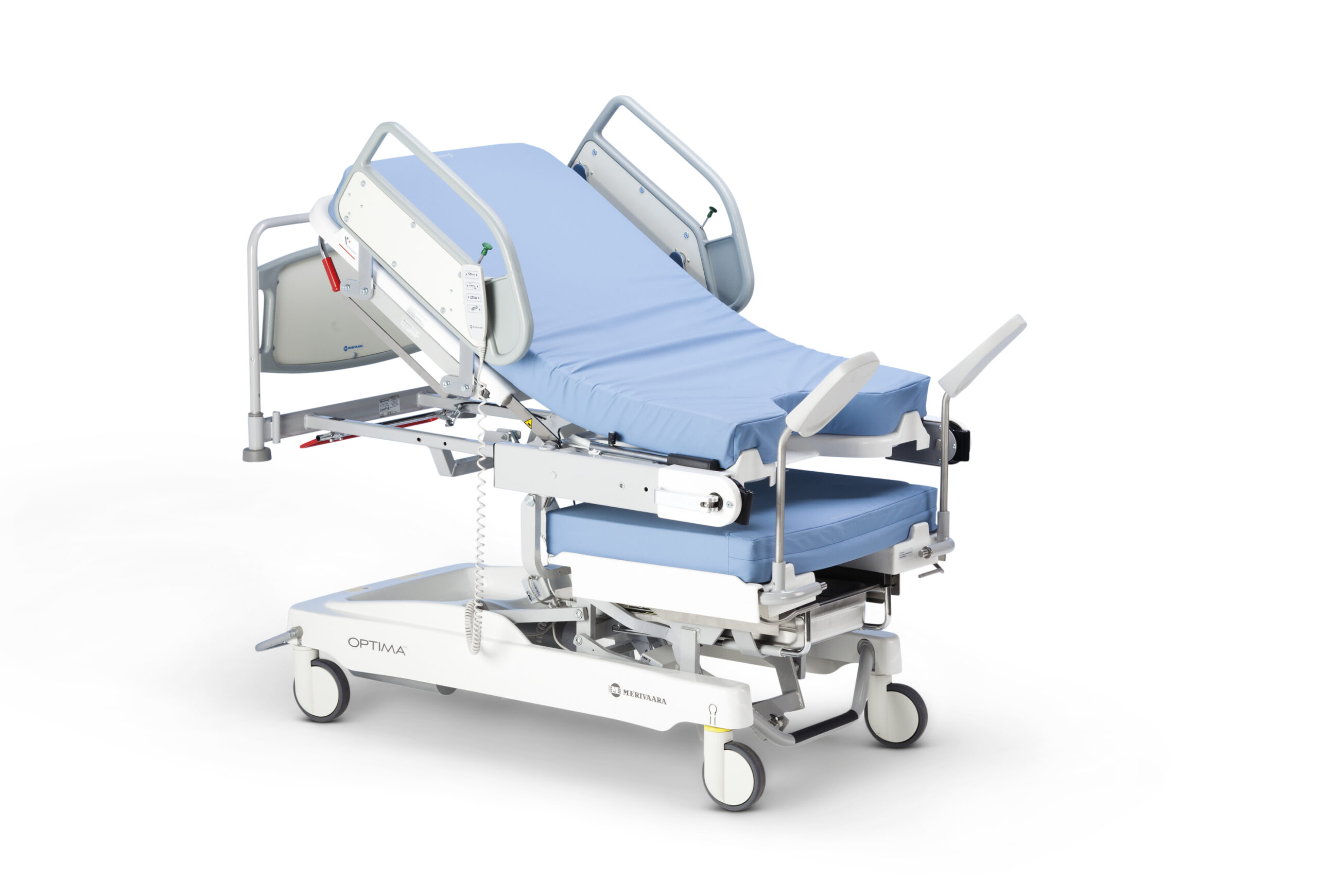

The Optima is currently supplied in one version, the four-motor bed.
Technical specifications
| Specification | Value |
|---|---|
| Total width | 100 cm |
| Patient surface width | 78 cm |
| Total length, min–max | 165–221 cm |
| Patient surface, min–max | 130–221 cm |
| Height adjustment | 58–95,5 cm |
| Patient maximum weight | 190 kg |
| Safe working load (SWL) | 230 kg |
| Leg section safe working load (SWL) | 80 kg |
| Trendelenburg | 12° |
| Backrest adjustment | 0–75° |
| Leg section height adjustment | 0–25 cm |
| Leg section angle adjustment | 0–16° |
| Castors | Central locking 150 mm with braking bar |
| Hand control | Yes |
| Weight | 165 kg |
| Warranty | 2 years |
| Manufacturer and country | Lojer / Finland |
| CE-marked | Yes. CE-marked medical device, MDR 2017/745 class 1 |
Options and accessories
Factory-installed option
- Nurse control panel (function lockout)
- Foot control (back section and height)
- Additional hand control
- Equipotential bonding
- Patient control panel, reading light and underbed light
Accessories
- Pair of side rails: birch-coloured
- End frame, painted: white, beige, blue, light blue, green, lilac
- Fold-down end panel
- Pair of foot rests

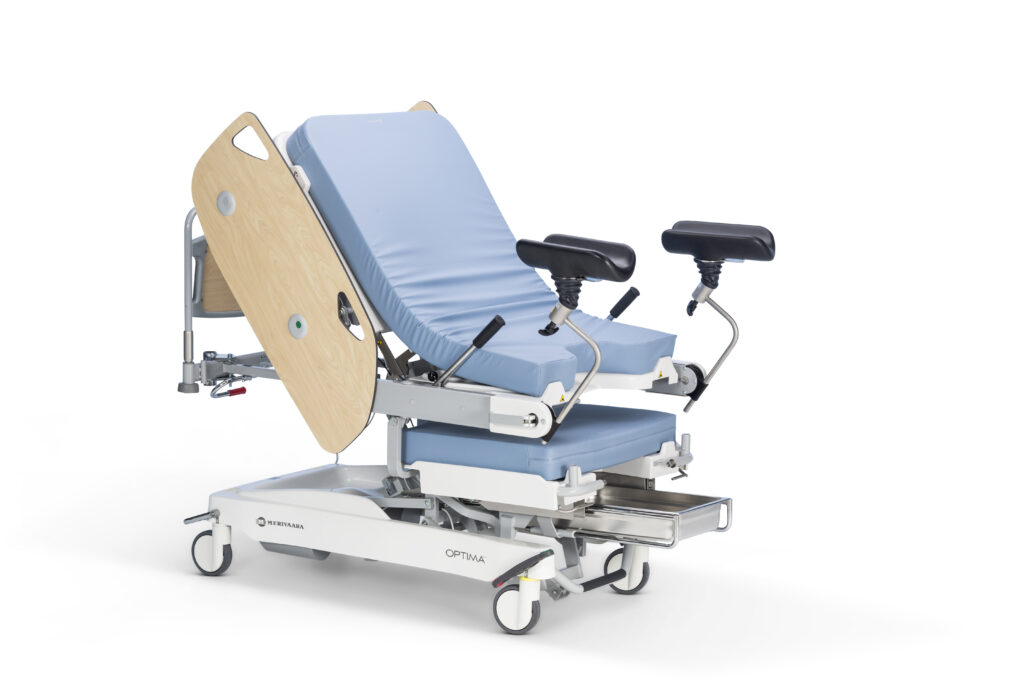

- Pair of knee crutches
- Securing straps for knee crutches

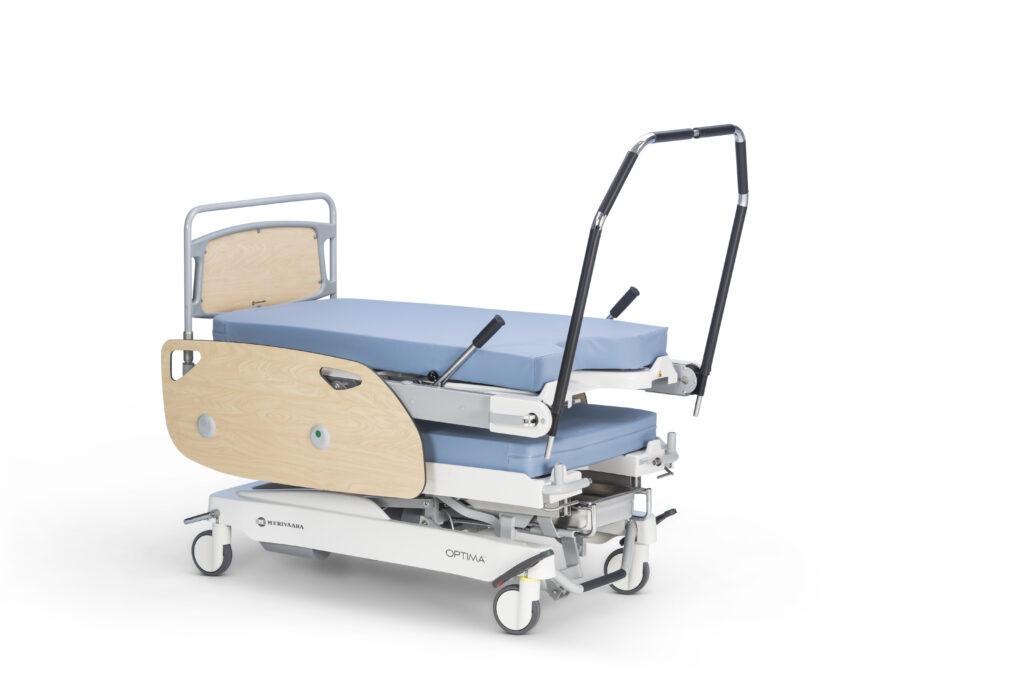

- Squatting bar
- Basket for mattress set, wall-mounted
- Basket for patient chart, mounted on end frame
- 4-hook IV pole
- Monitor stand
- Drainage bag holder
- Urine bottle holder
- Cable retainer
- Mattress set designed for Optima, cover made of PU-coated hygienic fabric with a foam filling
