Lojer Futura Plus
Comfortable adjustment and dependable everyday use

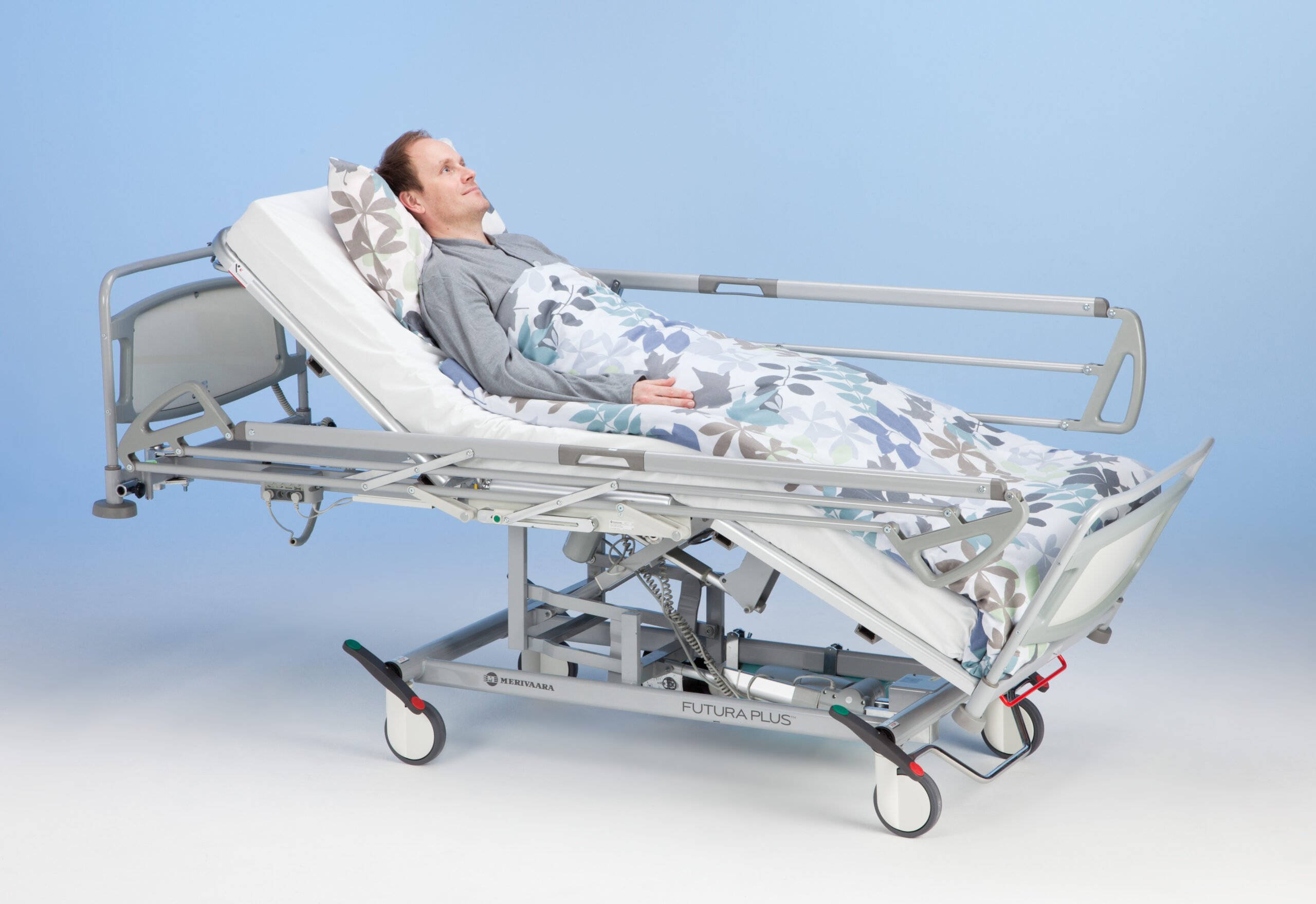

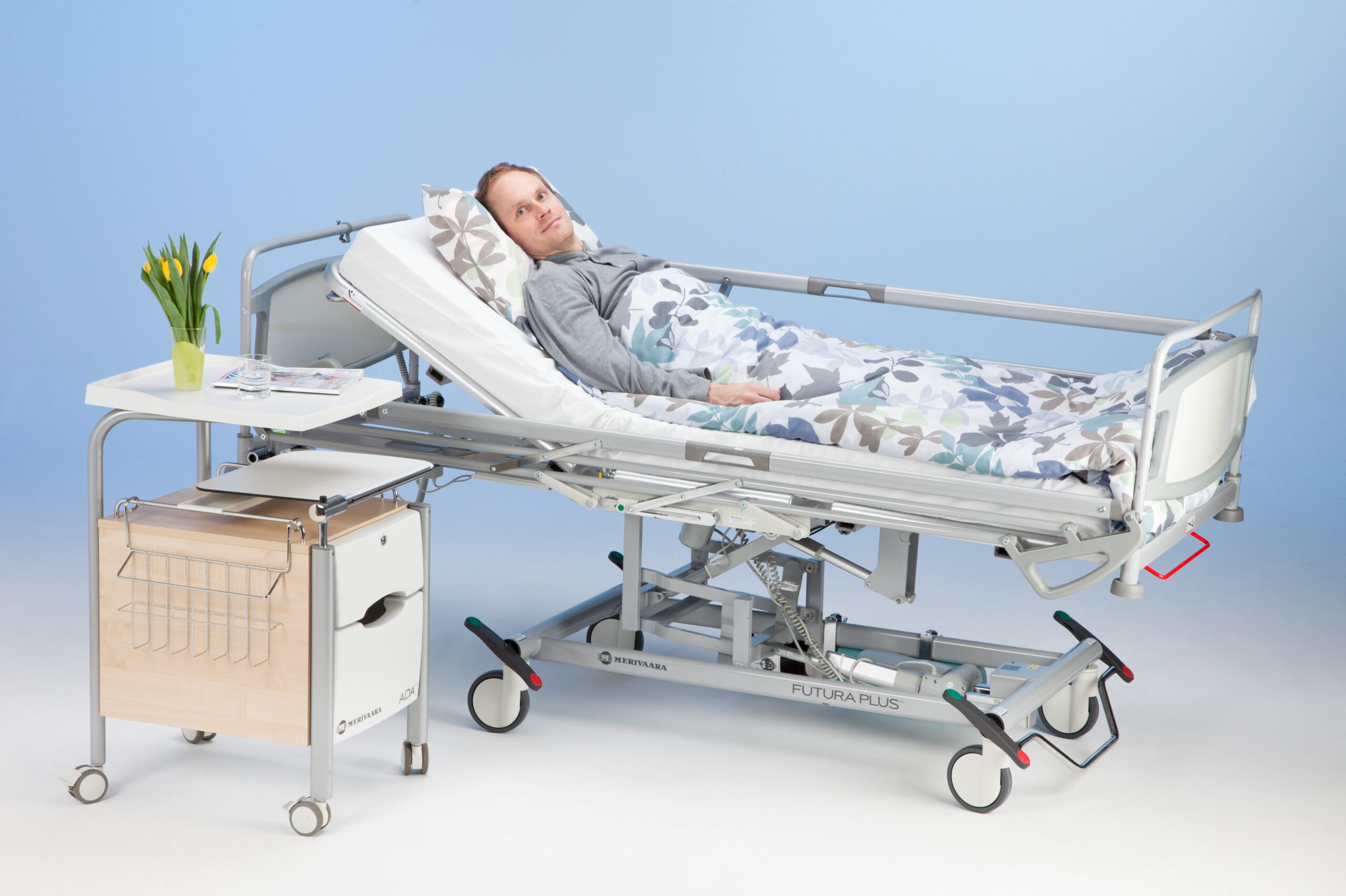

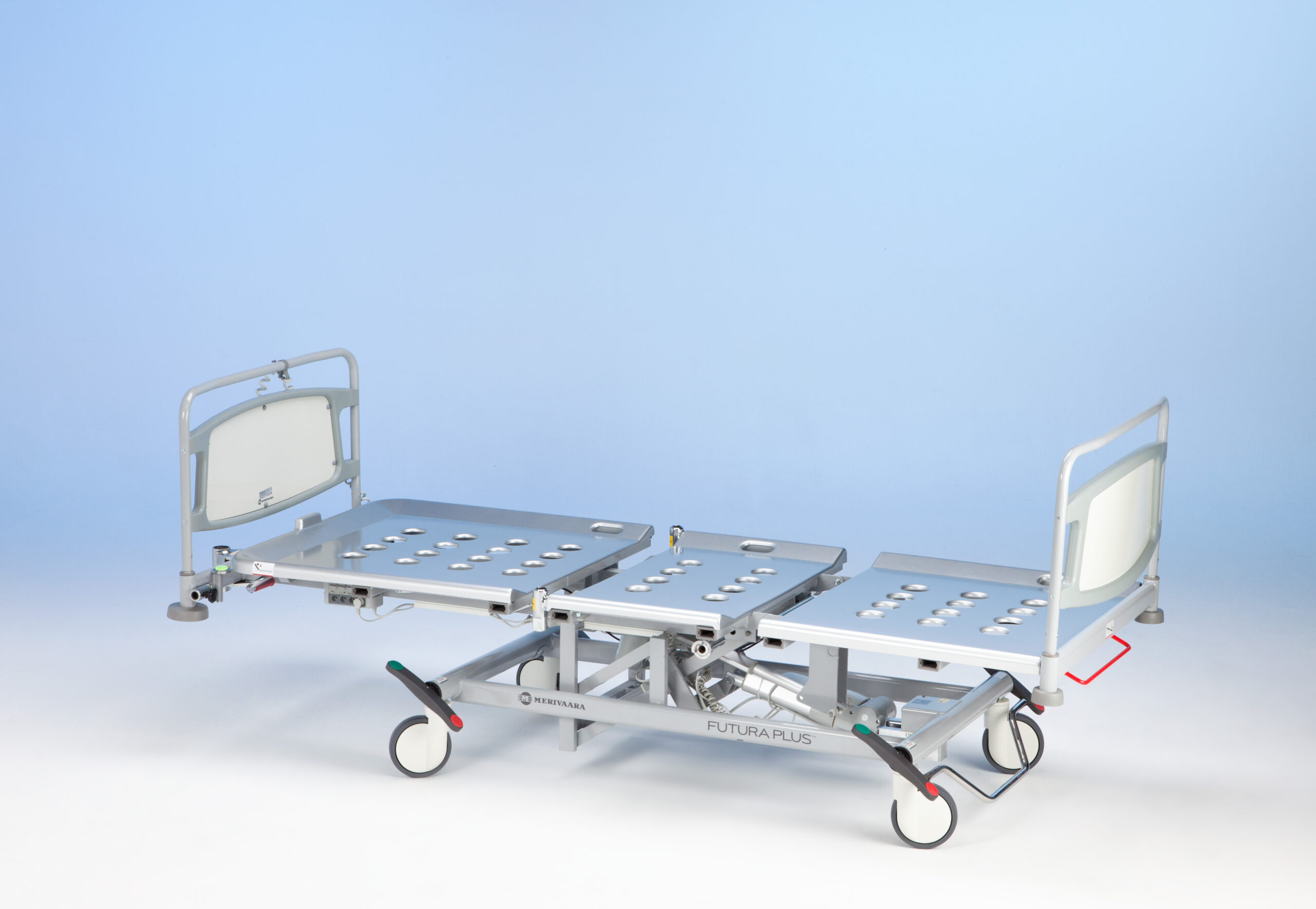

Lojer Futura Plus is a hydraulically adjustable hospital bed. Its sliding backrest supports patient comfort, while hydraulic adjustment keeps operation straightforward for care professionals.
The bed combines vertical height adjustment, a removable mattress base and a choice of a two- or three-part mattress platform. A 230 kg safe working load supports dependable use in care environments.
Key benefits
What makes Futura Plus different.
Supports patient comfort
The sliding, ergonomically supportive backrest is designed to improve comfort during adjustment.
Straightforward to adjust
Hydraulic height and section adjustments provide simple, user-friendly operation.
Supports safe care
Optional gas-spring assisted Trendelenburg adjustment and a 230 kg safe working load support safe handling.
Easy to keep clean
Removable ABS mattress base plates support routine cleaning and disinfection.
Built for dependable daily use
A robust hospital-bed platform with central locking castors and a practical range of options and accessories.
Key features
- Hydraulic height adjustment

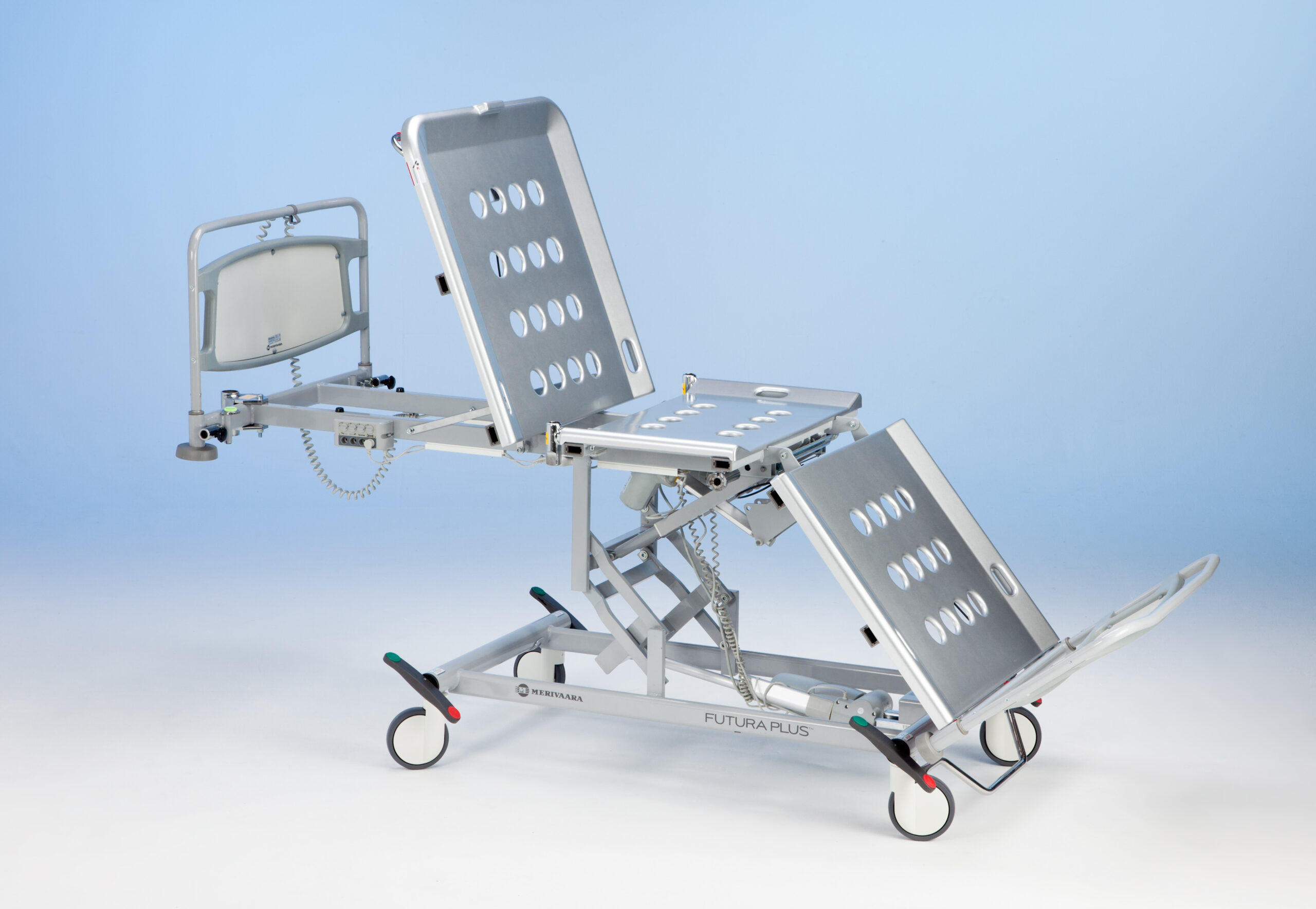

- Sliding and ergonomically supportive backrest
- Gas-spring assisted backrest adjustment
- Gas-spring assisted Trendelenburg adjustment when the Trendelenburg option is selected

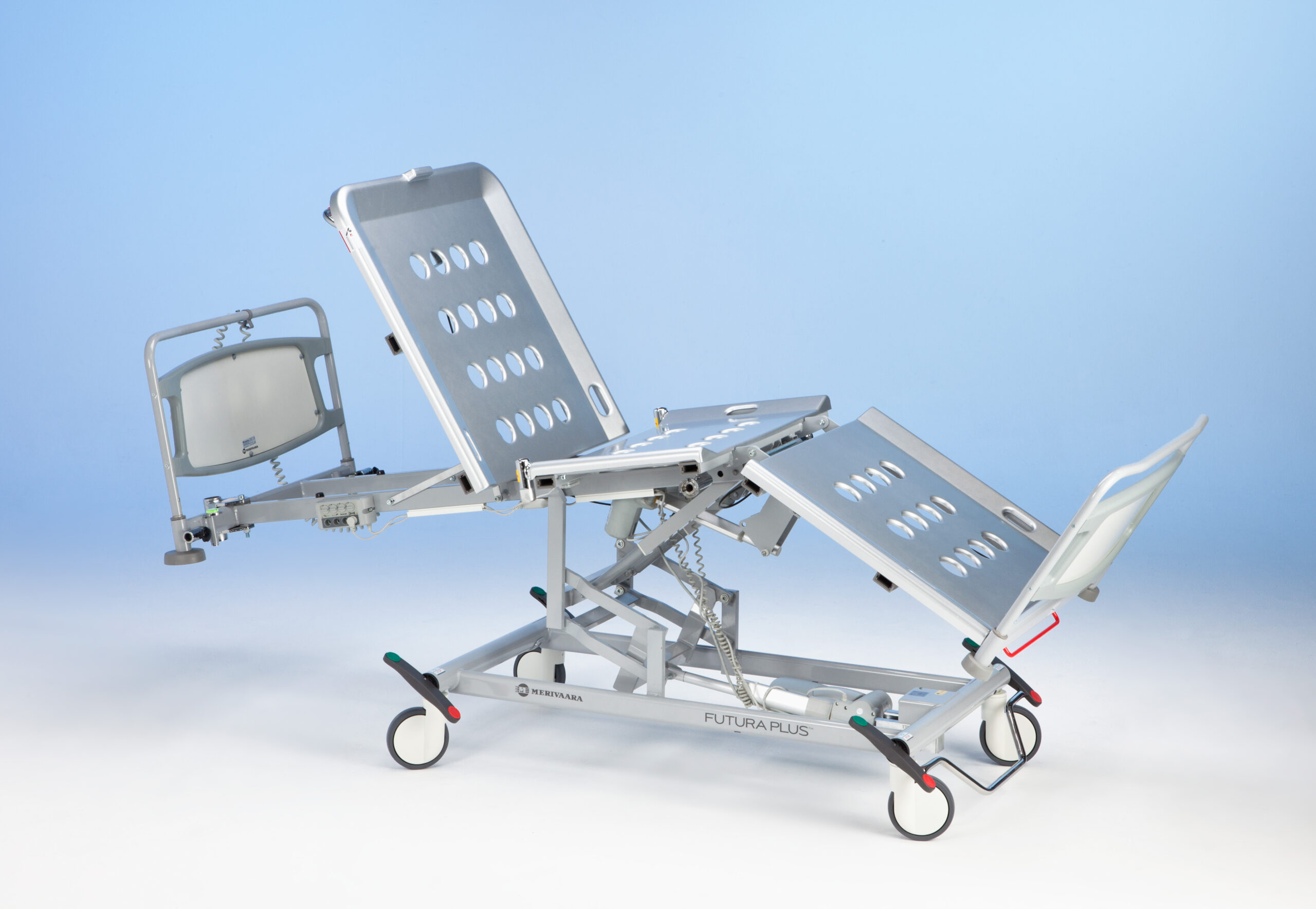

- Removable, ventilated ABS plastic mattress base plates
- Vertical raising motion
- Simultaneous movement of different parts, for example height and backrest
- Bumpers and fixing points for restraining straps

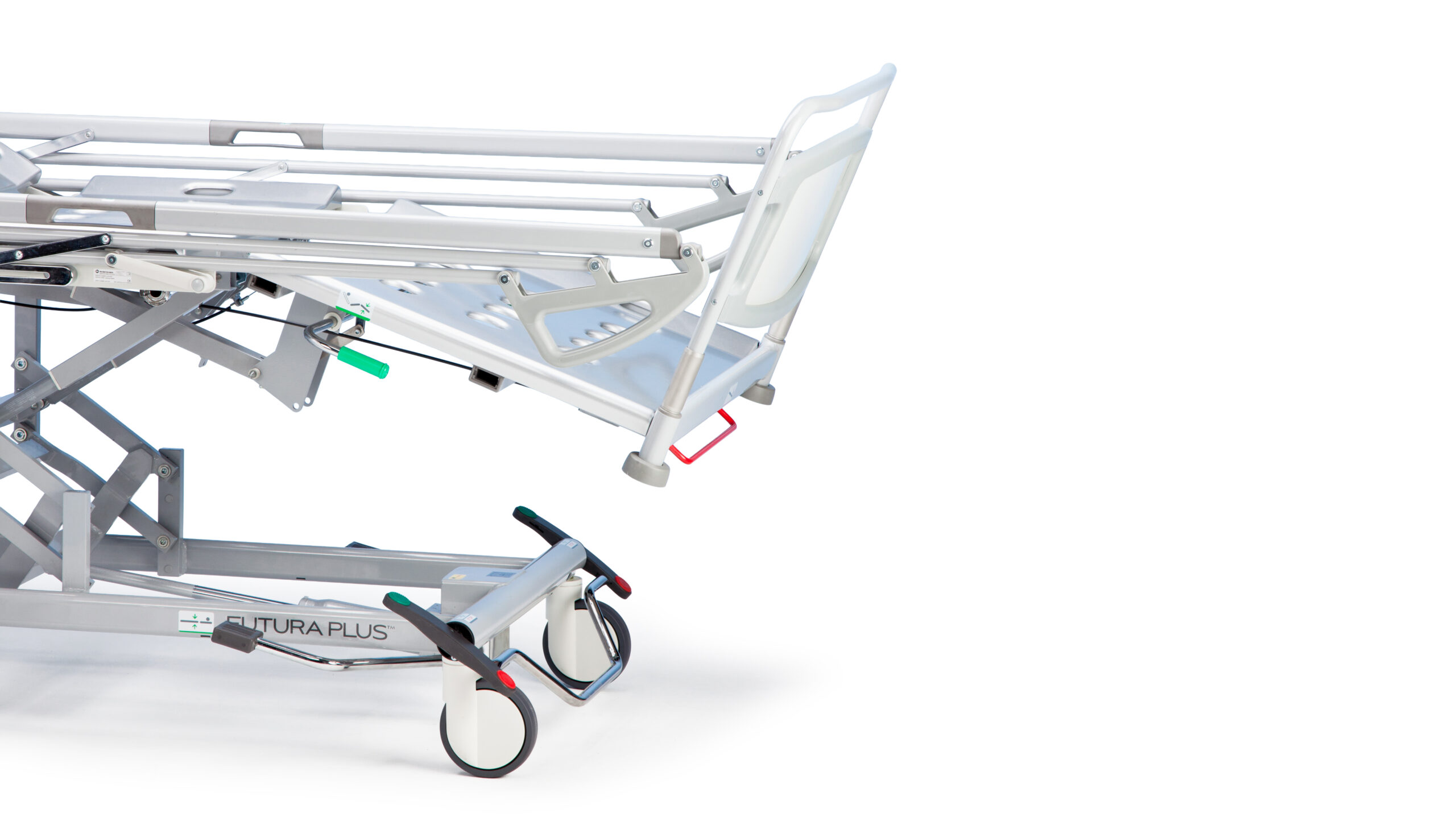

- Ø150 mm central locking castors with two pedals and a braking bar at the foot end
- Accessories attached to the head end do not move with the backrest.
Technical specifications
| Specification | Value |
|---|---|
| Total length | 222.5 cm |
| Total width | 91.2 cm |
| Patient surface length | 200.1 cm |
| Patient surface width | 81.2 cm |
| Height adjustment | 45–84 cm |
| Recommended mattress size | 80 × 200 cm |
| Castors | Ø150 mm central locking castors: 2 pedals and a braking bar at foot end |
| Maximum patient weight | 170 kg |
| Safe working load (SWL) | 230 kg |

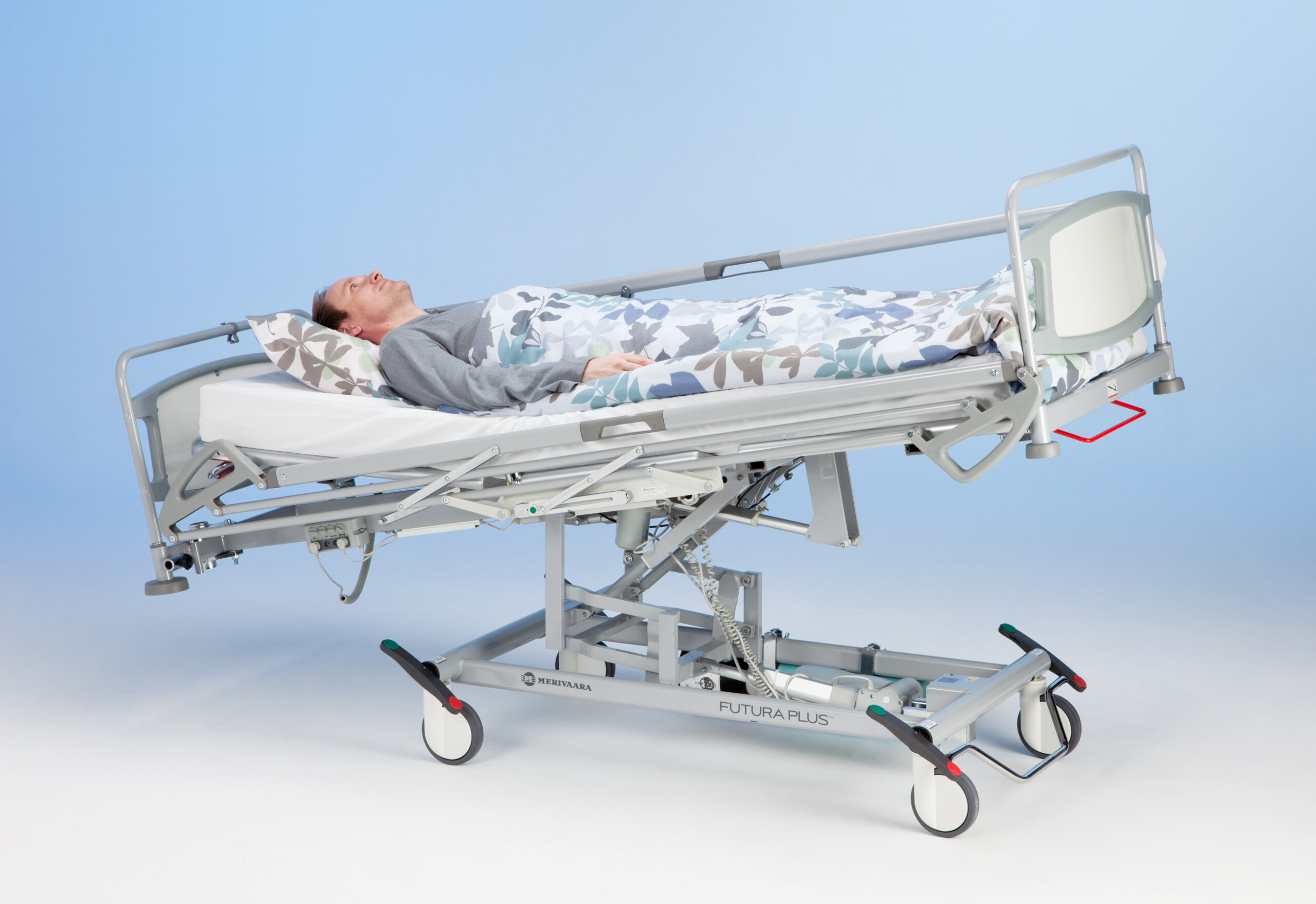

| Trendelenburg / anti-Trendelenburg | 26° / 12° |
| Backrest adjustment | 0–70° |
| Leg section adjustment | 0–38° |
| Mattress base cover | ABS plastic; ventilated and detachable |
| Other features | Bumpers; fixing for restraining straps; vertical raising motion; simultaneous movements of different parts |
| CE marking / MD | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Warranty | 2 years |
| Country of manufacture | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
Options and accessories
Factory-installed options
- Bed end, detachable. Frame tube: chromed or painted. Bed end plate colour white. Other colours: light blue, light green, beech and birch
- Bed end, detachable and foldable. Frame tube: chromed or painted. Bed end plate colour white. Other colours: light blue, light green, beech and birch

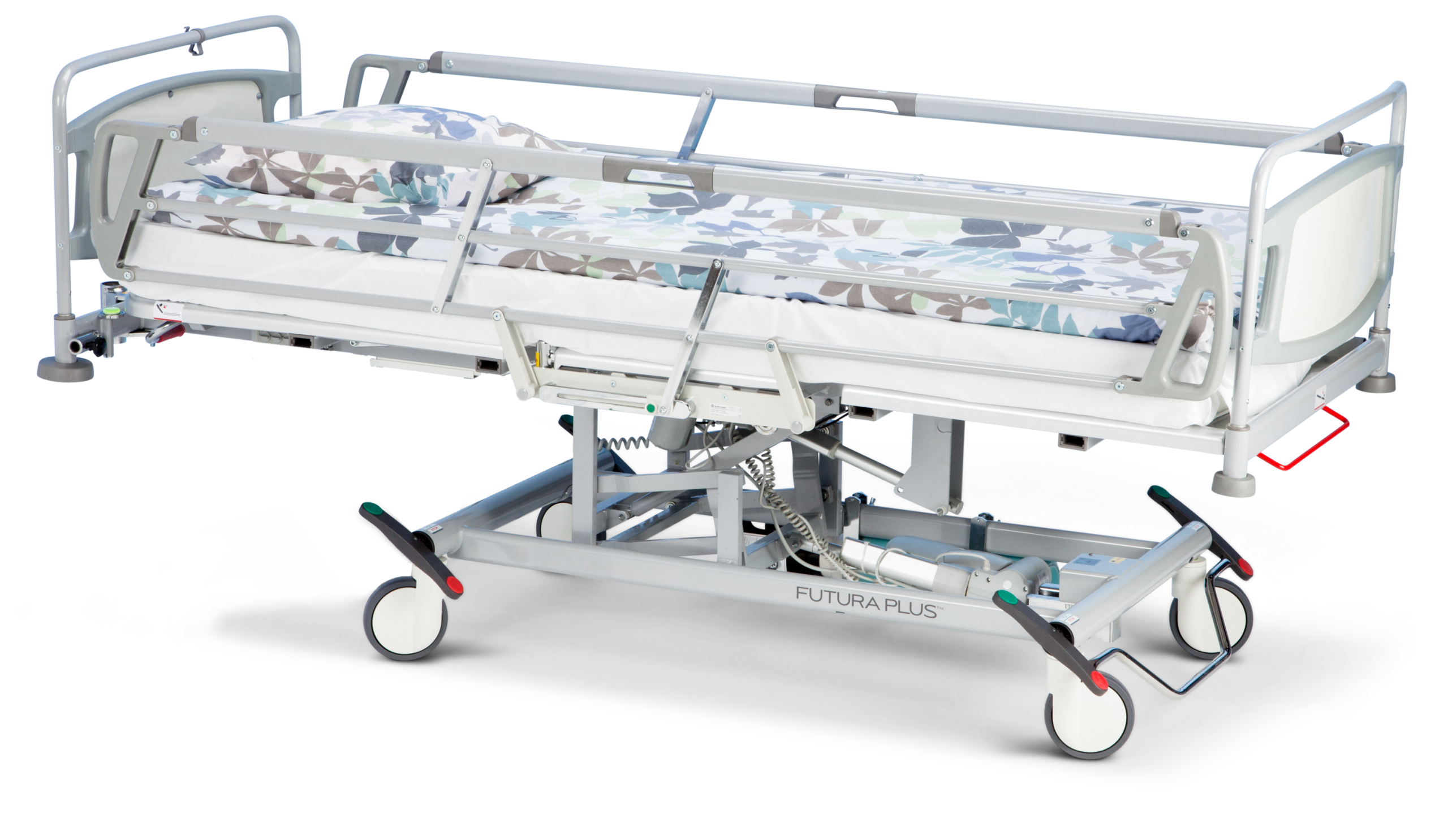

- Side rails, chromed 1-sectional foldable
- 3/4 side rails, chromed foldable
- Adapter for grab handle
- Trendelenburg
- 4 braking pedal
- Central locking Ø150 mm twin castors
- Lifting pole
- Grab handle
- Oxygen bottle holder 5 kg
Accessories
- Journal basket
- Monitor tray
- IV pole
- Drainage bag holder
- Urine bottle holder
Models and configurations
Both configurations use the same hydraulically adjustable Futura Plus platform and a 200 × 81 cm mattress platform.
2-part mattress platform
- Hydraulic height adjustment
- Hydraulic backrest adjustment. 3-part mattress platform
3-part mattress platform
- Hydraulic height adjustment
- Hydraulic backrest adjustment

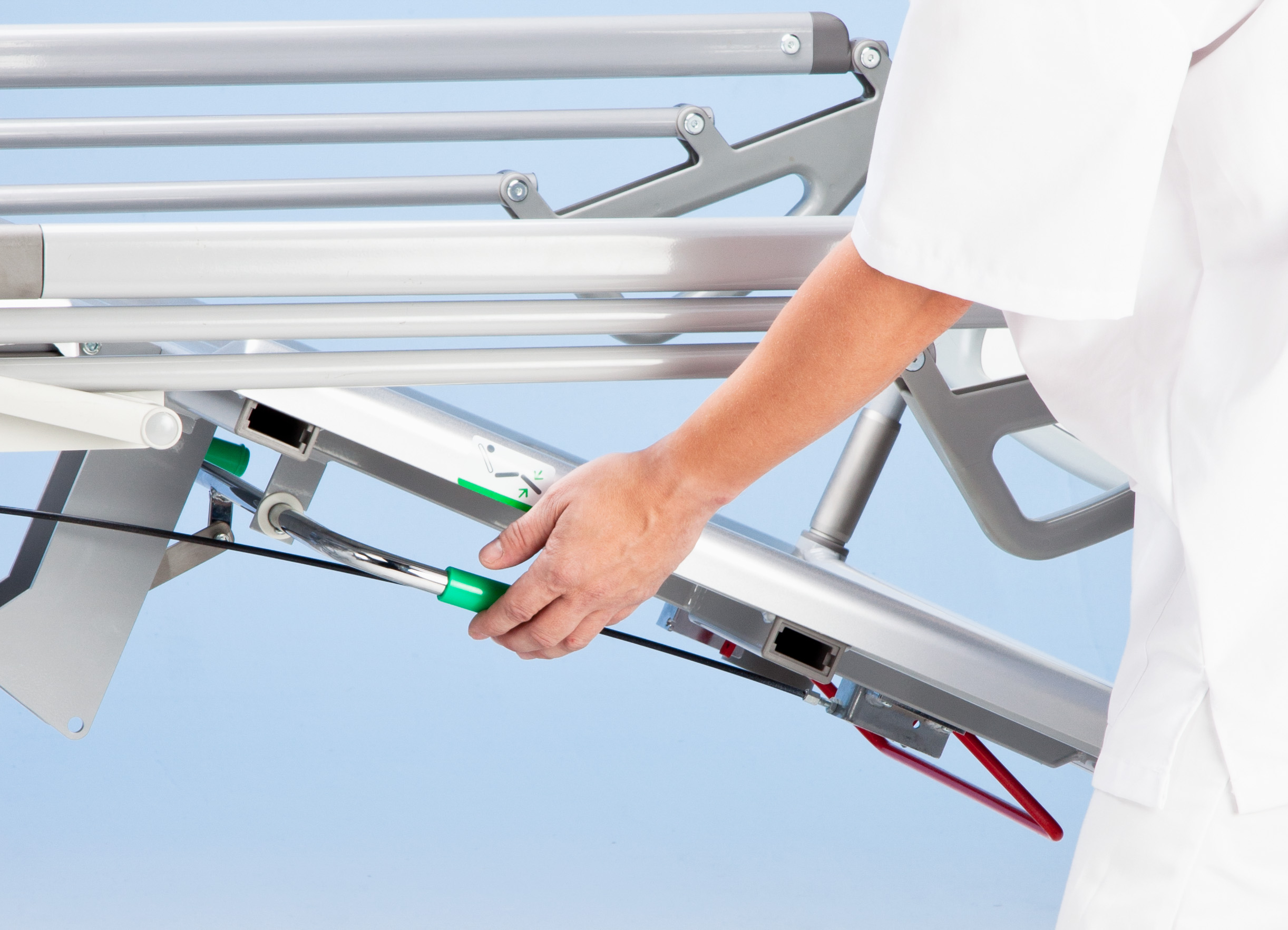

- Hydraulic leg section adjustment
