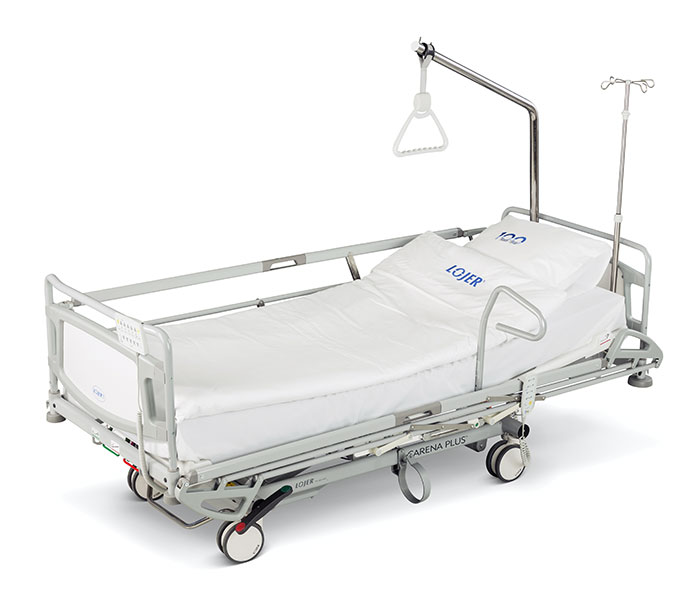

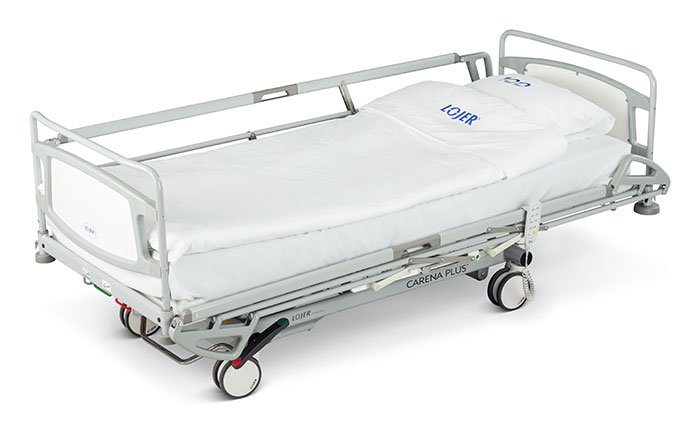

Lojer Carena Plus Hospital Bed
Redesigned high-end hospital bed
The Carena Plus is a four-function hospital bed with a clear, redesigned frame structure that allows the frame to be cleaned rapidly and supports hygiene management on the ward. It is designed around the ergonomics of both patients and staff.
The height range from 34 cm to 84 cm improves access for patients of different sizes and their ability to get in and out of bed independently, while the safe working load of 330 kg keeps the same bed in use across a wide patient population. Despite that load rating the bed remains light to manoeuvre. Trendelenburg is available both electrically and manually, side rails are safe and easily removable, and CPR release and quick-release locks on the bed ends are fitted as standard for fast operation in an emergency.
Key benefits
What makes Carena Plus different.
Height range from 34 cm
Easier and safer access for patients of different sizes, and a working height set by the nurse.
330 kg safe working load, still light to move
A broad patient population on the standard bed, with Ø 150 mm central locking castors for transport.
Ready for an emergency
CPR release and quick-release locks on the bed ends as standard, with Trendelenburg available electrically and manually.
Clear frame, faster cleaning
The redesigned structure gives fewer places for soil to collect and supports hygiene management on the ward.
Safe, easily removable side rails
Rails come off without tools when they are not needed, and several rail options are available.
Key features
- Four powered functions
- Height adjustment 34–84 cm with Ø 150 mm castors

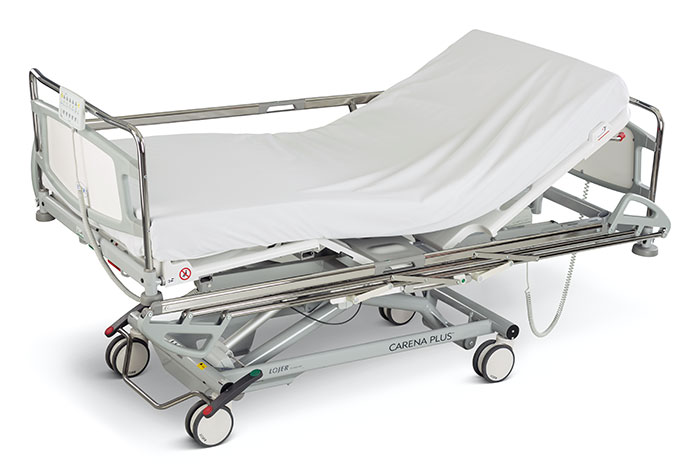

- Backrest 0–70°, thigh section 0–29°, calf section 0–24°

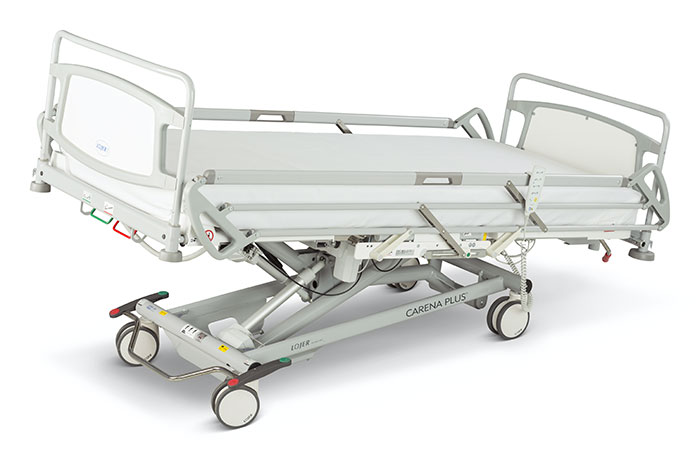

- Trendelenburg 12° and anti-Trendelenburg 6°, electric and manual
- Vertical raising motion and simultaneous movement of different sections, for example height and backrest
- Hand control as standard
- CPR release handle, as standard
- Quick-release locks for the bed ends, as standard
- Ø 150 mm central locking castors: two pedals and a brake pedal at the foot end
- Safe working load 330 kg
- Removable bed ends in white, blue, beech, birch or green

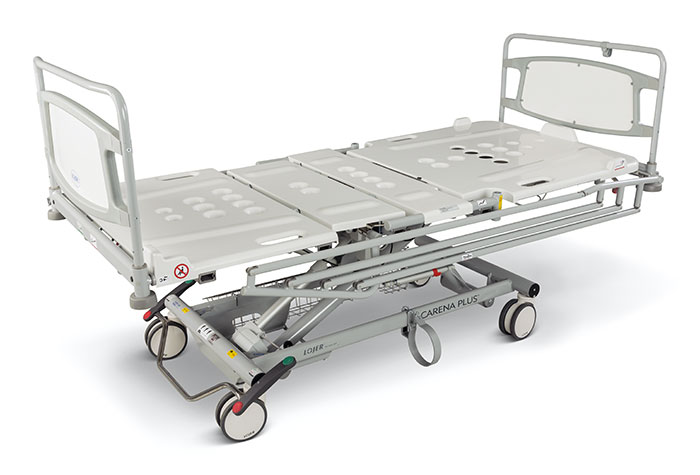

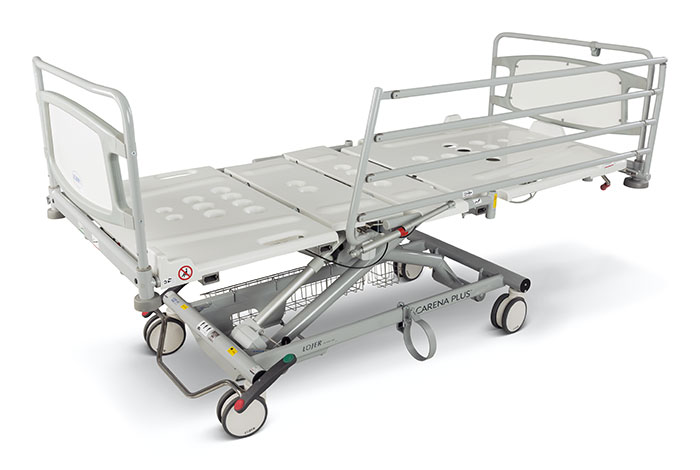

- Safe and easily removable side rails, several options available

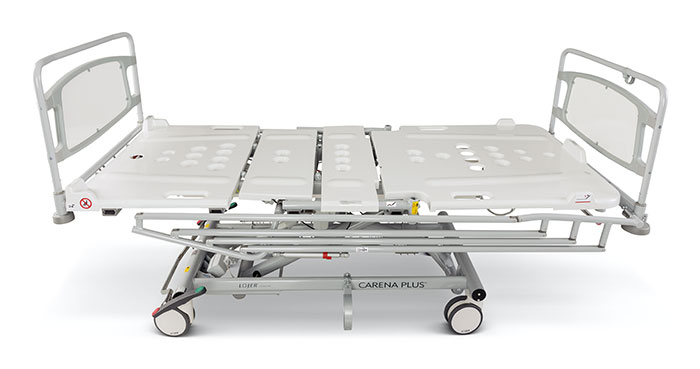

- Ventilated and detachable ABS plastic mattress base cover, with bumpers
- Fixing points for restraining straps
- Frame in painted silver
- IPX6 electrical system
Technical specifications
| Specification | Value |
|---|---|
| Total width (with side rails) | 90 / 100 cm |
| Patient surface width | 80 / 90 cm |
| Total length | 215 cm (extended 245 cm) |
| Patient surface length | 202 cm (extended 232 cm) |
| Height adjustment | 34–84 cm |
| Recommended mattress size | 75 / 85 × 200 × 13 cm |
| Total weight (without rails) | 80 cm surface: 90 kg; 90 cm surface: 110 kg |
| Castors | Ø 150 mm central locking: 2 pedals and a brake pedal at the foot end |
| Safe working load (SWL) | 330 kg |
| Electrical system | IPX6 |
| Backrest adjustment | 0–70° |
| Thigh section adjustment | 0–29° |
| Calf section adjustment | 0–24° |
| Trendelenburg / anti-Trendelenburg | 12° / 6°, electric and manual |
| Side rails | Different options available |
| Standards | IEC 60601-2-52, IEC 60601-1-2 (EMC), SFS-EN 60601-1 |
| CE marking / MD | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Warranty | 2 years |
| Country of manufacture | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
Options and accessories
Factory-installed options
- Extendable +30 cm leg section for 80 and 90 cm patient surfaces, ABS plastic
- Adjustable metal net cover
- Mattress base for X-ray
- 5th wheel
- Different castor sizes
- Lead-acid or lithium-ion battery, always supplied with a nurse control panel
- Potential equalisation system
- Extra hand control
- Wash cycle counter
Accessories
- Nurse control panel
- Bed end, detachable; frame tube chromed or painted
- Bed end, detachable and foldable; frame tube chromed or painted
- Accessory basket 1–3: small, large and bed end options
- Accessory rails
- IV pole
- Lifting pole
- Grab handle and adapter for grab handle
- Drainage bag holder
- Oxygen bottle holder, 5 kg
- Hook for electrical cable
Models / Configurations
- Patient surface width — 80 cm or 90 cm; total width with side rails 90 cm or 100 cm, and bed weight without rails 90 kg or 110 kg.
- Extendable version — a +30 cm ABS plastic leg section extends the total length from 215 cm to 245 cm and the patient surface from 202 cm to 232 cm.
- Washable model — available with a wash cycle counter for facilities that put beds through a washing process.
