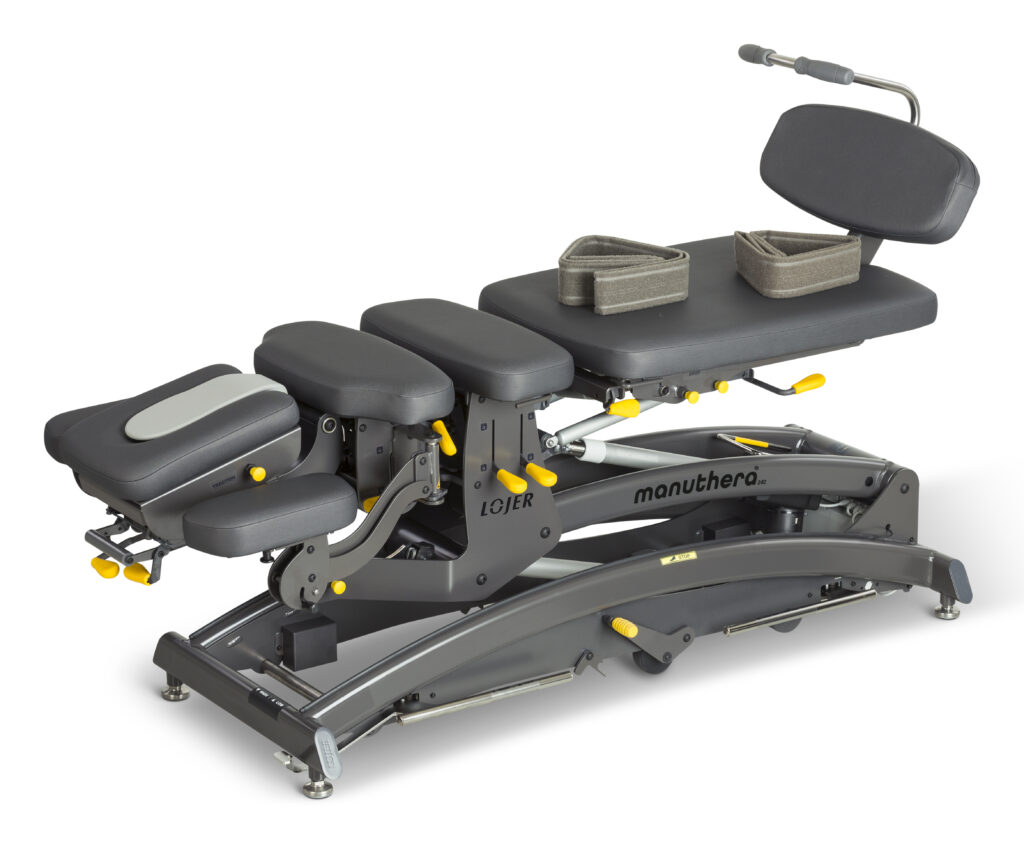

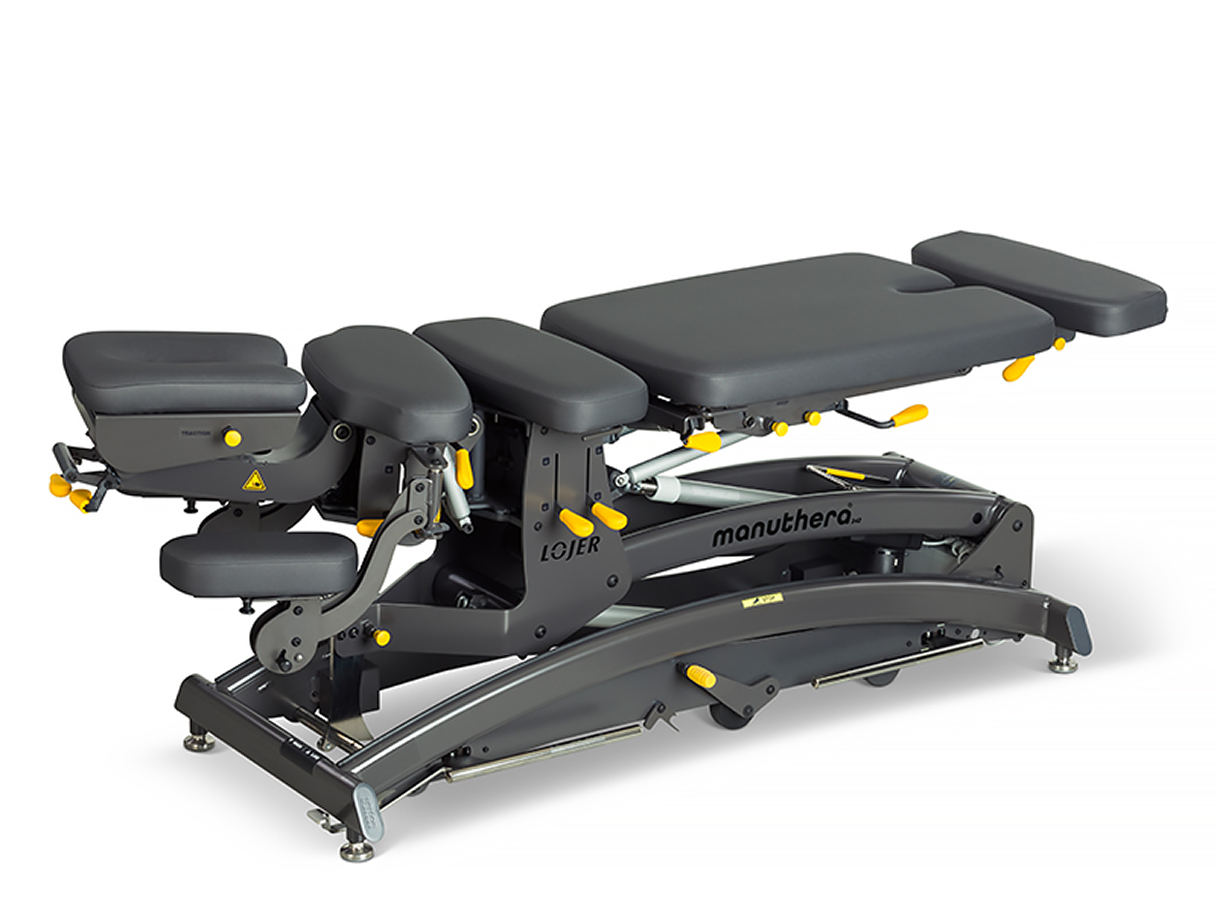

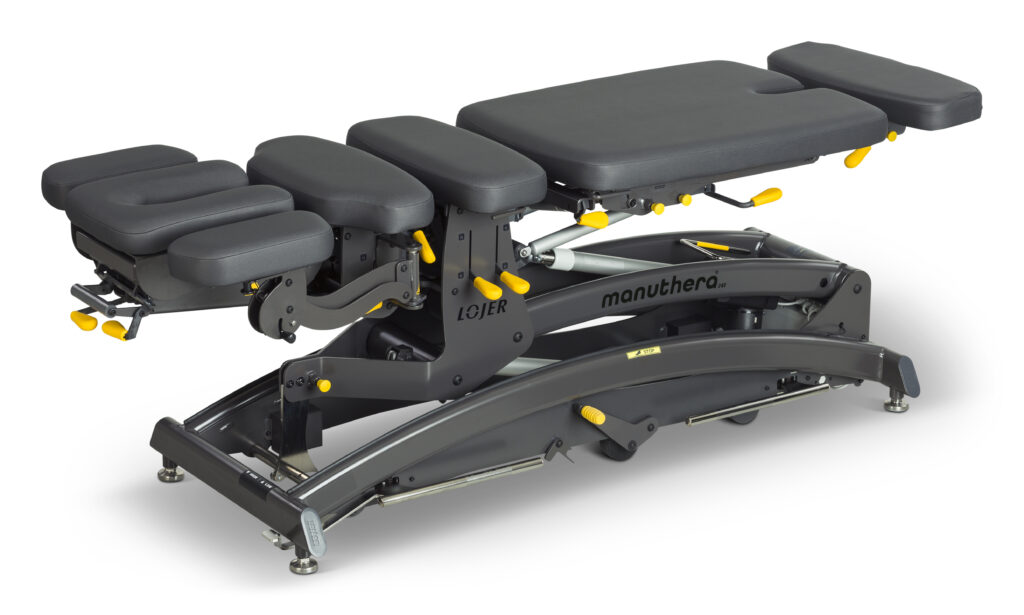

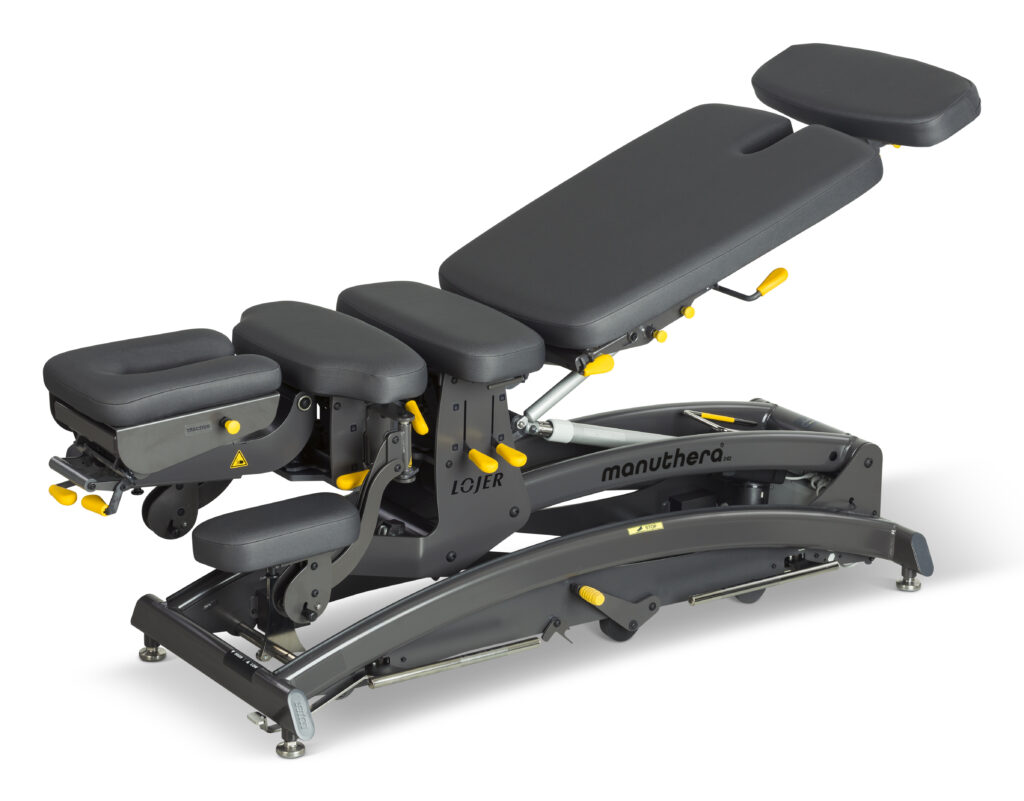

Lojer Manuthera 242 – Master of Spine Techniques

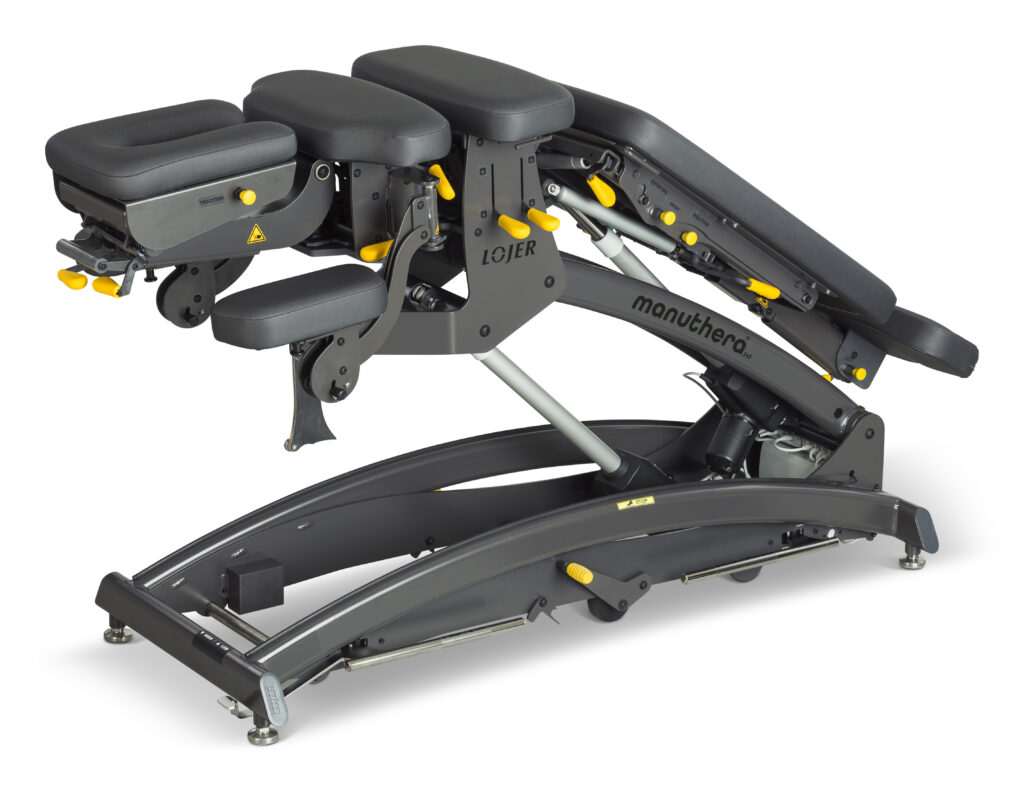

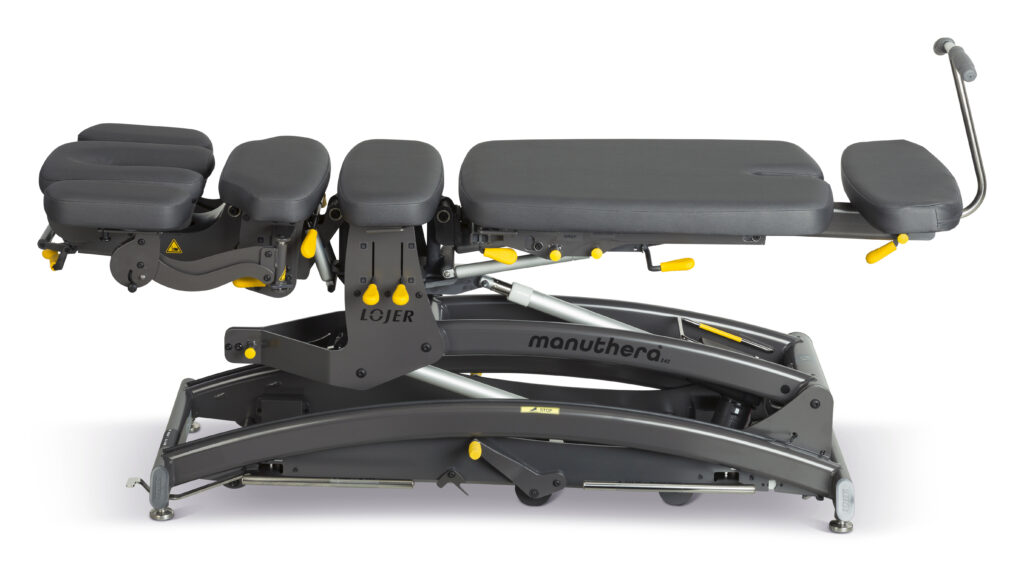

Manuthera 242 is a mobilisation and treatment table for manual therapy professionals. Its multi-section design combines flexion, extension, lateral movement, rotation, traction and electrically controlled tilt and height adjustment, allowing the professional to position and support the patient while working around specific treatment areas.
The table is designed to make versatile mobilisation possible at a suitable height and position for both patient and professional. Its 3D movement, traction functions and gravity-assisted positioning give the therapist multiple ways to adapt the treatment position without relying only on manual repositioning.
KEY benefits
What makes Manuthera 242 different.
Bring movement into the treatment table
Combine flexion, extension, lateral movement, rotation and traction to adapt patient positioning and mobilisation.
Use gravity as part of the working method
Electrical tilt up and down supports gravity-assisted positioning and treatment techniques.
Work specifically around the body
Independent lower-body, thorax and head-section movements support cervical, thoracic, lumbar, pelvic and sacral treatment approaches.
Reduce the need to manually reposition the patient

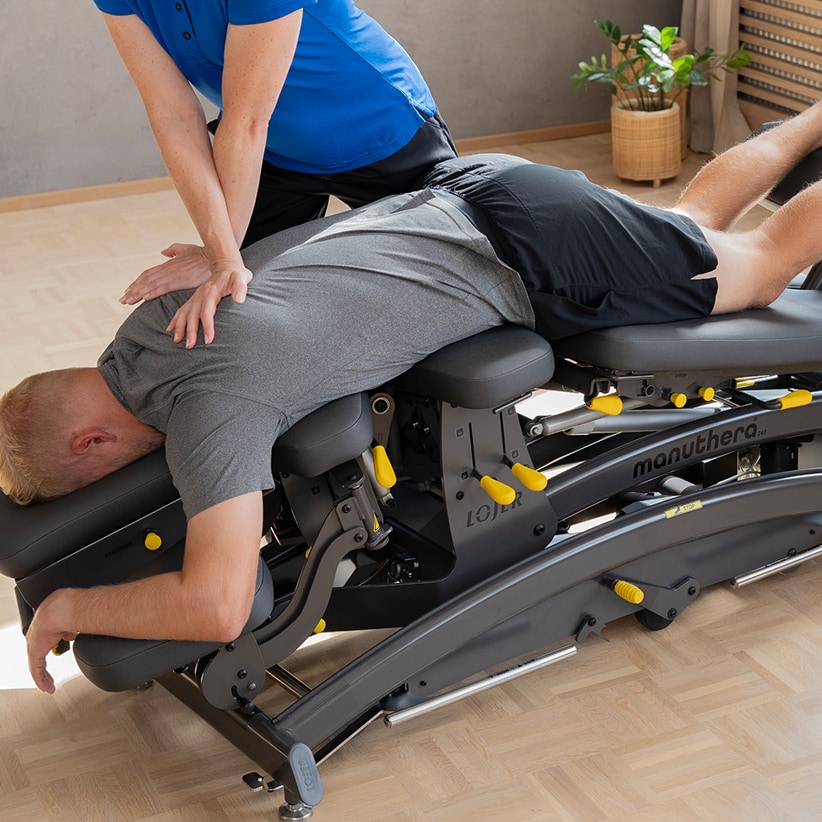

The table mechanics move and support the patient while the professional adjusts the treatment position.
Practitioner testimonial
“Manuthera 242 is by far the most versatile and effective treatment table I have ever used. Whether I am working with acute, chronic or rehabilitative cases, this table consistently delivers results.”
Key features

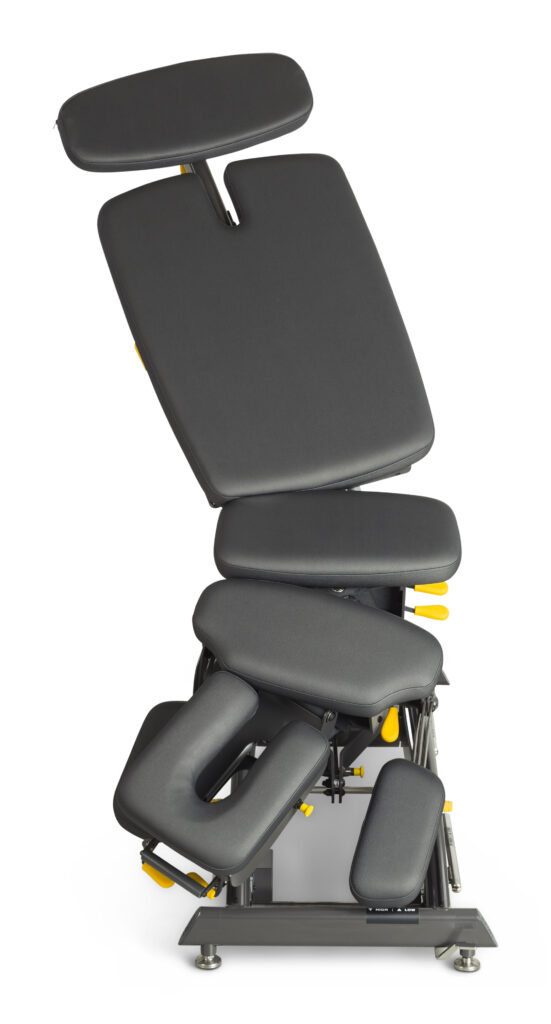

- Five table-top sections plus adjustable arm rests
- Electrical height adjustment, 51-106 cm

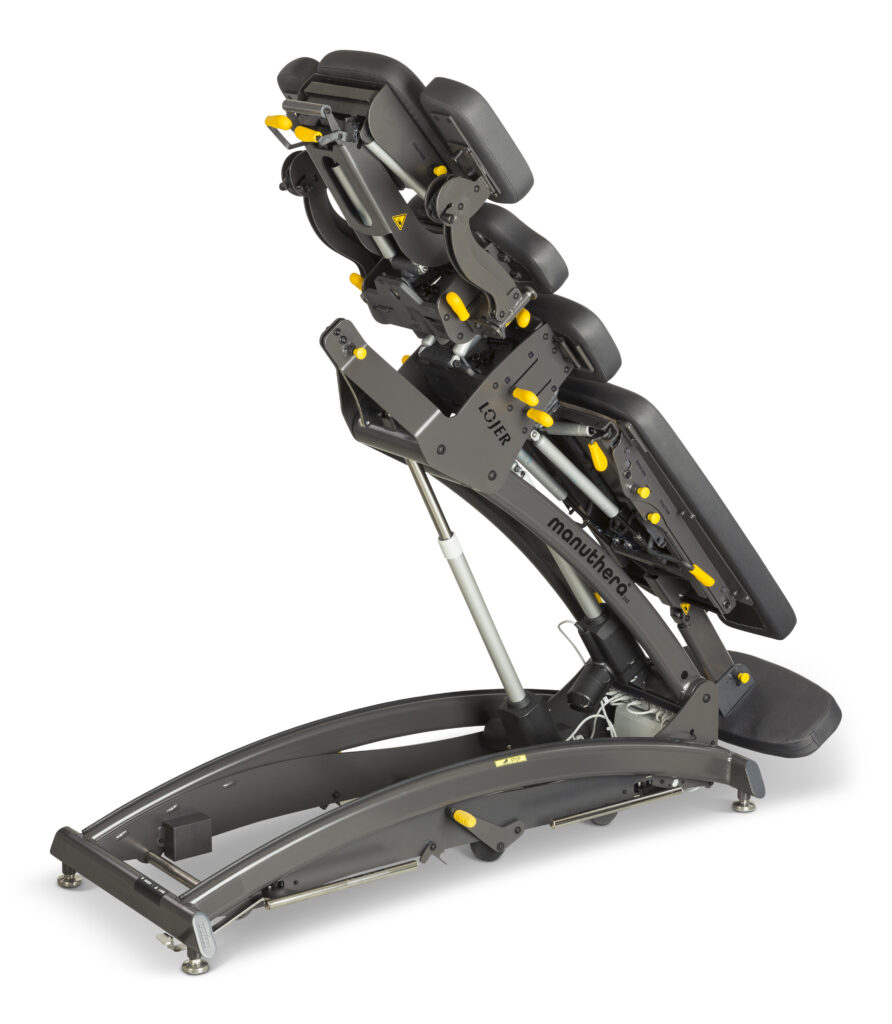

- Electronic whole-table tilt up/down, 52°/32°
- Lower-body extension/flexion, lateral movement and rotation

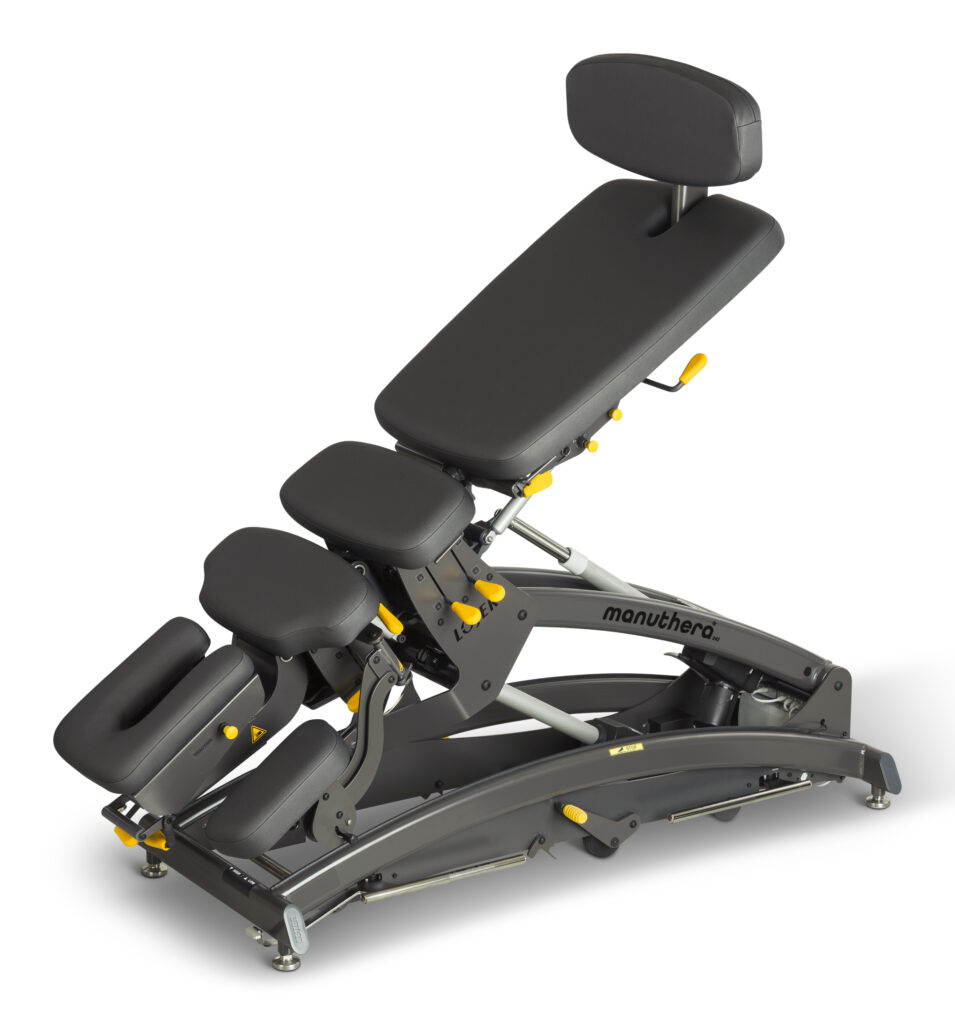

- Upper-thorax extension/flexion and lateral movement
- Head-section extension/flexion, counter adjustment, traction and lateral flexion
- Lower-body traction and traction-drop function
- Total Lock function for upper and lower body sections
- Adjustment pedals accessible from different sides of the table
- Safety edge and automatic/manual safety-lock functions
- 150 kg safe working load
- Optional battery
- Standard T-bar and two support straps
Models / Configurations
- Standard delivery includes transport wheels for installation, hex key, floor-pad adjustment tool, mobilisation bar and two support straps
- Back-up battery is an option
- Extra cushions for head section and upper thoracic section are accessories
Technical specifications
| Specification | Manuthera 242 |
|---|---|
| Height adjustment | 51-106 cm |
| Maximum length | 190 cm |
| Width | 55 cm |
| Weight | 170 kg |
| Safe working load (SWL) | 150 kg |
| Tilt up / down | Electrical 52° / 32° |
| Lower body section movement (3D) | +21.5° / max -40° vertical; 0..18° horizontal |
| Upper thorax section movement (3D) | +15° / -13° vertical; 0..18° horizontal |
| Lower body rotation | Yes |
| Total Lock, upper/lower body | Yes |
| Drop function | Traction drop |
| Safety edge | Yes |
| Safety lock functions | Automatic (2 h) or manual / manually operated |
| CE marking | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Country of manufacture | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
| Device name | Lojer Manuthera 242 mobilisation and treatment table |
| Classification | Active, non-invasive Class I medical device; Rule 13 |
| MDR / Regulation (EU) 2017/745 | Regulation (EU) 2017/745 (MDR) |
Options and accessories
Factory-installed option
- Battery
Accessories
- MAHP242 extra cushion for head section
- MATHP242 extra cushion for upper thoracic section
Service & lifestyle
The limited international warranty is 24 months for the equipment, 10 years for the steel structure and 12 months for accessories and wearing components, subject to the warranty terms and required preventive maintenance.
Learn by yourself
Manuthera Learning Hub
Over 100 free videos how you can master Manuthera and improve your practice.
Documents and downloads
Contact Lojer or your local Lojer representative to discuss Manuthera 242, demonstrations and availability.
