Kinos X – Stay focused on treatment, with the table ready to adjust around your work
Kinos X is an electric treatment table for professional massage and physiotherapy. Its wide height adjustment, adjustable patient-support sections and foot-operated controls help the professional adapt the table during treatment while keeping their hands available to help and support the patient.
Two models share a sturdy platform with a 210 kg safe working load, electrically raised castors and a 46-95 cm height adjustment range. The table supports prone, supine and sitting positions for flexible professional use.
KEY benefits
What makes Kinos X different.
Keep your hands available
Foot-operated adjustment lets you change table height – and on X5 the back section – without using your hands.
Adapt the table as treatment progresses
Electrical tilt up and down supports gravity-assisted positioning and treatment techniques.

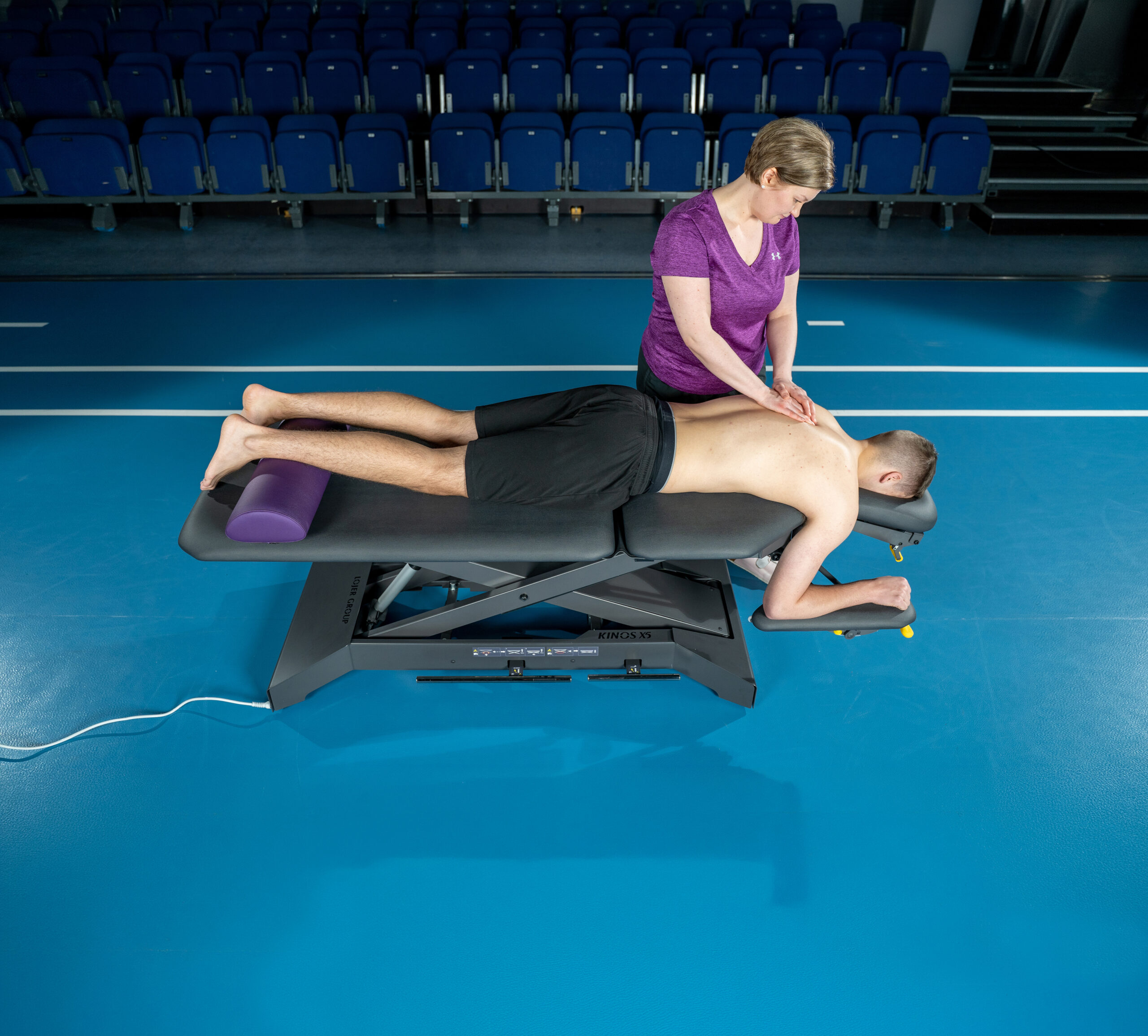

Support different patient positions
Independent lower-body, thorax and head-section movements support cervical, thoracic, lumbar, pelvic and sacral treatment approaches.

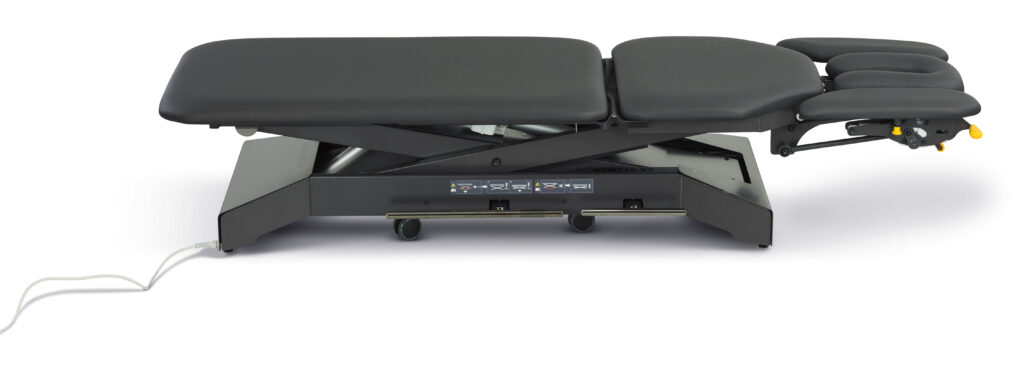

Move the table when needed
The table mechanics move and support the patient while the professional adjusts the treatment position.
Built for demanding professional use
Sturdy construction and a 210 kg safe working load support patients of different sizes.
Key features
- Electrical height adjustment, 46-95 cm.
- Foot-operated adjustment controls.

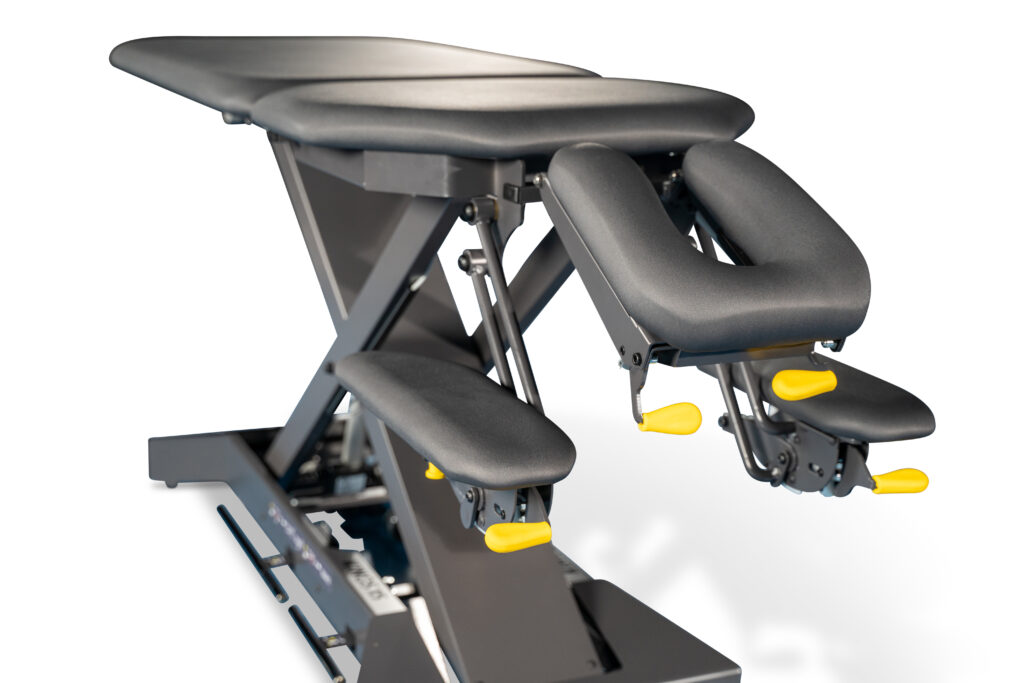

- Head section adjustment -90° to +35°; optional double-hinged head section also provides 0° to 80° reverse-angle adjustment.

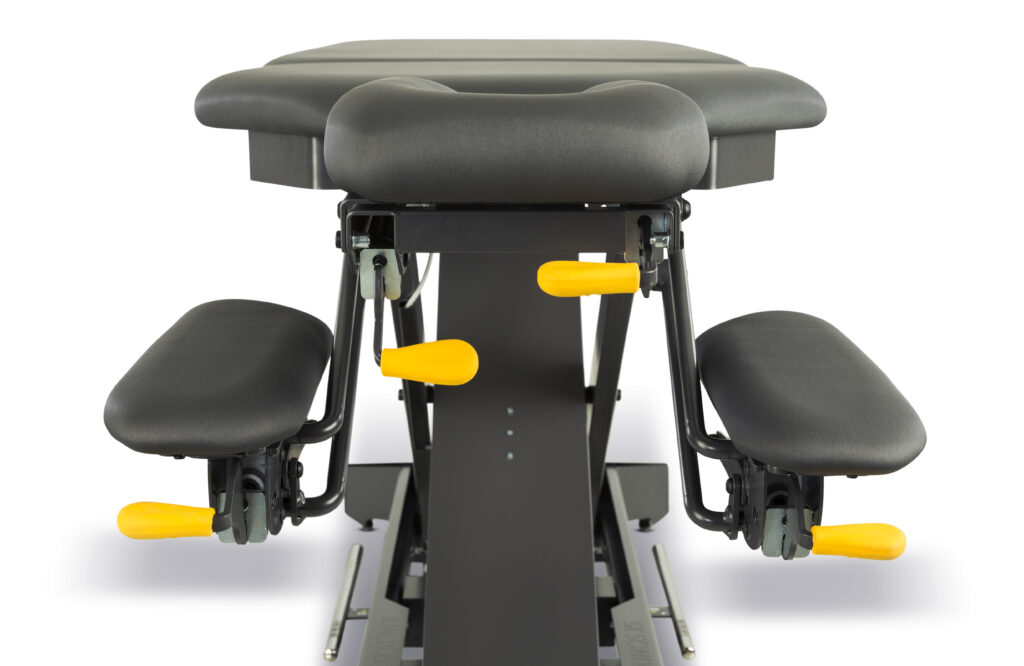

- Adjustable arm rests.
- Electrical back section adjustment 0° to 70° on X5.
- Side supports on X4
- Ø65 mm castors
- 210 kg safe working load.
- Automatic locking of adjustment functions after two hours of non-use; functions also lock when mains power is unplugged.
- Optional battery for emergency situations and power outages.
Models / Configurations
Kinos X4 and X5 share the same 203 cm length, 46-95 cm height adjustment range, 210 kg safe working load and Kinos electric treatment-table platform.

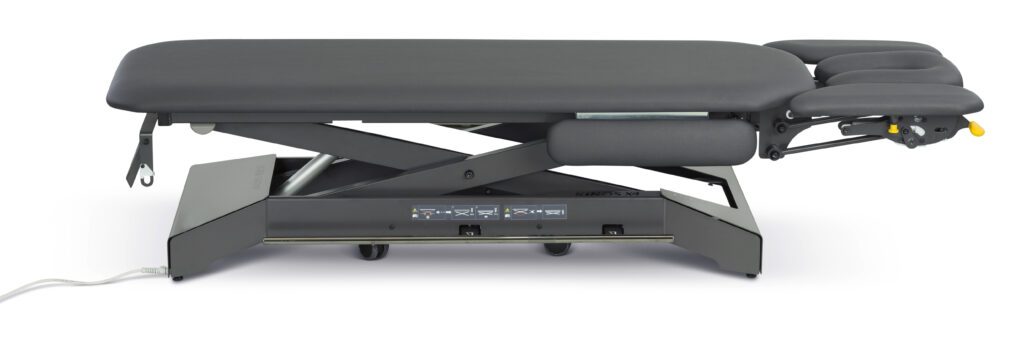

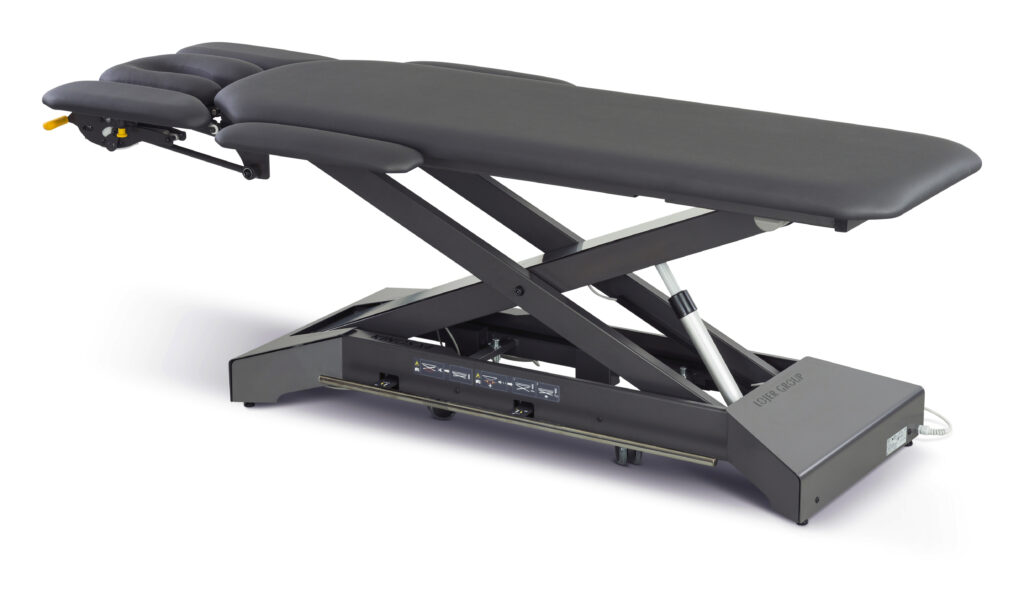

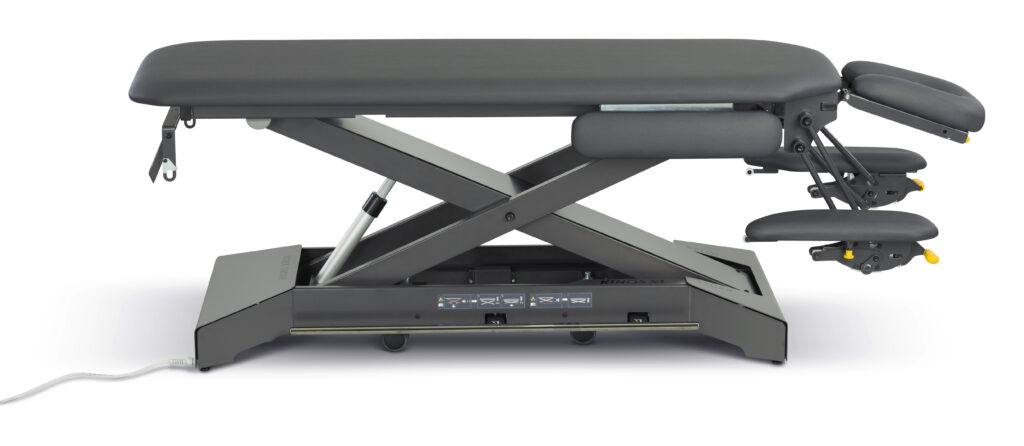

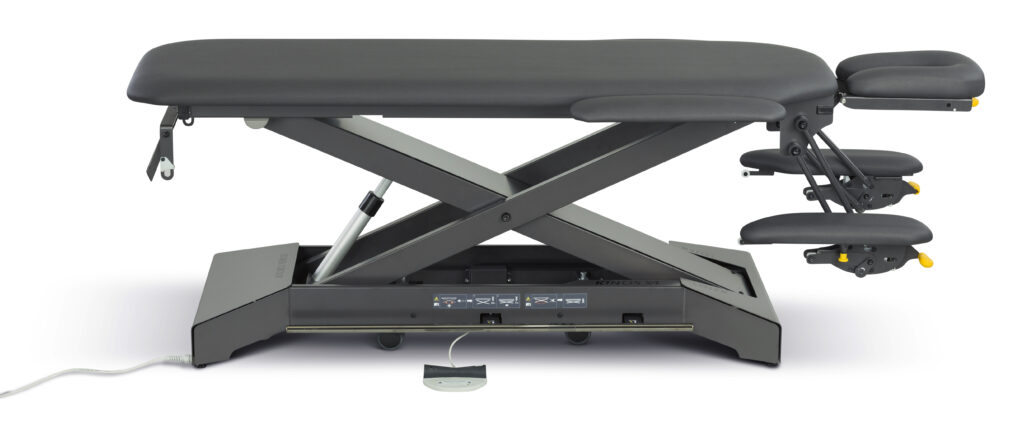

- Kinos X4
- 55 cm wide one-piece table-top
- Side supports
- Height adjustment via foot-operated controls

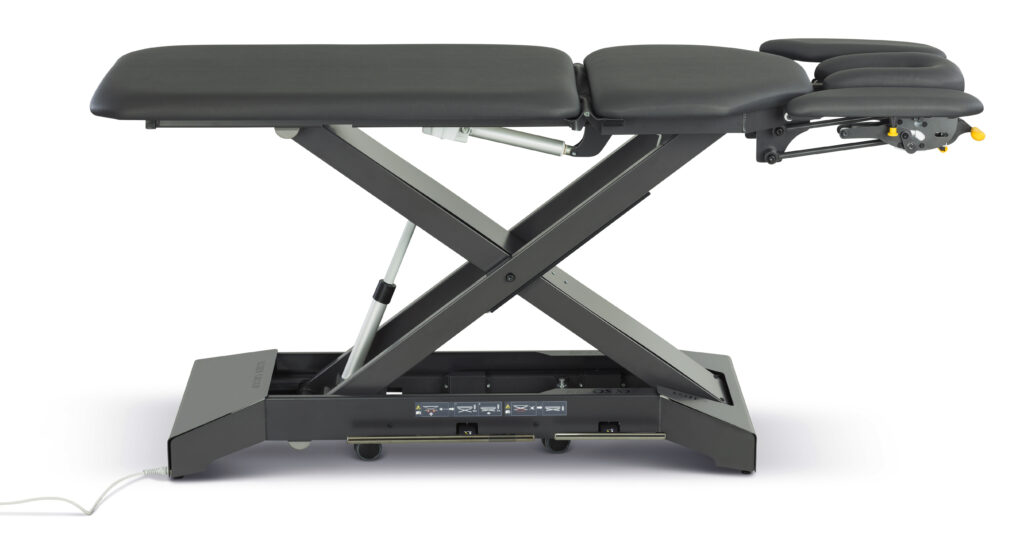

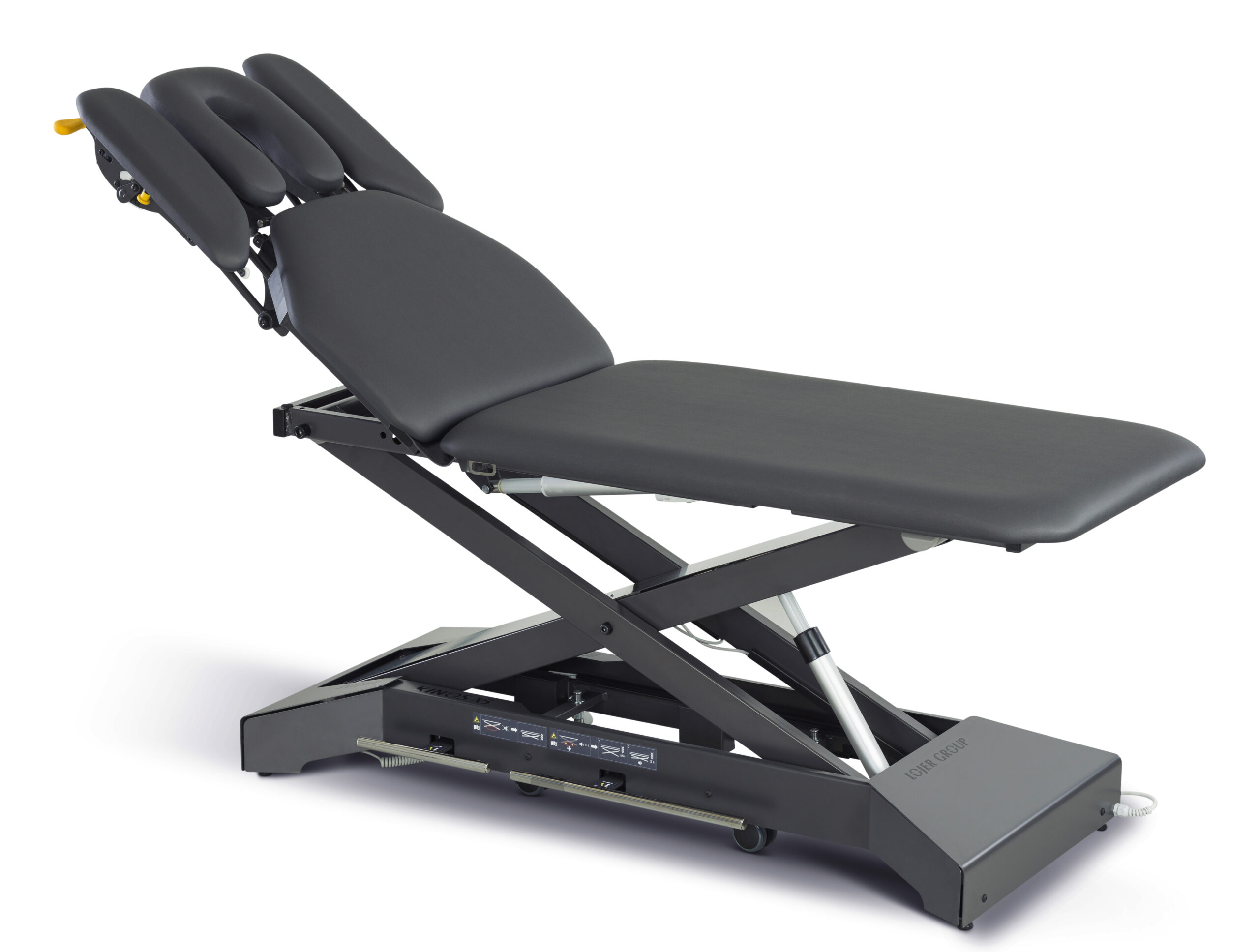

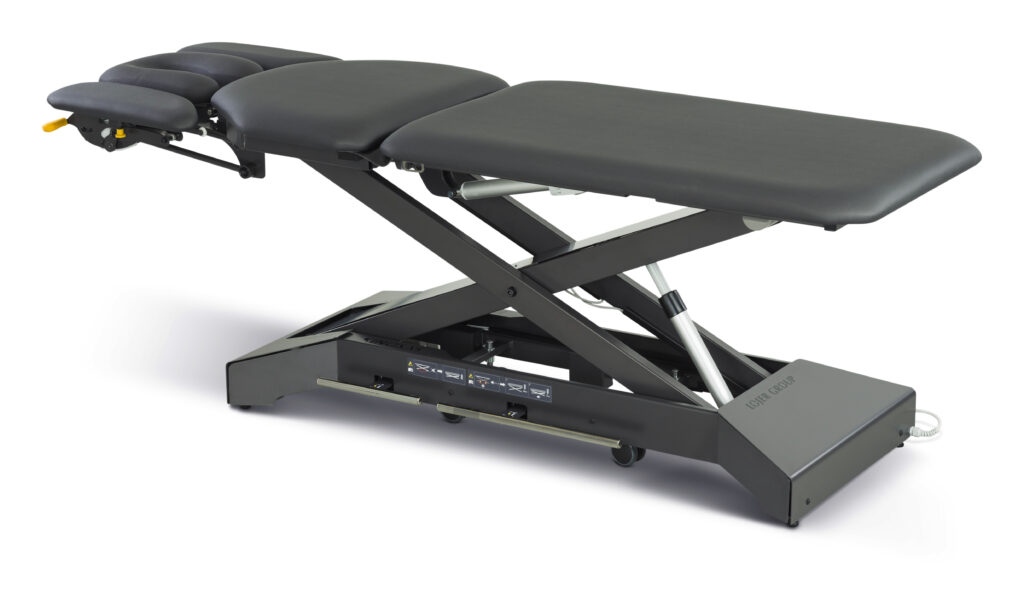

- Kinos X5
- 65 cm wide two-piece table-top
- 52 cm back section

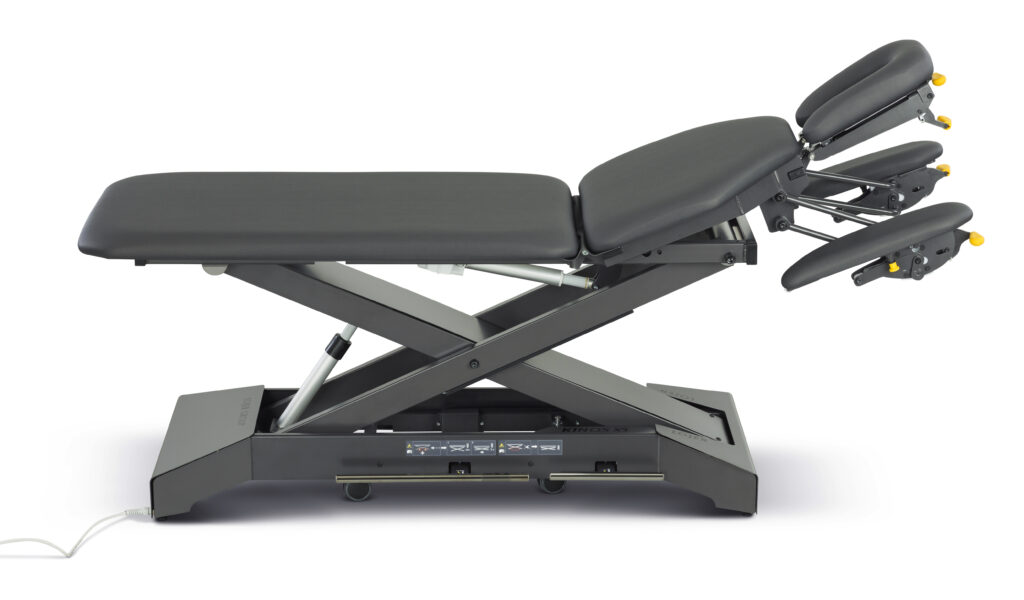

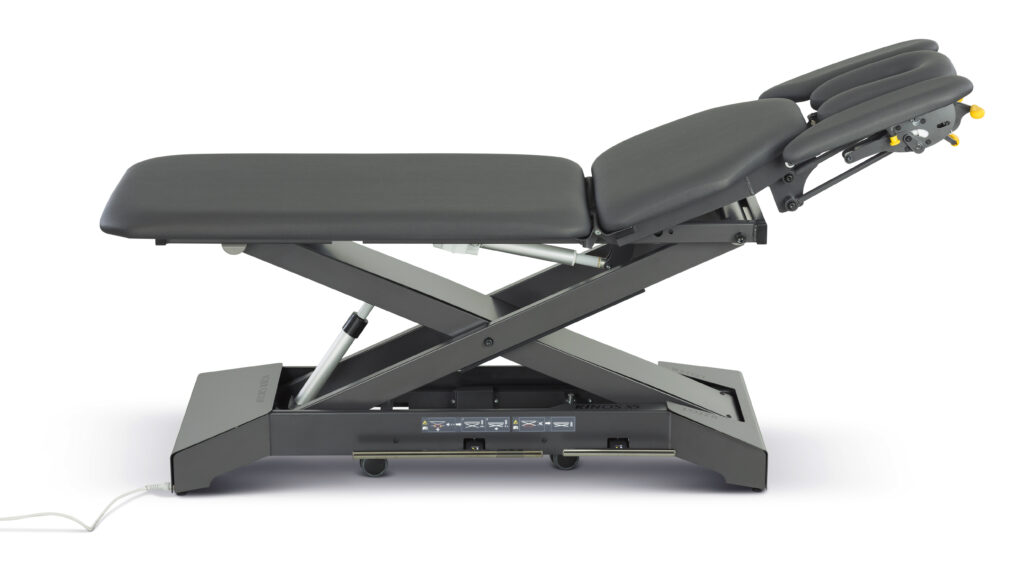

- Electrical back section adjustment, 0° to 70°
- Height and back section can be adjusted via foot-operated controls
Technical specifications
| Specification | Kinos X4 | Kinos X5 |
|---|---|---|
| Total length | 203 cm | 203 cm |
| Total width | 55 cm | 65 cm |
| Total weight | 98 kg | 109 kg |
| Safe working load (SWL) | 210 kg | 210 kg |
| Height adjustment | 46-95 cm | 46-95 cm |
| Back section length | – | 52 cm |
| Back section adjustment | – | 0-70°, electrical |
| Head section adjustment | -90°…+35° | -90°…+35° |
| Reverse-angle head adjustment | 0°…80° – double hinged head section only | 0°…80° – double hinged head section only |
| Arm rest adjustment | -35…+2 cm | -35…+2 cm |
| Castors | 4 x Ø65 mm | 4 x Ø65 mm |
| Side supports | X | |
| Face hole plug | X | |
| CE marking | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Country of manufacture | Finland | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
Options and accessories
Factory-installed option
- Paper roll holder (PRT50KINOS)
- Face hole plug (R22739)
Service & lifestyle
The limited international warranty is 24 months for the equipment, 10 years for the steel structure and 12 months for accessories and wearing components, subject to the warranty terms and required maintenance.
Documents and downloads
Contact Lojer or your local Lojer representative to find the right Kinos X configuration for your facility.
