Lojer Delta Standard
Reliable functionality and versatility for everyday treatment
With a choice of electric or hydraulic height adjustment and practical configurations, Lojer Delta Standard delivers the features professionals need – combining simplicity, flexibility and everyday functionality in one dependable treatment table range. Designed for use in physiotherapy clinics, massage practices and other healthcare environments, Delta Standard tables offer the flexibility professionals need to accommodate different patients and treatment techniques.
Available in four models – electric LDS4 and LDS5, and hydraulic LDS4H and LDS5H – the range offers a choice of table widths (50, 55 or 60 cm) . For added versatility, the LDS5 and LDS5H feature adjustable middle and leg sections, including a leg-section adjustment range of 0–68°, supporting a wider variety of patient positions and treatment needs
KEY benefits
What makes Delta Standard different.
Choose electric or hydraulic height adjustment
LDS4/LDS5 use electric height adjustment, while LDS4H/LDS5H use a hydraulic foot pedal.
Select a simpler or multi-section Standard model
LDS4/LDS4H provide the simpler platform, while LDS5/LDS5H add middle and leg sections with leg adjustment up to 68°.
210 kg safe working load
the same high safe working load across all Standard models.
Select 50, 55 or 60 cm width
All Standard models are offered in the same three stated table widths.
Key features
- Models: LDS4, LDS5, LDS4H and LDS5H
- Electric height adjustment on LDS4 and LDS5. Configure with framecontrol, foot pedal on floor or hand control
- Hydraulic height adjustment with foot pedal on LDS4H and LDS5H
- Total length: 205 cm
- Widths: 50 / 55 / 60 cm
- Weight: 75 kg on electric Standard models; 59 kg on hydraulic Standard models
- Safe working load (SWL): 210 kg
- Height adjustment: 54–85 cm on LDS4/LDS4H and 57–88 cm on LDS5/LDS5H
- Head section: -90° to +50°
- Middle section: 0° to +25° where applicable
- Leg-section adjustment: 0–68° on LDS5/LDS5H
- Armrest height adjustment on applicable models, optional side supports
- Optional castors
Models / Configurations

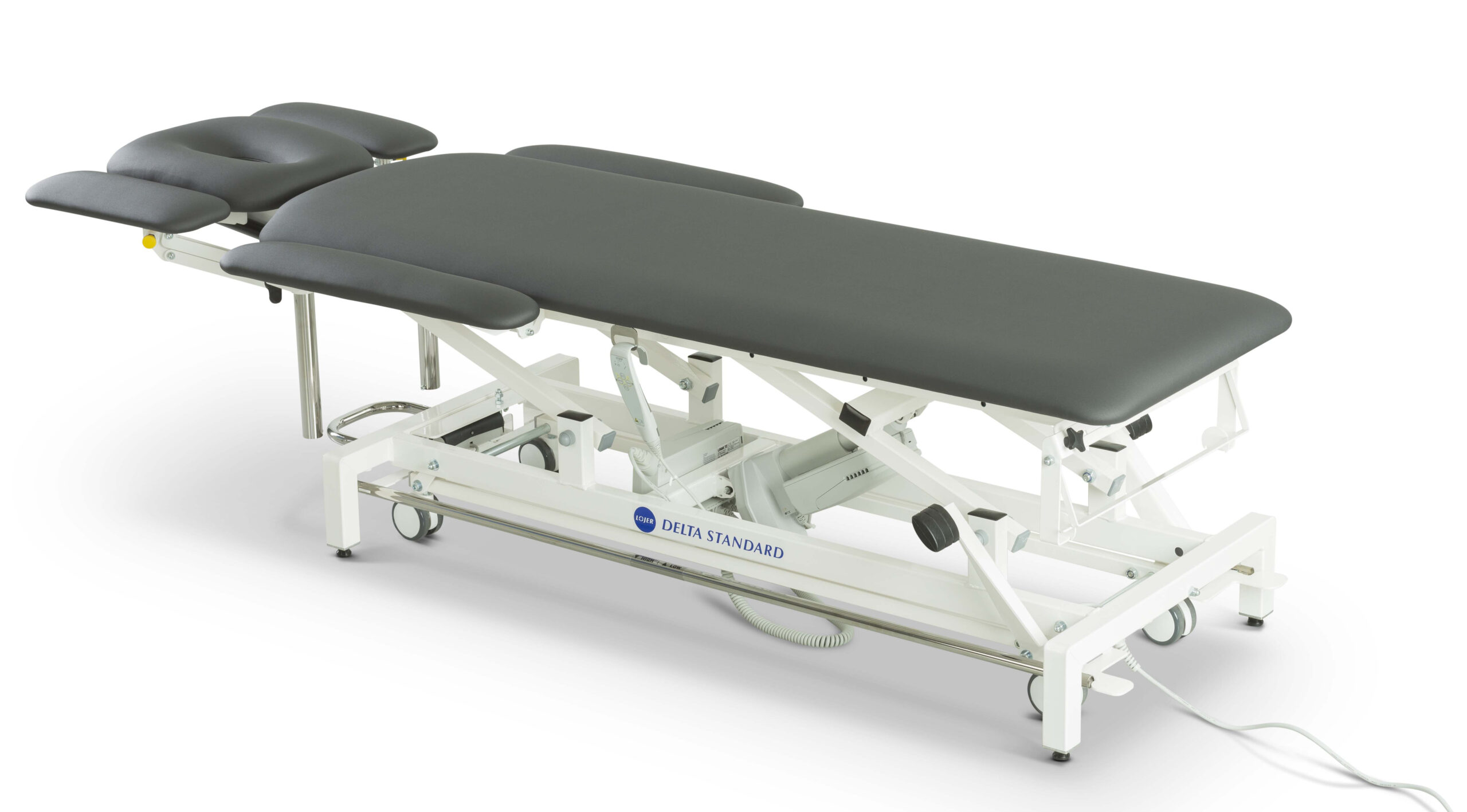

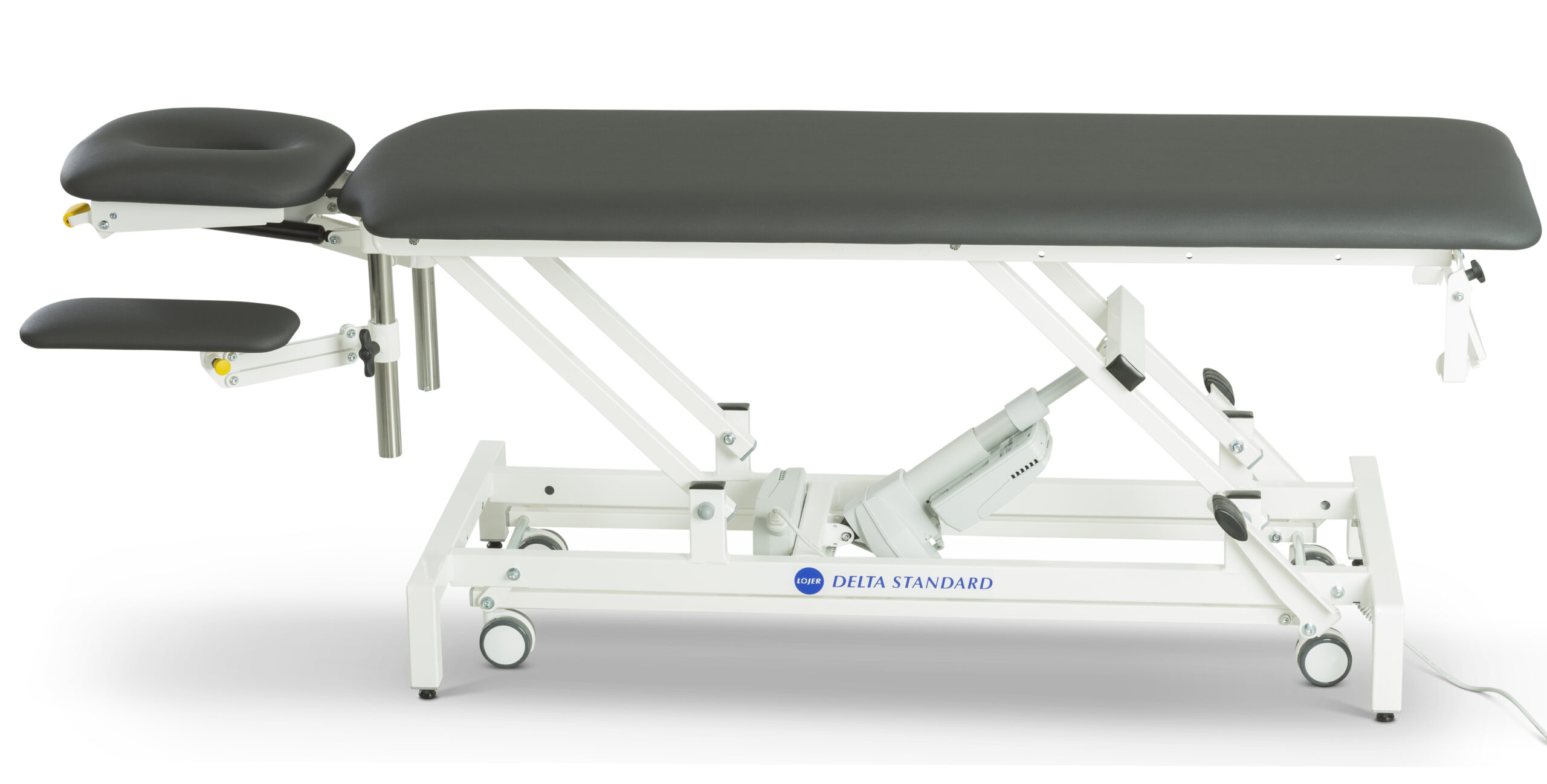

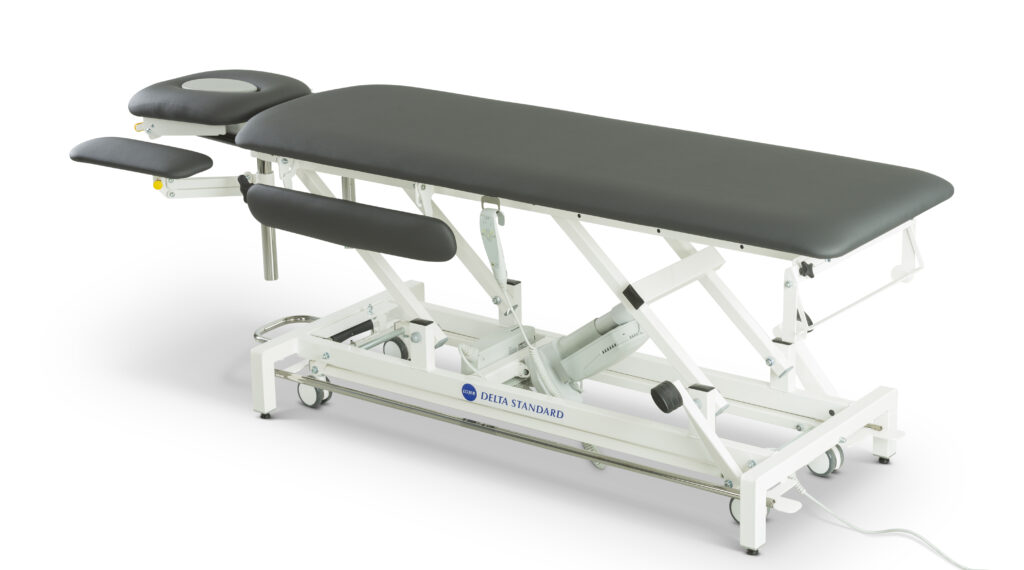

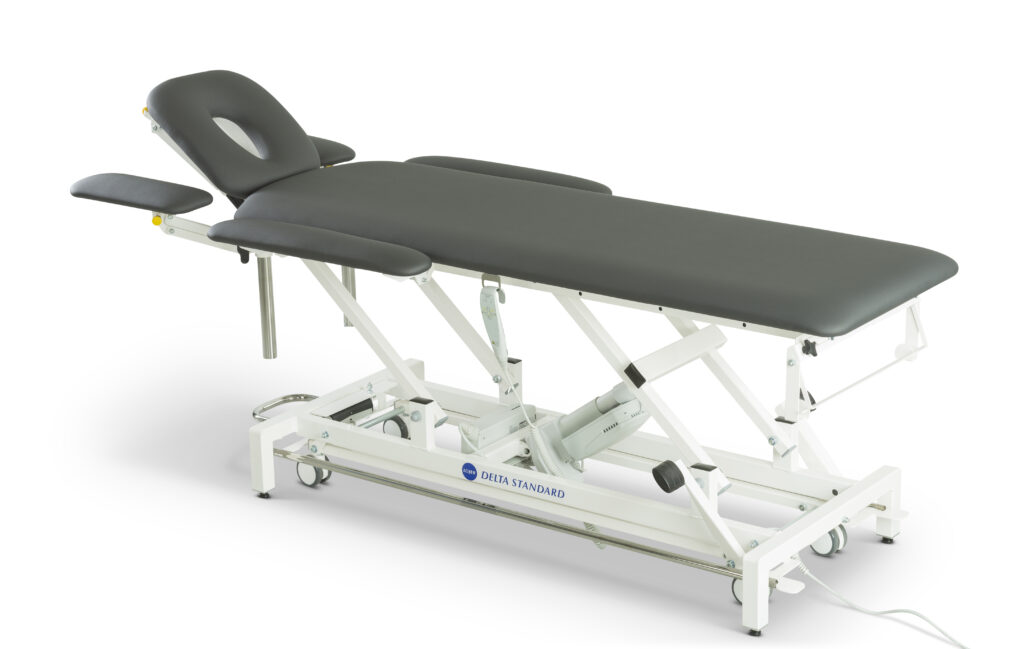

- LDS4
- Electric height adjustment: 54–85 cm
- Total length 205 cm; width 50 / 55 / 60 cm; weight 75 kg
- Height adjustment; choose between foot control / frame control / hand control
- O- or U-shaped head section and armrests with height and angle adjustment

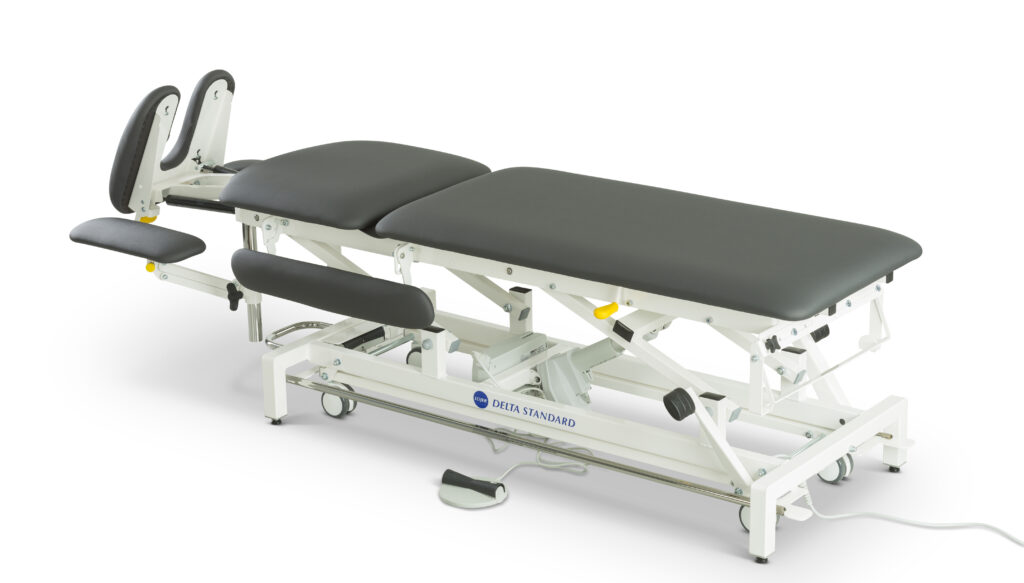

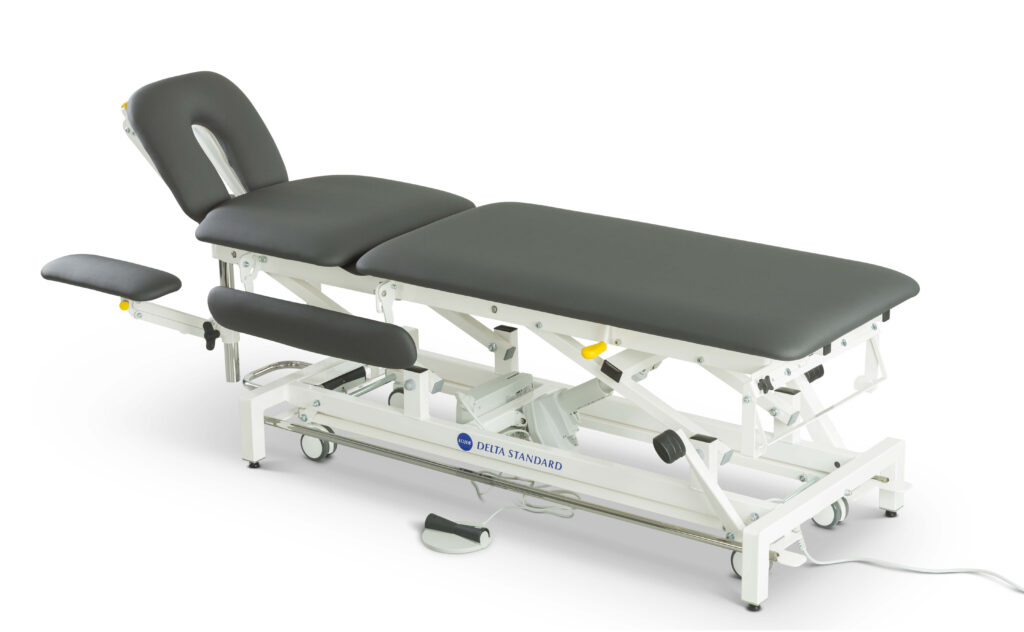

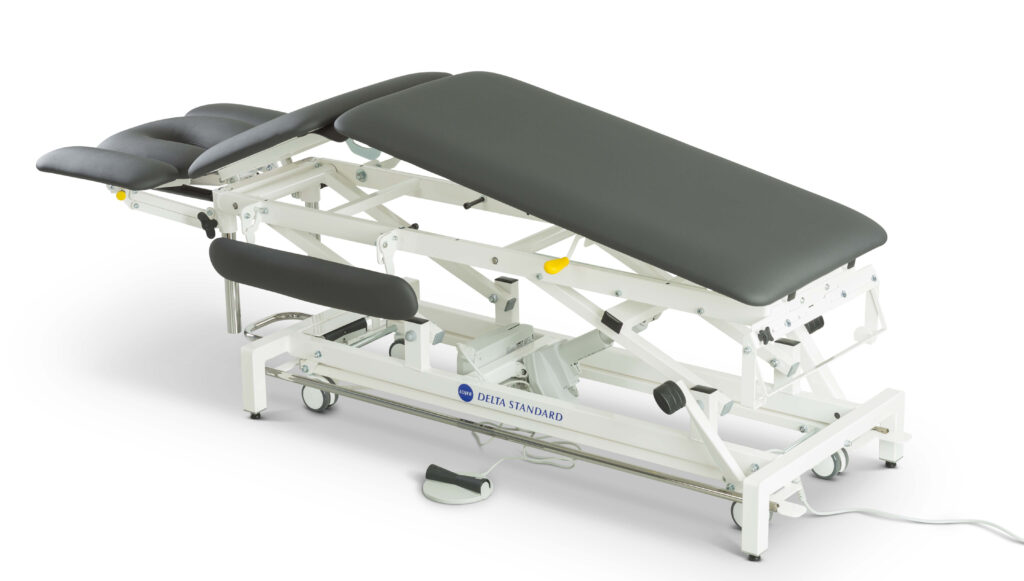

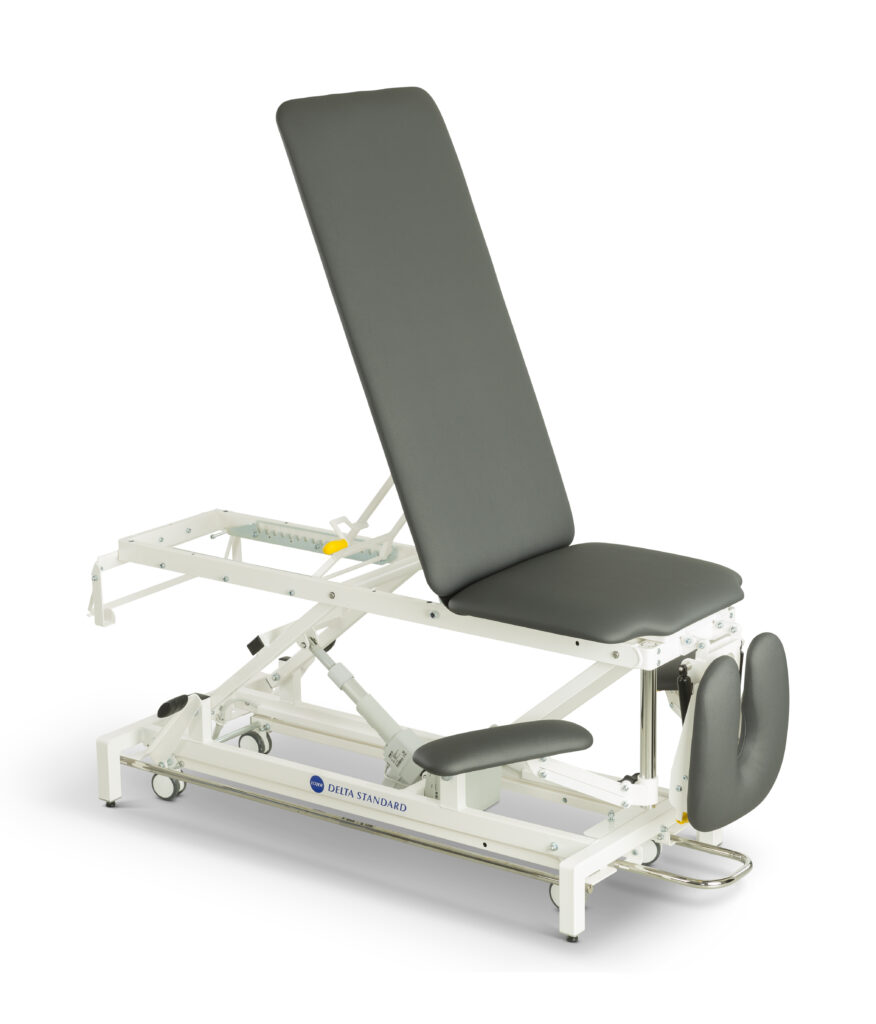

- LDS5
- Electric height adjustment: 57–88 cm
- Total length 205 cm; width 50 / 55 / 60 cm; weight 75 kg
- Leg section adjustment: 0–68°, manual middle section adjustment
- Height adjustment; choose between foot control / frame control / hand control
- O- or U-shaped head section and armrests with height and angle adjustment

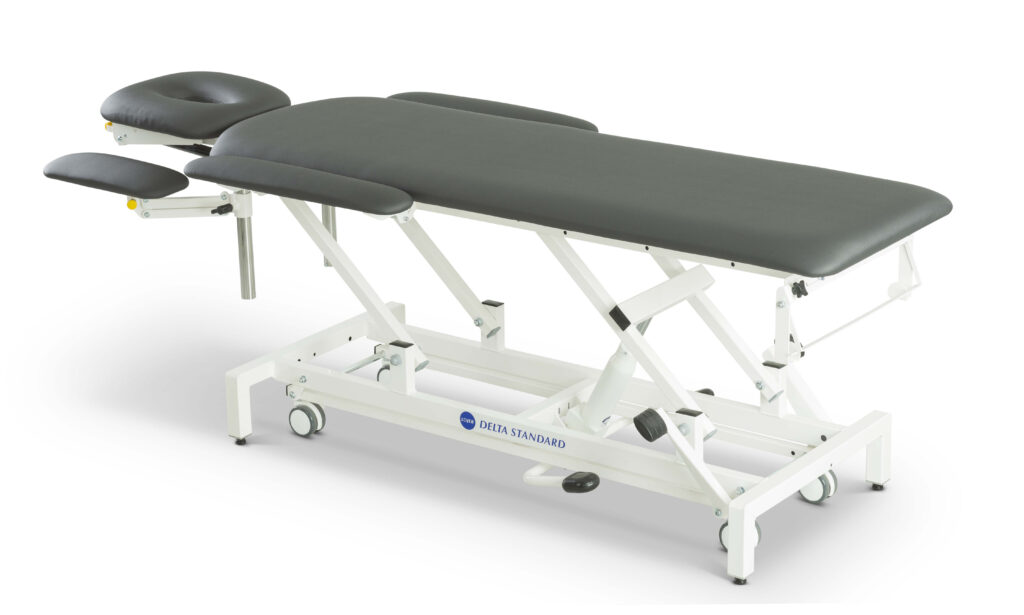

- LDS4H
- Hydraulic height adjustment with foot pedal: 54–85 cm
- Total length 205 cm; width 50 / 55 / 60 cm; weight 59 kg
- O- or U-shaped head section and armrests with height and angle adjustment

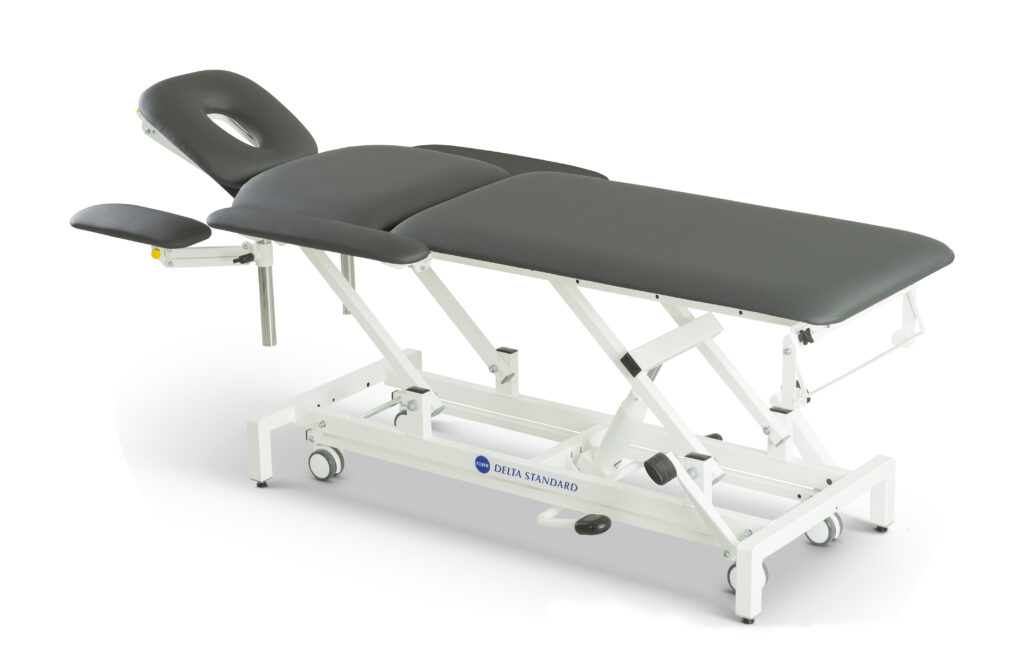

- LDS5H
- Hydraulic height adjustment with foot pedal: 57–88 cm
- Total length 205 cm; width 50 / 55 / 60 cm; weight 59 kg
- Leg-section adjustment: 0–68, manual middle section adjustment
- O- or U-shaped head section and armrests with height and angle adjustment
Technical specifications
| Specification | LDS4 | LDS5 | LDS4H | LDS5H |
|---|---|---|---|---|
| Total length | 205 cm | 205 cm | 205 cm | 205 cm |
| Total width | 50 / 55 / 60 cm | 50 / 55 / 60 cm | 50 / 55 / 60 cm | 50 / 55 / 60 cm |
| Total weight | 75 kg | 75 kg | 59 kg | 59 kg |
| Safe working load (SWL) | 210 kg | 210 kg | 210 kg | 210 kg |
| Height adjustment | 54–85 cm | 57–88 cm | 54–85 cm | 57–88 cm |
| Head section | -90° to +50° | -90° to +50° | -90° to +50° | -90° to +50° |
| Middle section | 0°…+25° | 0°…+25° | ||
| Leg-section adjustment | 0–68° | 0–68° | ||
| Arm-rest height | -35 to 0 cm, angle adjustment | -35 to 0 cm, angle adjustment | -35 to 0 cm, angle adjustment | -35 to 0 cm, angle adjustment |
| CE marking | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Country of manufacture | Finland | Finland | Finland | Finland |
| Manufacturer | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland |
Options and accessories
Factory-installed option
- Battery
- Double hinged head section
- Frame control
- Foot control
- Hand control
- Castors
Accessories
- Paper roll holder
- Face hole plug
- Side supports
- Bluetooth foot control
- Foot control holder
Service & lifestyle
The limited international warranty is 24 months for the equipment, 10 years for the steel structure and 12 months for accessories and wearing components, subject to the warranty terms and required maintenance.
