Lojer Bobath XB Mat Tables
Mat treatment at a working height, with room for the therapist on the table.
Treatment that is usually given on a floor mat can be carried out on the Bobath XB Mat Table at a height that suits both the therapist and the patient. A safe working load of 400 kg and a wide lying surface allow the therapist to be on the table at the same time as the patient, which makes the table especially suited to neurological therapy and Bobath therapy where the patient’s movement is part of the treatment.
The table lowers to 40 cm so that patients with reduced mobility can get on easily, and 15 cm of ground clearance lets a patient lift fit underneath even at the lowest height. The 30 mm upholstery foam gives a firmer, less elastic lying surface, and the patented structure is built for constant heavy use in physiotherapy clinics, healthcare centres and other medical facilities.
KEY benefits
What makes Bobath XB different
Mat treatment at working height
treatment usually given on a floor mat is carried out at a height that suits both the therapist and the patient
Room for the therapist on the table
A 400 kg safe working load and a table width of 100 or 120 cm let the therapist work on the table alongside the patient
Easy access, hoist-friendly
The table lowers to 40 cm, and 15 cm of ground clearance keeps room for a patient lift underneath even then
A firm surface for movement-based therapy
30 mm upholstery foam gives a less elastic lying surface for examination and treatment
Controlled movement with two people on the table
The table lifts automatically if something is caught, and the controls can be locked against unintended adjustment
Key features
- One-section or two-section table top
- Electric height adjustment, 40–95 cm
- Back section adjustment, 0–73°, on the two-section model
- Safe working load 400 kg
- Table width 100 or 120 cm; length 200 cm
- Ground clearance 15 cm
- Table top foam thickness 30 mm, with plastic edging to protect the upholstery
- Patented structure for constant heavy use
- Hand control with safety lock function (two buttons pressed for 3 seconds) and indicator lights for power, service need, lock status and battery use
- Automatic lift of 5 cm if something is caught in the mechanism
- Motors lower using gravity
- Ø 150 mm central locking twin castors
- Durable, easy-to-clean upholstery in several materials and colours

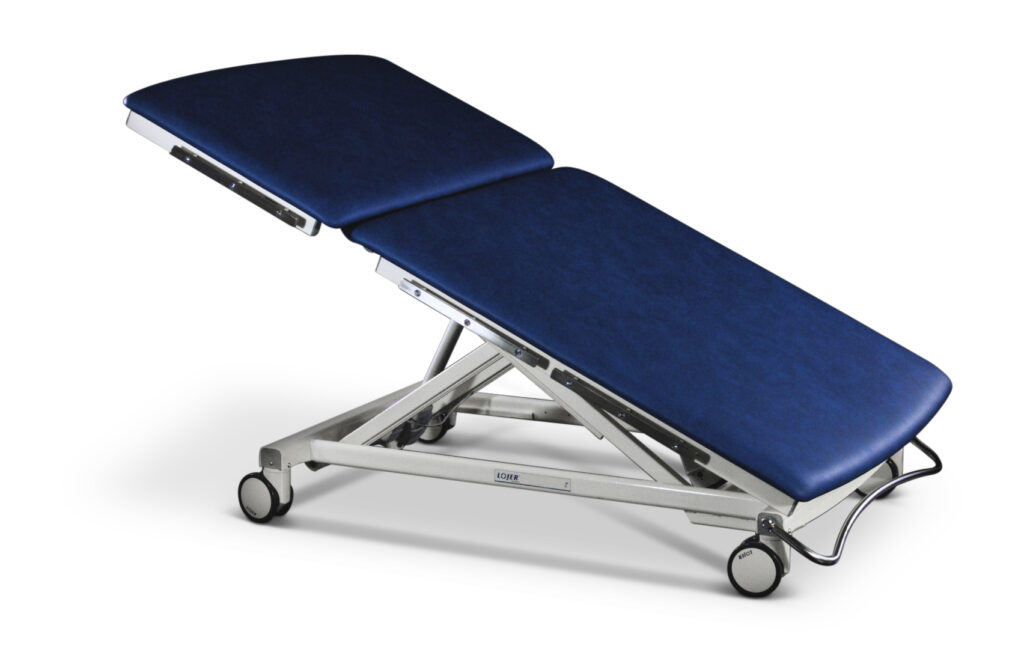

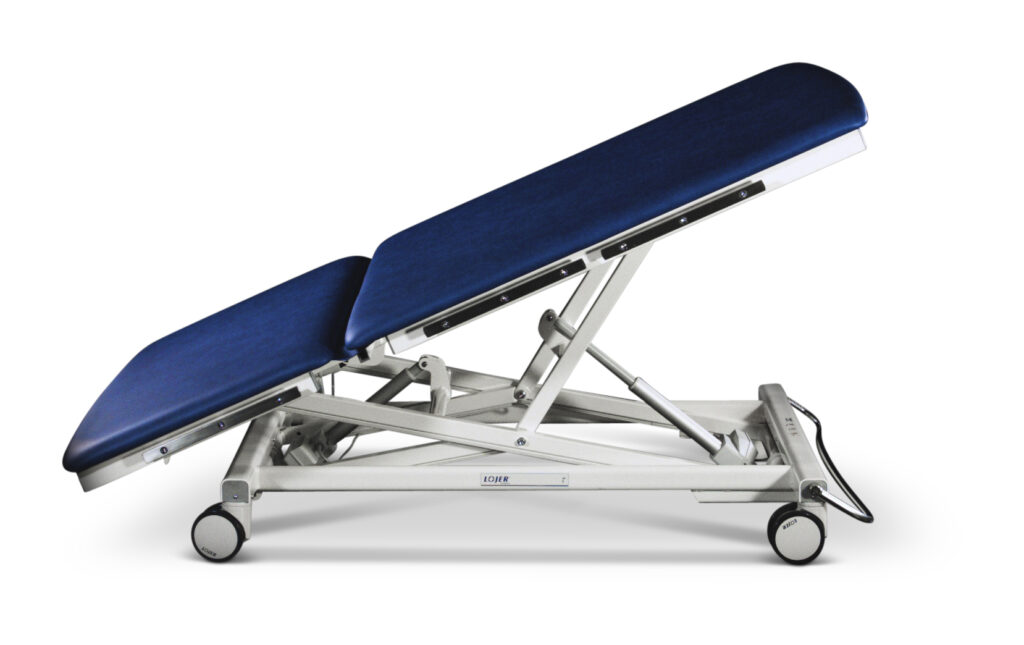

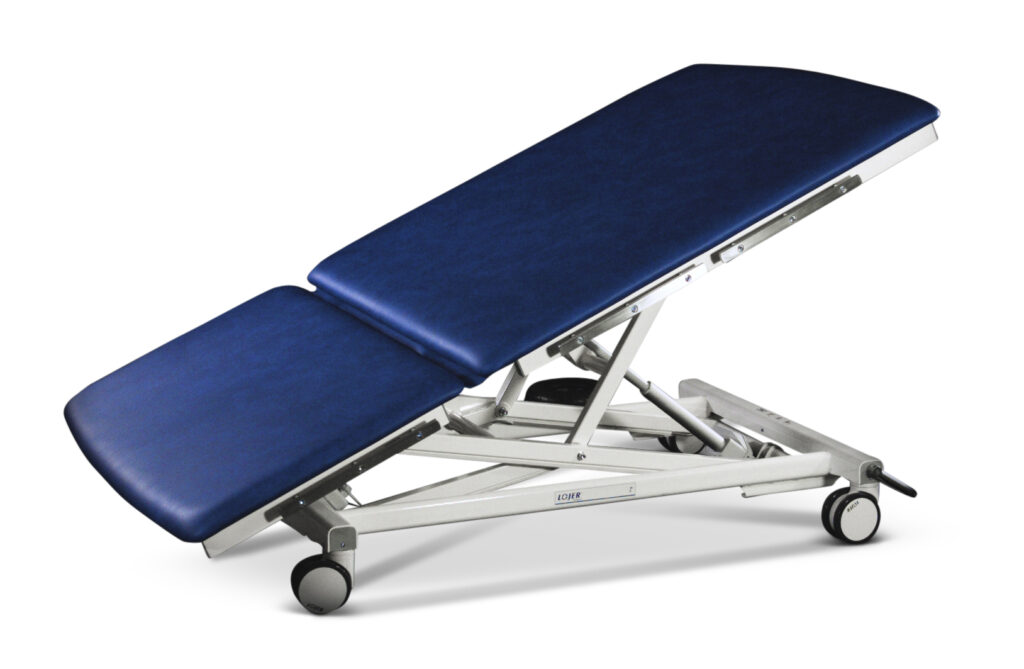

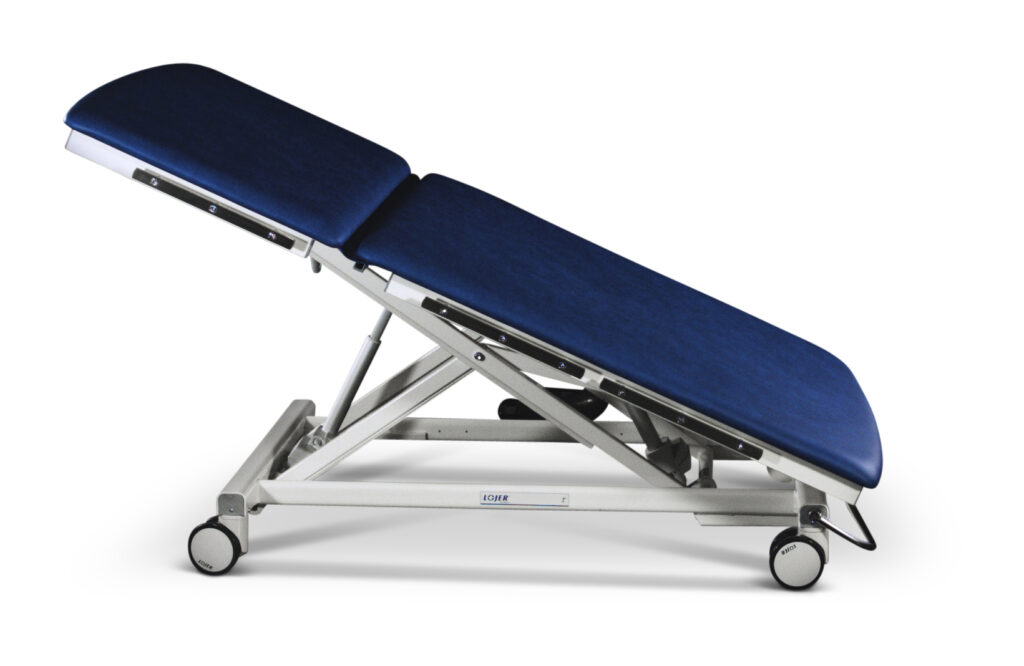

- Optional foot control, hands-free adjustment bar, Trendelenburg and anti-Trendelenburg (20° / 20°) and face hole
Models / Configurations
Both models share the same frame, height range, safe working load, castors and options. They differ in the table top.
- 4010XB — one-section table top.

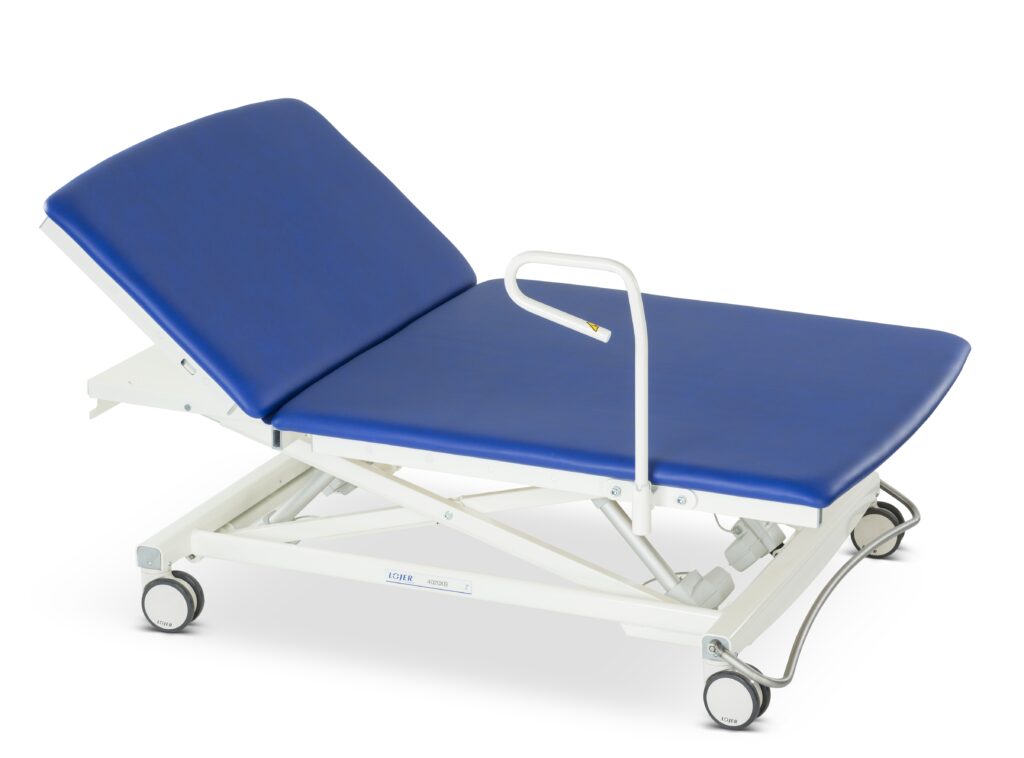

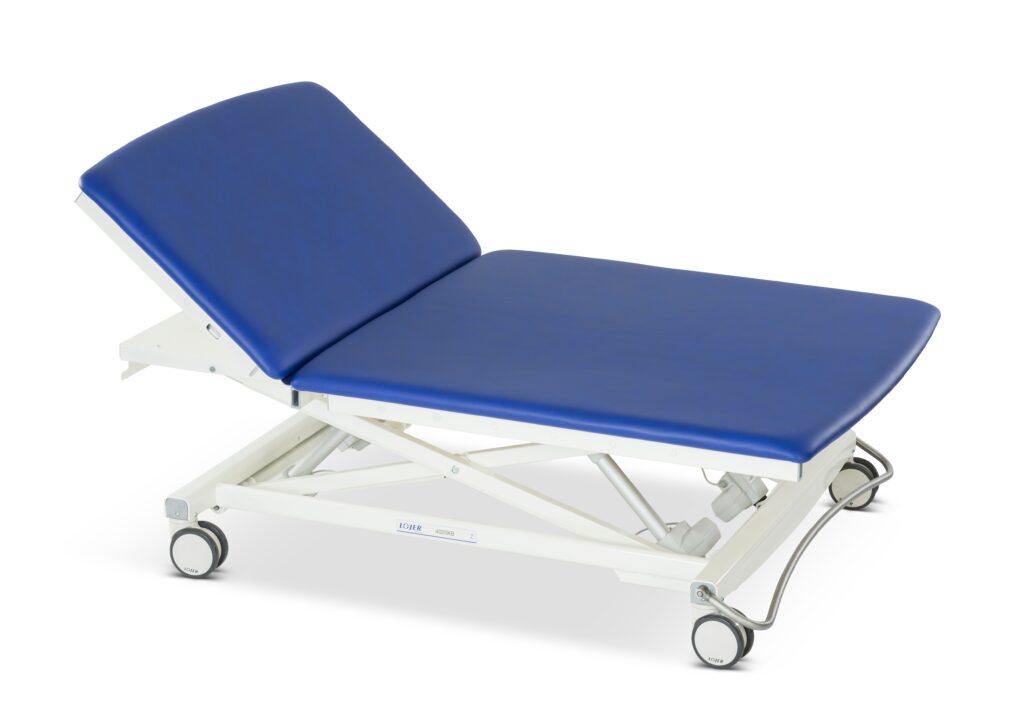

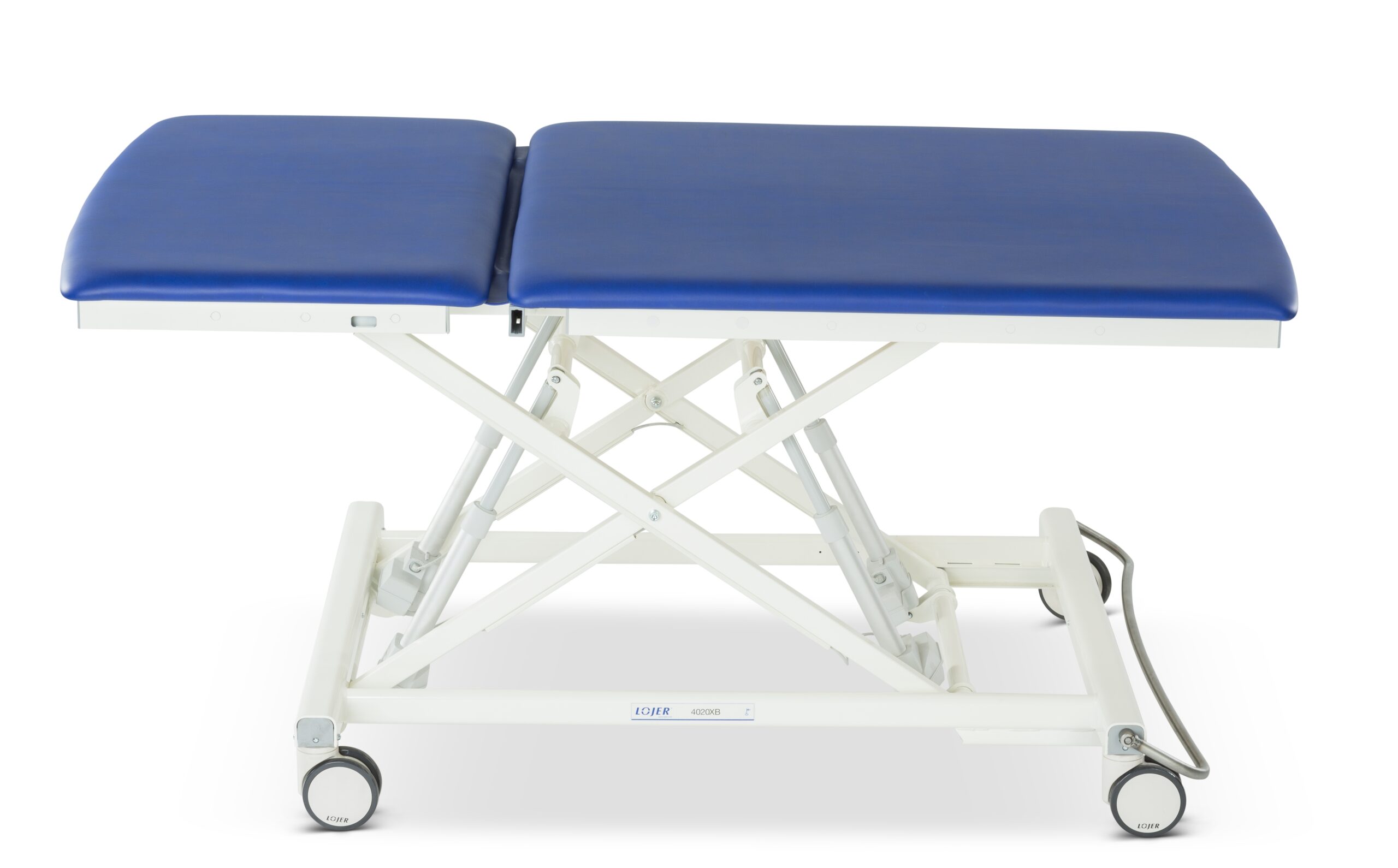

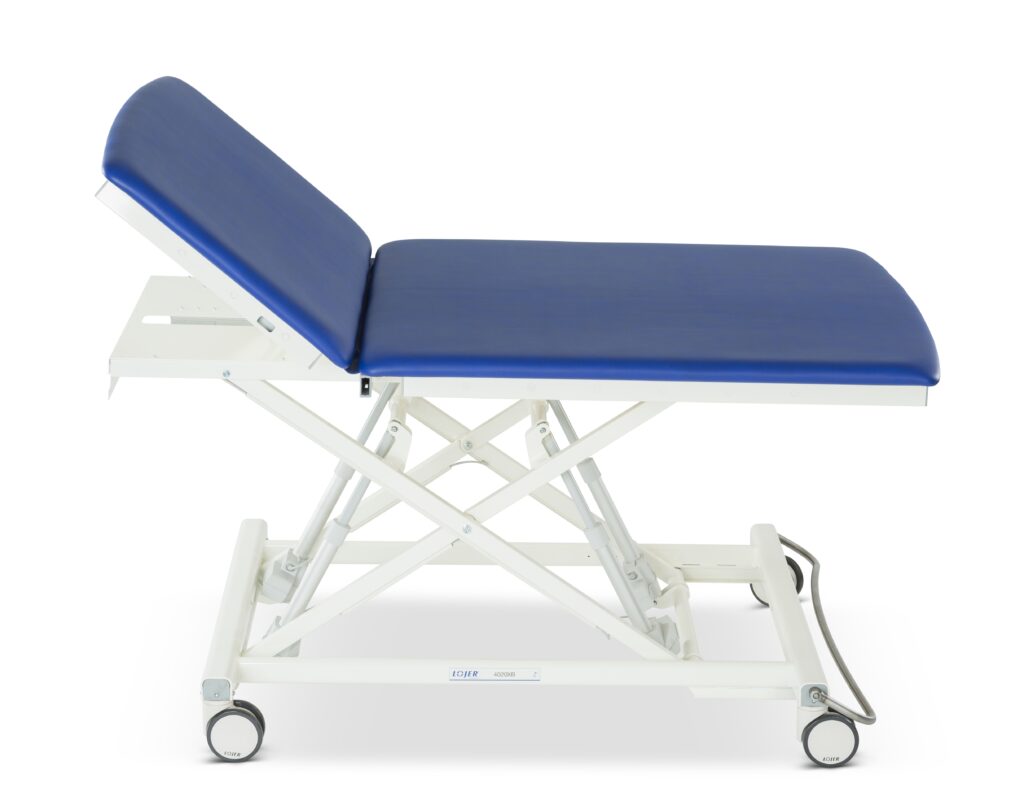

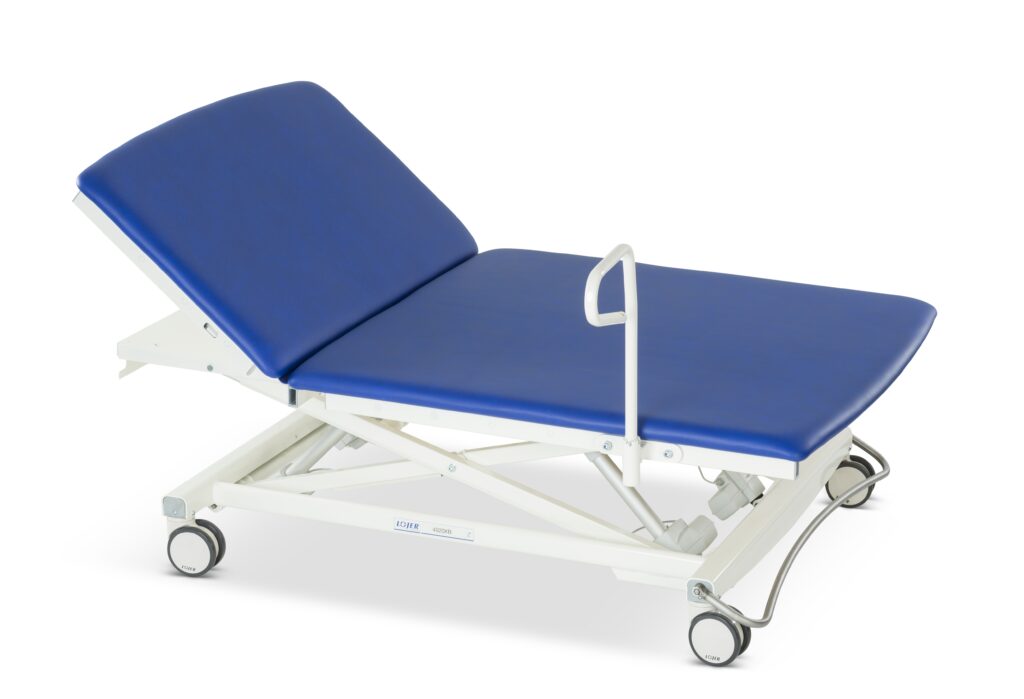

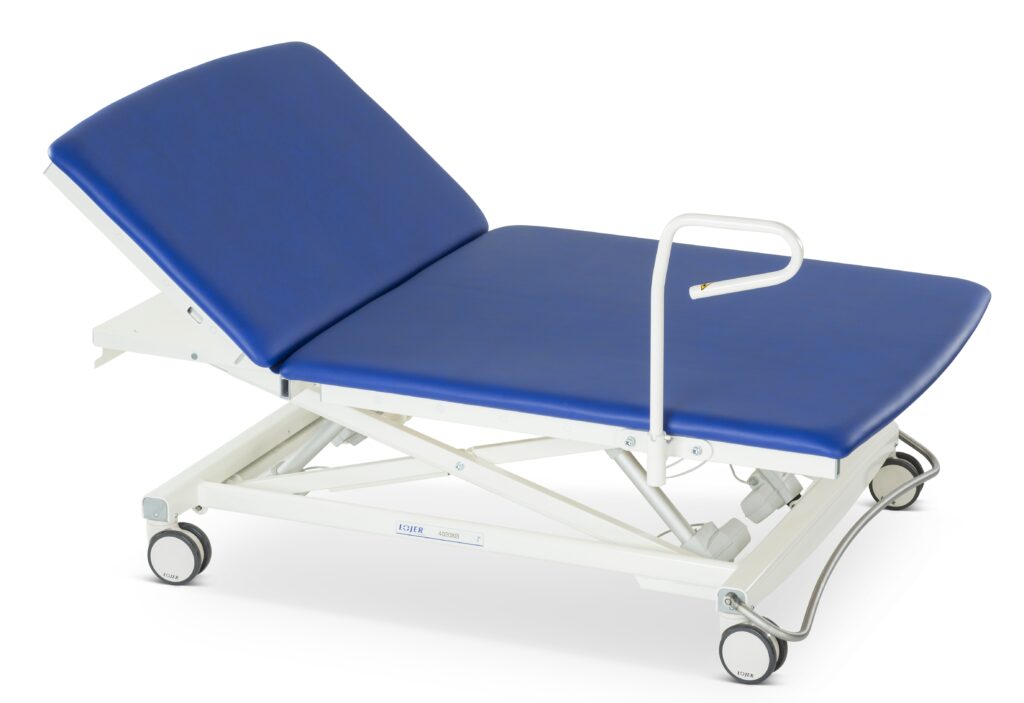

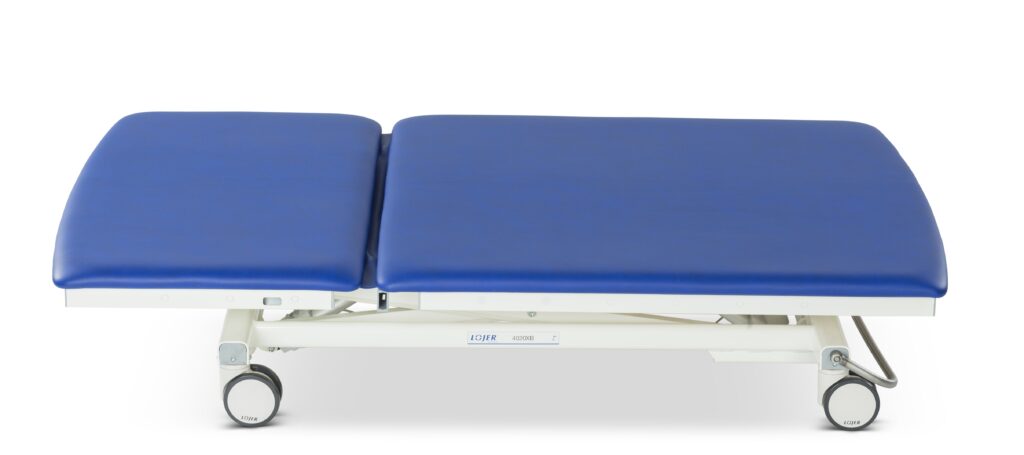

- 4020XB — two-section table top with a 70 cm back section, adjustable 0–73°.
Selected at order for both models: table width 100 or 120 cm, face hole (total length 207 cm), and the factory-installed options in Section 7.
Technical specifications
| Specification | 4010XB | 4020XB |
|---|---|---|
| Total width | 100 cm / 120 cm | 100 cm / 120 cm |
| Total length | 200 cm | 200 cm |
| Total length with face hole (optional) | 207 cm | 207 cm |
| Total weight | 145 kg | 145 kg |
| Height adjustment range (electric) | 40–95 cm | 40–95 cm |
| Back section length | – | 70 cm |
| Back section adjustment range | – | 0–73° |
| Trendelenburg / anti-Trendelenburg (optional) | 20° / 20° | 20° / 20° |
| Table top foam thickness | 30 mm | 30 mm |
| Ground clearance | 15 cm | 15 cm |
| Castors | Ø 150 mm central locking twin | Ø 150 mm central locking twin |
| Safe working load (SWL) | 400 kg | 400 kg |
| Electric system | 24 V | 24 V |
| Operating voltage | 100–240 V ~ 50–60 Hz | 100–240 V ~ 50–60 Hz |
| CE marking | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Country of manufacture | Finland | Finland |
| Manufacturer | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland |
Options and accessories
Factory-installed options
- Foot control — height adjustment on the 4010XB; height and back section adjustment on the 4020XB
- Hands-free adjustment bar for height and back section
- Trendelenburg and anti-Trendelenburg (incl. battery)
- Face hole
- Battery powered
Accessories
- Accessory rail, 380 × 10 × 25 mm (max. 6 pcs)
- Lift support
- Push handles
- Examination light

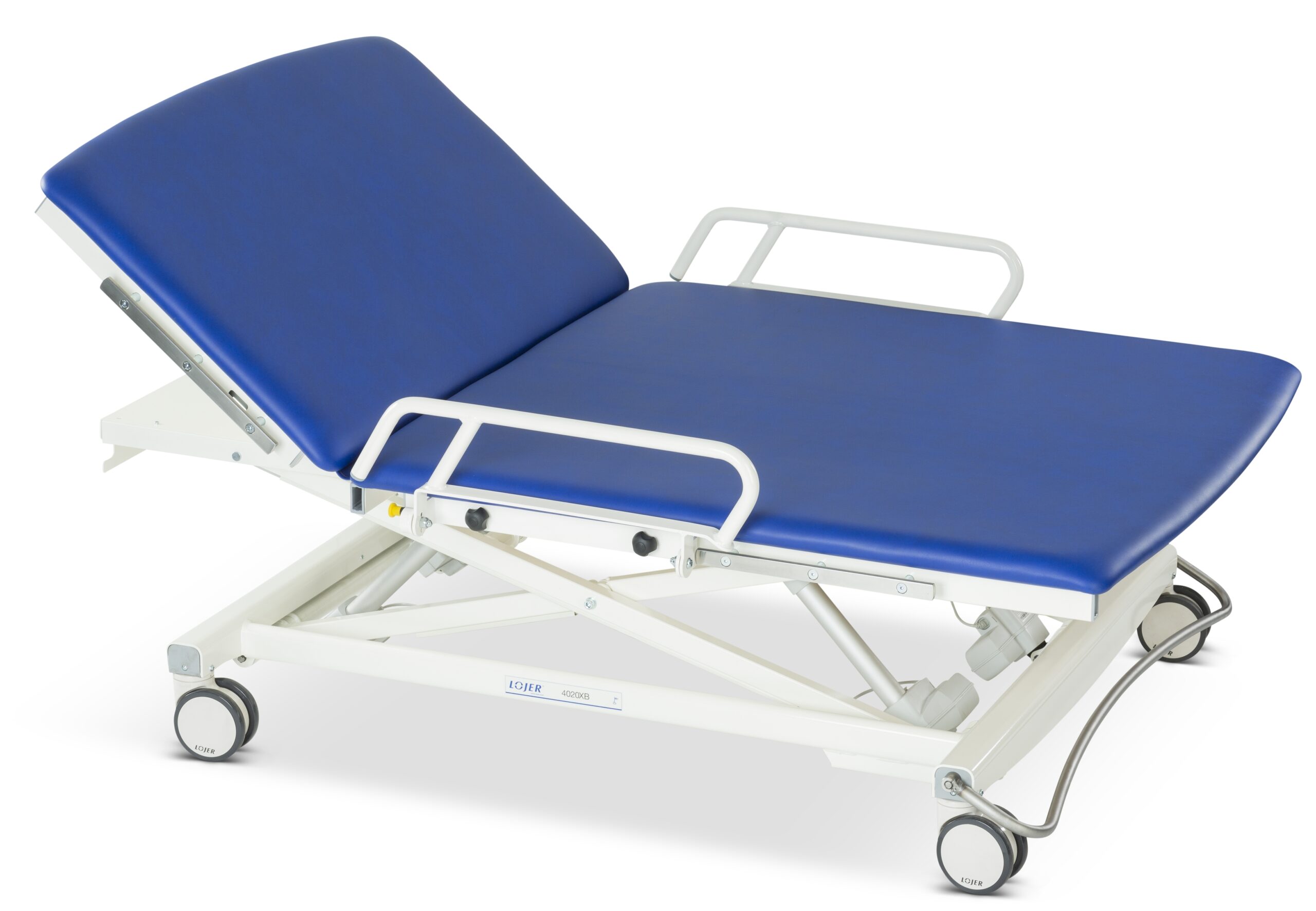

- Side rails (1–2 pcs)
Service & lifestyle
The warranty period is 24 months, with 10 years for the steel structure and 12 months from shipment for accessories and wearing components. The Instructions for Use specify biannual and annual maintenance measures, and the hand control signals when service is needed. Spare parts and service are available from Lojer Service.
