Lojer Capre Examination Tables
Modern and unique look for demanding projects
The Capre examination tables are designed for the examination room in hospitals, health centres and private clinics, with a look intended to upgrade the interior of medical premises. The tables stand firmly on non-marking rubber feet rather than castors, and optional Ø 75 mm central locking castors can be added where the table needs to be moved, for cleaning for example.
Height adjustment gives an ergonomic working position for the clinician and comfort for the patient, and the lowest height of 45 cm makes getting onto the table easier for older patients and for patients with reduced mobility. The range covers a one-part and a two-part table top, and electric or hydraulic height adjustment, with a wide selection of factory-installed options and accessories from side rails to an anaesthesia frame and an arm support for sampling.
Key benefits
What makes Capre different.
Ergonomics for staff and patient
A wide height adjustment range gives a working height set by the clinician and a low access height for the patient.
Low access height

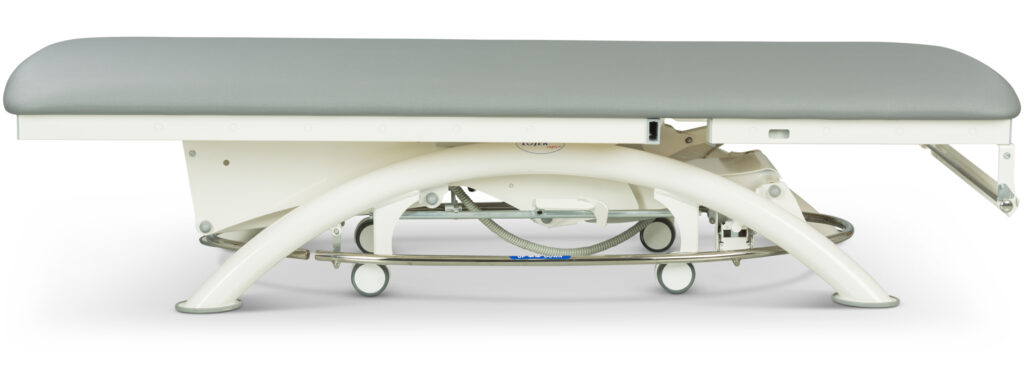

At its lowest the table is 45 cm, so older patients and patients with reduced mobility can get onto it more easily.
Stable without castors
The tables stand firmly on non-marking rubber feet, with optional castors when the table needs to be moved.
Quiet and simple to operate
Adjustments are made with the hand control or a foot control, without noise or fuss during the examination.
Easy to keep clean
A streamlined design and surfaces that can be cleaned and disinfected between every patient.
Key features
- One-part or two-part table top
- Electric or hydraulic height adjustment
- Back section adjustment, 0–73°, on two-part models
- Hand control as standard on electric models
- Non-marking rubber feet
- Patient surface 200 cm long and 70 cm wide, 80 cm as an option
- Safe working load 180–210 kg depending on model
- Optional Ø 75 mm central locking castors
- Accessory rails, up to six
- Several upholstery materials and colour options
Models / Configurations
The Capre EX range shares the same frame, footprint, table top length and accessory platform. The models differ in the table top and in how height and back section are adjusted.
• Capre EX1 — one-part table top, electric height adjustment with hand control. SWL 180 kg.

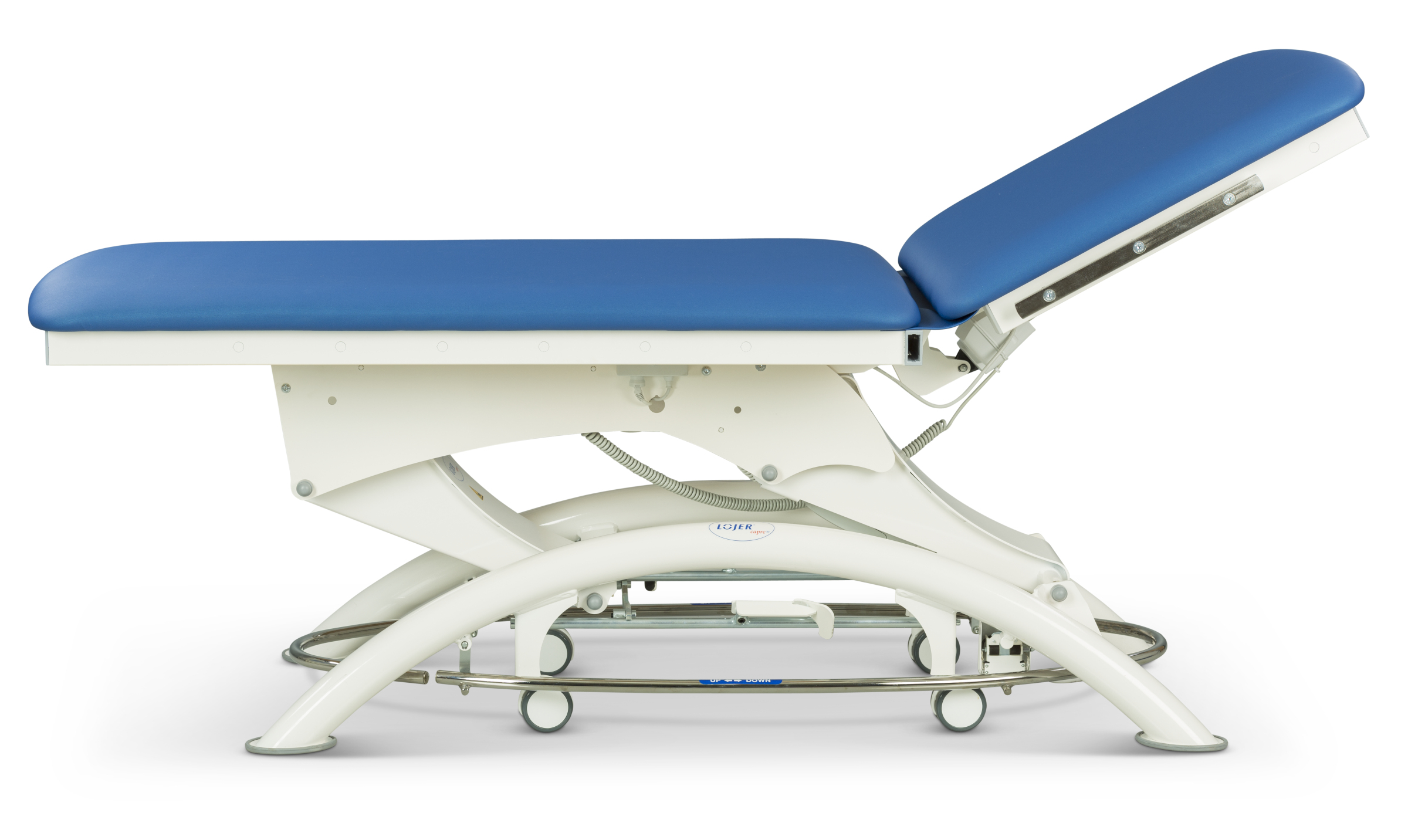

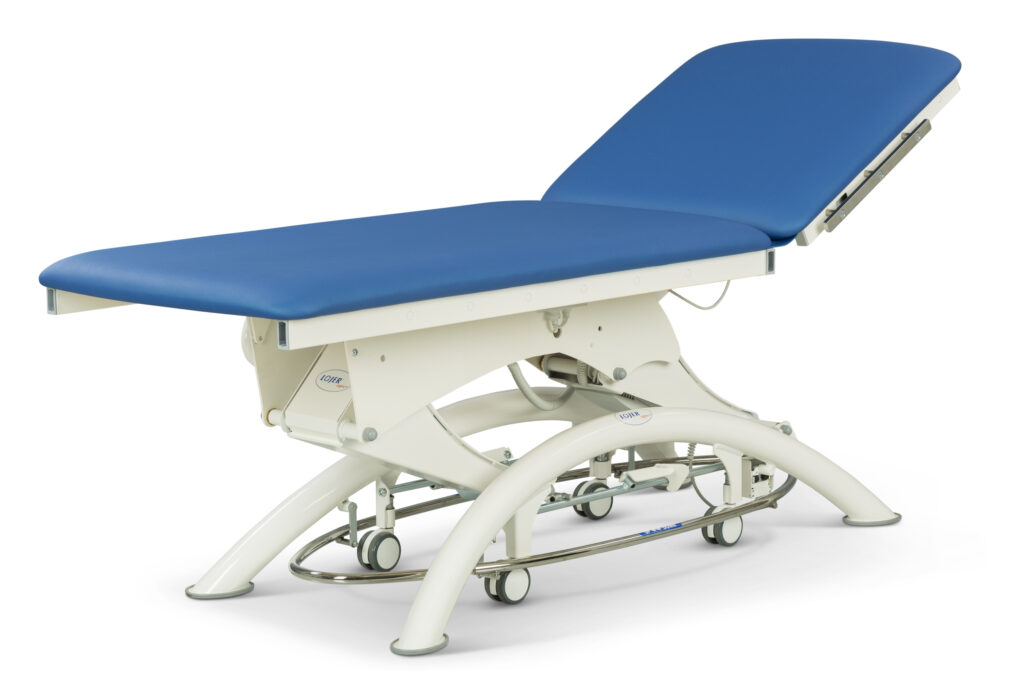

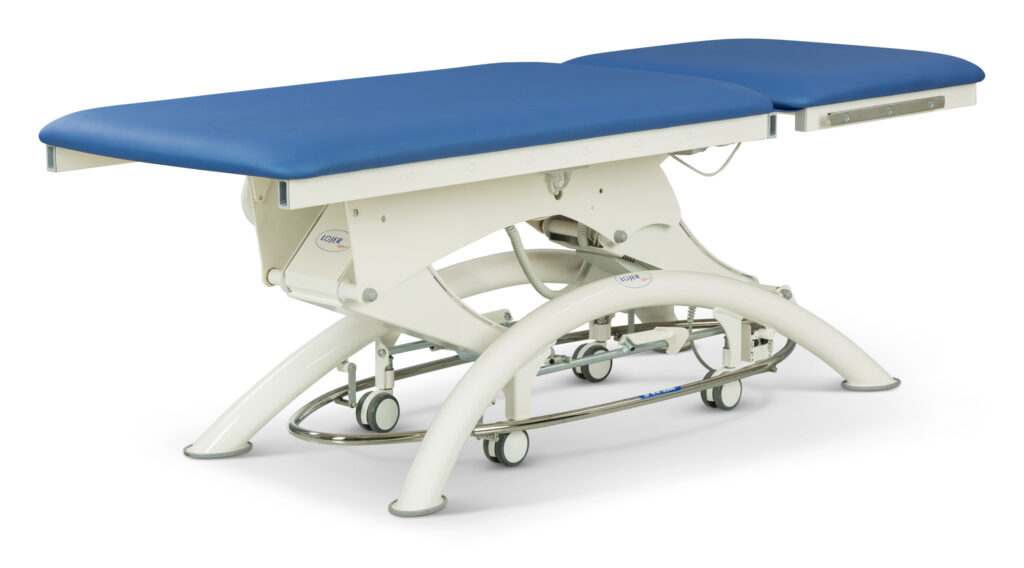

• Capre EX2 — two-part table top, electric height and back section adjustment with hand control. SWL 210 kg.
• Capre EX2H — two-part table top, hydraulic height adjustment with foot pedals and gas-spring adjustable back section. SWL 180 kg.
Technical specifications
| Specification | Capre EX1 | Capre EX2 | Capre EX2H |
|---|---|---|---|
| Total width | 70 cm (80 cm optional) | 70 cm (80 cm optional) | 70 cm (80 cm optional) |
| Patient surface width | 70 cm (80 cm optional) | 70 cm (80 cm optional) | 70 cm (80 cm optional) |
| Total length | 200 cm | 200 cm | 200 cm |
| Patient surface length | 200 cm | 200 cm | 200 cm |
| Total weight | 100 kg | 100 kg | 95 kg |
| Height adjustment | 45–92 cm, electric | 45–92 cm, electric | 49–90 cm, hydraulic |
| Back section length | – | 70 cm | 70 cm |
| Back section adjustment | – | 0–73° | 0–73° |
| Central locking castors (optional) | Ø 75 mm | Ø 75 mm | Ø 75 mm |
| Other standard features | Electric height adjustment with hand control; rubber feet | Electric height and back section adjustment with hand control; rubber feet | Gas spring adjustable back section; hydraulic height adjustment with foot pedals; rubber feet |
| Upholstery | Future, Nature or Skai Conductive; several colour options | Future, Nature or Skai Conductive; several colour options | Future, Nature or Skai Conductive; several colour options |
| Safe working load (SWL) | 180 kg | 210 kg | 180 kg |
| CE marking / MD | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Warranty | 2 years | 2 years | 2 years |
| Country of manufacture | Finland | Finland | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
Options and accessories
Factory-installed option
- Foot control for height adjustment, EX1 (incl. hand control)
- Foot control for height and back section adjustment, EX2 (incl. hand control)
- Gas spring adjustable back section adjustment, EX2 (incl. hand control for height adjustment)
- 360° height adjustment foot control, EX1 and EX2 (incl. safety switch and hand control)
- Safety switch
- Patient surface width 80 cm
- Central locking castors, Ø 75 mm

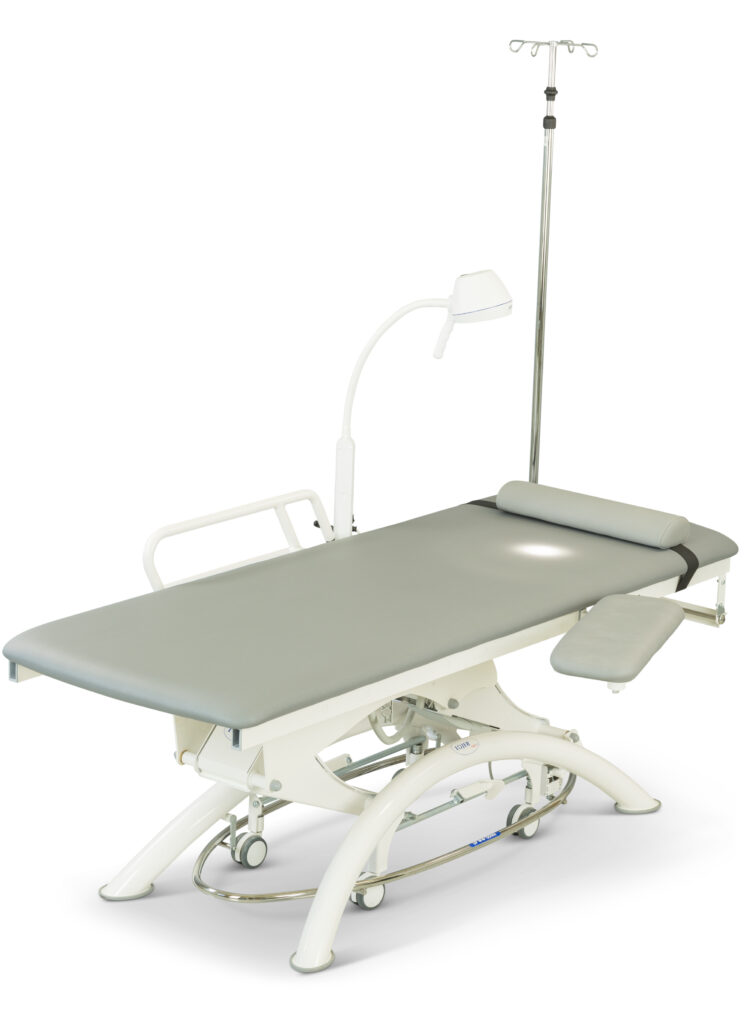

Accessories
- IV- pole
- Anaesthesia frame
- Adapter for IV-pole and anaesthesia frame (6 fixings for installation)
- Accessory rail (max. 6 pcs)
- Examination light with Lojer adapter (6 fixings for installation)
- Examination light with rail clamp, attached to the accessory rails on the sides of the table

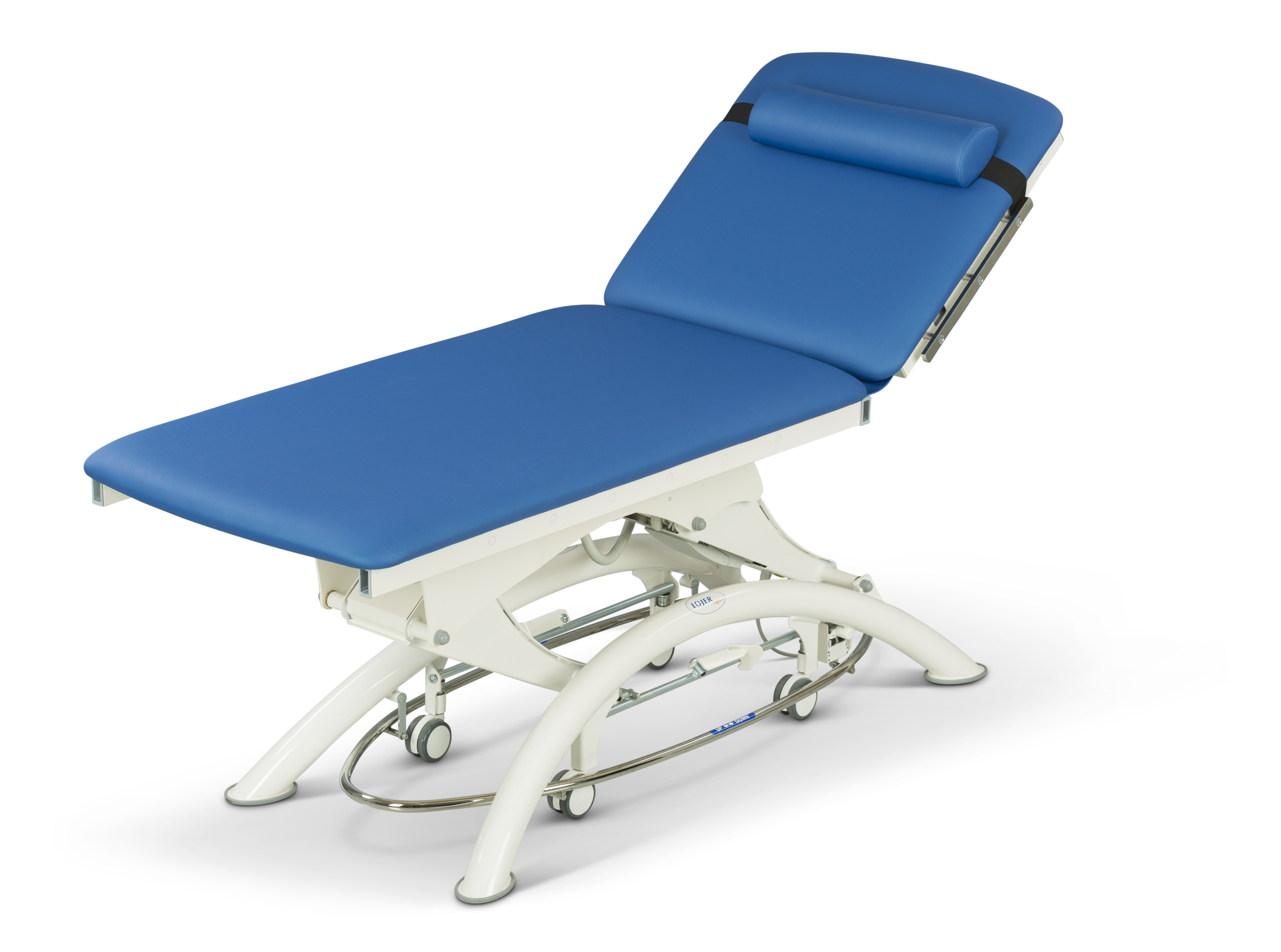

- Neck cushion
- Paper roll holder
- Arm support for sampling
- Side rails
Service & lifestyle
The Capre examination tables carry a two-year warranty and are manufactured in Finland under ISO 9001, ISO 13485 and ISO 14001. Lojer Medical Service provides maintenance, repairs and spare parts, and Lojer Care contracts range from preventive maintenance to an end-to-end service including spare parts and travel.
