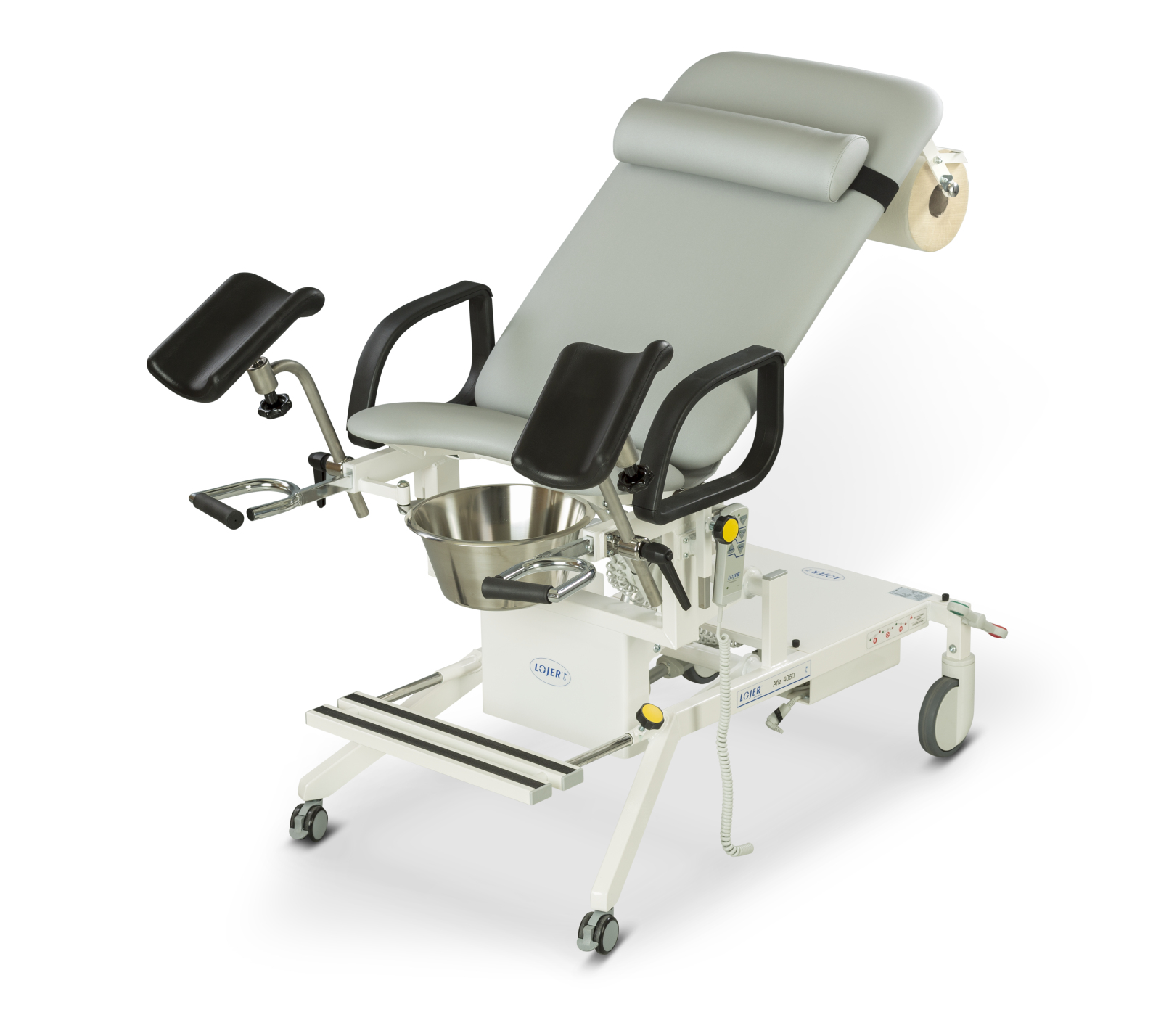

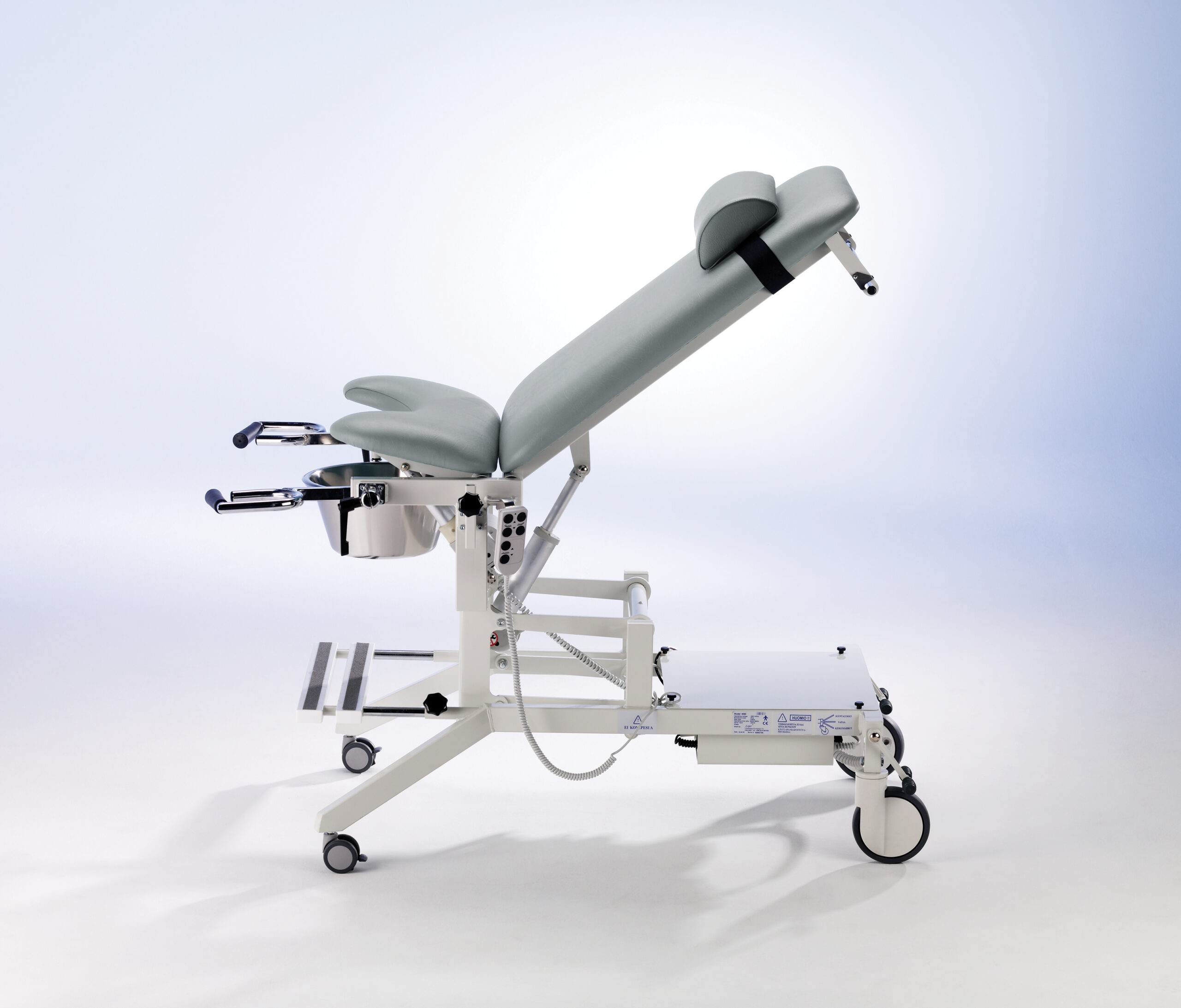

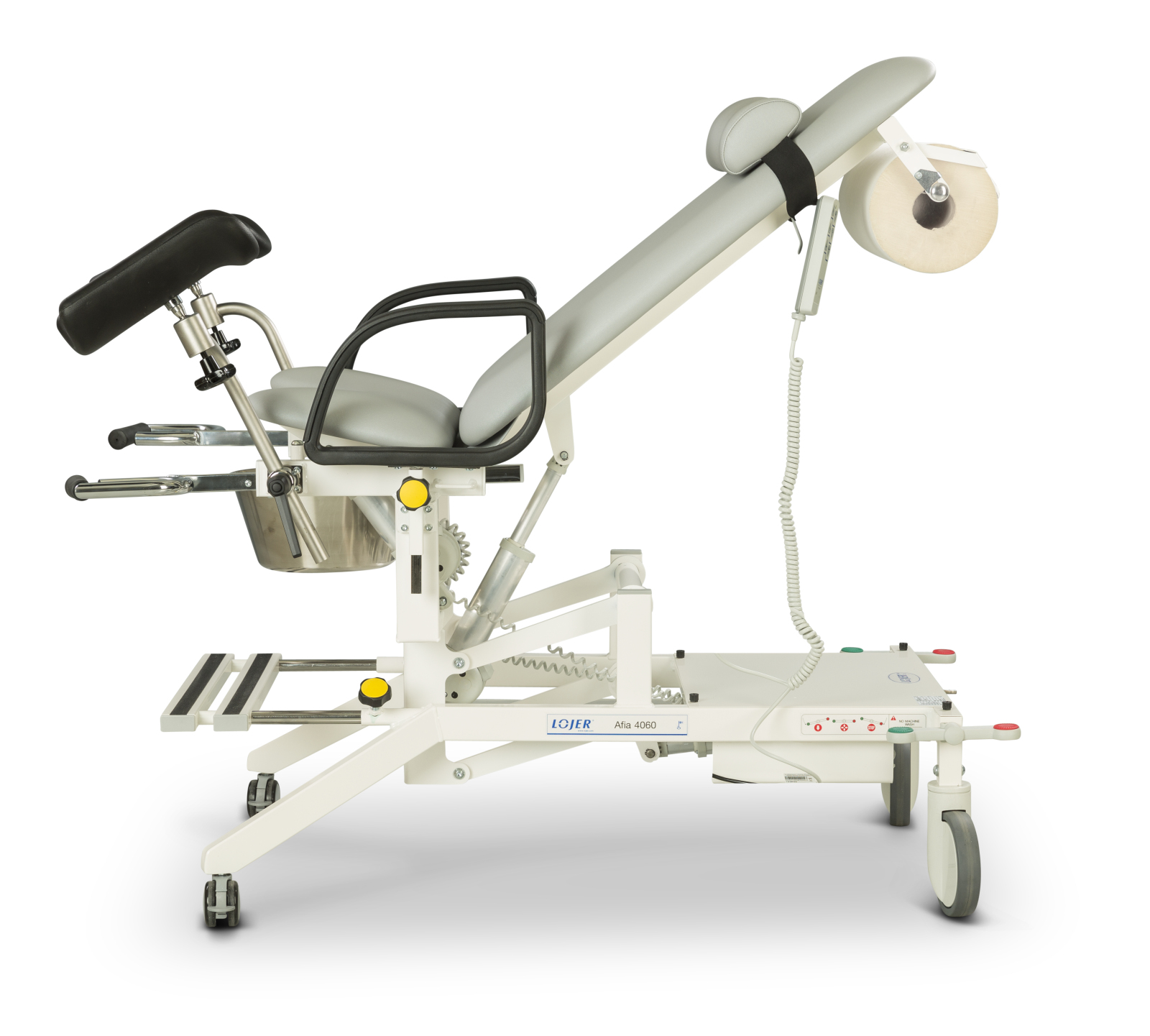

Lojer Afia 4060 Gynaecological Examination Chair
Versatile examination chair for smaller spaces
The Afia 4060 is an easy-to-use examination chair developed specifically for gynaecological and urological procedures. With an overall length of 140 cm, it has a small footprint and fits examination rooms where space is limited.
Height, back section and seat section adjust electrically with the hand control, and the 61–98 cm height range gives an ergonomic working position for the clinician. The chair can also be tilted electrically to the Trendelenburg position. A two-part top, adjustable heel supports, a gynaecological bowl, a neck cushion and a paper roll holder are included as standard, and the chair is available in several upholstery materials and colours.
Key benefits
What makes Afia 4060 different.
Designed for gynaecology and urology
Developed specifically for gynaecological and urological procedures.
Fits smaller rooms
A small footprint with an overall length of 140 cm.
Effortless positioning
Height, back section and seat section adjust electrically with the hand control.
Electric Trendelenburg
The chair tilts to the Trendelenburg position electrically, up to 7°.
Well equipped as standard
Adjustable heel supports, a gynaecological bowl, a neck cushion and a paper roll holder are included.
Key features
- Two-part top
- Electric height adjustment, 61–98 cm
- Back section adjustment, −7° to +70°
- Seat section adjustment, 0–25°
- Electric Trendelenburg adjustment, 0–7°
- Hand control as standard
- Adjustable heel supports
- Gynaecological bowl, including fixings and adjustment parts
- Neck cushion
- Paper roll holder
- Castors: 2 × 65 mm and 2 × 150 mm
- Safe working load 150 kg
- Overall length 140 cm
- Several upholstery materials and colour options
Technical specifications
| Specification | Value |
|---|---|
| Height adjustment | 61–98 cm |
| Patient surface width | 59 cm |
| Patient surface length | 122 cm |
| Overall length | 140 cm |
| Back section length | 87 cm |
| Seat section length | 31 cm |
| Back section adjustment | −7° to +70° |
| Seat section adjustment | 0–25° |
| Electric Trendelenburg adjustment | 0–7° |
| Total weight | 75 kg |
| Safe working load (SWL) | 150 kg |
| Castors | 2 × 65 mm, 2 × 150 mm |
| Electric system | 24 V |
| Other standard features | Hand control; adjustable heel supports; gynaecological bowl, including fixings and adjustment parts; paper roll holder; neck cushion |
| Upholstery | Future, Nature or Skai Conductive; several colour options |
| CE marking / MD | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Country of manufacture | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
Options and accessories
Factory-installed option
- Arm supports

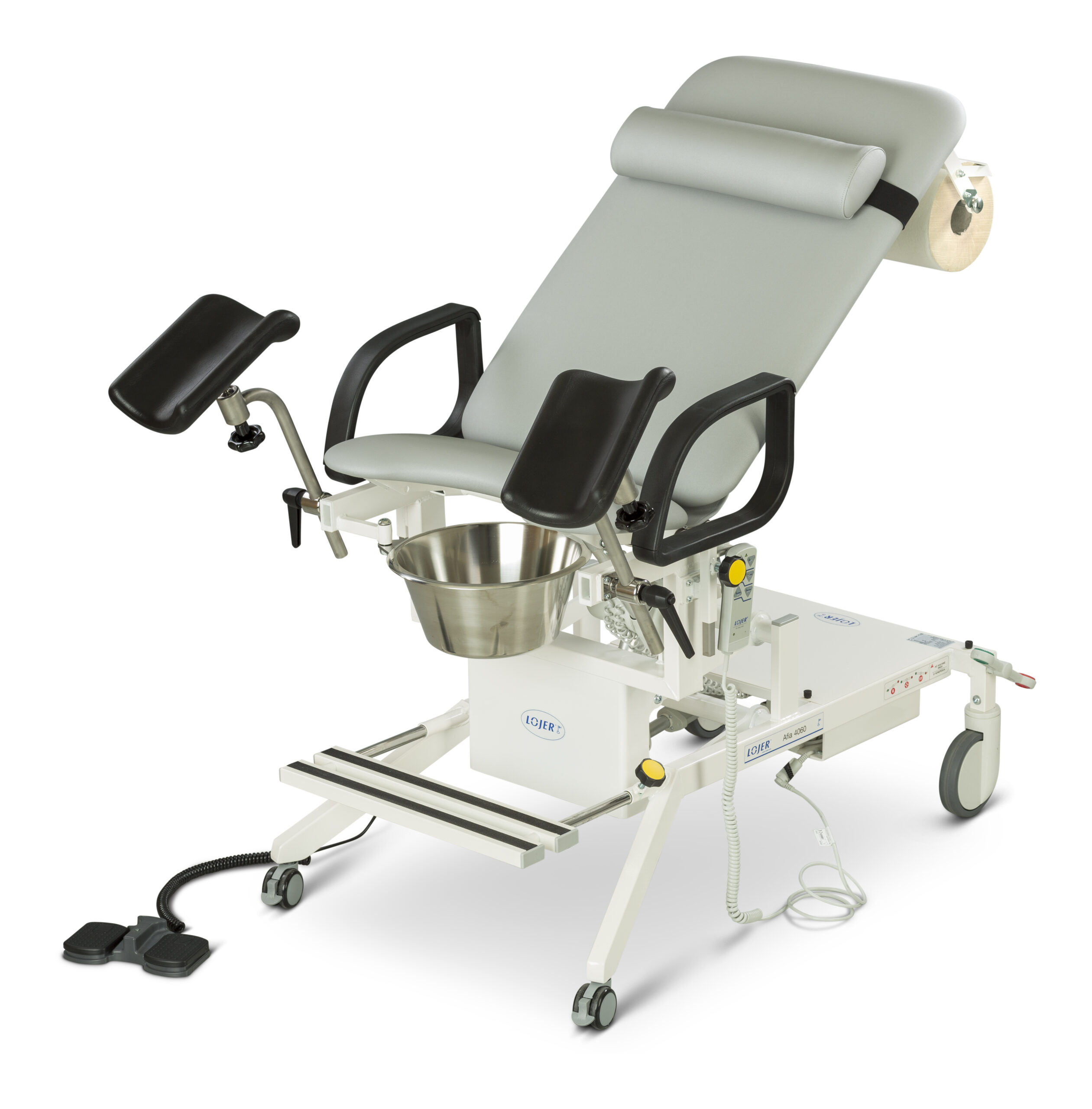

- Foot control for height adjustment
- Calf supports
Accessories
- Cutter for paper roll holder
