Lojer 4050X Gynaecological Examination Table
Hygienic, easy-to-use examination table for multiple purposes
The 4050X is the most versatile examination table in the Lojer range. It is especially well suited to gynaecological examinations and can also be used for minor procedures and general examinations, in hospitals, health centres and other healthcare facilities.
The three-section table top adjusts the back, middle and seat sections, and the 49–97 cm height range gives an ergonomic working position for the clinician and a low transfer height for the patient. Height, seat and middle sections are operated hands-free from the front of the table. The table stops and lifts automatically if movement is obstructed, and the electric functions can be locked during an examination. Steplessly adjustable heel supports, a gynaecological bowl that moves out of the way when not needed, and easy-to-clean upholstery complete the table.
Key benefits
What makes 4050X different.
Hands-free adjustment
Height, seat and middle sections are adjusted by foot from the front of the table, making the examination more hygienic and more efficient.
One table, three uses
Designed for gynaecological examinations and equally suitable for minor procedures and general examinations.
Ergonomics for staff and patients
The 49–97 cm height range gives a low, safe transfer height for the patient and a working height set by the clinician.
Safety built into the movement
The table stops and lifts automatically if movement is obstructed, and the electric functions can be locked during an examination.
Easy to keep clean
Surfaces designed to be cleaned and disinfected between every patient.
Key features
- Three-section table top: back, middle and seat sections
- Electric height adjustment, 49–97 cm
- Electric back section adjustment, 0–73°
- Middle section adjustment, 0–73°
- Seat section adjustment, 0–25°
- Foot control integrated at the end of the table, for height, seat and middle section adjustment
- Hand control with memory slot, for repeatable positioning
- Steplessly adjustable heel supports, no levers
- Gynaecological bowl, easily moved aside when not needed
- Accessory rails in the seat section
- Paper roll stand and cutter
- Safety: automatic lifting if an obstruction is detected
- Safety: electric functions locked by holding two controls for three seconds
- Safety: minimum 105° angle between seat and middle section
- Adapter for an IV-pole, four mounting positions
- Ø 125 mm locking castors
- Safe working load 210 kg
- Future, Nature and Skai Conductive upholstery, several color options
Models / Configurations
Two models share the same frame, footprint, dimensions, safe working load and accessory platform, and take the same options and accessories. They differ in the extent of powered adjustment.

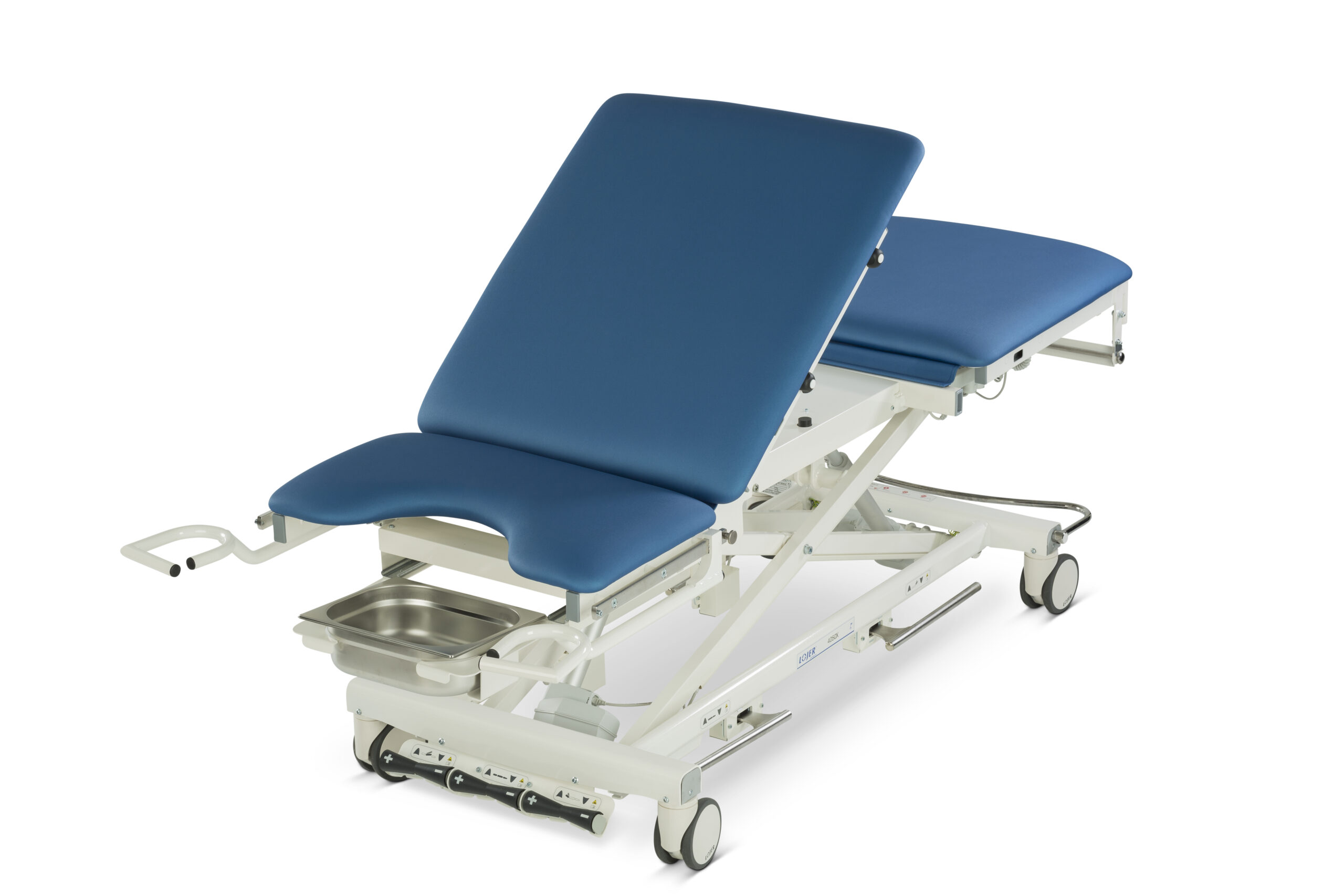

• 4050X F — electric seat and middle section adjustment, a foot control integrated at the end of the table, and a hand control with memory slot.

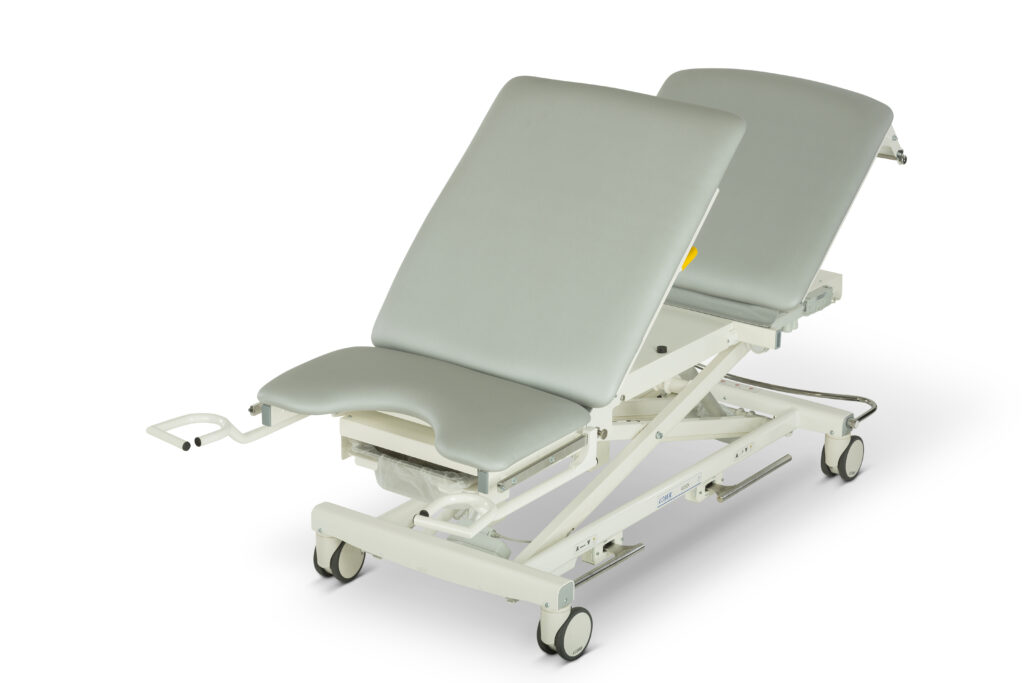

• 4050X M — gas-spring assisted middle section and a fixed seat section, operated with the hand control.
Technical specifications
| Specification | 4050X F | 4050X M |
|---|---|---|
| Total width | 75 cm | 75 cm |
| Patient surface width | 70 cm | 70 cm |
| Total length | 200 cm | 200 cm |
| Total weight | 120 kg | 120 kg |
| Height adjustment | 49–97 cm | 49–97 cm |
| Back section length / adjustment | 70 cm / 0–73°, electrical | 70 cm / 0–73°, electrical |
| Middle section length / adjustment | 82 cm / 0–73°, electrical | 82 cm / 0–73°, gas spring |
| Seat section length / adjustment | 44 cm / 0–25° | 44 cm / non-adjustable |
| Electric Trendelenburg / anti-Trendelenburg (optional) | 20° / −10° | 20° / −10° |
| Castors | Ø 125 mm locking castors | Ø 125 mm locking castors |
| Safe working load (SWL) | 210 kg | 210 kg |
| Memory slot | Hand control with memory slot | not available |
| Electric system | 24 V | 24 V |
| Upholstery | Future, Nature or Skai Conductive; several colour options | Future, Nature or Skai Conductive; several colour options |
| CE marking / MD | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Warranty | 2 years | 2 years |
| Country of manufacture | Finland | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
Options and accessories
Factory-installed option
- Electric Trendelenburg and anti-Trendelenburg, 20° / −10°, incl. battery
- Central locking castors, Ø 125 or Ø 150 mm
- Central locking conductive twin castors, Ø 150 mm
- Hands-free foot control for height and back section
- Floor-placed foot control for height and back section adjustment
- Battery powered (emergency use)
Accessories

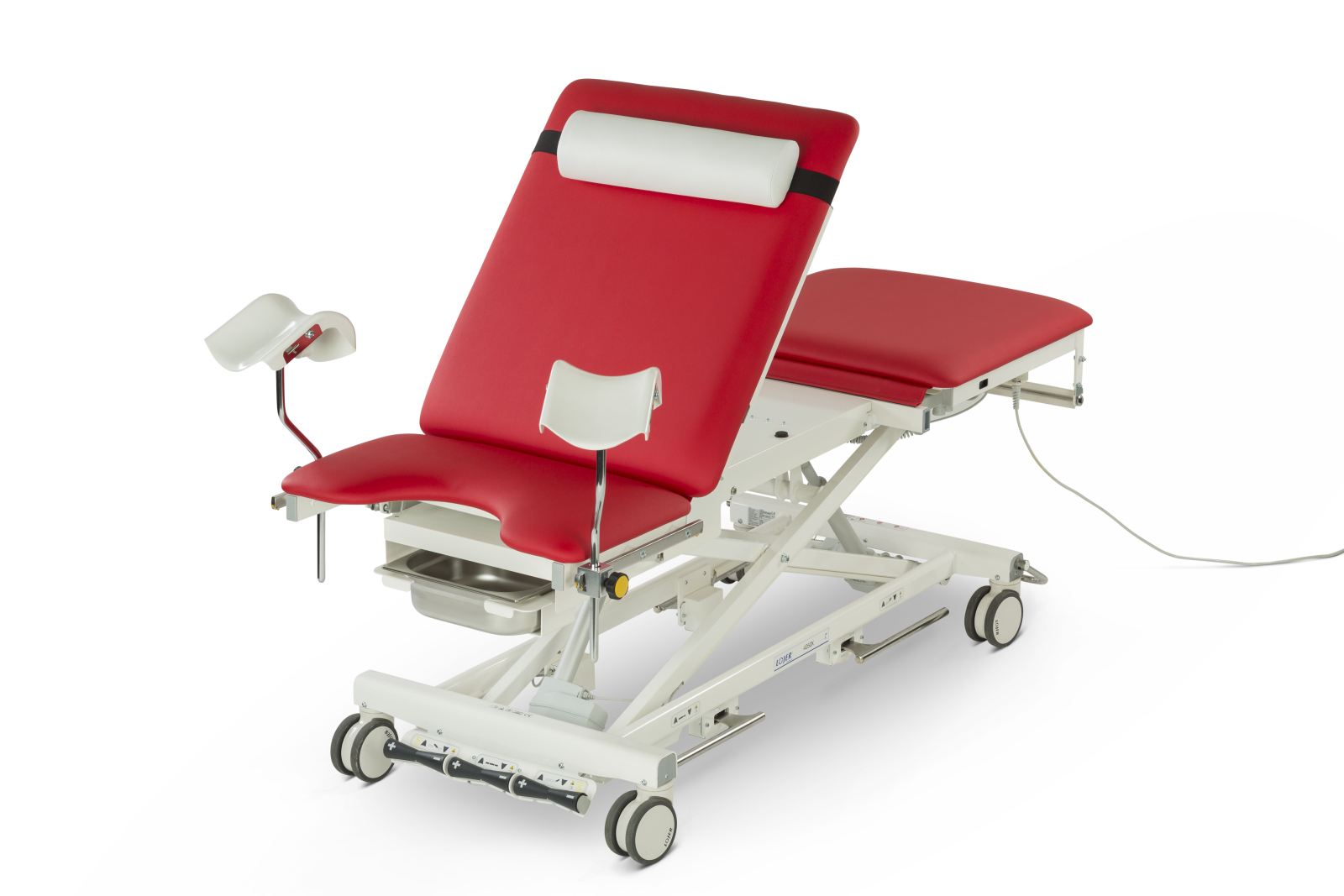

- Pair of calf supports, white plastic (minor procedures), incl. rapid clamps and fastening straps
- Pair of calf supports, black moulded cushion (longer procedures), incl. rotation clamps and fastening straps

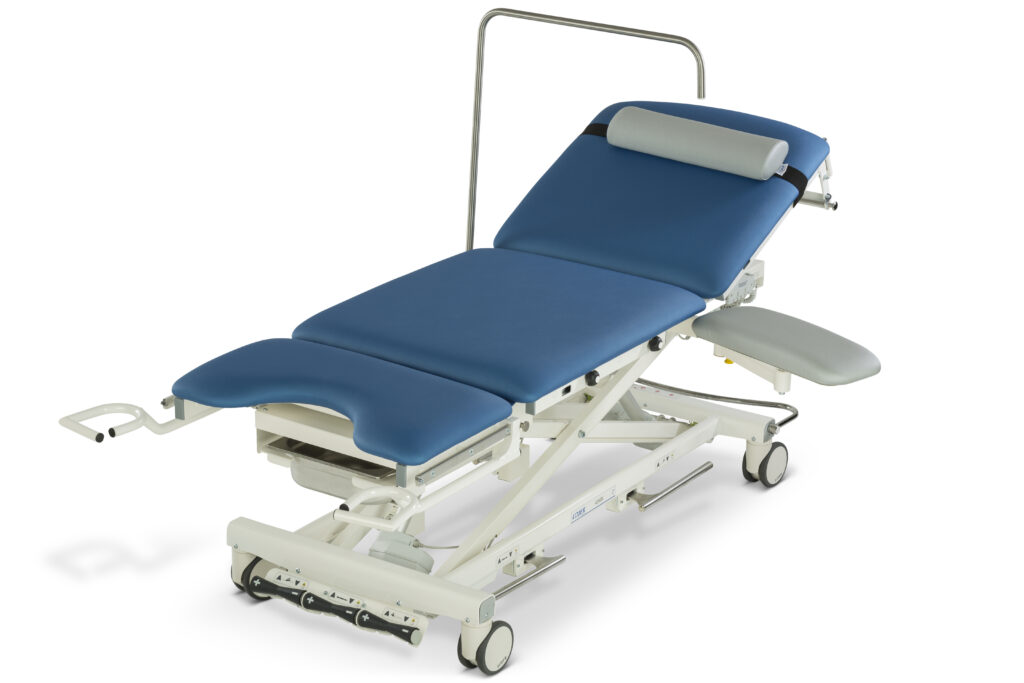

- IV-pole, straight or bended; adapter for fitting an IV pole (4 positions)
- Accessory rail
- Accessory rail, bras
- Rapid clamp Ø 20 mm
- Side rail (not usable at the same time as the accessory rail)
- Anaesthesia frame
- Push handles

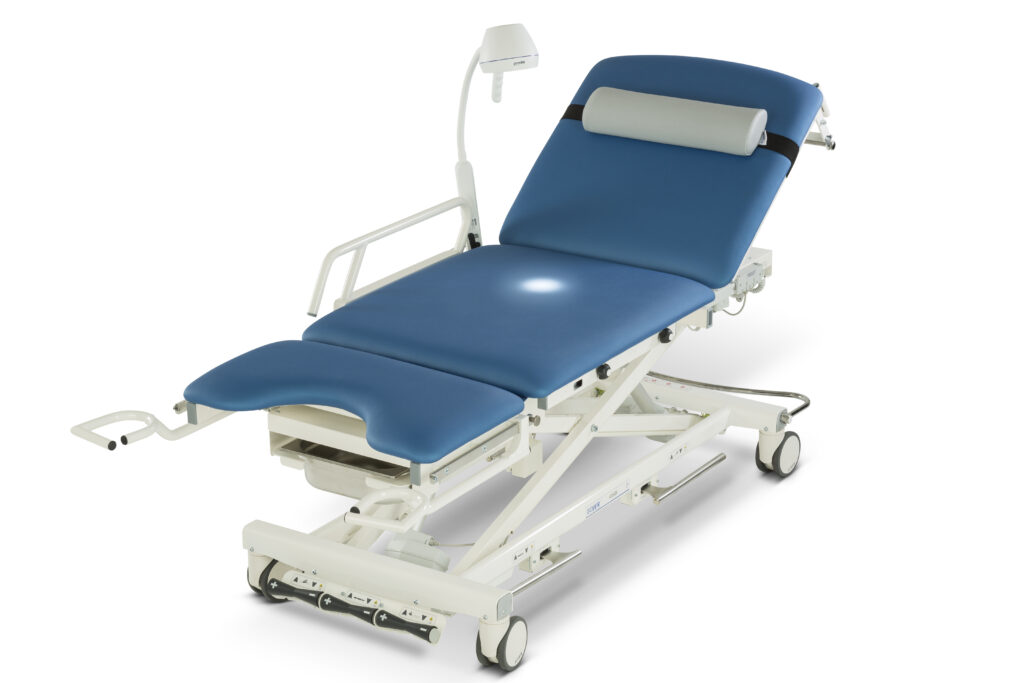

- Examination lamp, attached to the accessory rail or the frame
- Neck cushion
- Arm support for sampling
Service & lifestyle
The 4050X carries a two-year warranty and is manufactured in Finland by Lojer Oy under ISO 9001, ISO 13485 and ISO 14001. The IFU specifies annual and biennial preventive maintenance, to be carried out only by personnel authorised by the manufacturer. Lojer Medical Service provides maintenance, repairs and spare parts, and Lojer Care contracts range from preventive maintenance to an end-to-end service including spare parts and travel. Leasing and other purchase alternatives are available. Most materials in the table are recyclable and should be recycled by a specialist company at end of life.
