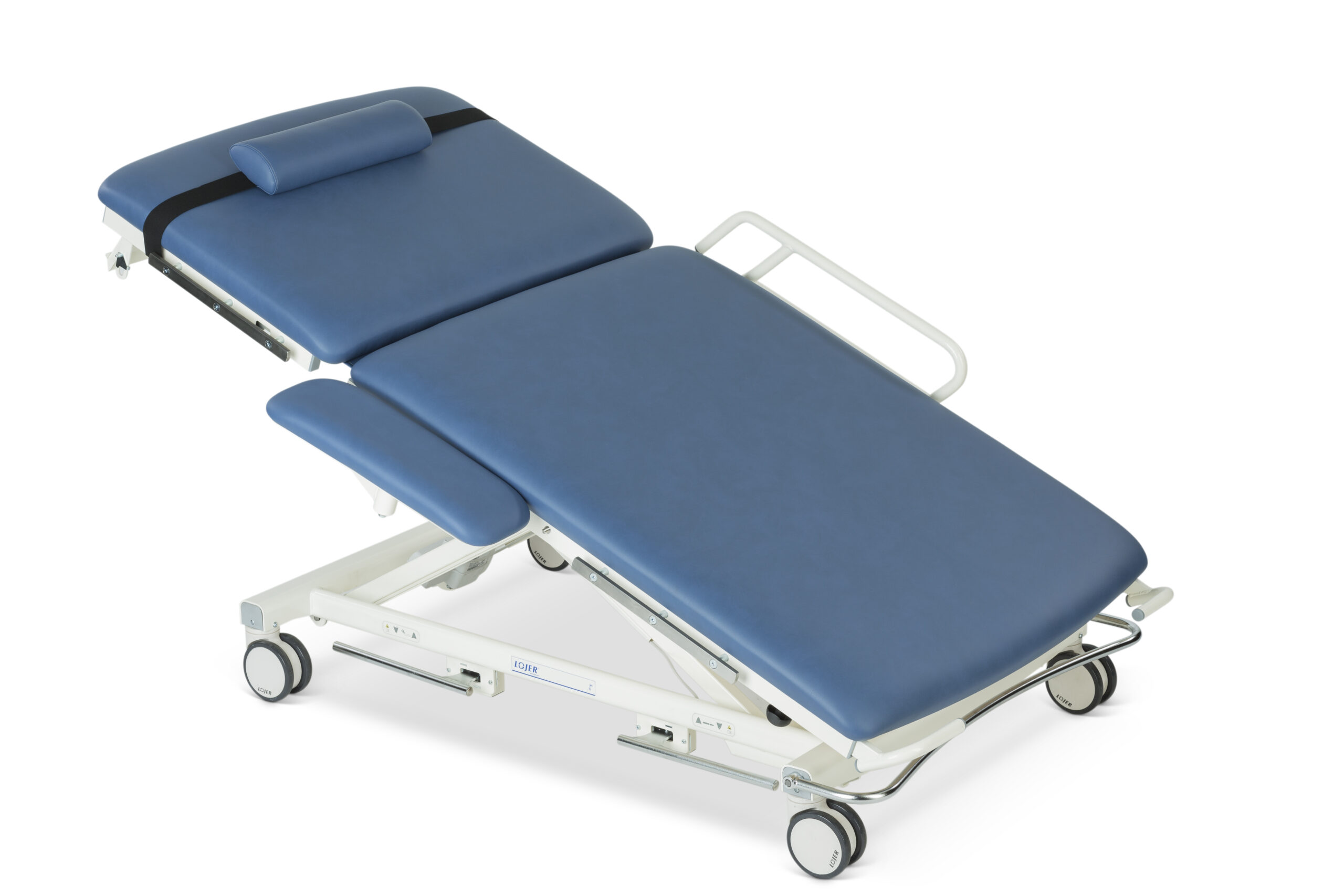

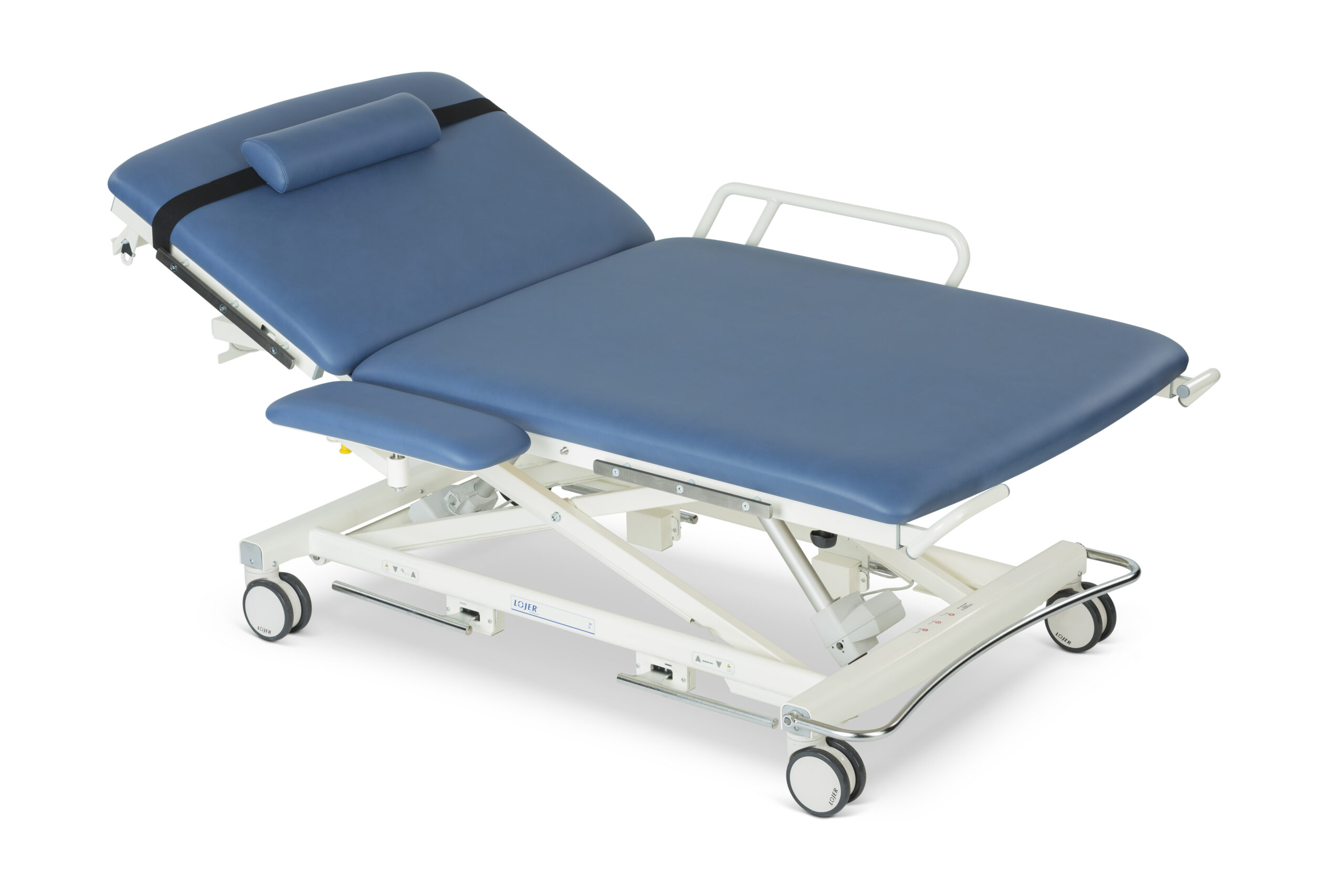

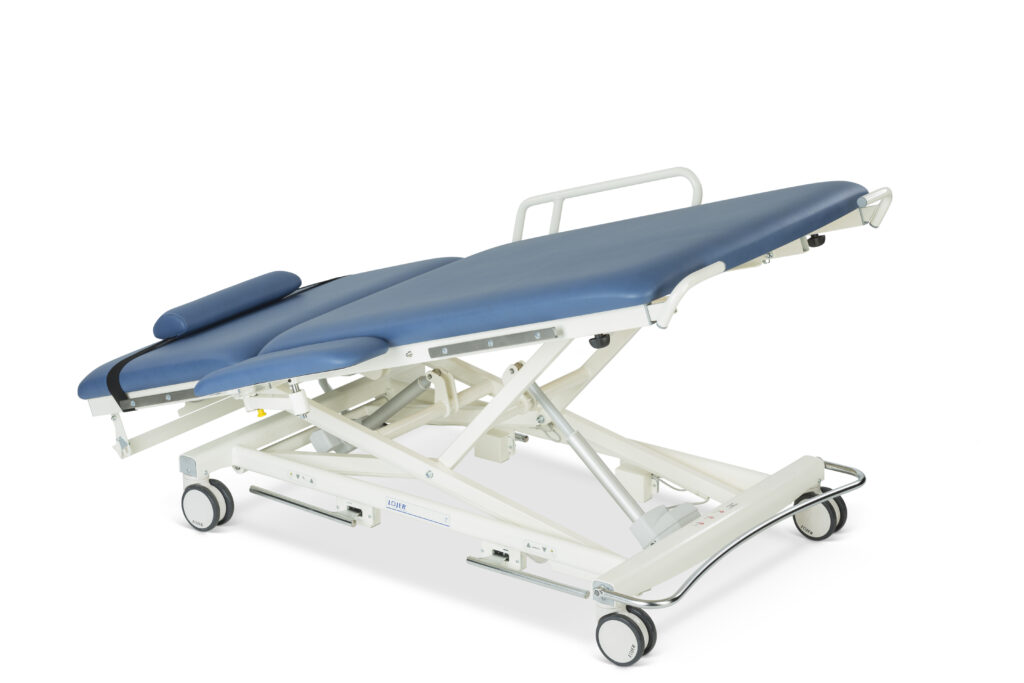

Lojer 4040XL
Heavy Duty Examination Table
An innovative general examination table for demanding use
The 4040XL is a general examination table for healthcare facilities that also treat heavier and bariatric patients. Its patented construction carries a safe working load of 300 kg in all positions and heights, and the table top is 90 cm wide as standard, with 80 cm and 100 cm as options and 70 mm upholstery.
The height adjustment range of 42–97 cm makes the table easier to get onto for patients with reduced mobility and gives an ergonomic working height for the care provider. The table top rises automatically if something is caught in the mechanism, and the table can be locked with the hand control. A digital control unit notifies when maintenance is required, and a paper roll holder and cutter are fitted as standard.
Key benefits
What makes 4040XL different.
Built for higher body weights
A safe working load of 300 kg that applies in all positions and at all heights.
A wide, well-cushioned table top
90 cm as standard and up to 100 cm, with 70 mm upholstery for a more comfortable examination.
Ergonomics and easy access
The 42–97 cm height range gives a low access height for the patient and a working height set by the care provider.
Safety that reacts
The table top rises automatically if something is caught in the mechanism, and the table can be locked with the hand control.
Maintenance notified in advance
The digital control unit signals when maintenance is due.
Key features
- Two-section table top
- Height adjustment range 42–97 cm
- Back section adjustment, 73°
- Safe working load 300 kg
- Patient surface 200 cm long and 90 cm wide, 80 and 100 cm widths as options
- Upholstery thickness 70 mm
- Hand control as standard, with lock function
- Automatic lifting if something is caught in the mechanism

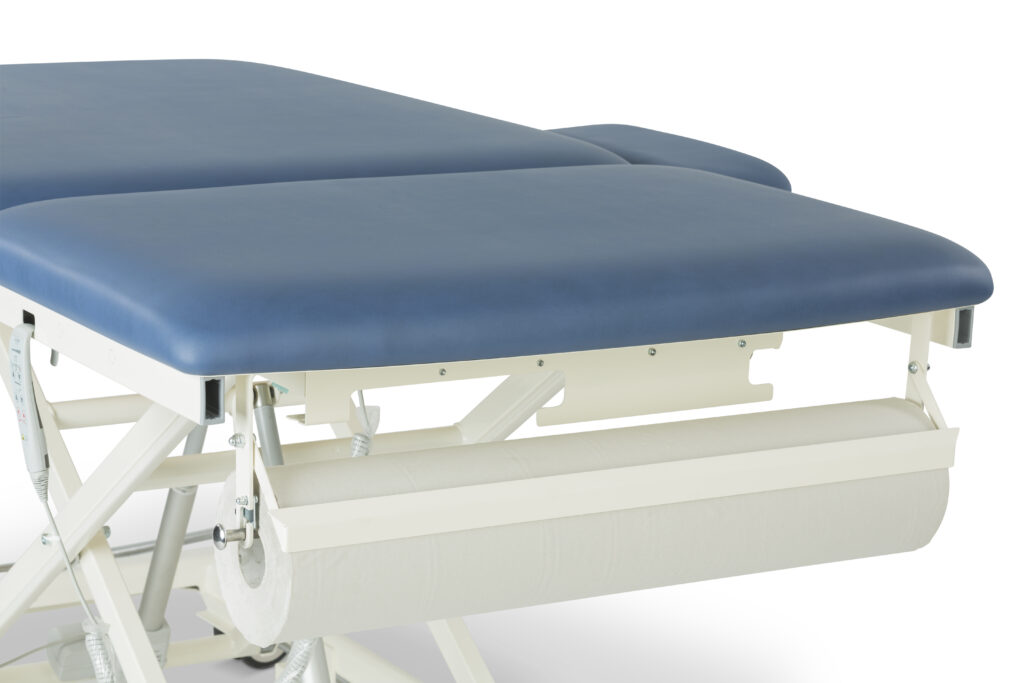

- Paper roll holder and cutter for 80 cm paper, as standard
- Ø 125 mm castors
- Adapter for an IV-pole, six fitting positions
- Digital control unit with maintenance notification
Technical specifications
| Specification | Value |
|---|---|
| Total width | 80 cm with 80 cm upholstery 95 cm with 90 cm upholstery 100 cm with 100 cm upholstery |
| Patient surface width | 90 cm (80 / 100 cm optional) |
| Total length | 200 cm |
| Patient surface length | 200 cm |
| Total weight | 120 kg |
| Height adjustment | 42–97 cm |
| Back section length | 70 cm |
| Back section adjustment | 73° |
| Electric Trendelenburg and anti-Trendelenburg (optional) | max. 20° |
| Castors | Ø 125 mm (125 / 150 mm twin castors optional) |
| Other features | Hand control; paper roll holder and cutter for 80 cm paper |
| Upholstery | Thickness 70 mm |
| Safe working load (SWL) | 300 kg |
| CE marking / MD | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Warranty | 2 years |
| Country of manufacture | Finland |
| Manufacturer | Lojer Oy, Putajantie 42, 38210 Sastamala, Finland |
Options and accessories
Factory-installed option
- Hands-free foot control for height and back section
- Electric Trendelenburg and anti-Trendelenburg (battery included)
- Battery power, for emergency use only
- Central locking twin castors, Ø 125 mm / Ø 150 mm
- Patient surface width 80 cm or 100 cm
Accessories

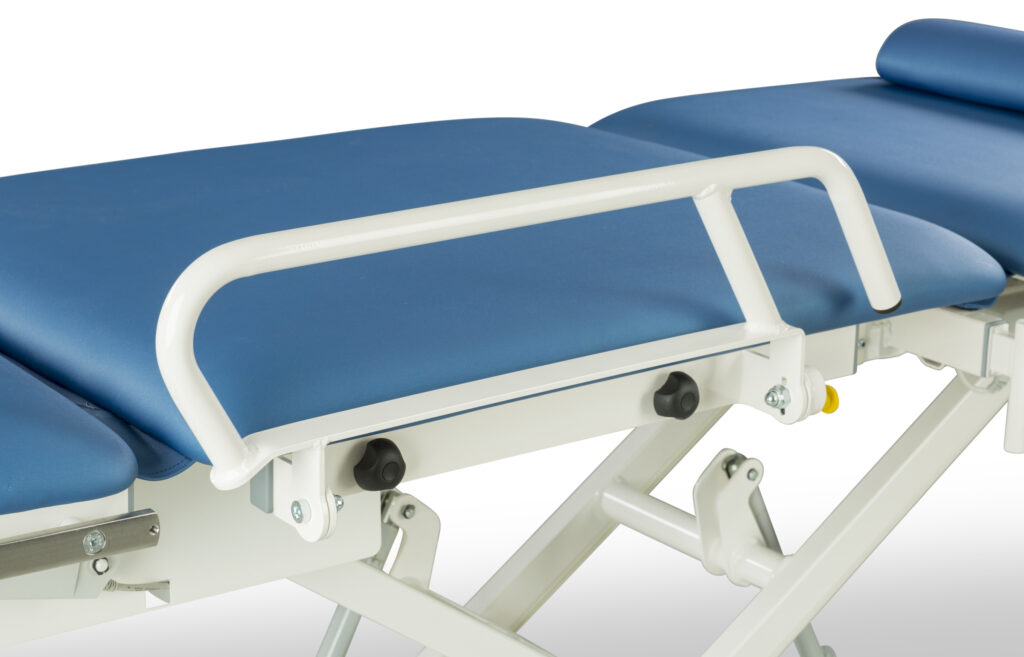

- Side rails
- Foot control
- Accessory rail; all accessories fitted to the accessory rail
- Clamps
- Adapter for accessories
- IV pole and adapter for IV pole (6 fitting positions)
- Anaesthesia frame

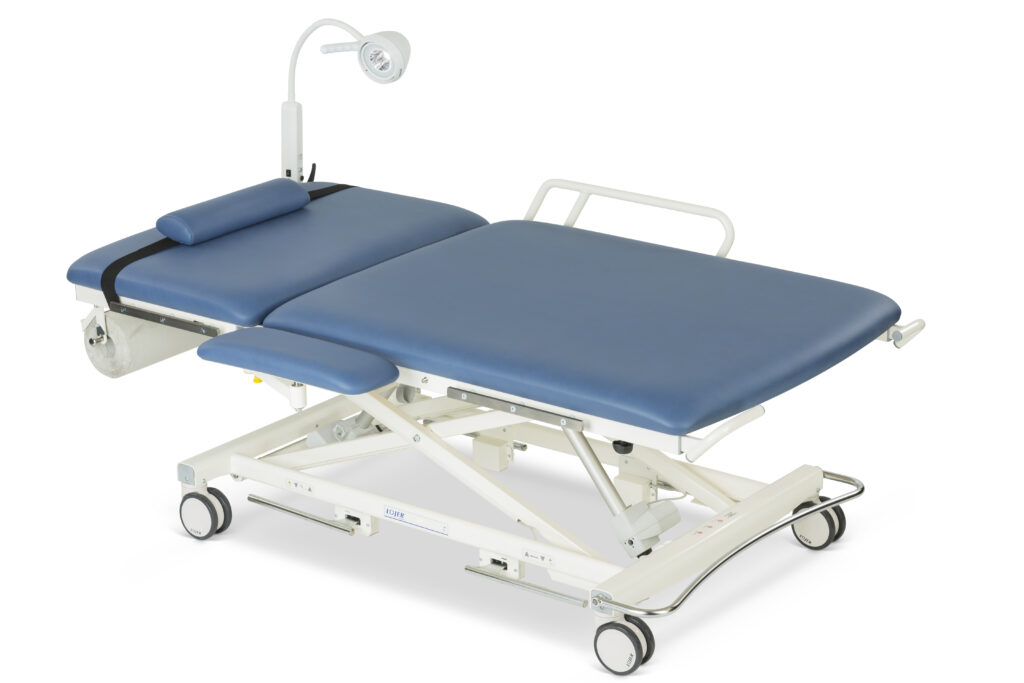

- Examination light
- Arm support
- Neck cushion
- Push handles
Service & lifestyle
The 4040XL is manufactured in Finland under ISO 9001, ISO 13485 and ISO 14001, with a 2 year warranty. The digital control unit notifies when maintenance is required. Lojer Medical Service provides maintenance, repairs and spare parts, and Lojer Care contracts range from preventive maintenance to an end-to-end service including spare parts and travel.
