Lojer Vertical (Lat) Pull
Downward and upward pulling, from light early-stage exercises to large muscle groups
The Lojer Vertical (Lat) Pull is a wall-mounted pulley for exercises in which the movement goes from top to bottom as well as from bottom to top. It lets physiotherapy and motion therapy exercises target the large muscle groups, and it is equally suited to the lighter exercises that matter in the early stages of physiotherapy or other training.
The handle height and cord length are set in 5 cm steps, the height of the device is adjusted to the room when it is mounted, and the weight stack runs quietly and smoothly inside a steel casing. A range of accessories extends the exercises available.
KEY benefits
What makes Vertical Pulley different
Pull downwards or upwards
One device for exercises moving from top to bottom and from bottom to top
From light early-stage work to large muscle groups
Suited to lighter exercises in the early stages of physiotherapy, and to training the large muscle groups
Set up for each exercise
Handle height and cord length adjust in 5 cm steps
Fits the room
The height of the device is adjusted to the room when it is mounted
Quiet, enclosed resistance
Smooth, quiet resistance through the whole movement, with the weight stack enclosed in a steel casing
Key features
- Exercises with movement from top to bottom and from bottom to top
- Weight stack of 50, 80 or 100 kg in 5 kg plates; resistance equals the selected weight
- Lat pulldown handle (wide handle) as standard
- Handle height and cord length adjustable in 5 cm increments
- Height adjustable from 228 to 298 cm when mounted
- Quiet, smooth resistance across the whole range of movement
- Weight stack covered with steel casing
- Six fixing points for fixing against a wall
- Sturdy construction

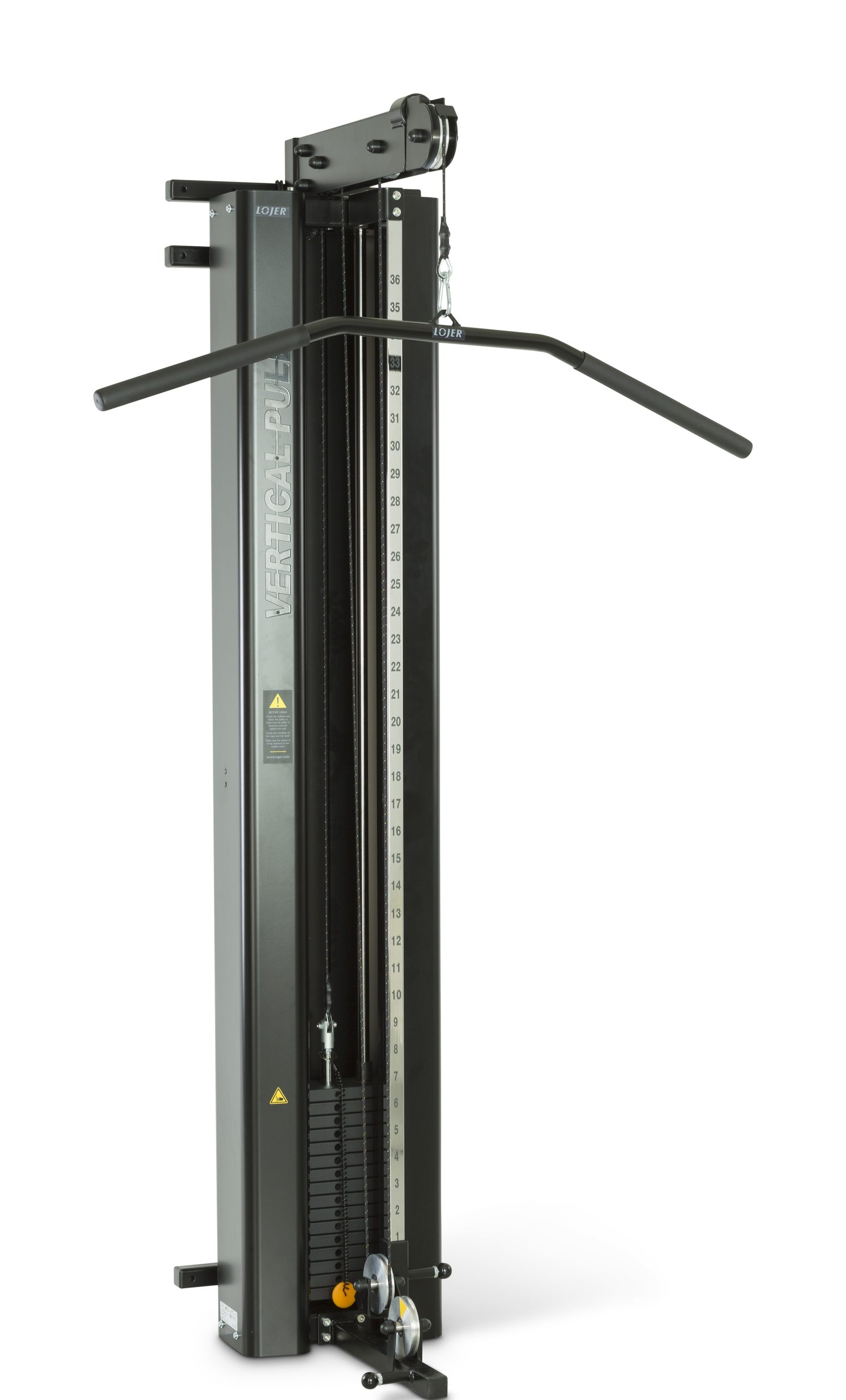

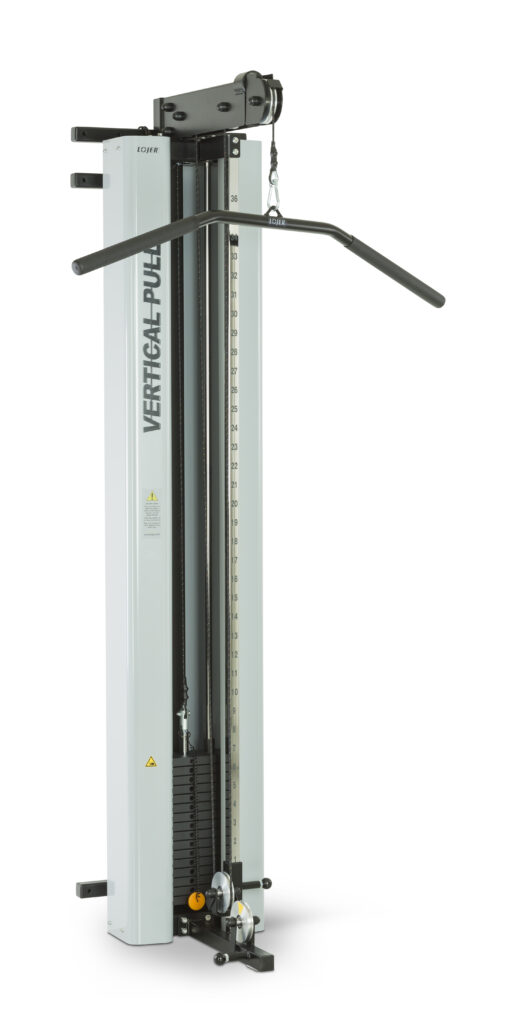

- Black or grey frame
Models / Configurations
The Vertical (Lat) Pull is available with a 50, 80 or 100 kg weight stack. The models share the frame, dimensions, handle and adjustments, and differ in weight stack and total weight.

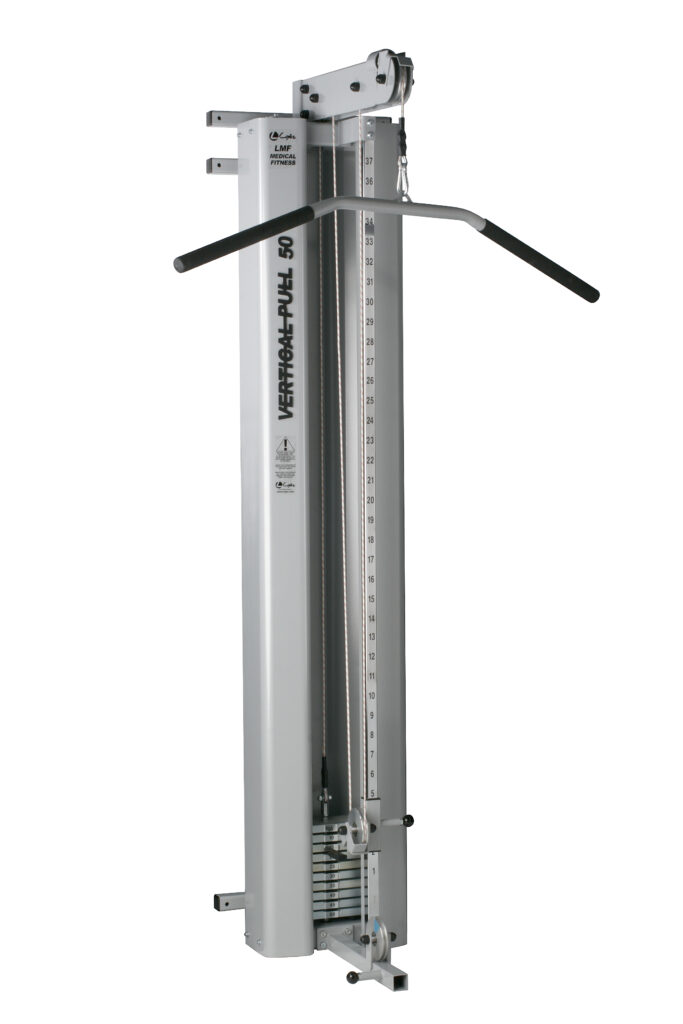

- Vertical Pull 50 kg — 10 × 5 kg plates
- Vertical Pull 80 kg — 16 × 5 kg plates
- Vertical Pull 100 kg — 20 × 5 kg plates
Technical specifications
| Specification | Vertical Pull 50 kg | Vertical Pull 80 kg | Vertical Pull 100 kg |
|---|---|---|---|
| Weight stack | 50 kg | 80 kg | 100 kg |
| Weight plates | 10 × 5 kg | 16 × 5 kg | 20 × 5 kg |
| Resistance | Equal to the selected weight | Equal to the selected weight | Equal to the selected weight |
| Adjustment steps | 5 kg | 5 kg | 5 kg |
| Overall height | 228–298 cm | 228–298 cm | 228–298 cm |
| Ropes and handles | 1 rope, lat pulldown handle | 1 rope, lat pulldown handle | 1 rope, lat pulldown handle |
| Width | 51 cm | 51 cm | 51 cm |
| Depth | 77 cm | 77 cm | 77 cm |
| Total weight | 139 kg | 169 kg | 189 kg |
| Colour | Black / Grey | Black / Grey | Black / Grey |
| CE marking | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Country of manufacture | Finland | Finland | Finland |
| Manufacturer | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland |
Accessories

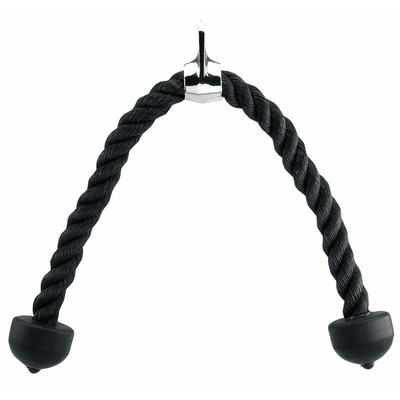

- Triceps rope, 90 cm — 2512126

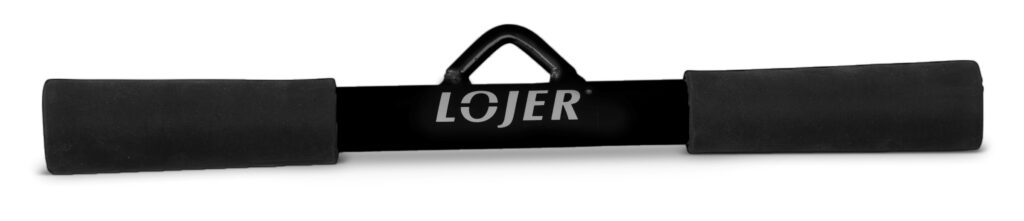

- Straight triceps handle with rubber — 13107

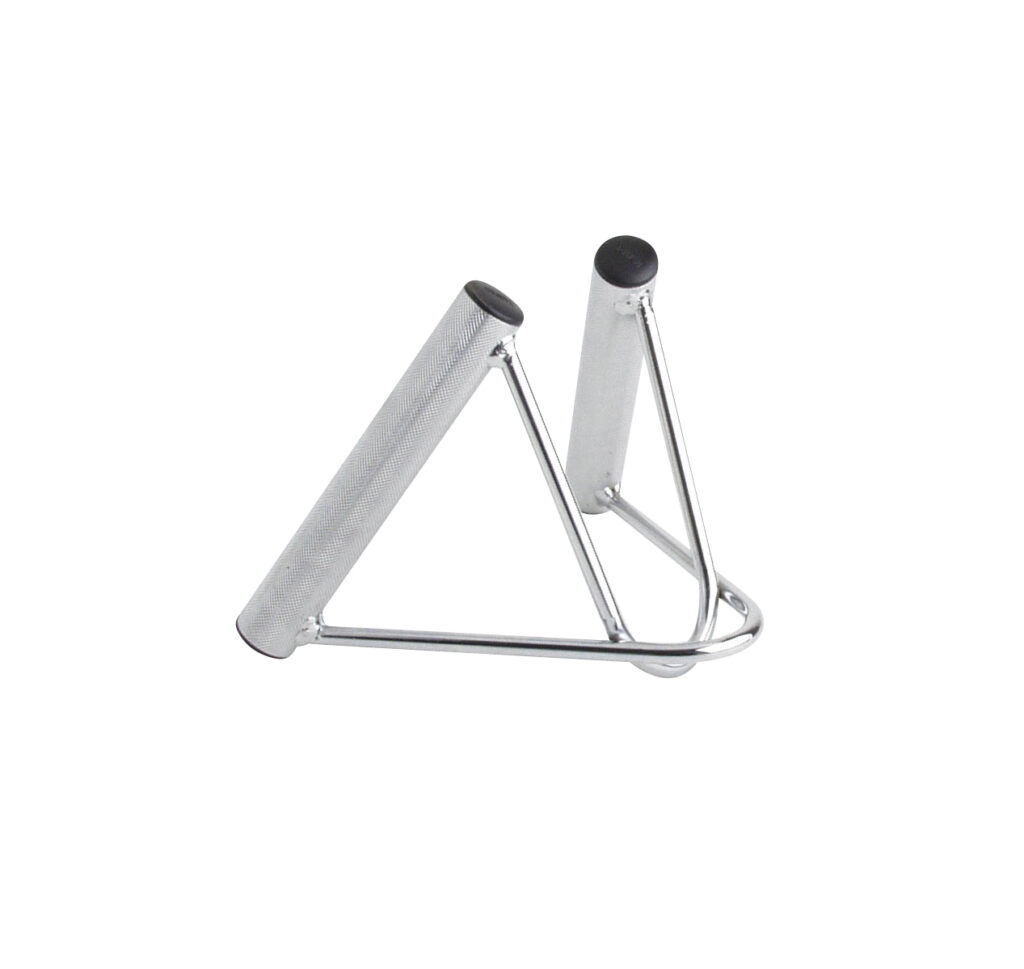

- Rowing handle — 402024

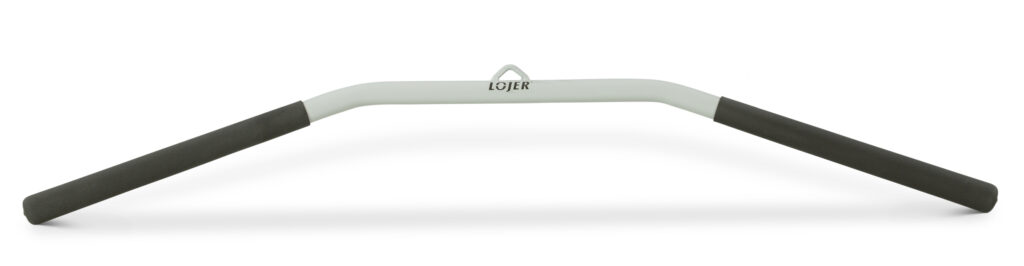

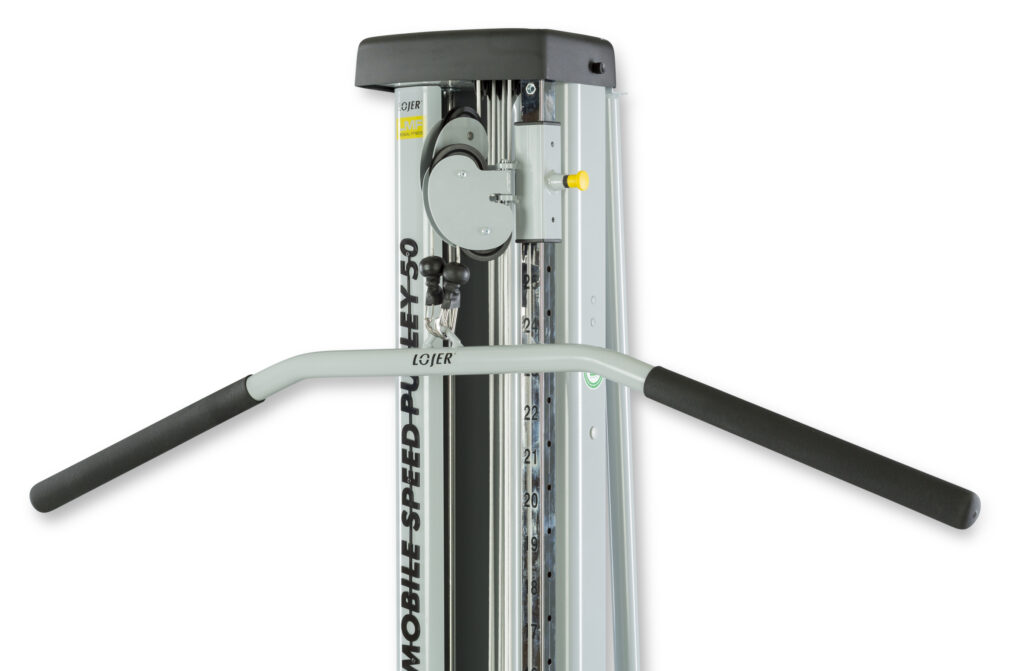

- Wide handle (supplied as standard) — VD6800

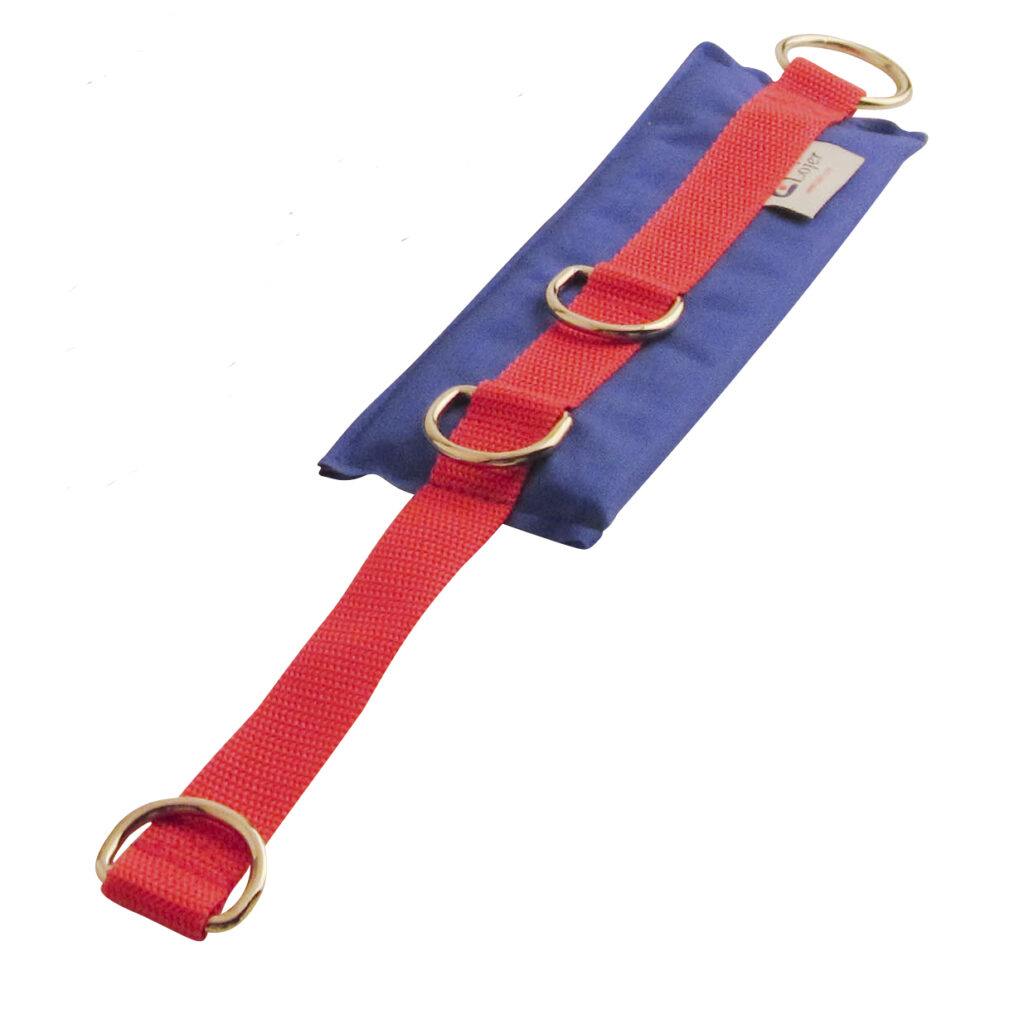

- Padded ankle strap, fabric, 25 × 8 cm — 402020

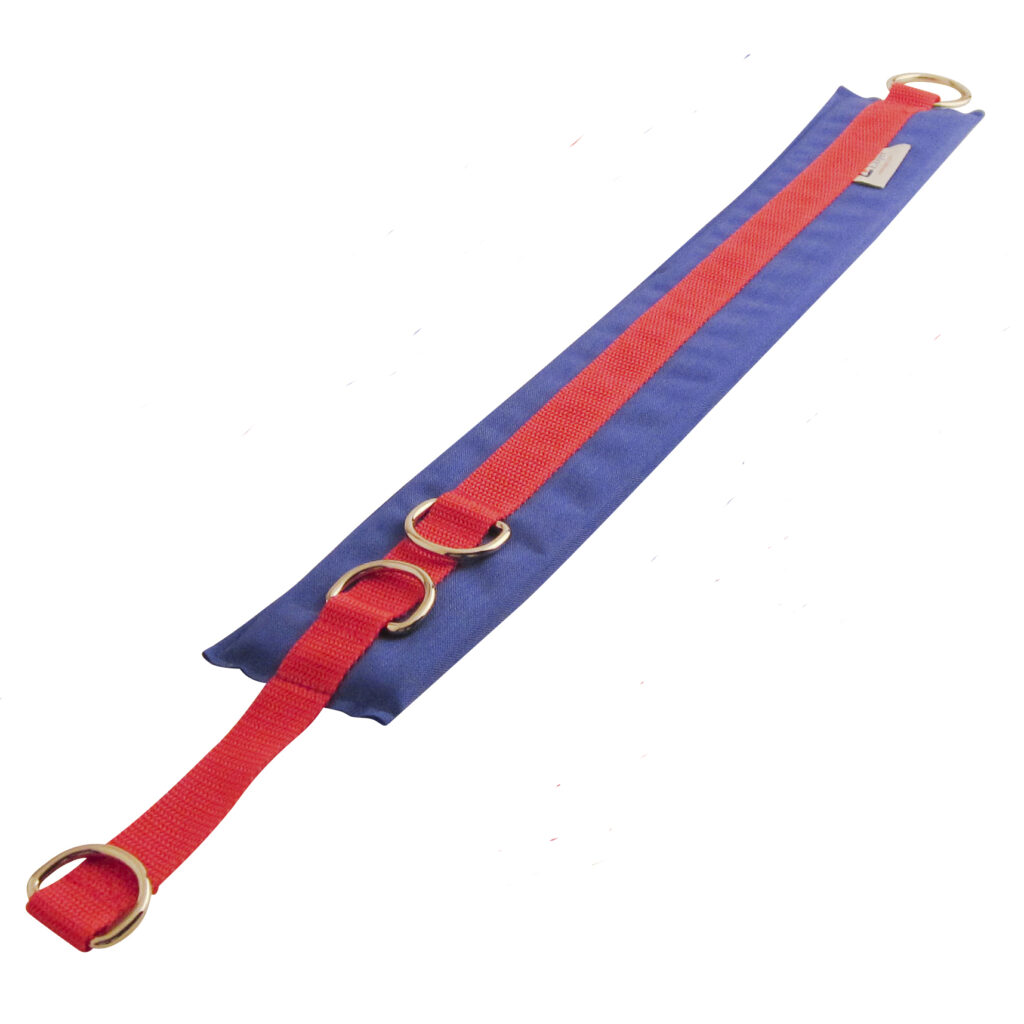

- Padded strap for shoulder or thigh, fabric — 402021

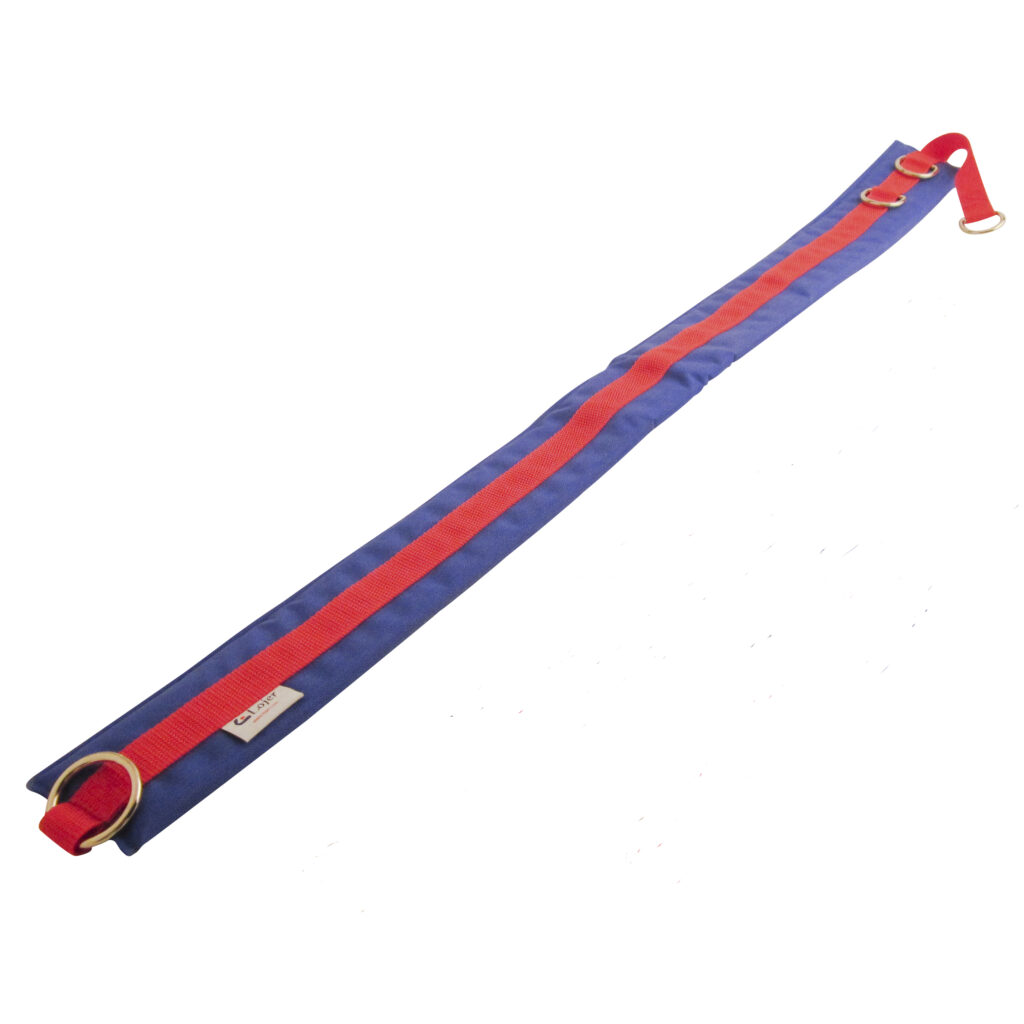

- Padded strap for waist, fabric — 402022

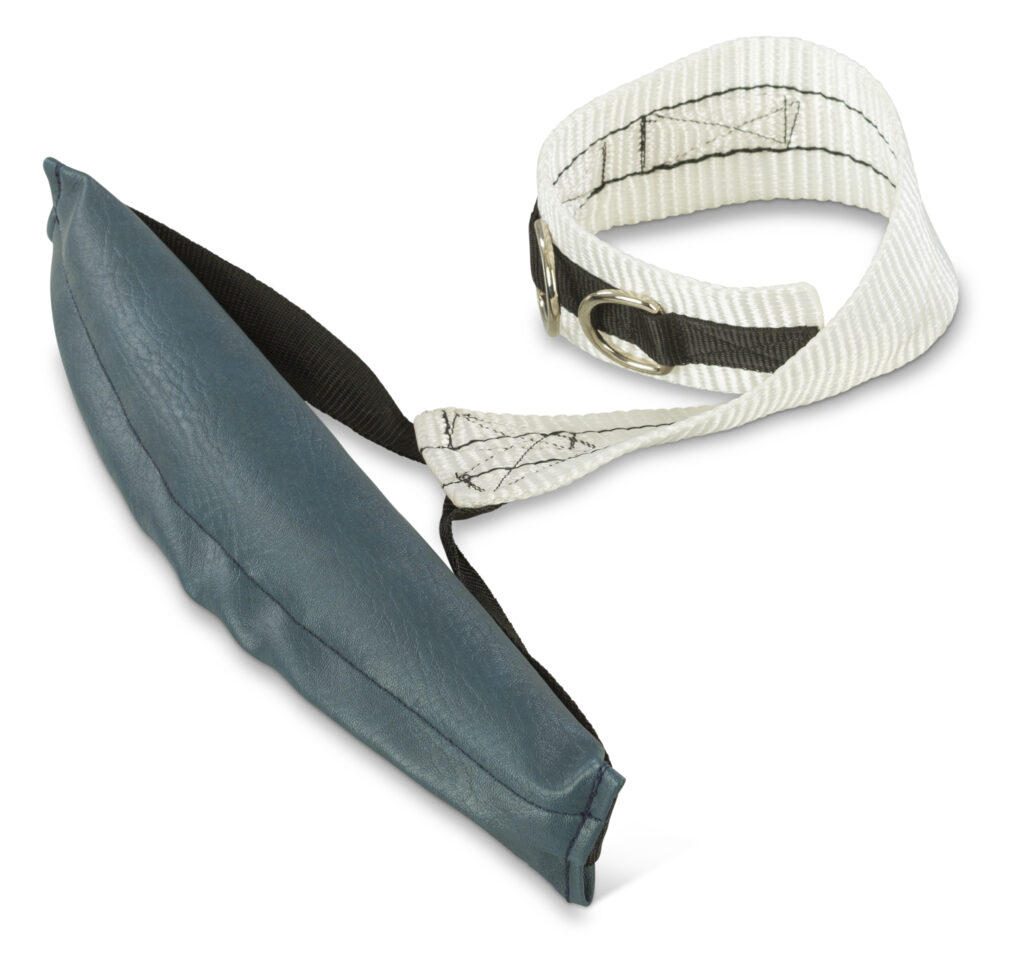

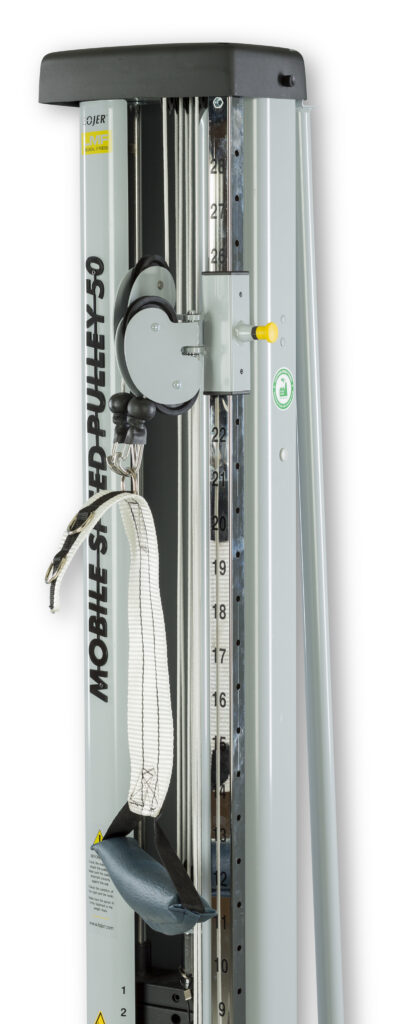

- Rotation strap with padding — 402025
- Strap for ankle, leather, 62 × 5 cm — 402030

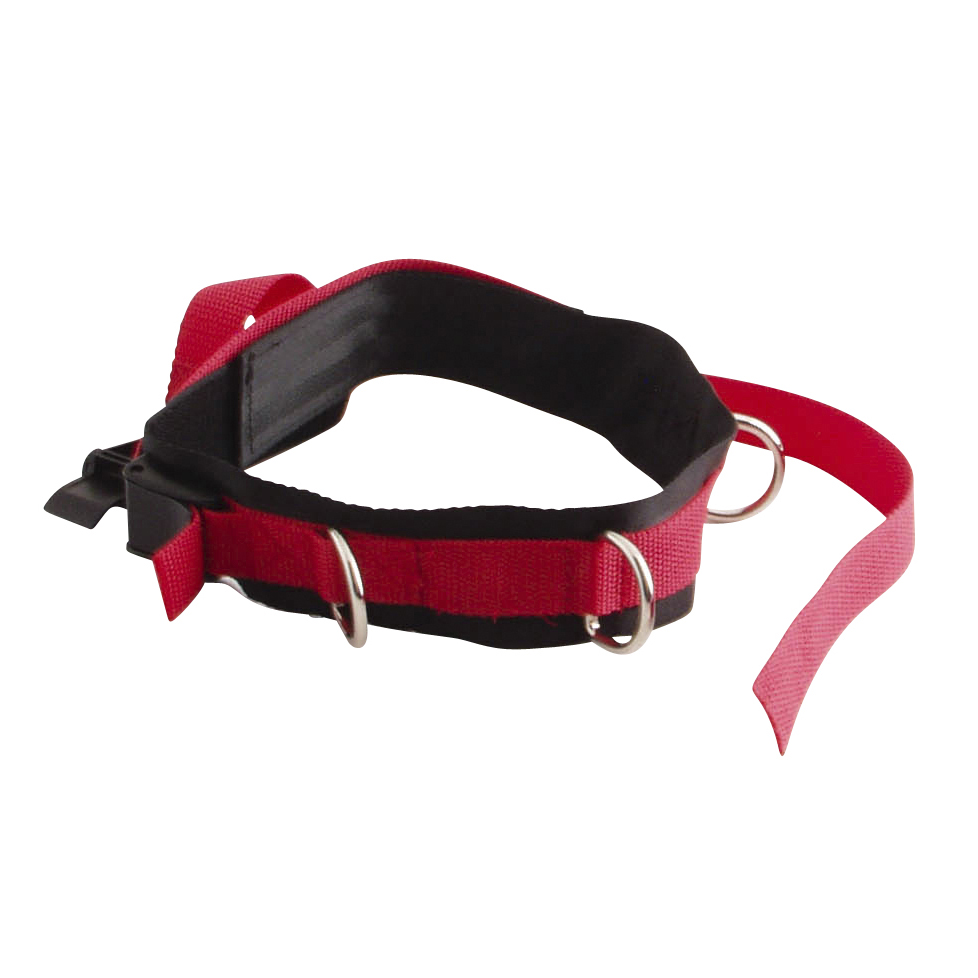

- Head strap — 402034

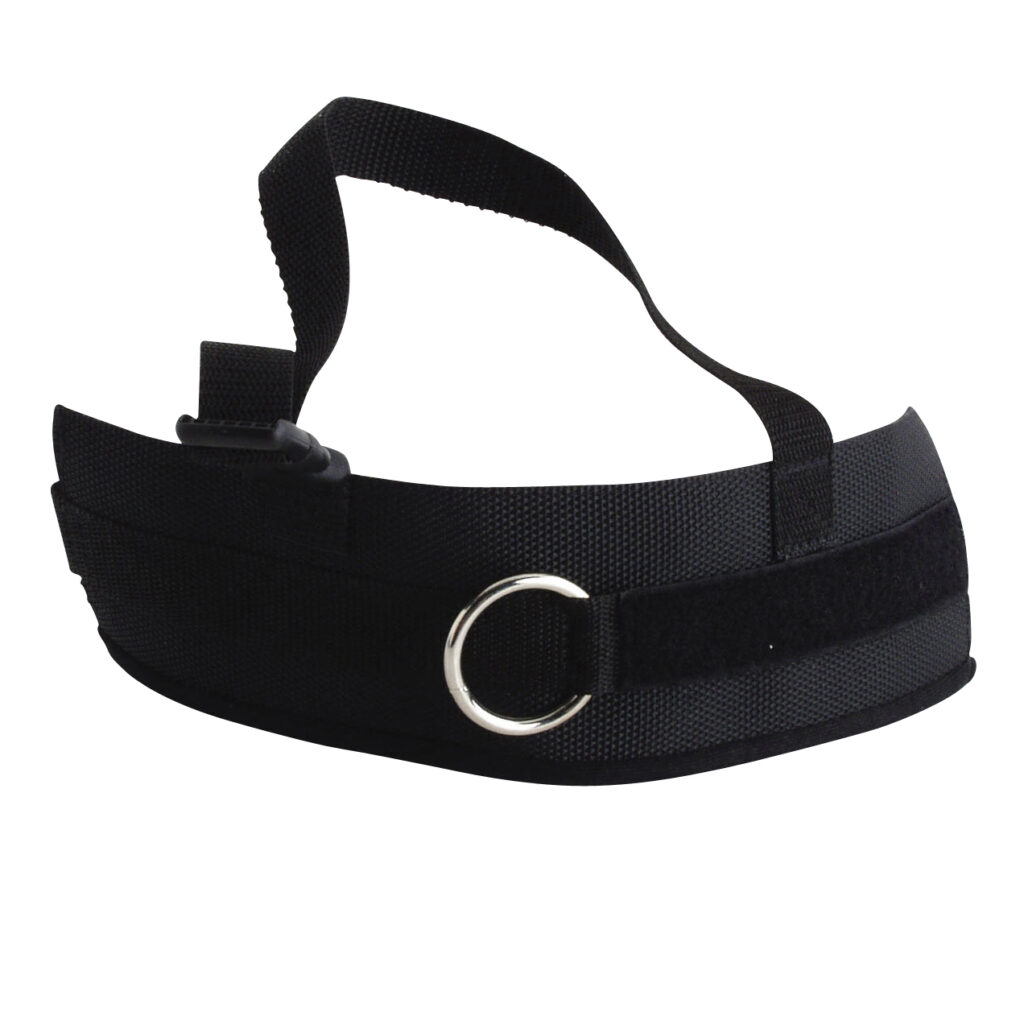

- Strap padded ankle with Velcro lock — 402040
Service & lifestyle
The warranty is 2 years for the mechanism and 10 years for the steel parts. Accessories and wearing components, including spare and replacement parts, are covered for 12 months from the date of shipment. Lojer also provides equipment maintenance and other lifecycle services.
