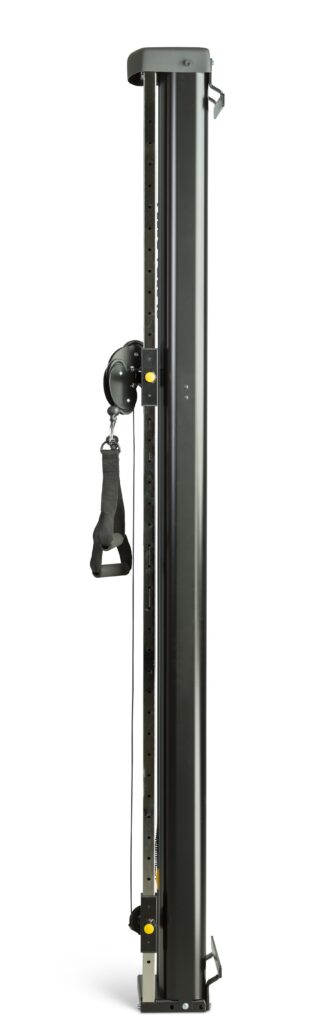

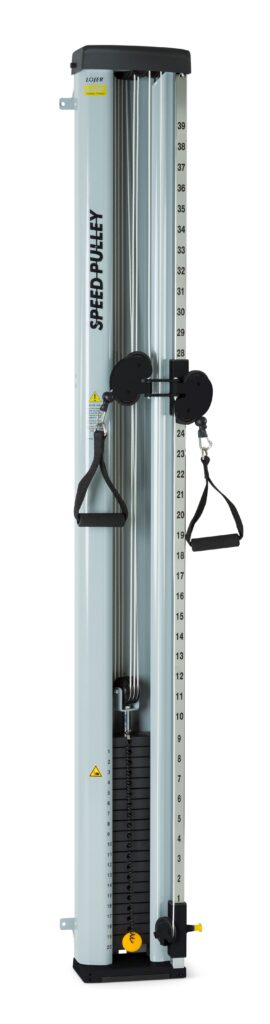

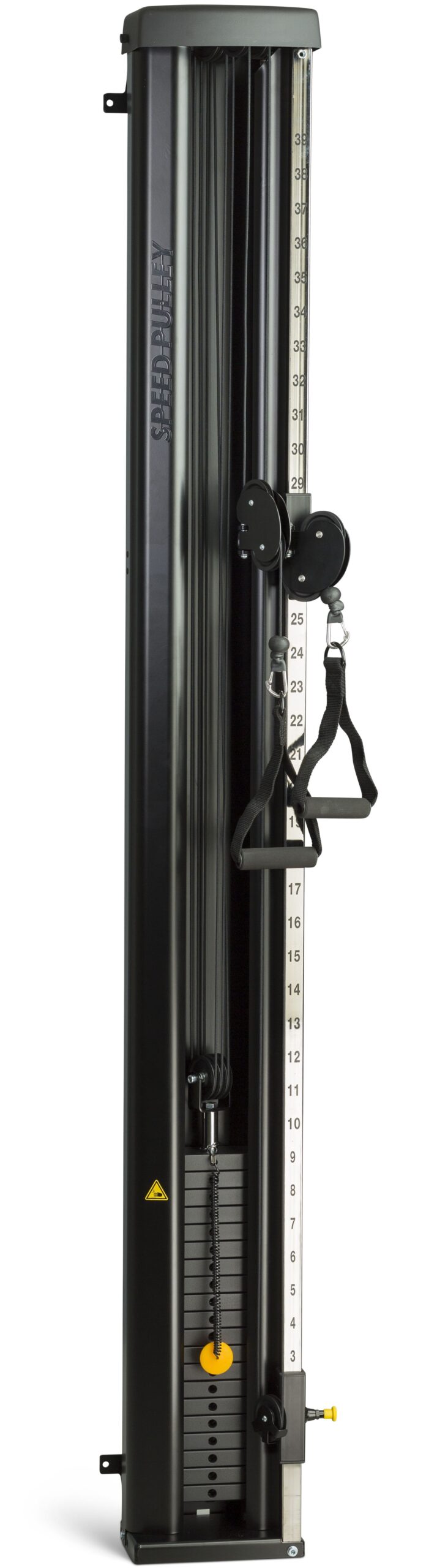

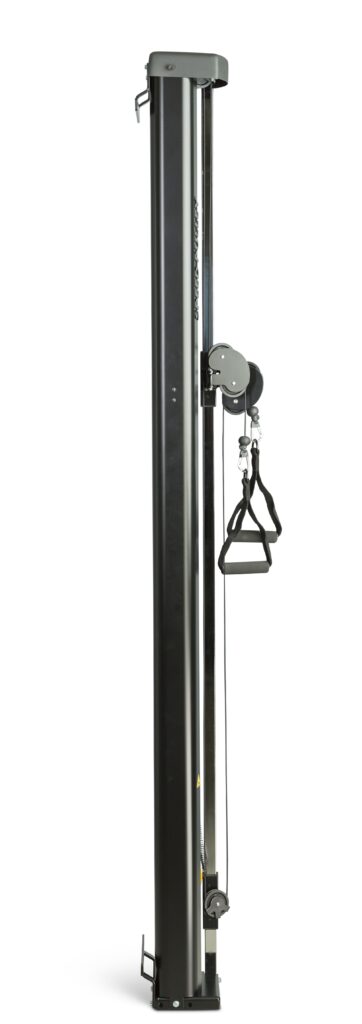

The Lojer Speed Pulley lets rehabilitation professionals combine conventional pulley exercises with training in which the speed of movement varies. Resistance starts very low and is set precisely with one or two ropes, and the smooth pulling mechanism allows quick, even explosive movements without the weight being lost or jolting.
Two long ropes with two handles allow training with both hands, or one handle for the exercise and the other for stabilisation and core training. The range comprises wall-mounted models with 50, 80 or 100 kg weight stacks.
KEY benefits
What makes Speed Pulley different
Start light, adjust precisely
Resistance starts at a fraction of a kilogram and is set in small steps using one or two ropes
Explosive movement without losing the weigh
The smooth mechanism keeps the weight stack under control in fast, explosive exercises
Two ropes, two handles
Train with both hands, or use one handle for the exercise and the other for stabilisation and core training
Speed-based exercises
Long ropes allow movements such as running with extra resistance, throwing and skiing
Set up for each exercise
Two adjustment pins set the rope height and limit the range of motion, in 5 cm steps
Key features
- Weight stacks of 50, 80 or 100 kg
- Pull cord mechanism with a resistance ratio of 1:6 with one rope and 2:6 with two ropes
- Two ropes and two triangle handles; both ropes can be connected to one handle to double the resistance
- Two adjustment pins: one for rope height, one as a range-of-motion limiter

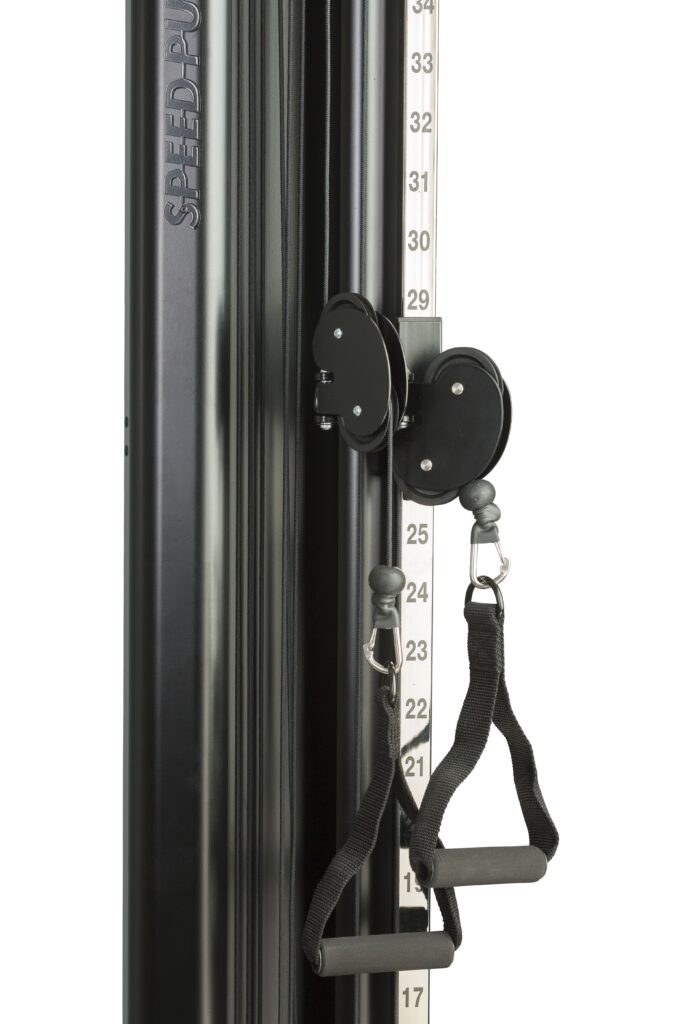

- Handle height and cord length adjustable in 5 cm increments on the chromed adjustment pole
- Quiet, smooth resistance across the whole range of movement

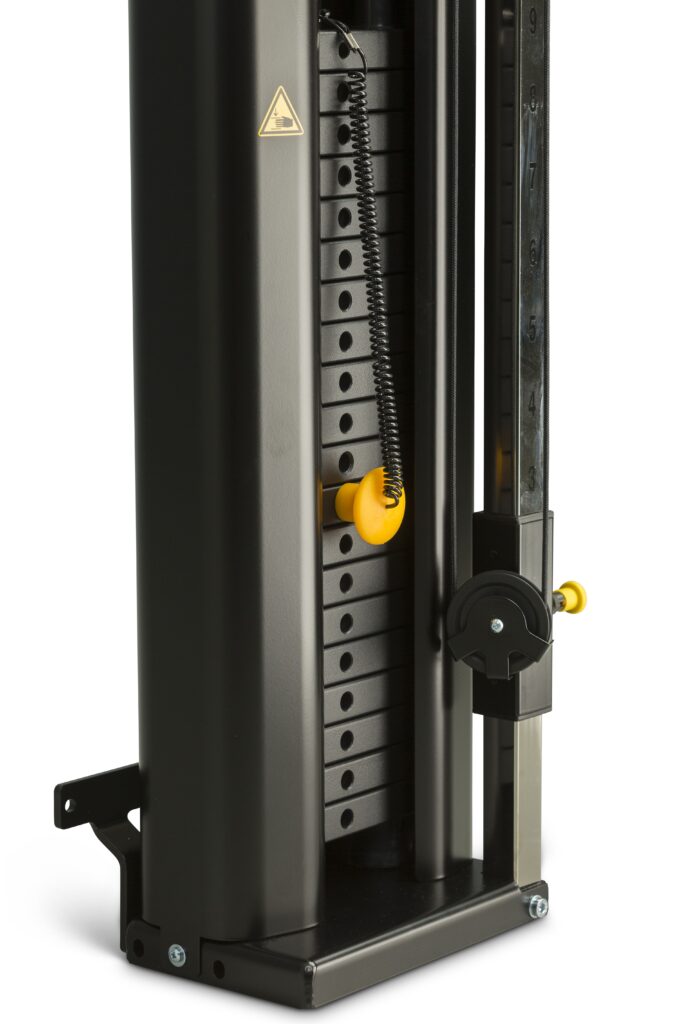

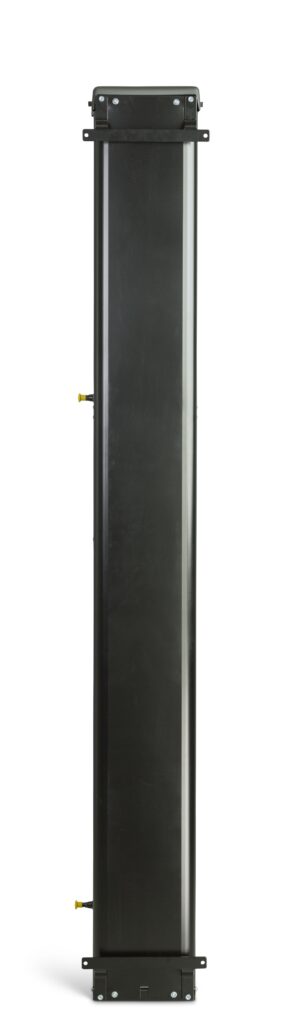

- Weight stack covered with steel casing
- Sturdy construction
- Four fixing points for fixing against a wall

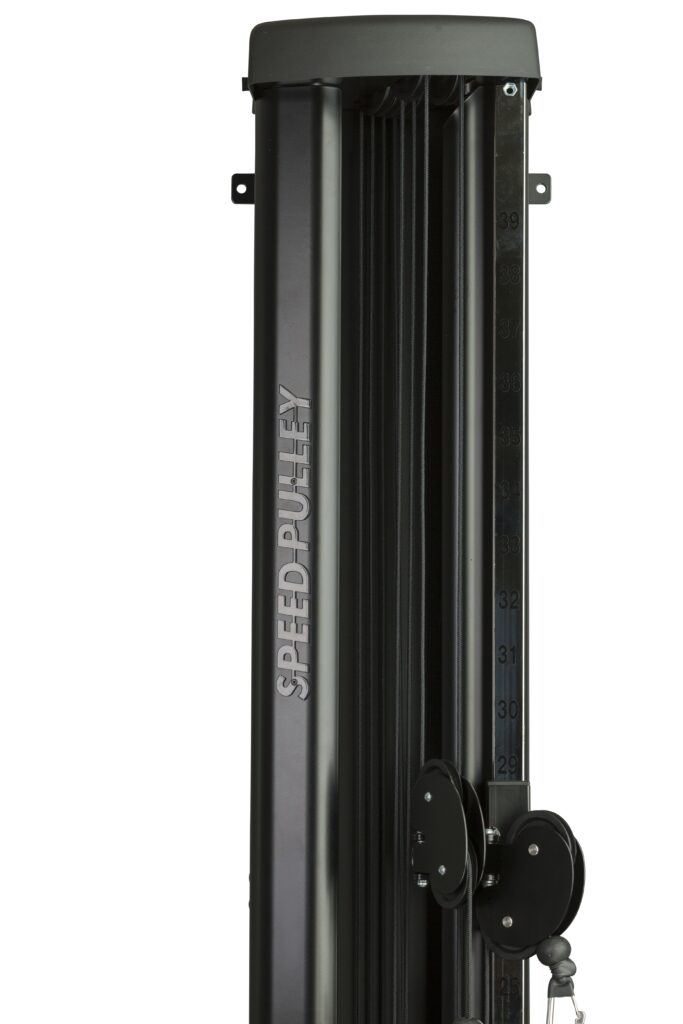

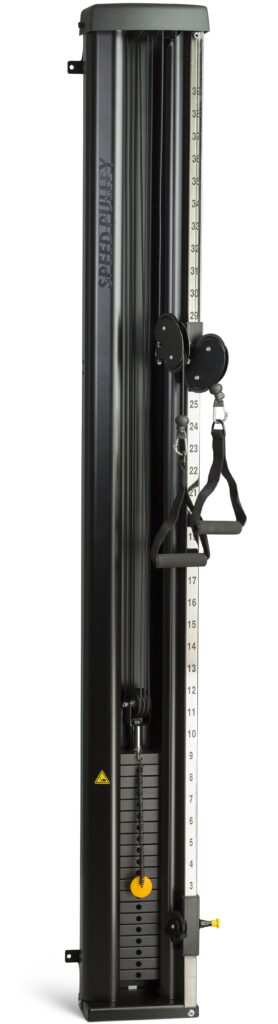

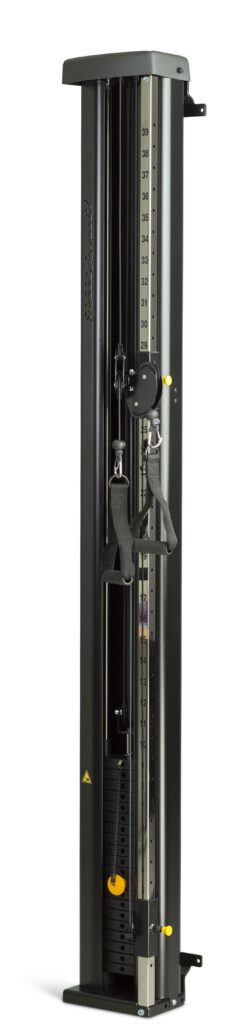

- Black or grey frame
Models / Configurations
All three models are wall-mounted and share the pull cord mechanism, two ropes and handles, two adjustment pins and the choice of black or grey. They differ in weight stack and dimensions.

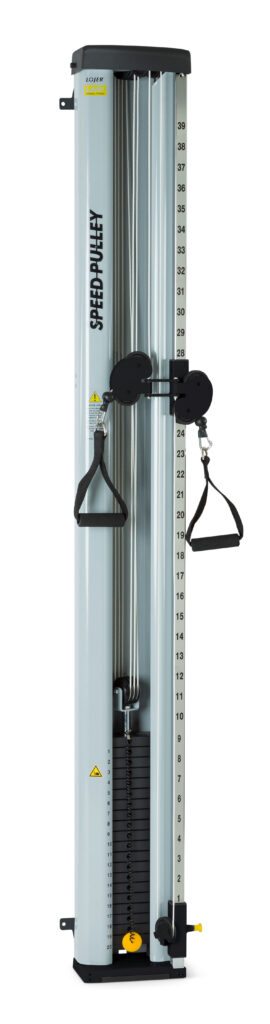

- Speed Pulley 50 kg — 20 × 2.5 kg plates.
- Speed Pulley 80 kg — 16 × 5 kg plates.

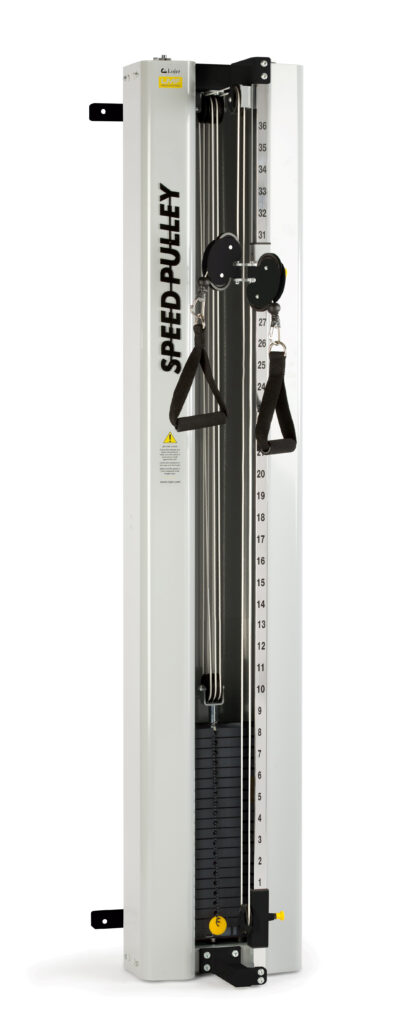

- Speed Pulley 100 kg — 20 × 5 kg plates.

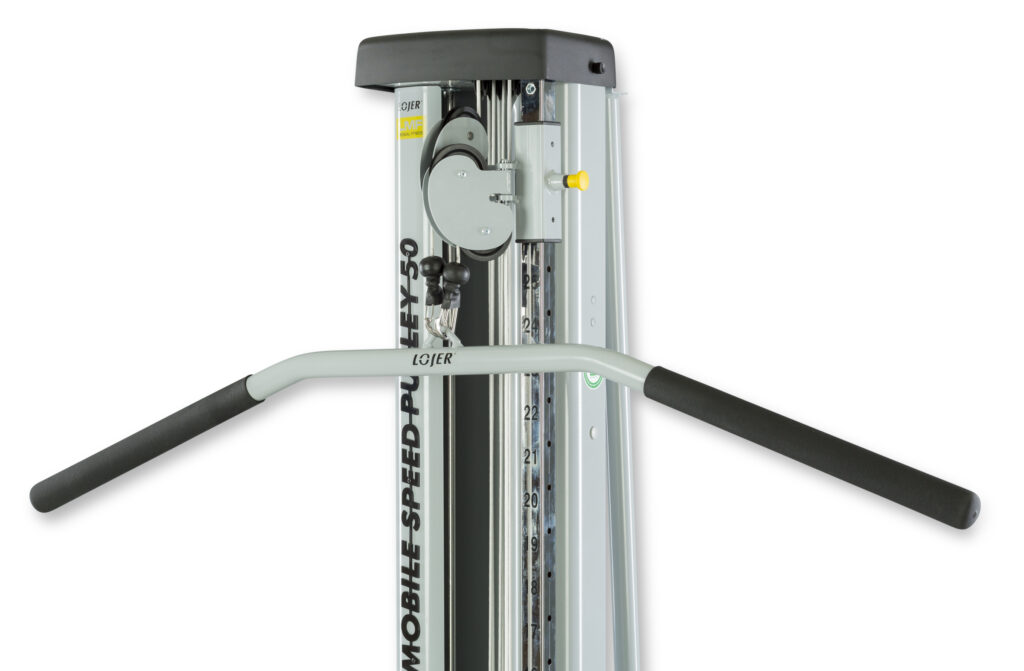

For rooms where wall attachment is not possible, see the Lojer Mobile Speed Pulley.
Technical specifications
| Specification | Speed Pulley 50 kg | Speed Pulley 80 kg | Speed Pulley 100 kg |
|---|---|---|---|
| Weight stack | 50 kg | 80 kg | 100 kg |
| Weight plates | 20 × 2.5 kg | 16 × 5 kg | 20 × 5 kg |
| Resistance ratio | 1:6 one rope; 2:6 two ropes | 1:6 one rope; 2:6 two ropes | 1:6 one rope; 2:6 two ropes |
| Lowest resistance (one weight plate), one / two ropes | 0.4 kg / 0.8 kg | 0.8 kg / 1.7 kg | 0.8 kg / 1.7 kg |
| Max. rope length, one rope (halved with two) | 12 m | 11,5 m | 11 m |
| Overall height | 230 cm | 217 cm | 217 cm |
| Ropes and handles | 2 ropes, 2 triangle handles | 2 ropes, 2 triangle handles | 2 ropes, 2 triangle handles |
| Width | 32 cm | 51 cm | 51 cm |
| Depth | 32 cm | 52 cm | 52 cm |
| Total weight | 81 kg | 154 kg | 174 kg |
| Colour | Black / Grey | Black / Grey | Black / Grey |
| CE marking | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Country of manufacture | Finland | Finland | Finland |
| Manufacturer | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland |
Accessories

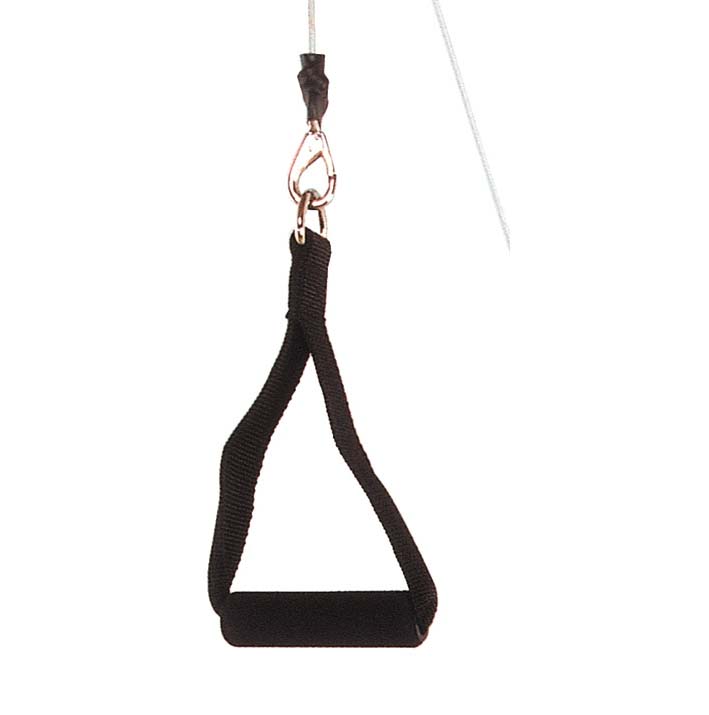

- Handle grip (supplied as standard) — R282H834

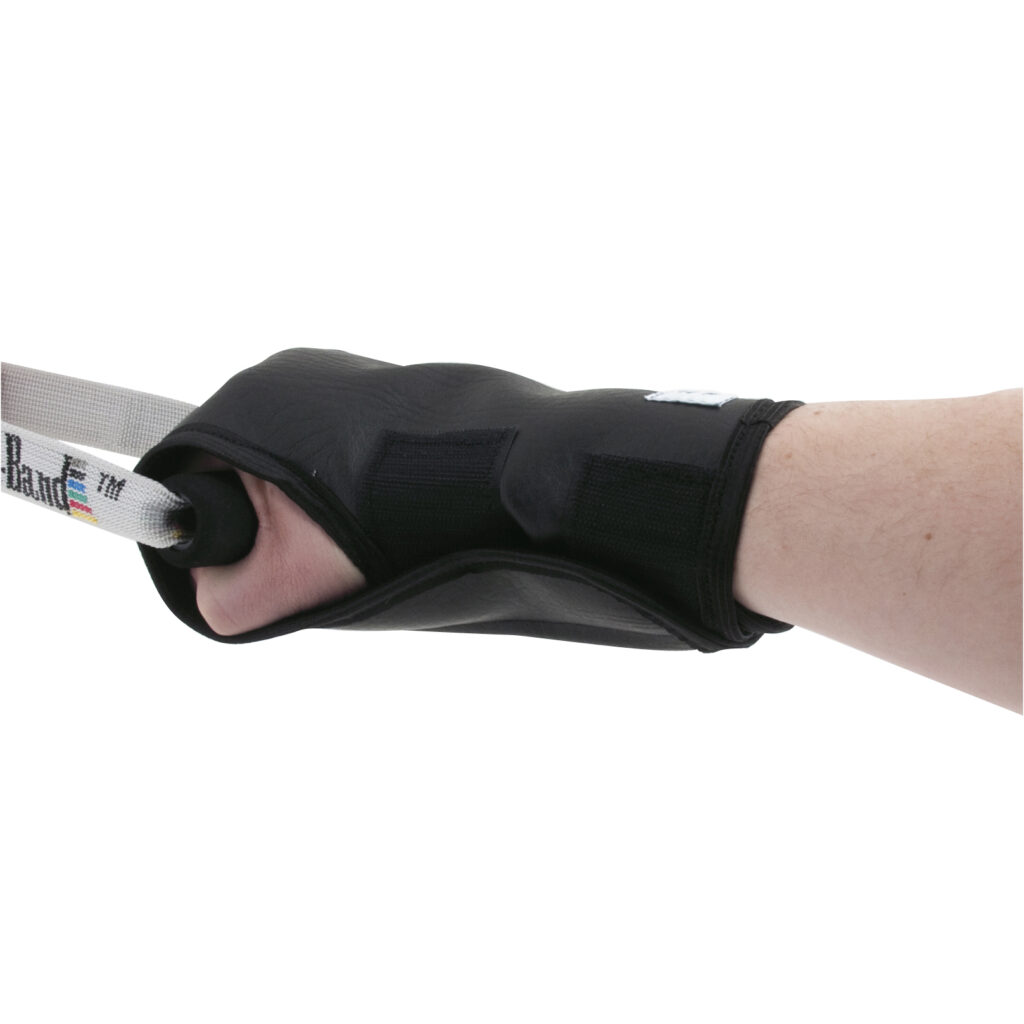

- Glove for pulley — 210050

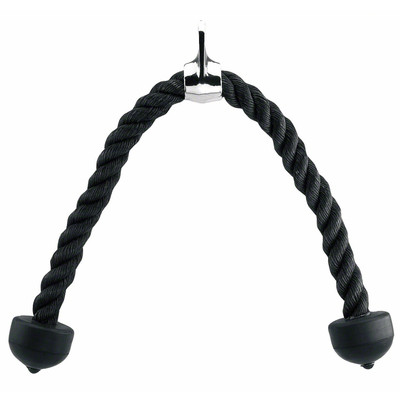

- Triceps rope, 90 cm — 2512126

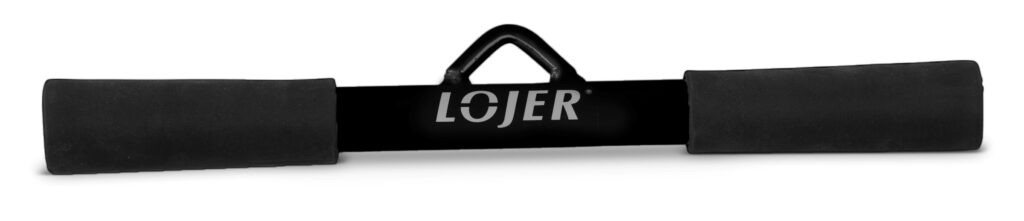

- Straight triceps handle with rubber — 13107

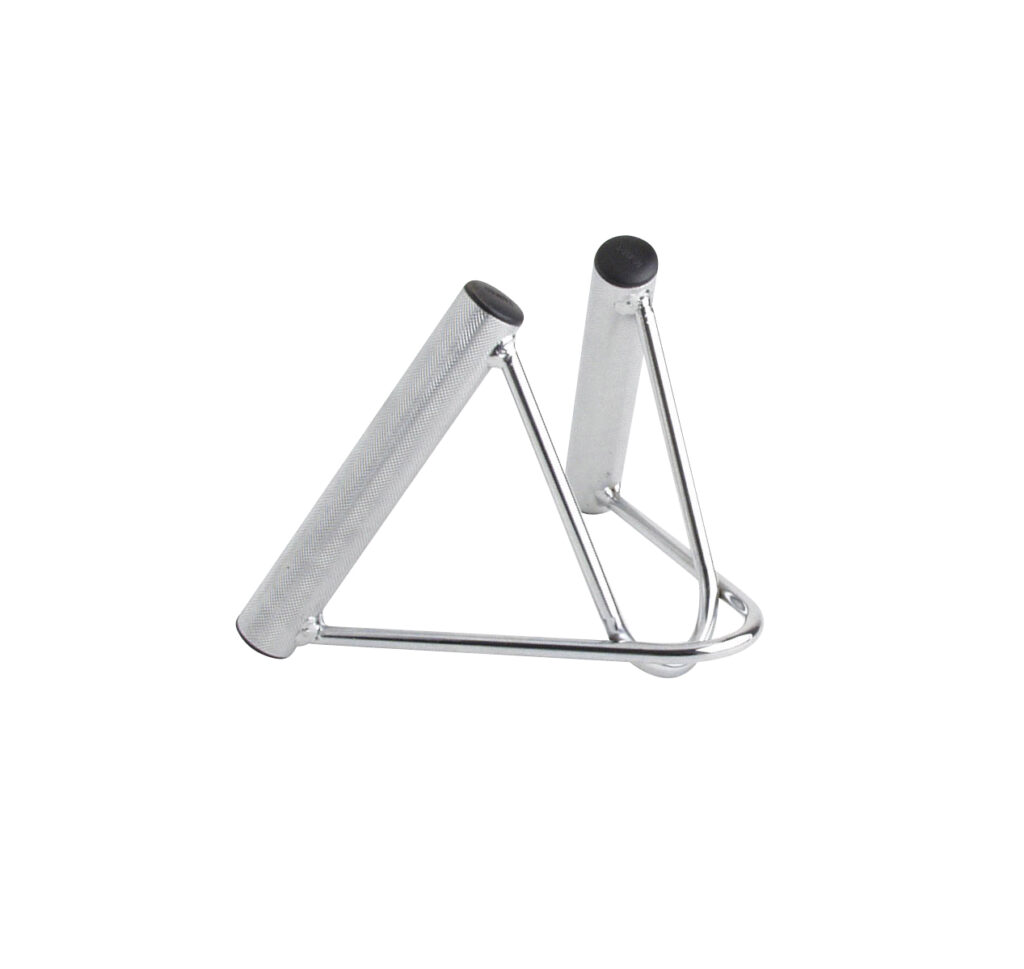

- Rowing handle — 402024

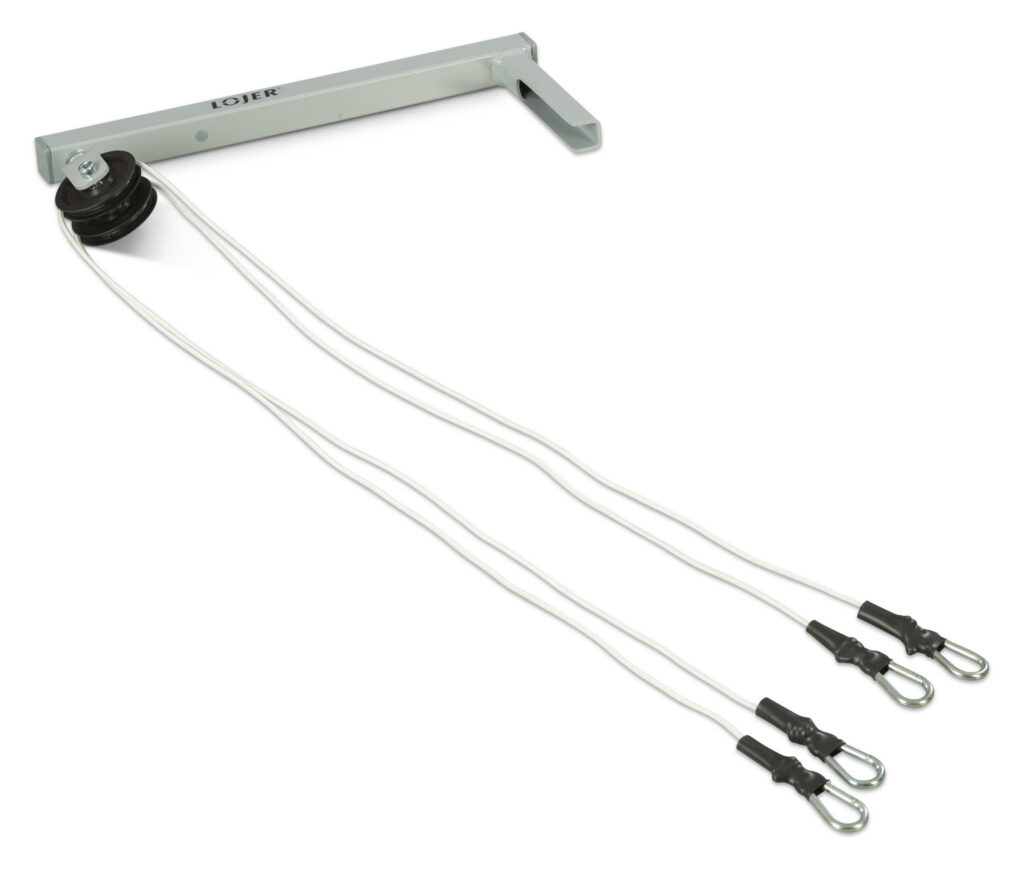

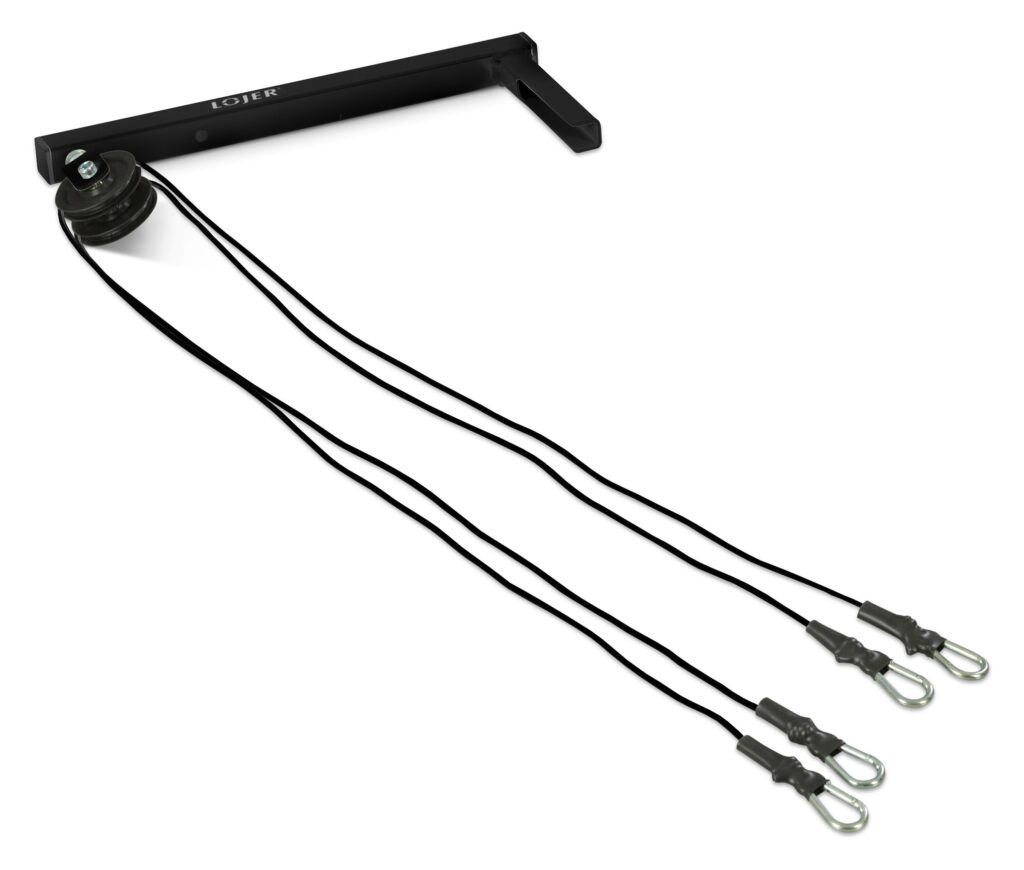

- Gantry with cord, Speed Pulley 50 kg — 15106T

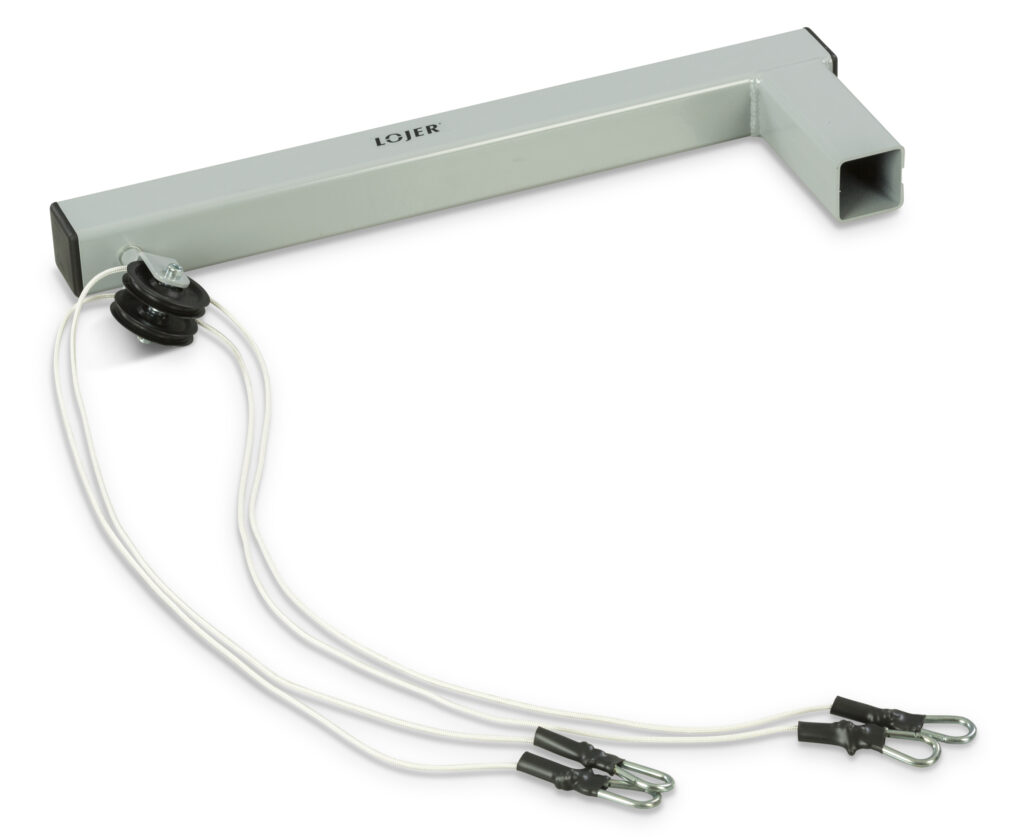

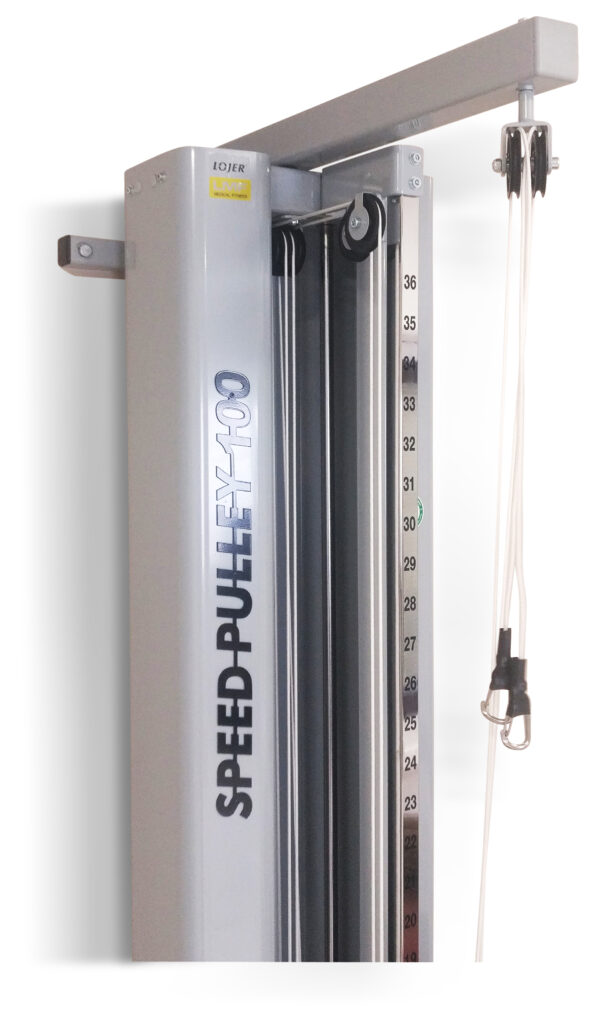

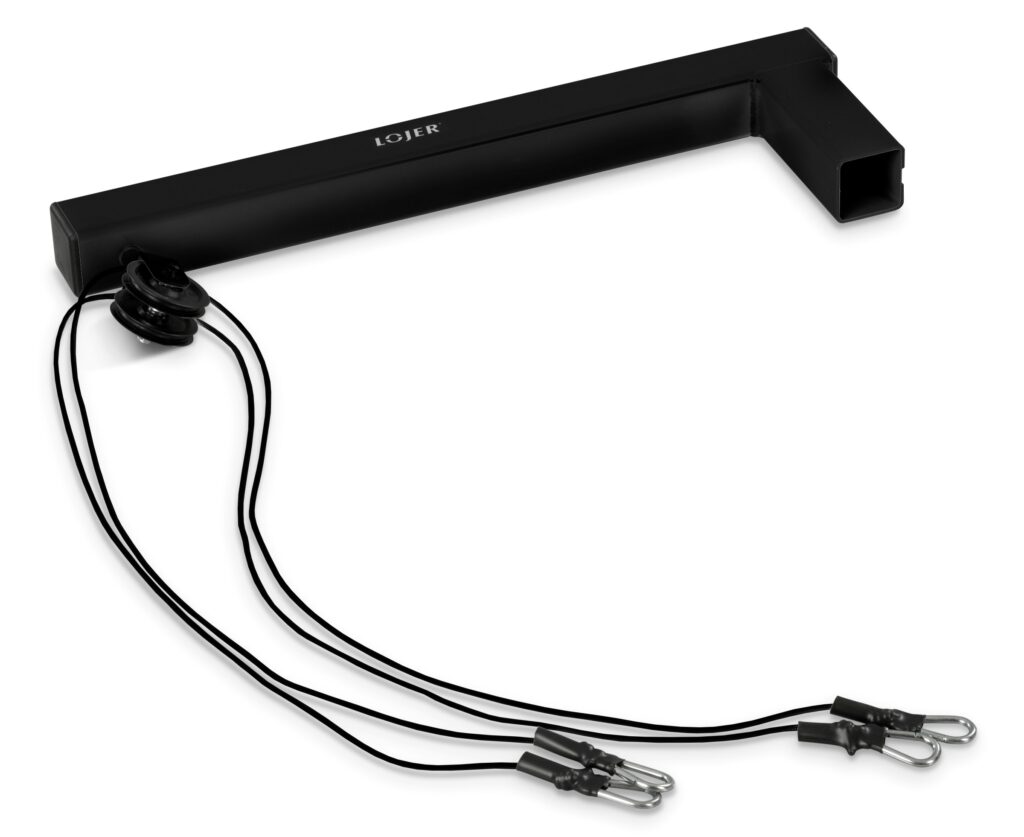

- Gantry for Speed Pulley 80/100 kg — 15106T100

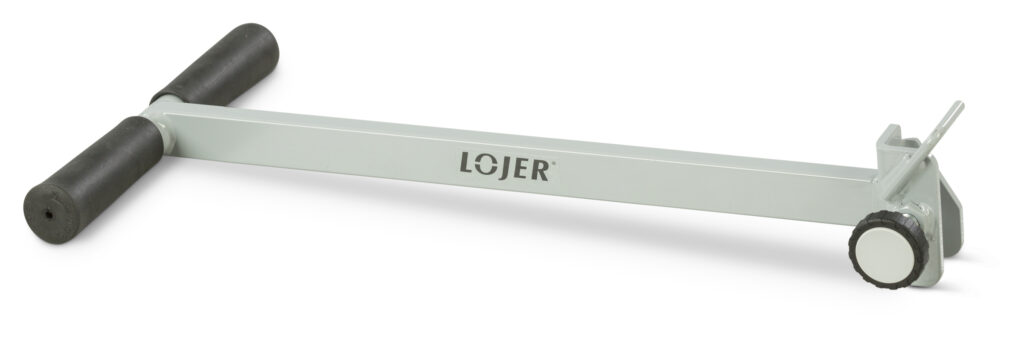

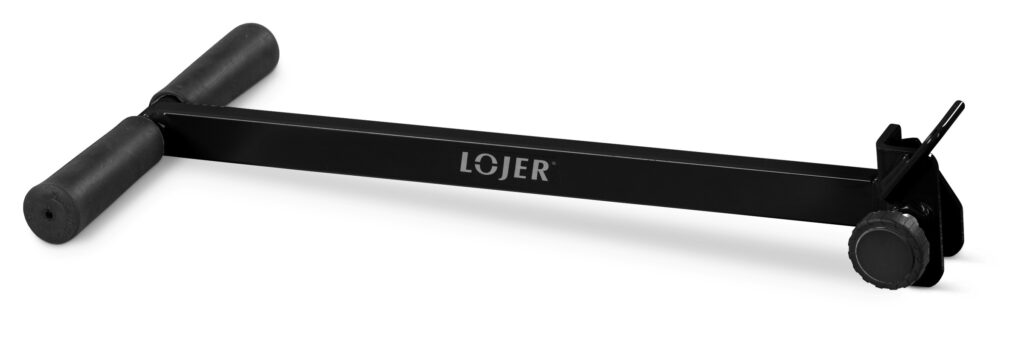

- Tall support handle — VH8083

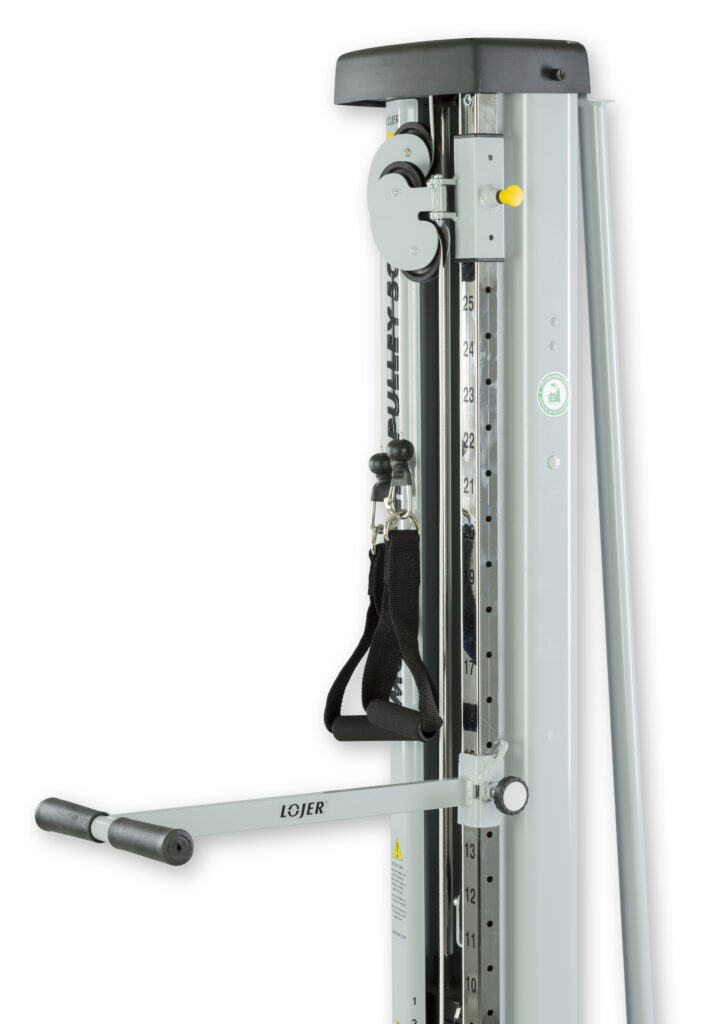

- Supporting handle with gantry — VH80831

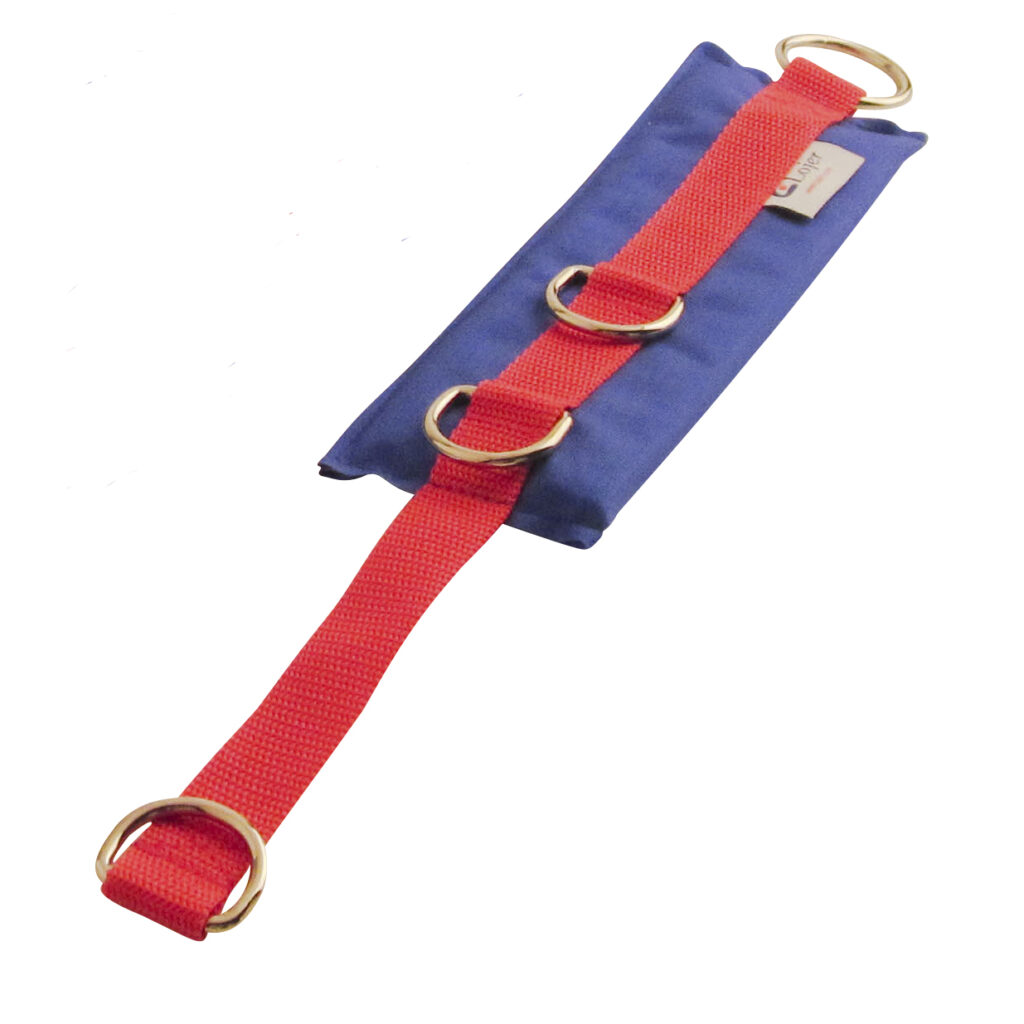

- Padded ankle strap, fabric, 25 × 8 cm — 402020

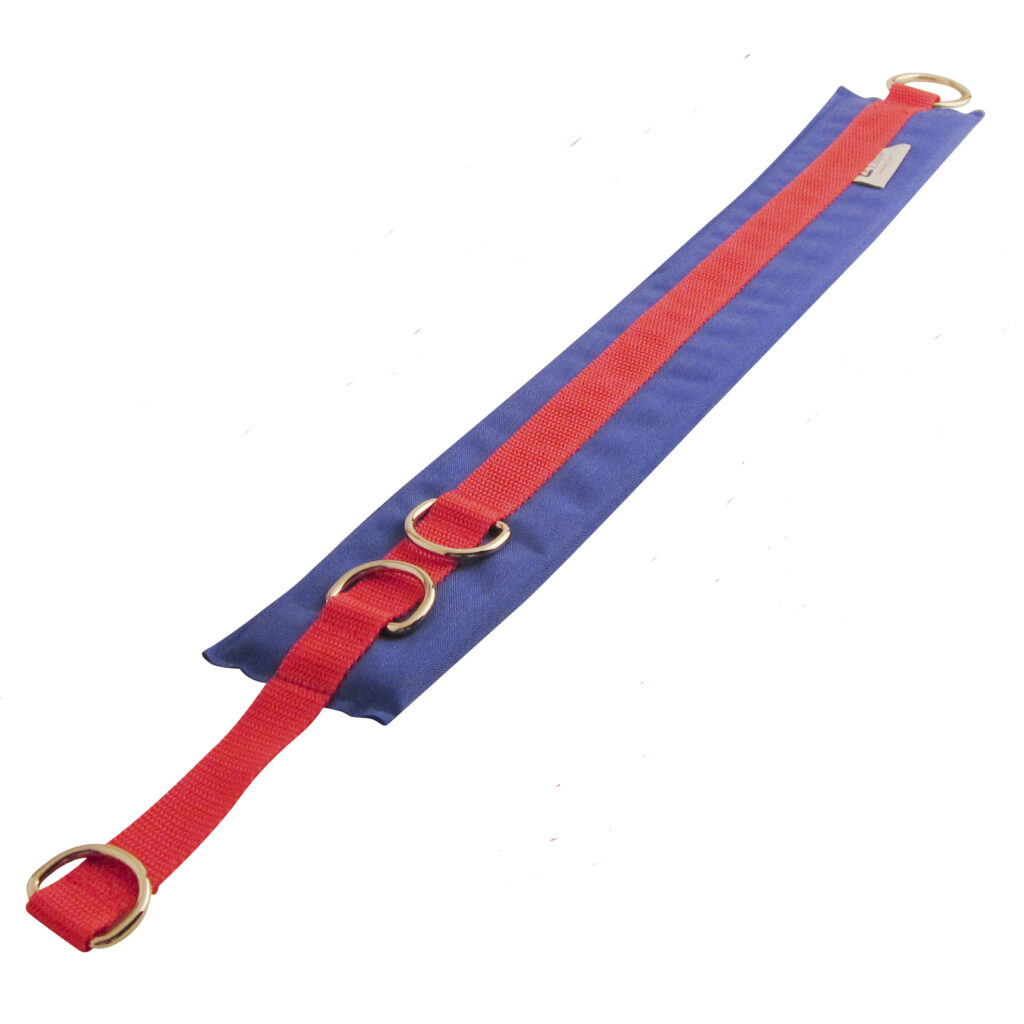

- Padded strap for shoulder or thigh, fabric — 402021

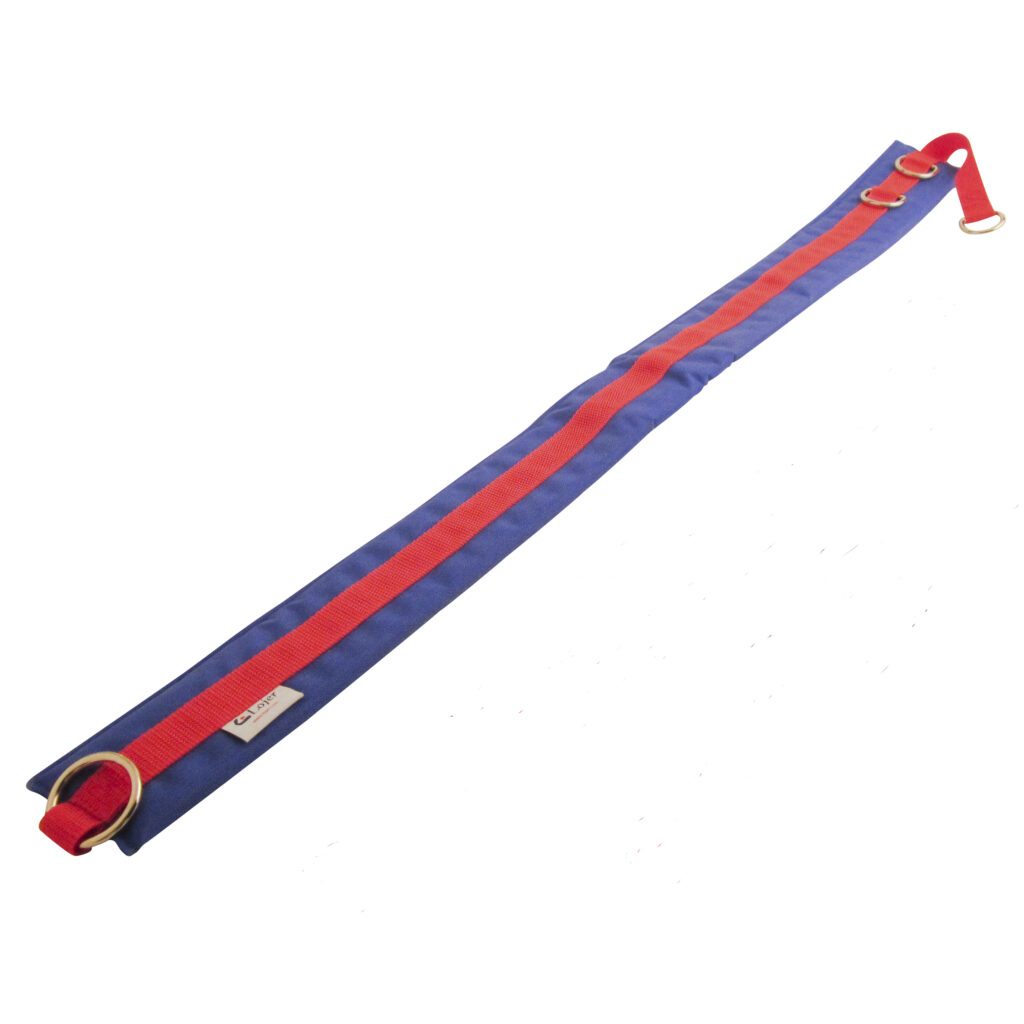

- Padded strap for waist, fabric — 402022

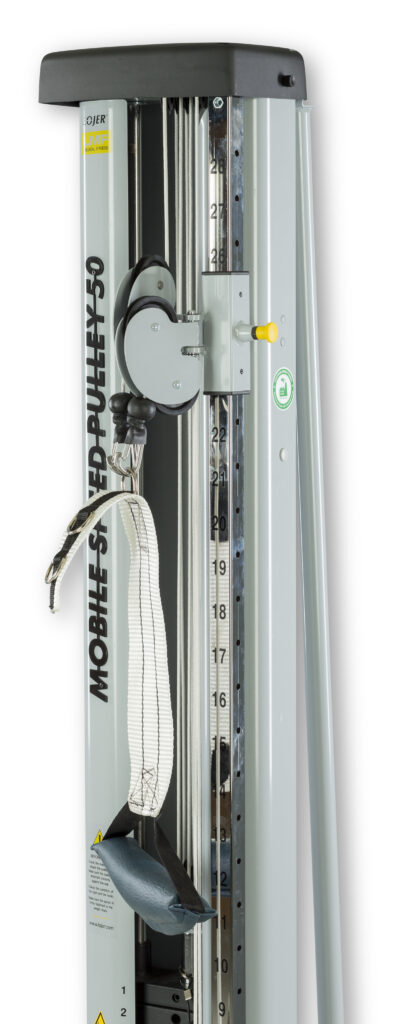

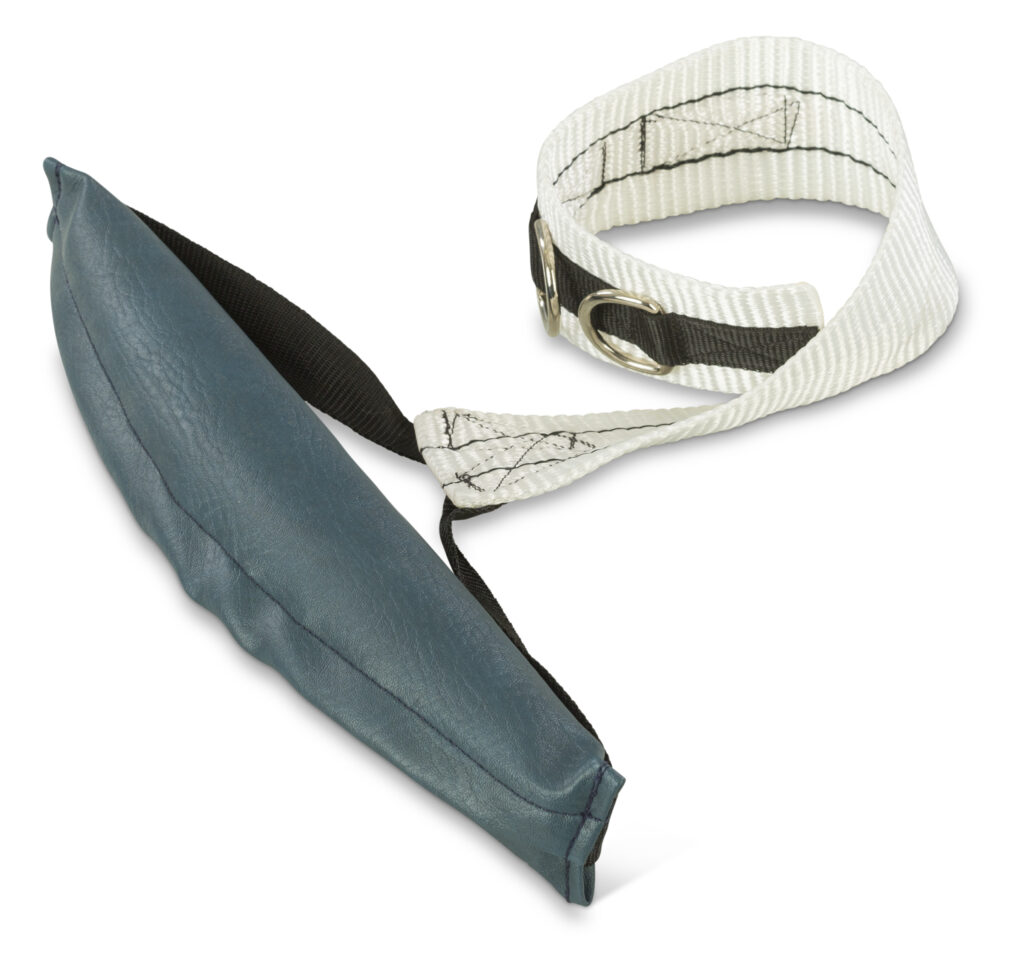

- Rotation strap with padding — 402025
- Strap for ankle, leather, 62 × 5 cm — 402030

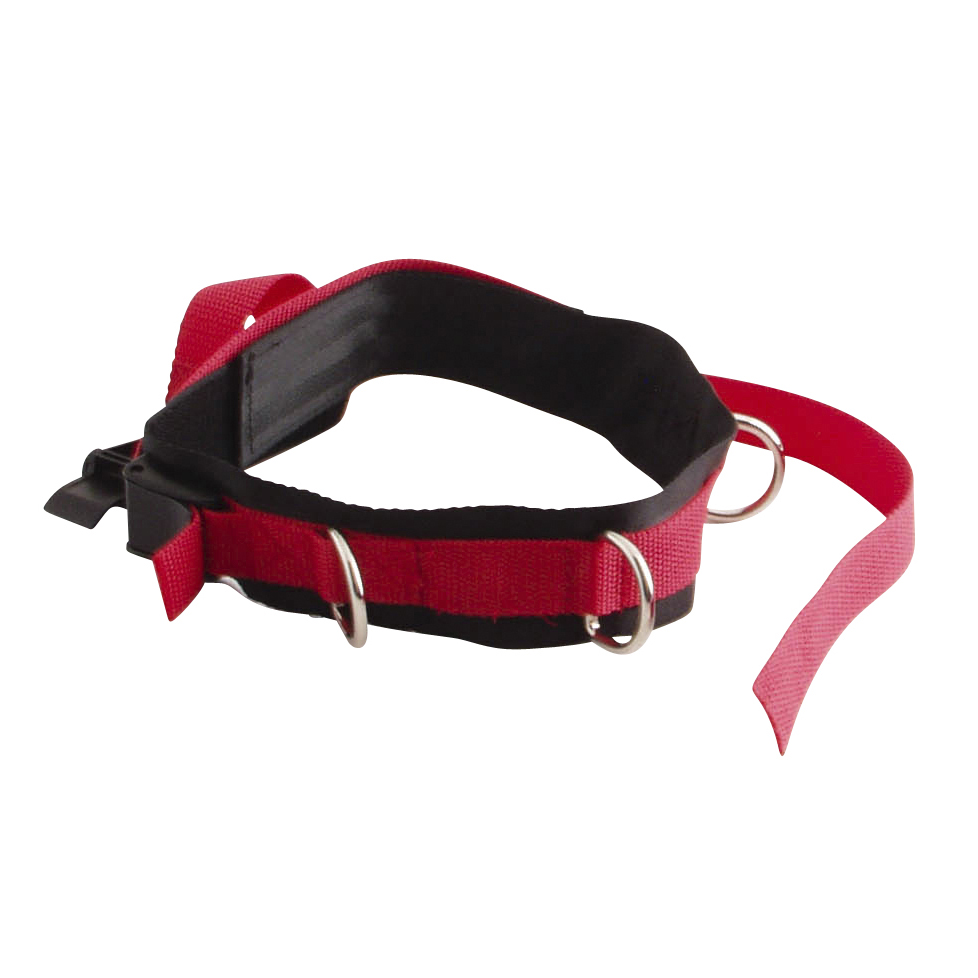

- Head strap — 402034

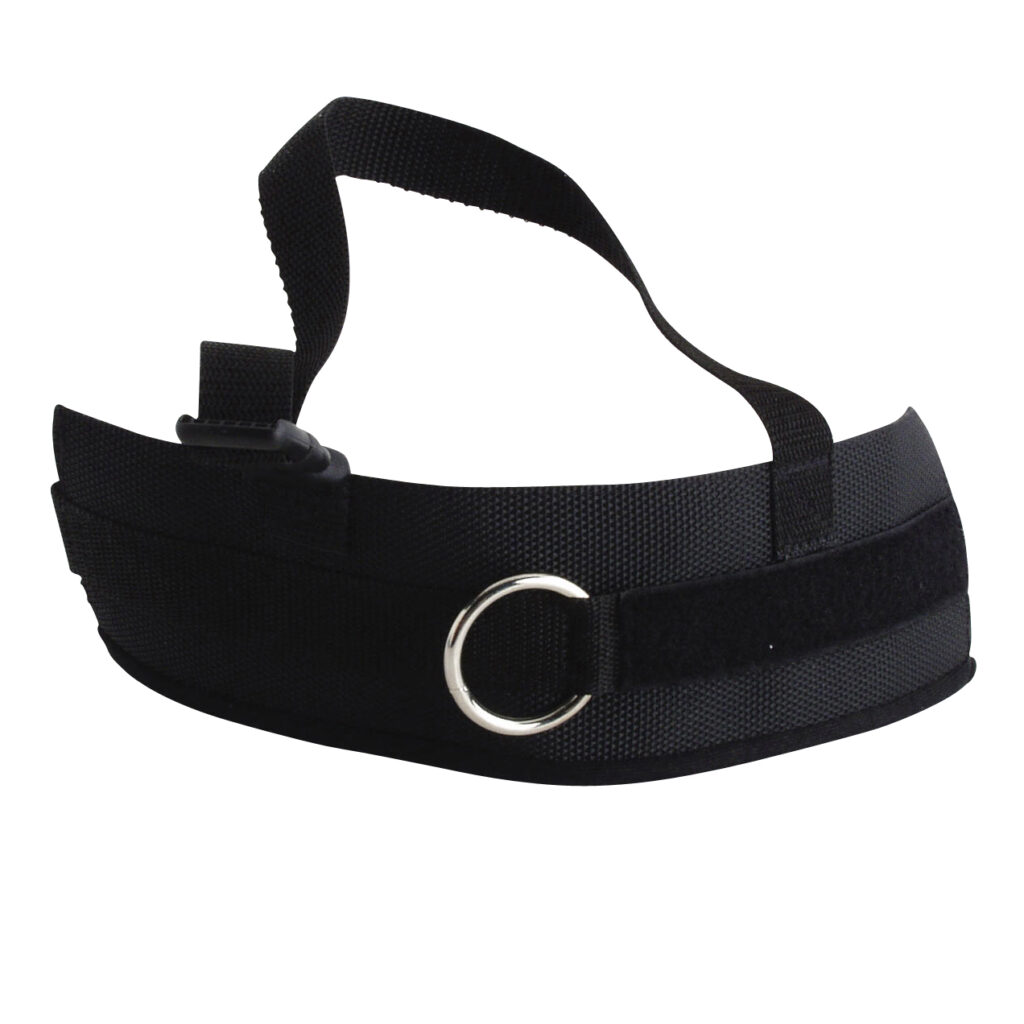

- Strap padded ankle with Velcro lock — 402040
Service & lifestyle
The warranty is 2 years for the mechanism and 10 years for the steel parts. Accessories and wearing components, including spare and replacement parts, are covered for 12 months from the date of shipment. Lojer also provides equipment maintenance and other lifecycle services.
