Lojer Pulley
Accurate training dosage with small weights and small increments

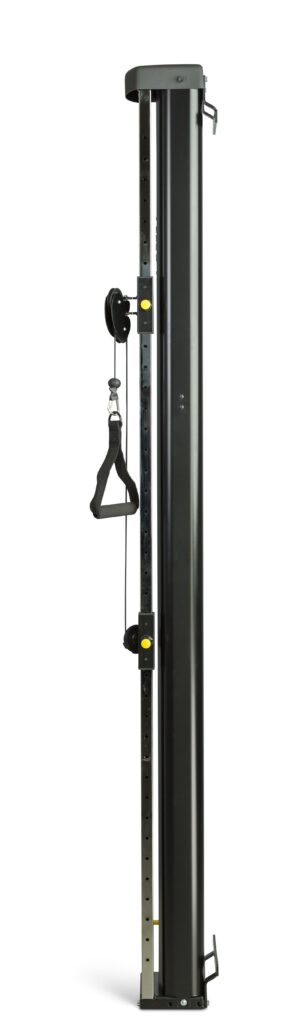

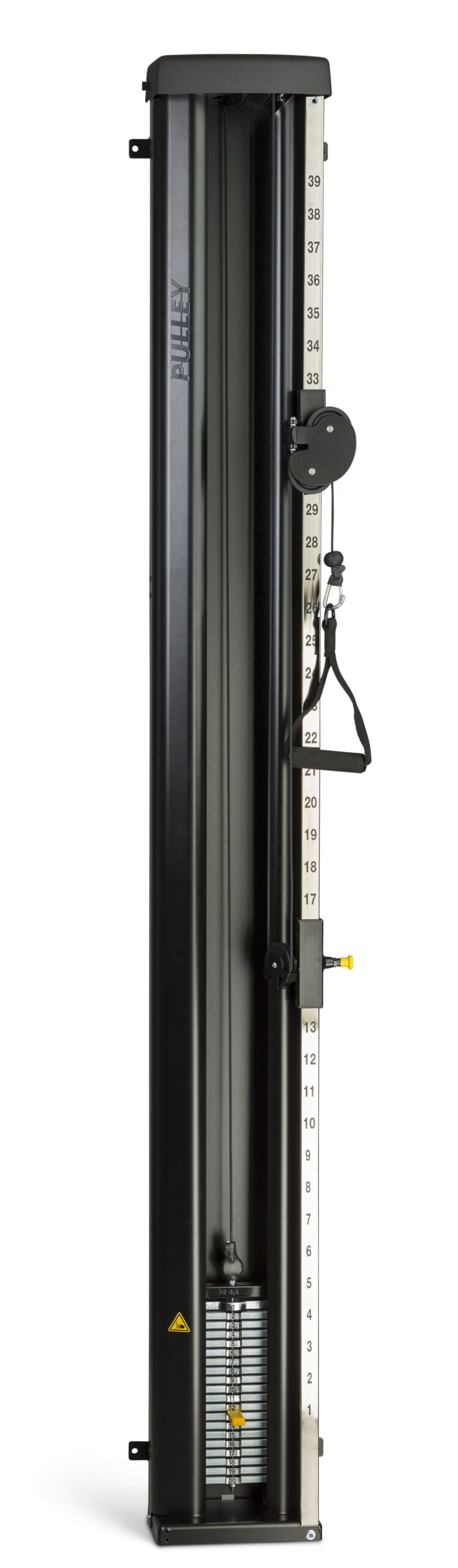

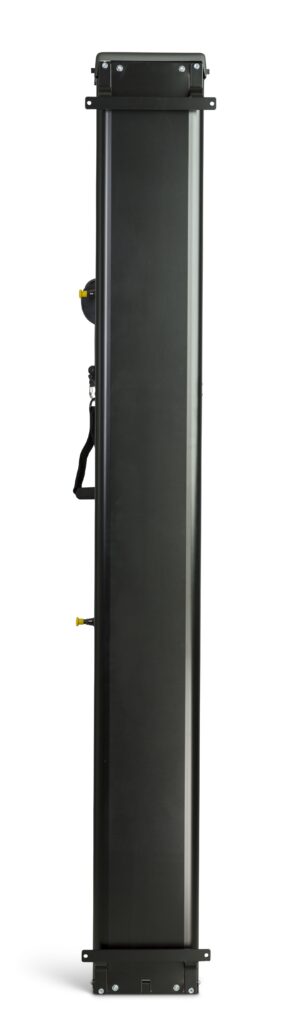

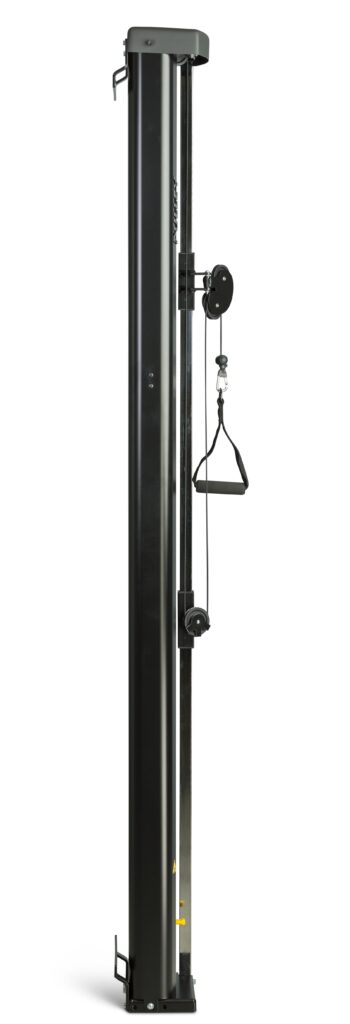

The Lojer Pulley is a wall-mounted pulley for medical training therapy. It is used in physiotherapy and other forms of therapy to train and strengthen different parts of the body, even the entire body, and it lets the therapist define resistance precisely, with sufficiently small weights and small increments.
The handle height and cord length are set in 5 cm steps, and the weight stack runs quietly and smoothly inside a steel casing. A range of accessories extends the exercises available.
KEY benefits
What makes Pulley different
Accurate training dosage
Small weights and small increments let the therapist set the resistance precisely for each patient
Training for any part of the body
Used to train and strengthen different parts of the body, even the entire body.
Set up for each exercise
Handle height and cord length adjust in 5 cm steps
Quiet, enclosed resistance
Smooth, quiet resistance through the whole movement, with the weight stack enclosed in a steel casing
Key features

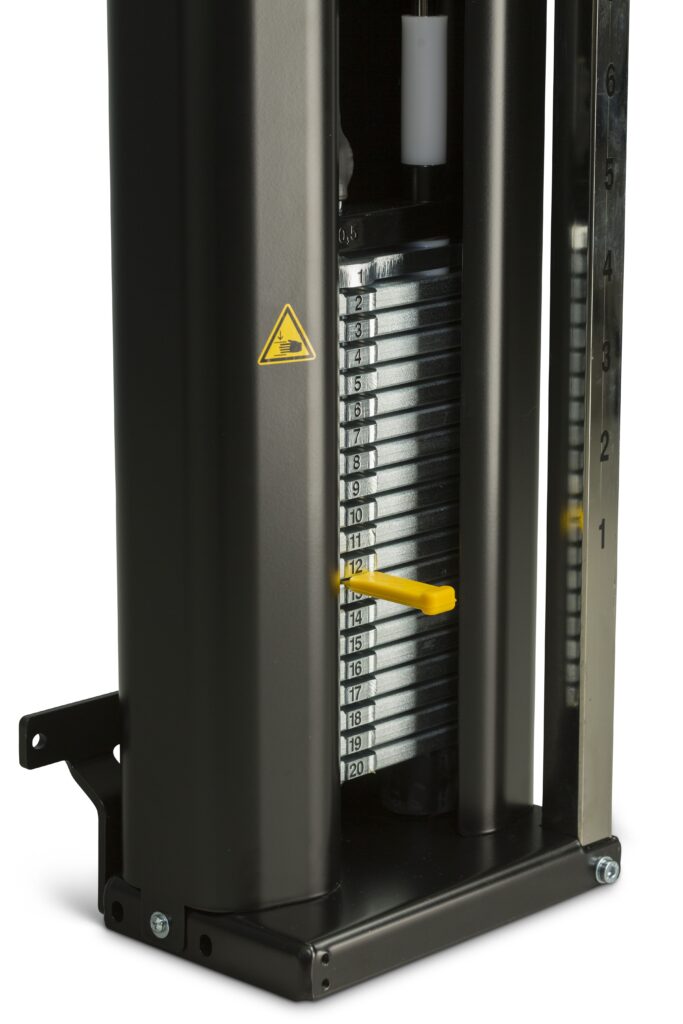

- Encapsulated weight stack of 14 or 20 kg, with two 0.5 kg plates and 1 kg plates; resistance equals the selected weight
- Weight adjustment in 0.5–1.0 kg steps, or 0.25 kg steps with the optional extra weights
- One rope with triangle handle as standard

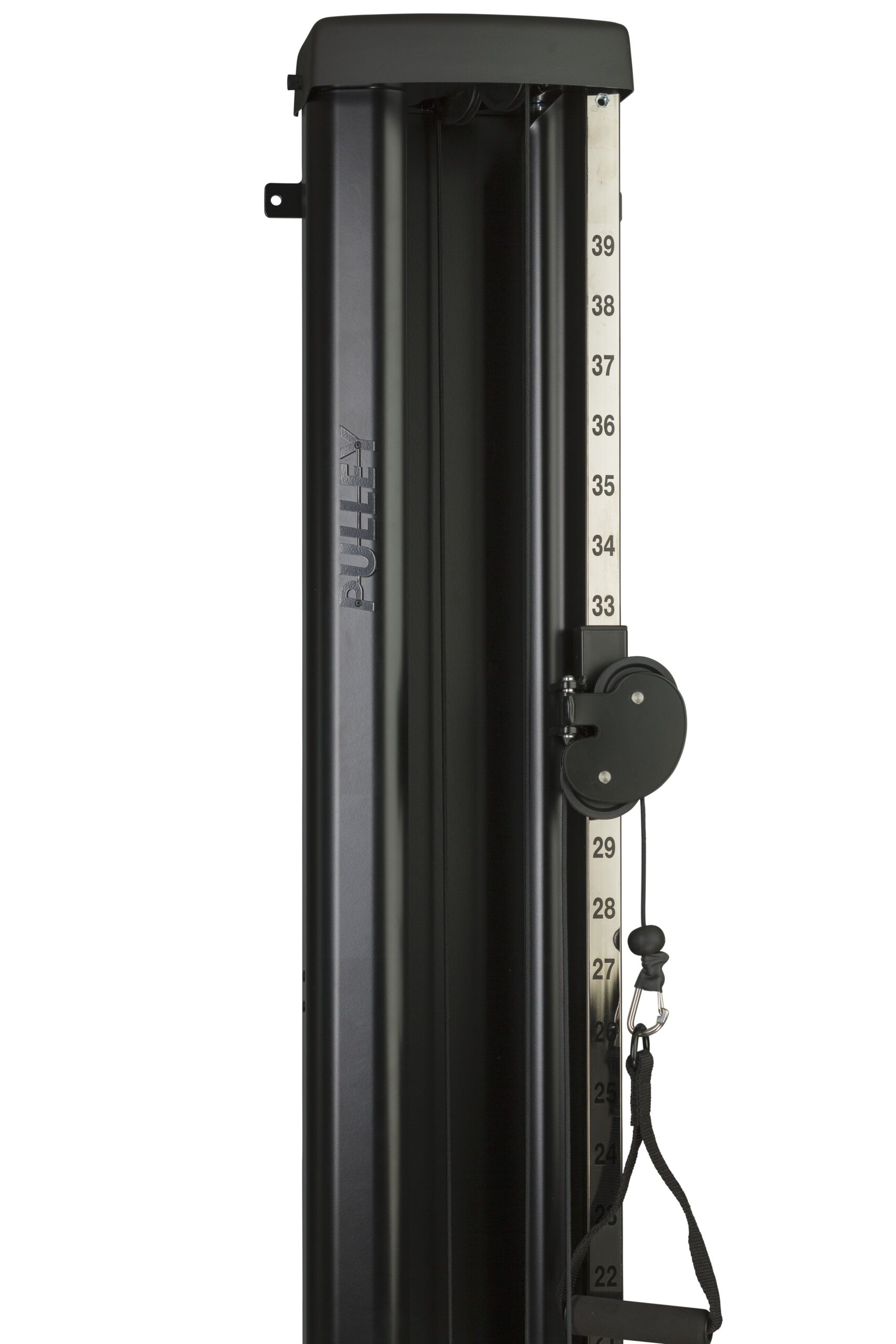

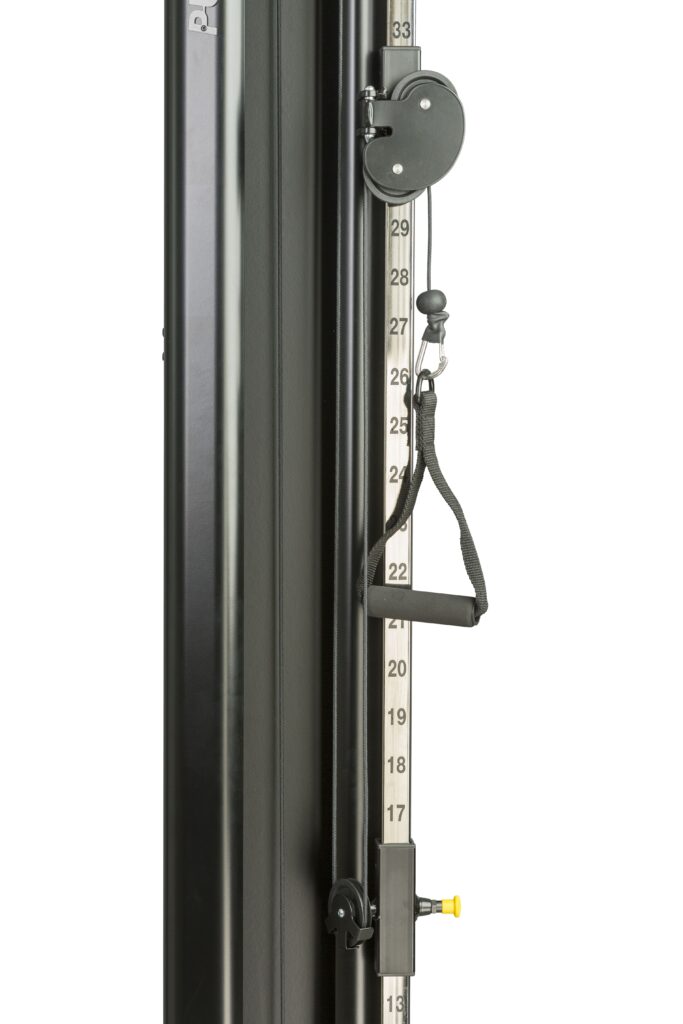

- Handle height and cord length adjustable in 5 cm increments
- Quiet, smooth resistance across the whole range of movement
- Weight stack covered with steel casing

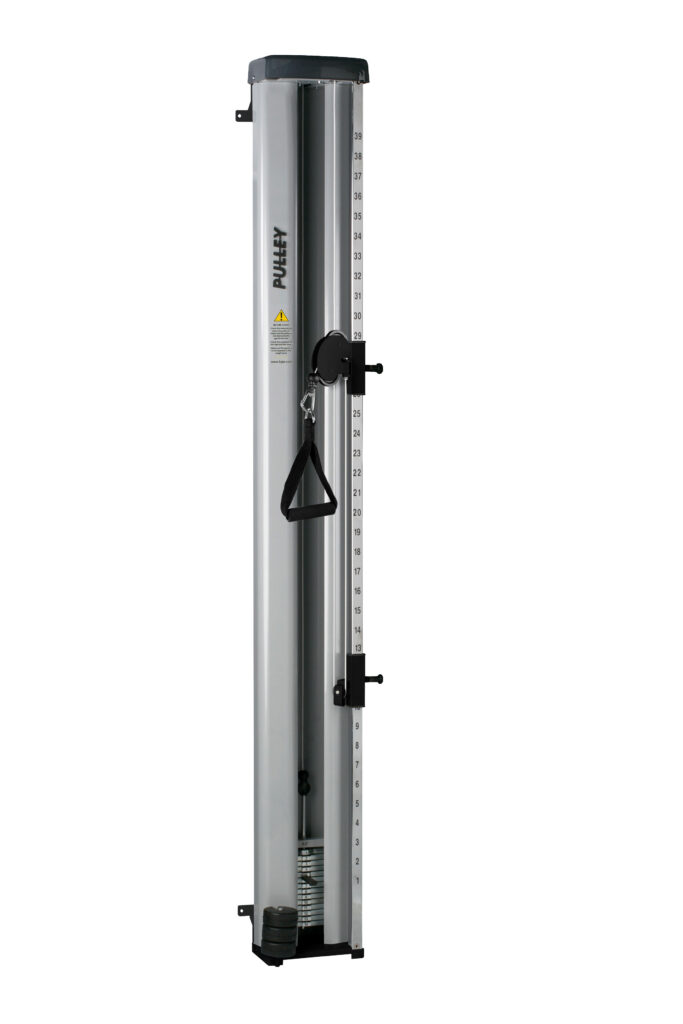

- Four fixing points for fixing against a wall
- Sturdy construction
- Black or grey frame
Models / Configurations
Both models share the frame, dimensions, pulling mechanism and adjustment, and are available in black or grey. They differ in the weight stack.
- Pulley 14 kg, encapsulated — weight stack of 2 × 0.5 kg and 13 × 1 kg.
- Pulley 20 kg, encapsulated — weight stack of 2 × 0.5 kg and 19 × 1 kg.
Technical specifications
| Specification | Pulley 14 kg, encapsulated | Pulley 20 kg, encapsulated |
|---|---|---|
| Weight stack | 14 kg | 20 kg |
| Weight plates | 2 × 0.5 kg and 13 × 1 kg | 2 × 0.5 kg and 19 × 1 kg |
| Resistance | Equal to the selected weight | Equal to the selected weight |
| Adjustment steps | 0.5–1.0 kg; 0.25 kg with optional extra weights | 0.5–1.0 kg; 0.25 kg with optional extra weights |
| Ropes and handles | 1 rope, triangle handle | 1 rope, triangle handle |
| Overall height | 230 cm | 230 cm |
| Width | 32 cm | 32 cm |
| Depth | 32 cm | 32 cm |
| Total weight | 44 kg | 50 kg |
| Colour | Black / Grey | Black / Grey |
| CE marking | Yes. CE-marked medical device, MDR 2017/745 class 1 | Yes. CE-marked medical device, MDR 2017/745 class 1 |
| Country of manufacture | Finland | Finland |
| Manufacturer | Lojer Oy, Putajantie 42 38210 Sastamala, Finland | Lojer Oy, Putajantie 42 38210 Sastamala, Finland |
Accessories

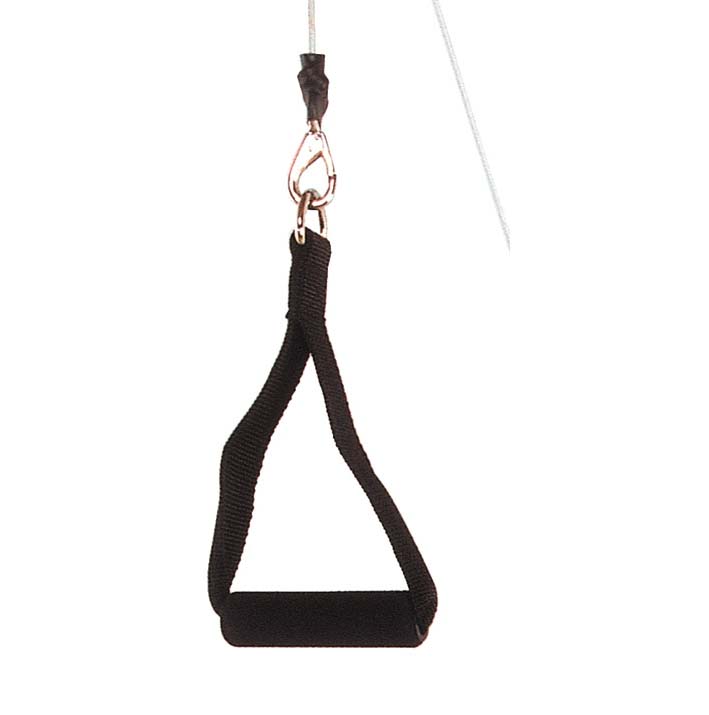

- Handle grip (supplied as standard) — R282H834

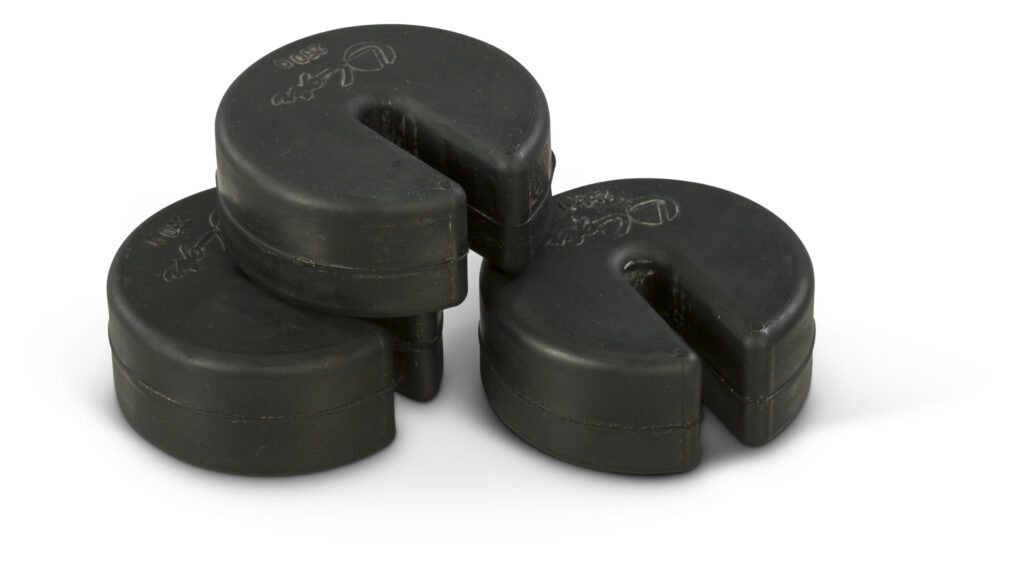

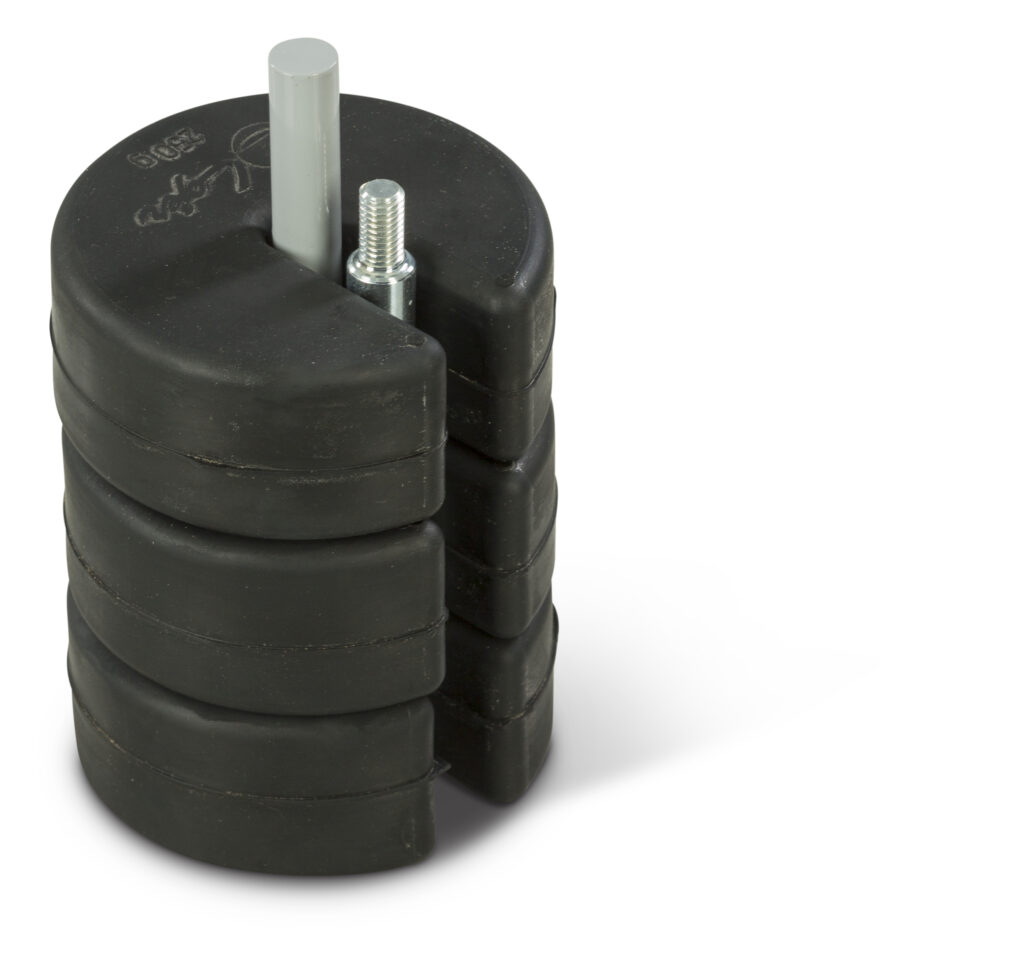

- Set of extra weights, 3 × 250 g

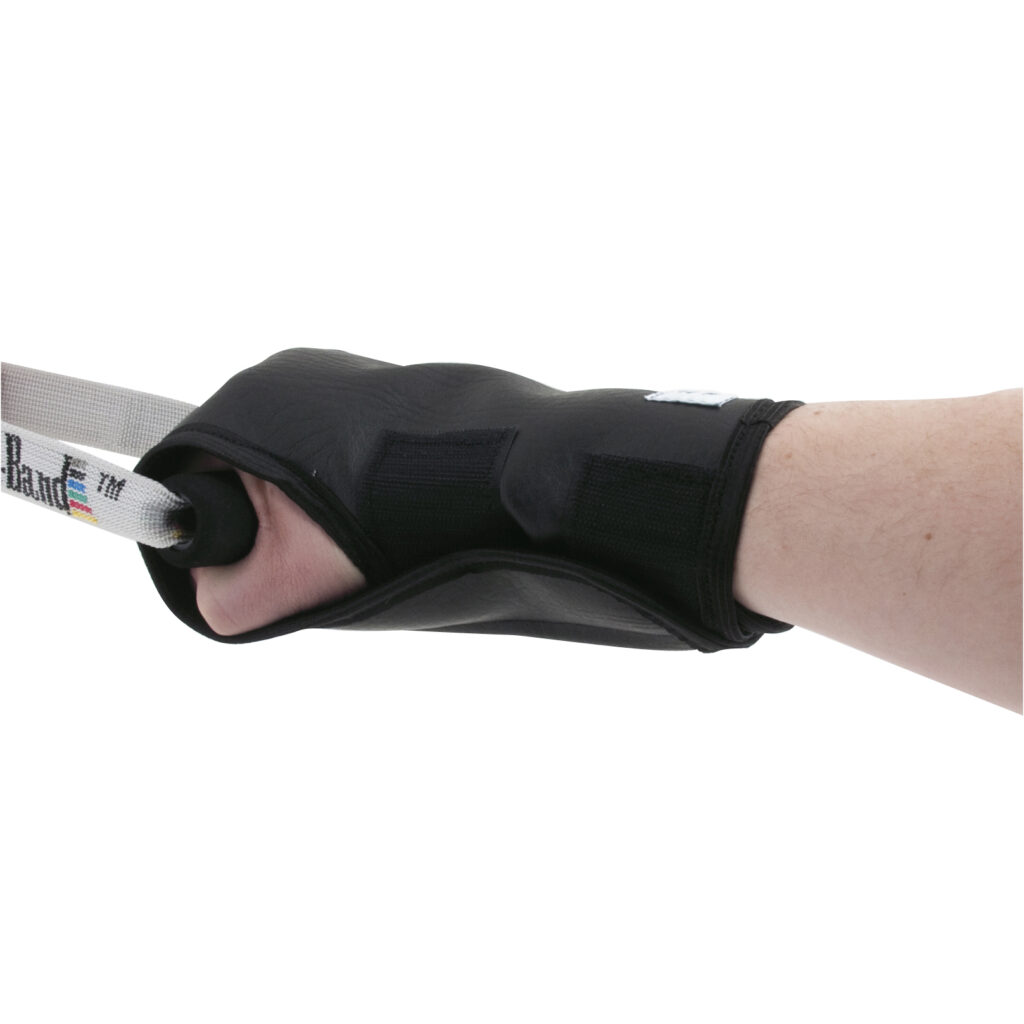

- Glove for pulley — 210050

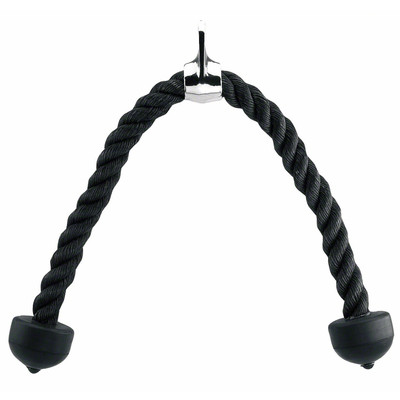

- Triceps rope, 90 cm — 2512126

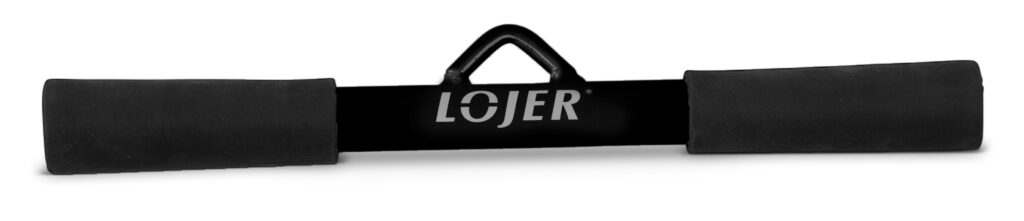

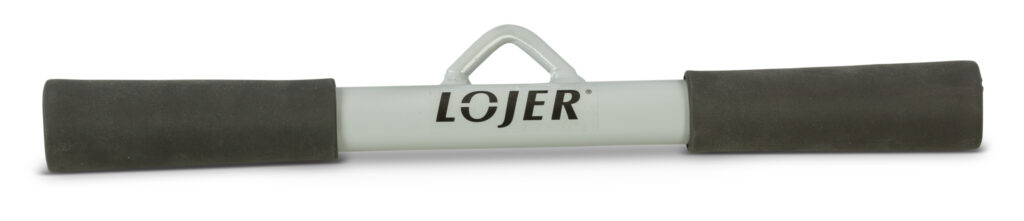

- Straight triceps handle with rubber — 13107

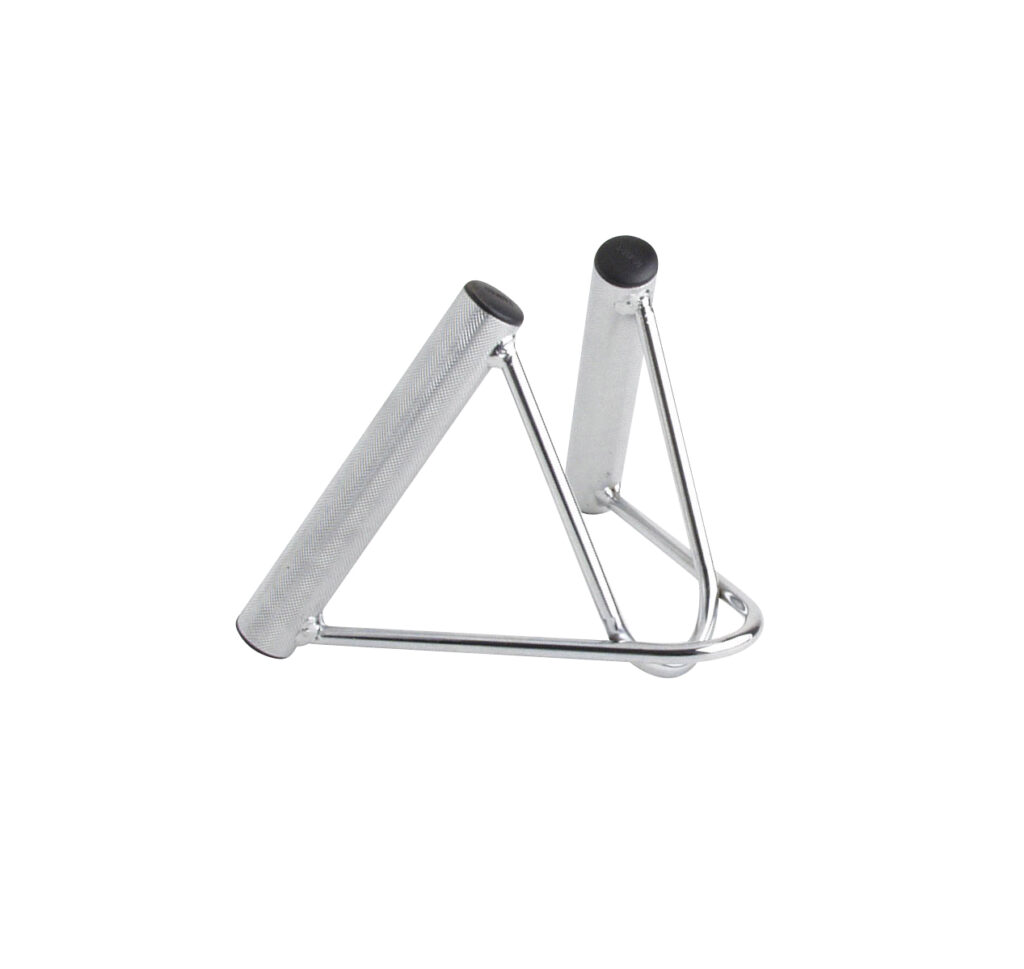

- Rowing handle — 402024

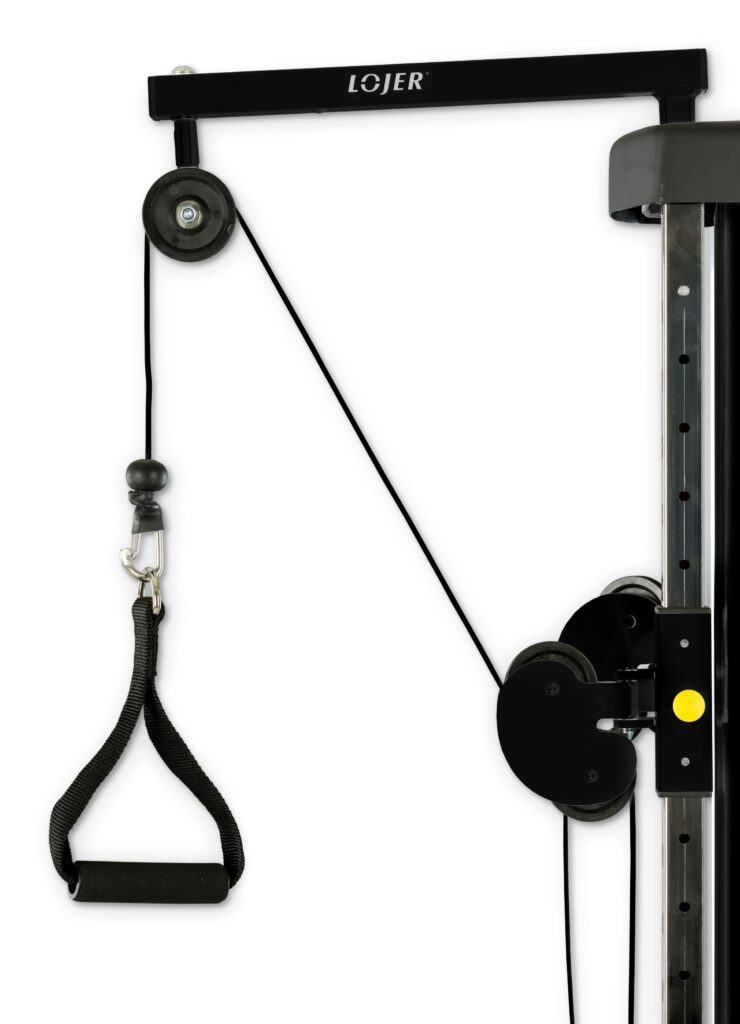

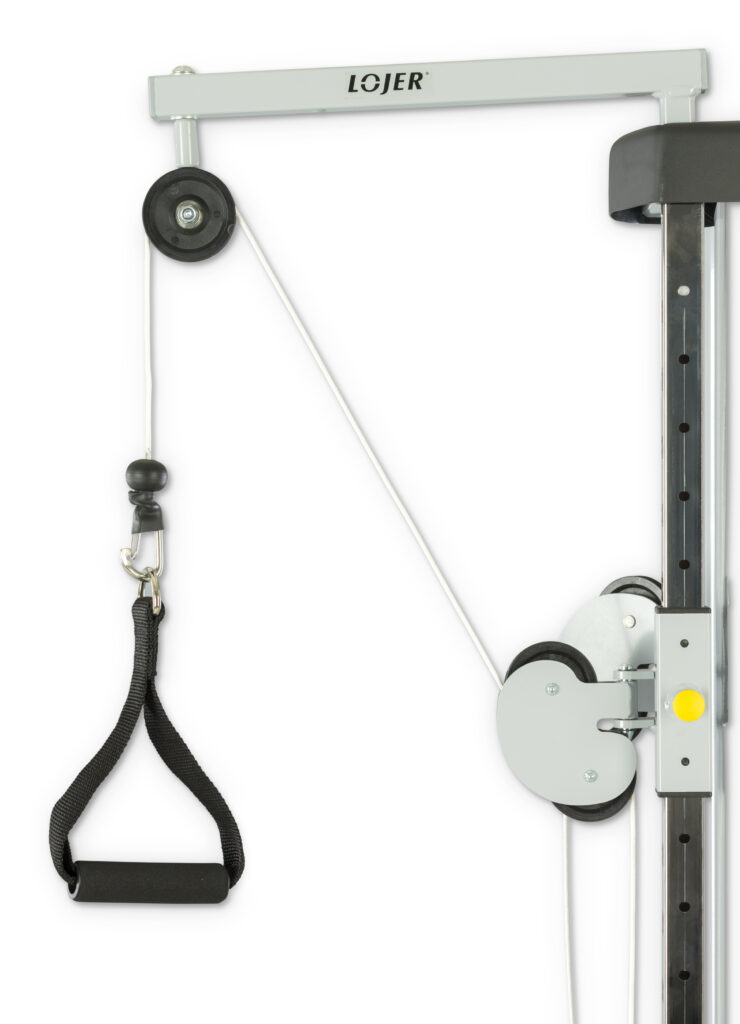

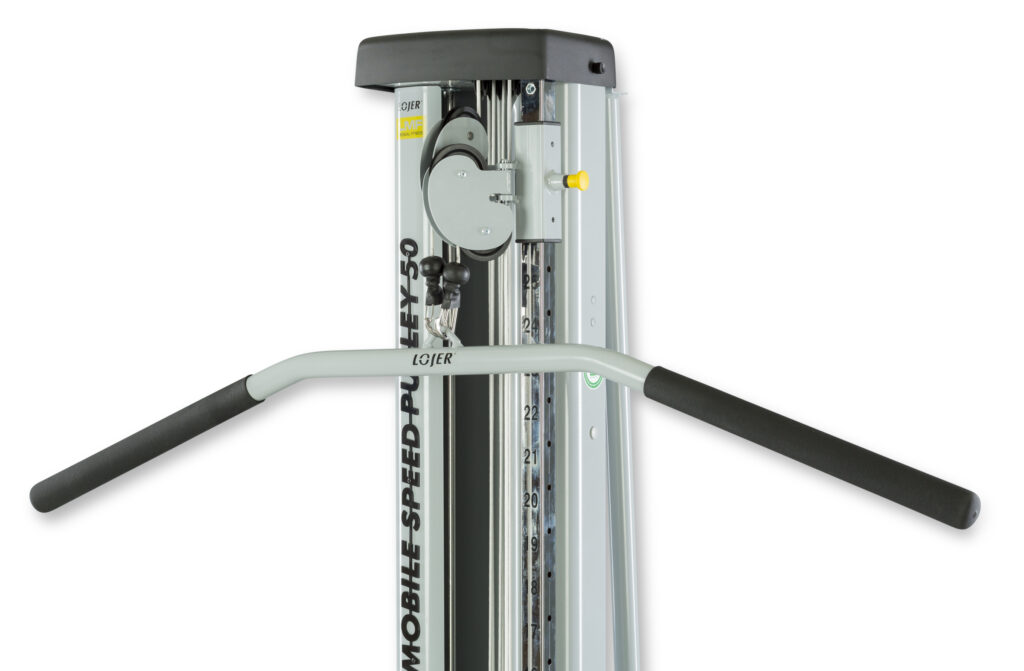

- Gantry with cord wheel and cord — 15106

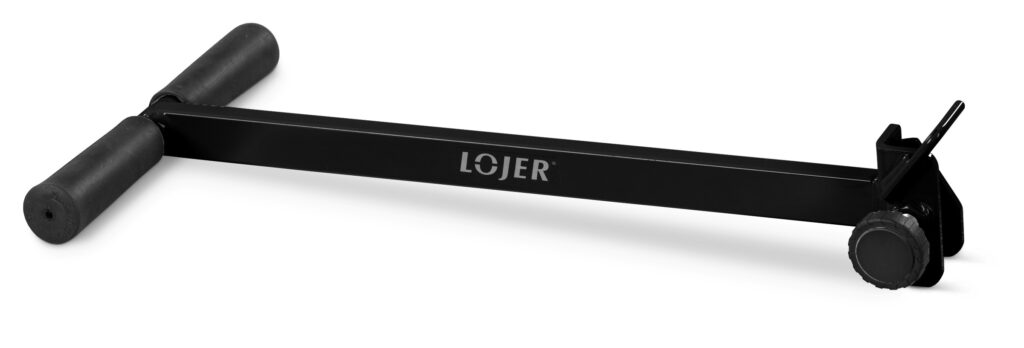

- Tall support handle — VH8083

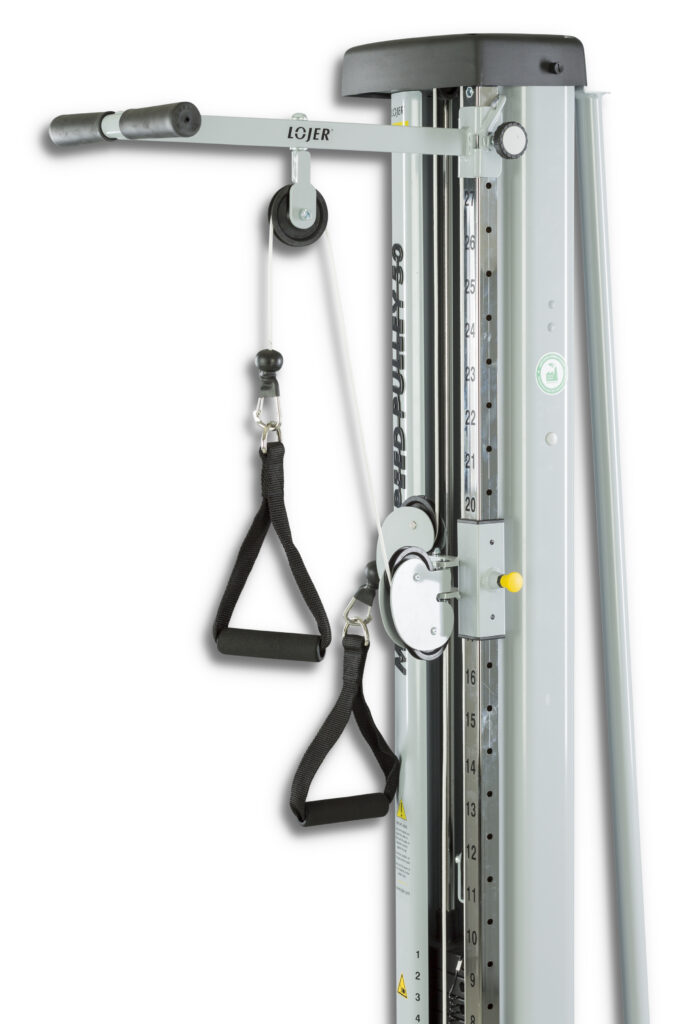

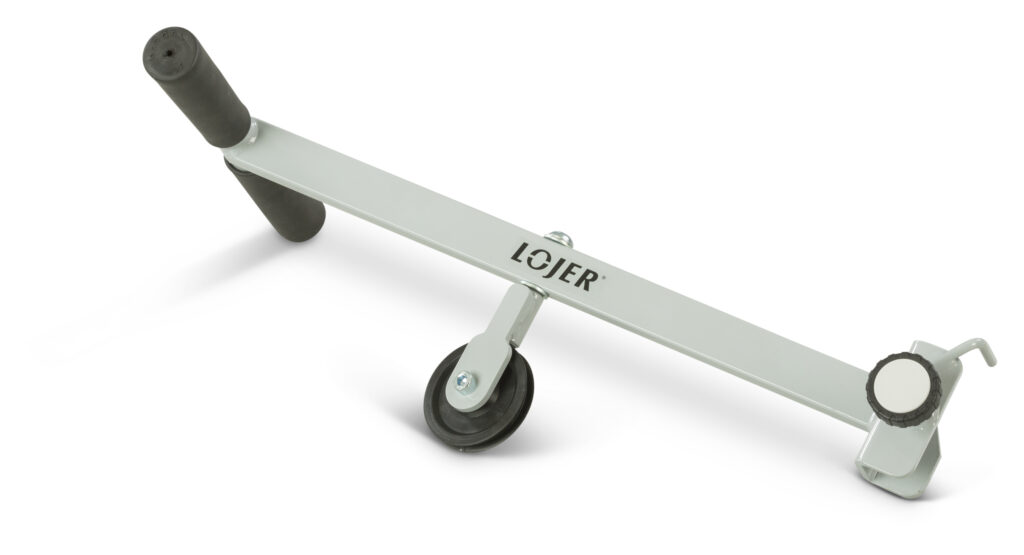

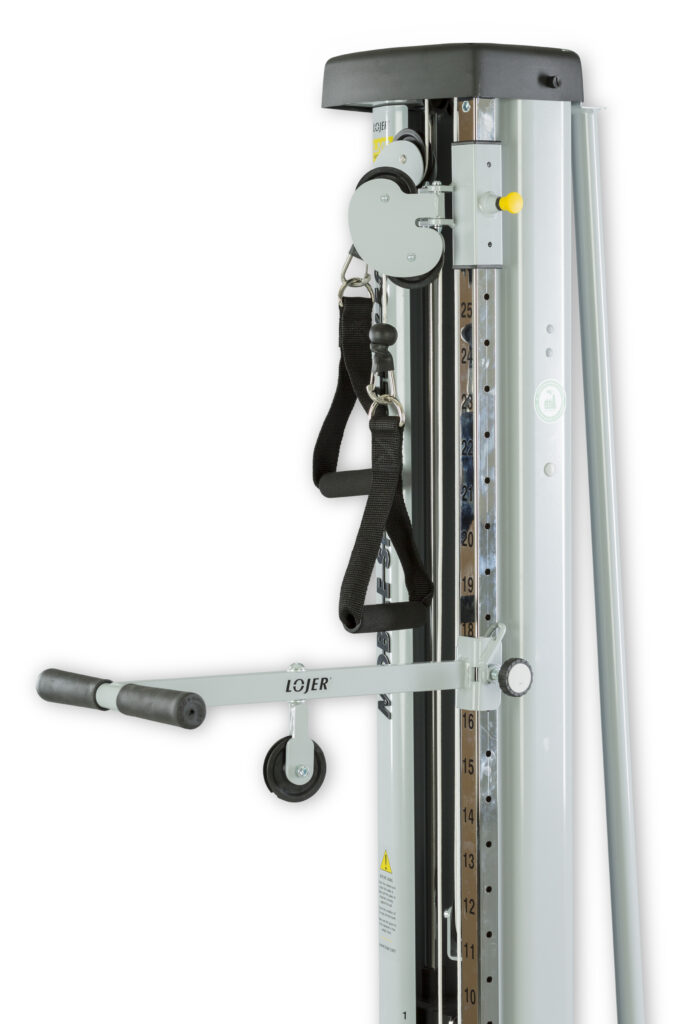

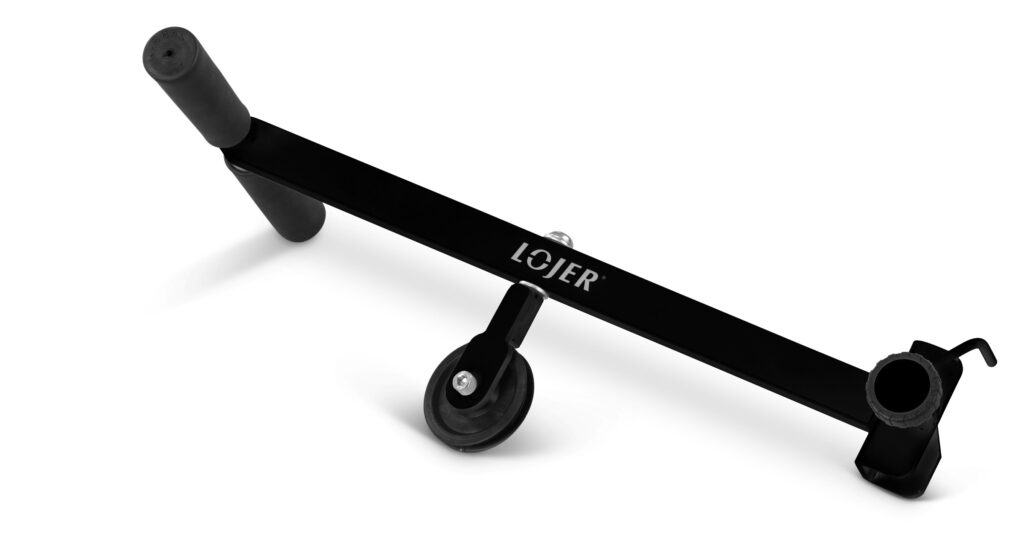

- Supporting handle with gantry — VH80831

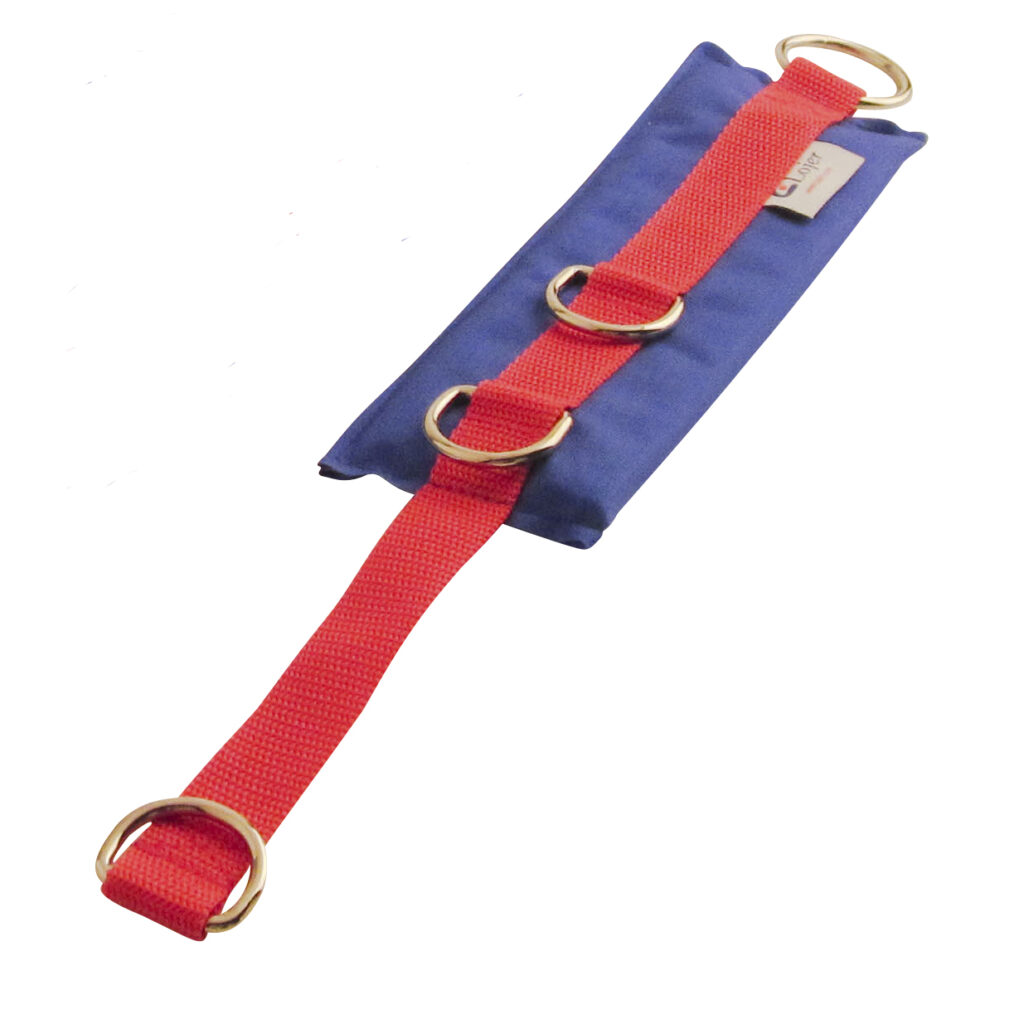

- Padded ankle strap, fabric, 25 × 8 cm — 402020

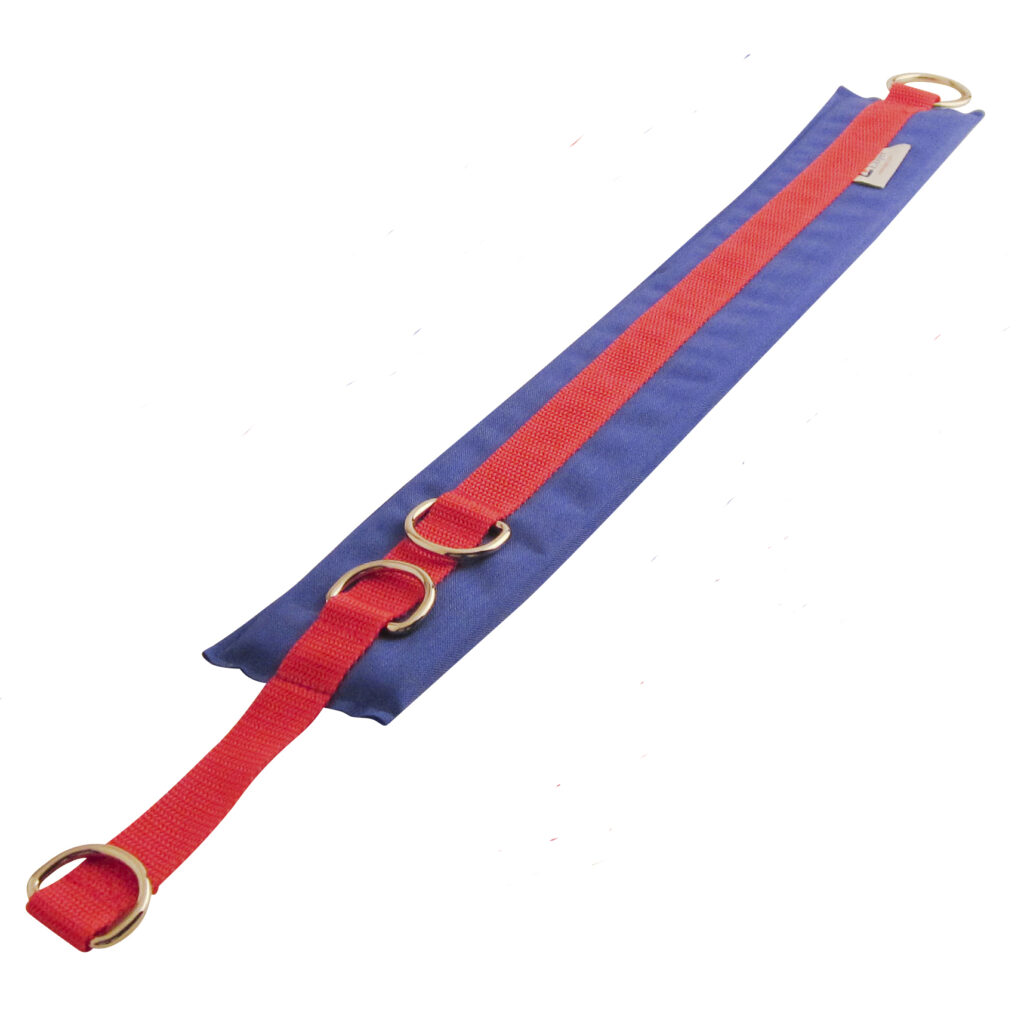

- Padded strap for shoulder or thigh, fabric — 402021

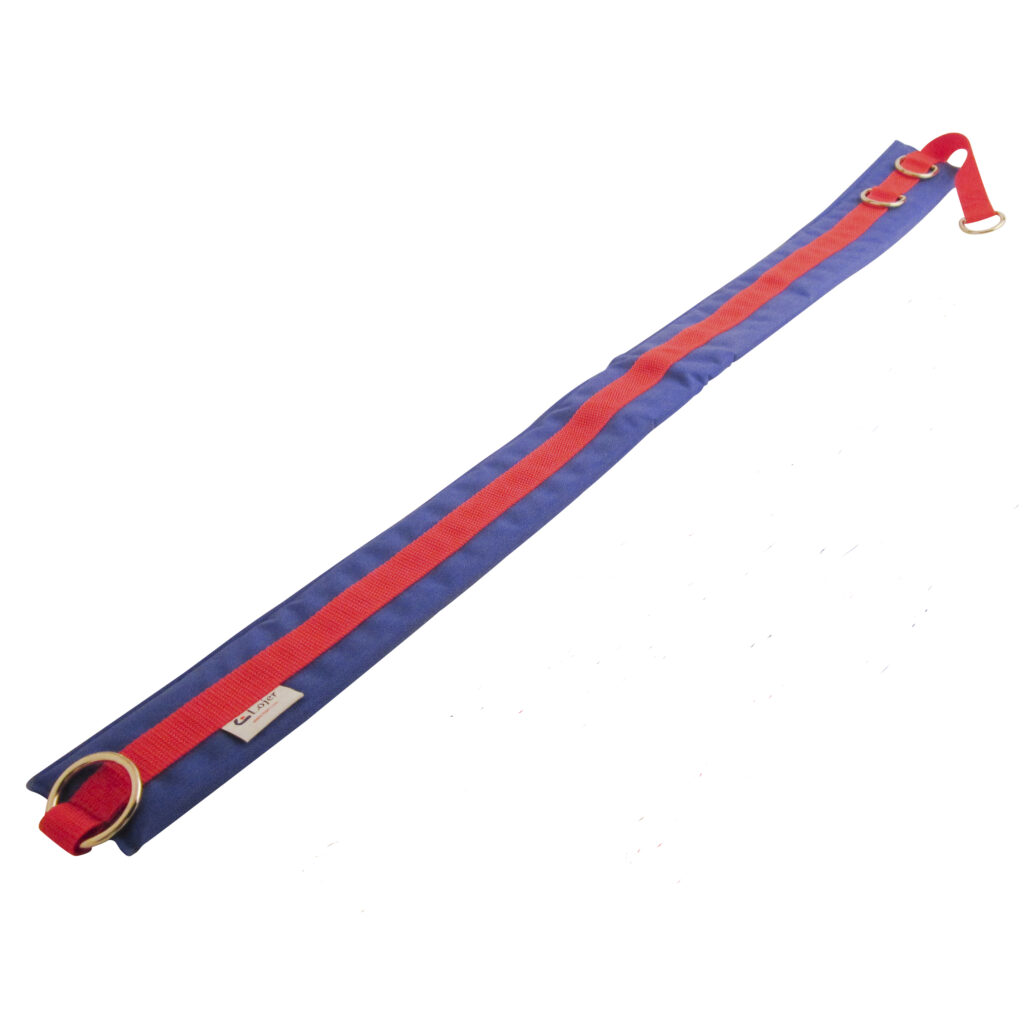

- Padded strap for waist, fabric — 402022

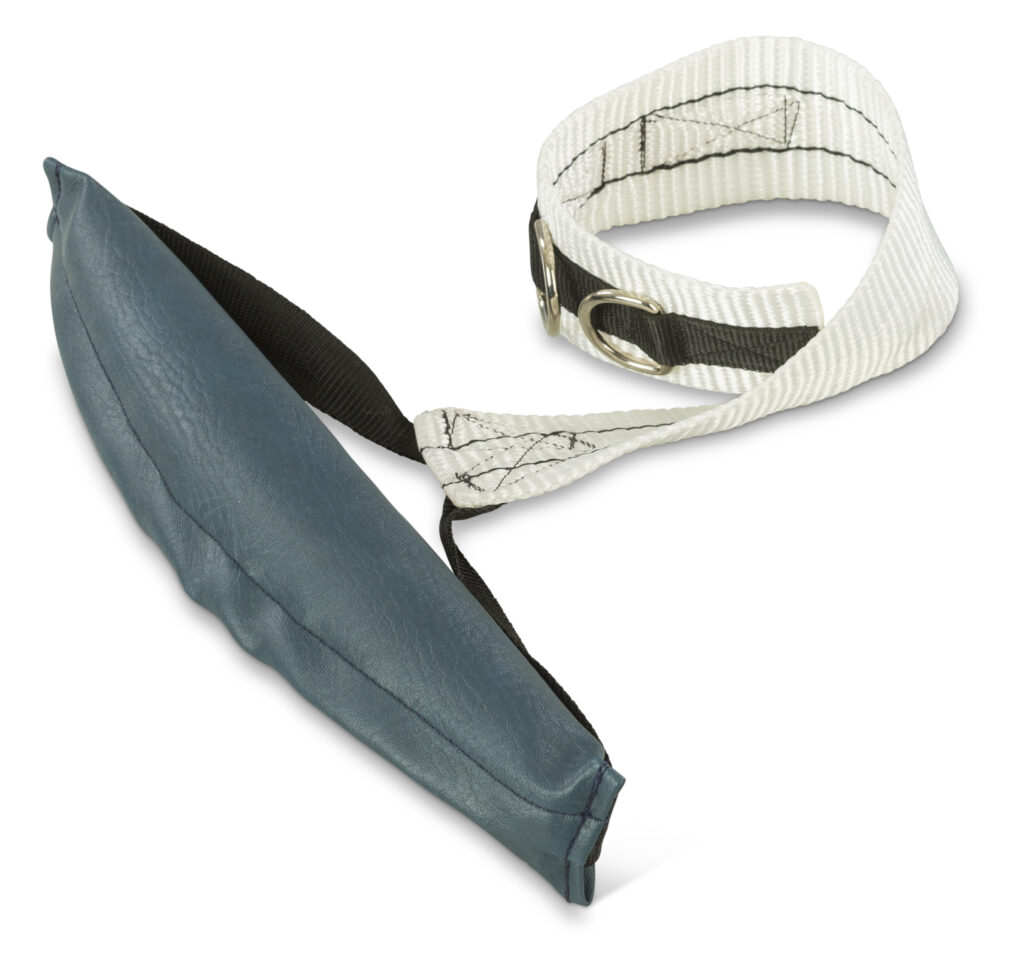

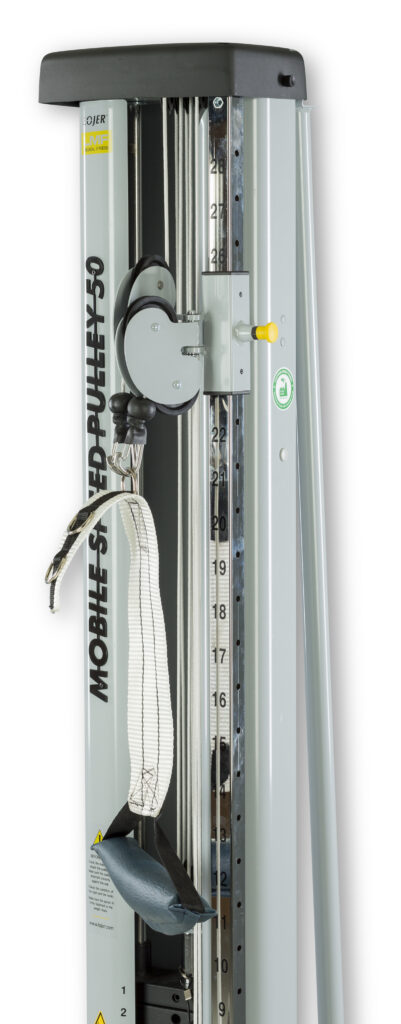

- Rotation strap with padding — 402025
- Strap for ankle, leather, 62 × 5 cm — 402030

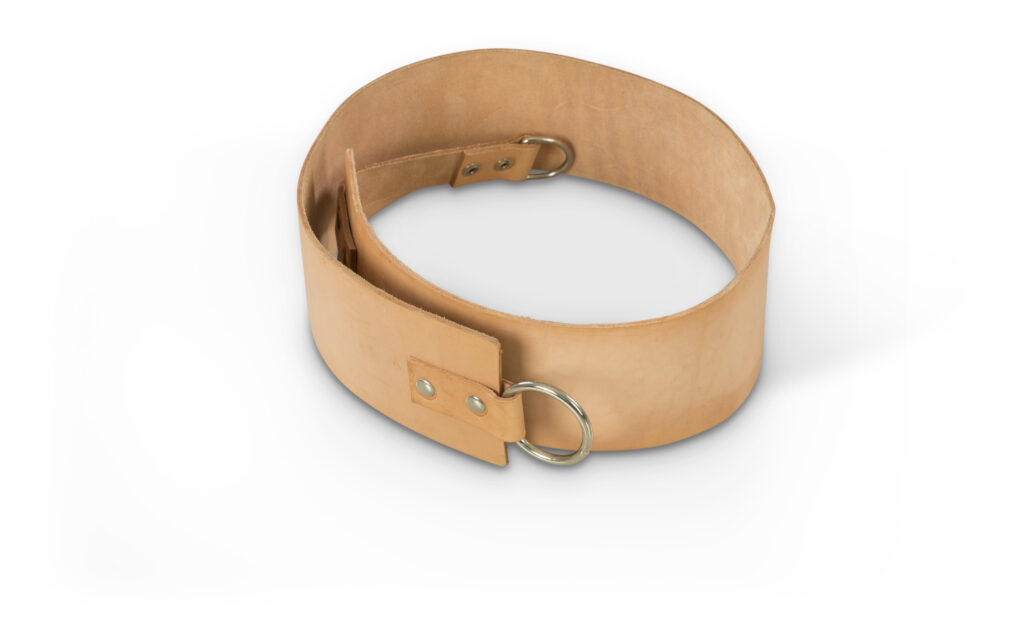

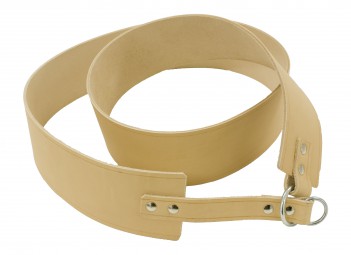

- Leather strap for waist, 105 × 8 cm — 402031

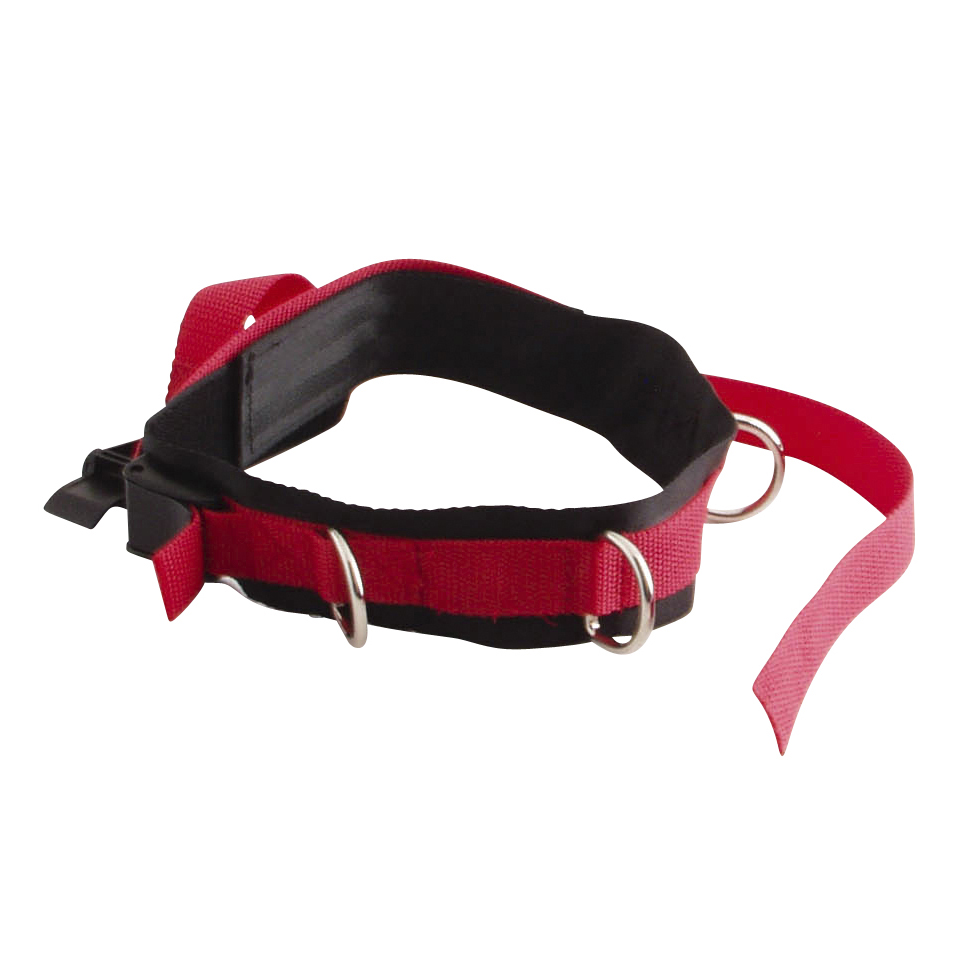

- Head strap — 402034

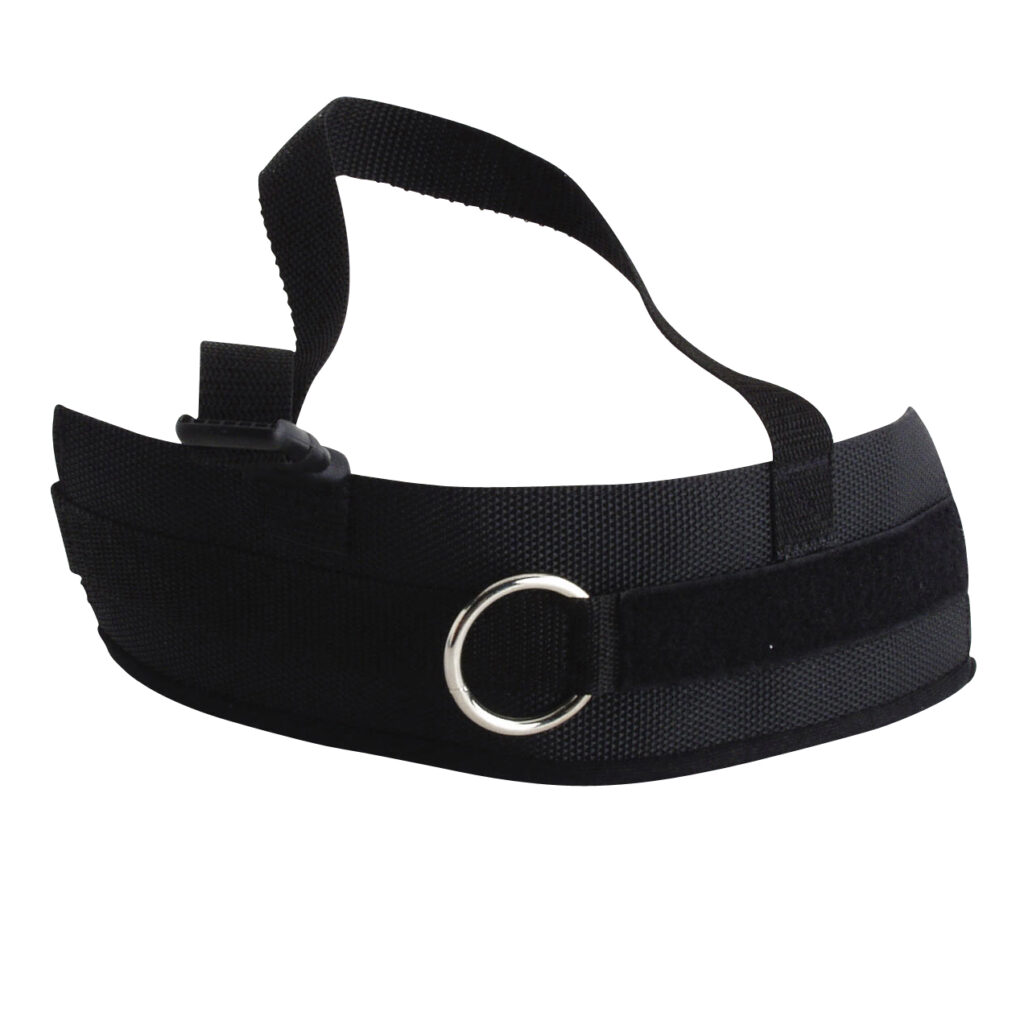

- Strap padded ankle with Velcro lock — 402040
Service & lifestyle
The warranty is 2 years for the mechanism and 10 years for the steel parts. Accessories and wearing components, including spare and replacement parts, are covered for 12 months from the date of shipment. Lojer also provides equipment maintenance and other lifecycle services.
