4040X Undersökningsbänk


4040X Undersökningsbänk

Innovativ och mångsidig undersökningsbänk

Main features:

1. Market-leading height adjustment range 40 – 95 cm

2. Two-piece hands-free adjustment bar (for height and back section) and simple frame construction enable high level of hygiene

3. New motors lower using gravity, improving safety for patients and users


About

Its patented construction and extremely low minimum height mean that even children and elderly patients are able to get up onto the table with ease. The new motor technology allows for back section height adjustment electrically or manually, if required. The widest height adjustment range on the market and a high load capacity enable comfortable, efficient working for care providers and increase safety when examining or moving patients.

A two-piece hands-free height adjustment bar is available as an option, enabling the table height and back section to be adjusted from both sides of the table by foot.

The Range

There's also a hydraulic 4040XH-model available, in which the height-adjustment is done with foot pedal and the back section adjustment is assisted by gas spring mechanism.


Technical features:

  • Hand controller
  • Back section height adjustment electrically or manually, if required
  • Paper roll stand and cutter
  • Adapter for fitting an IV-stand (6 possible fitting positions)
  • Individually locking castors ø125mm
  • Multiple upholstery colors and several high-quality upholstery materials available
iphone white

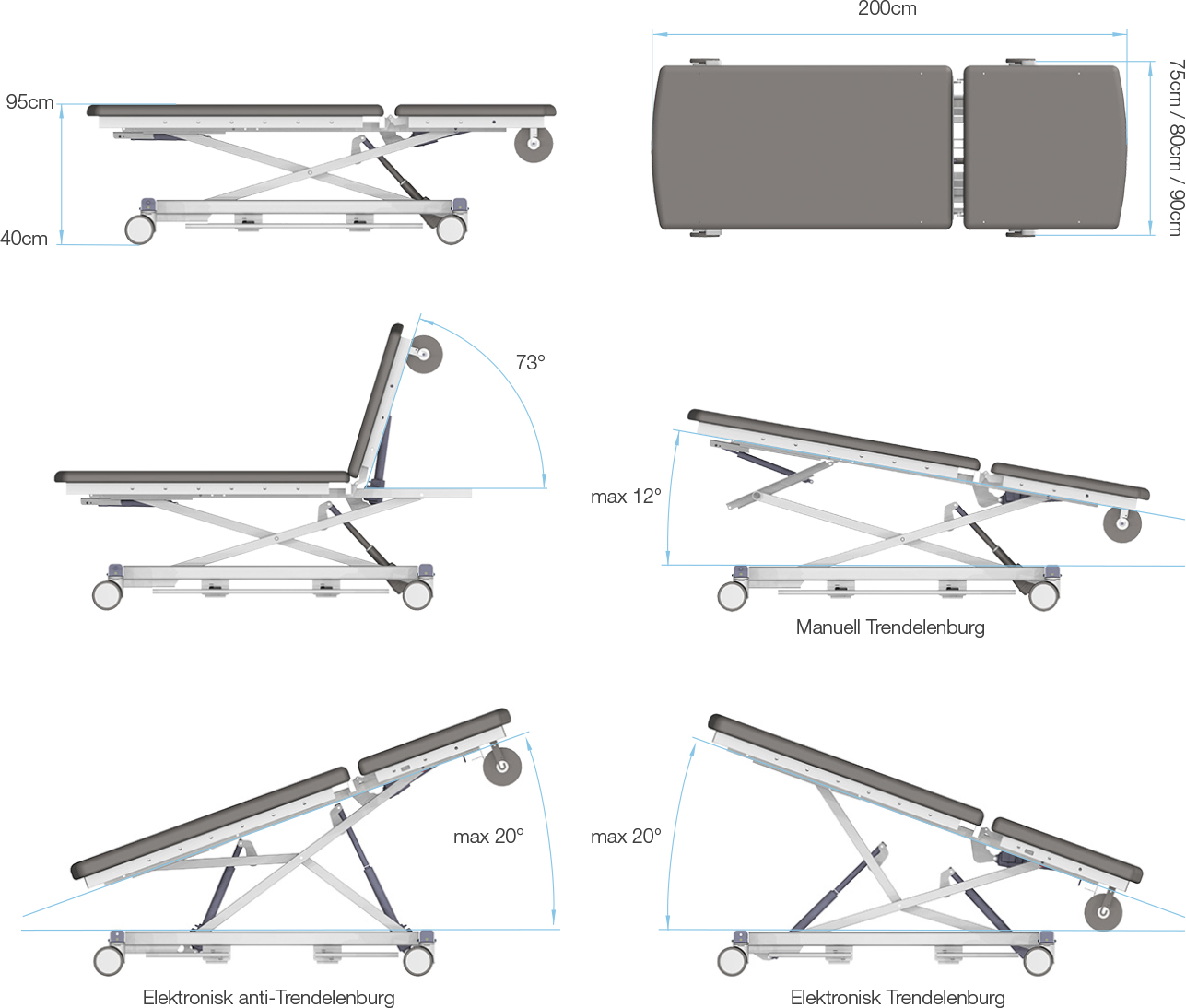

TECHNICAL DATA
Total width 75 cm (80 / 90 cm optional)
Total length 200 cm
Total weight 108 kg
Height adjustment 40 - 95 cm
Back section length 70 cm
Back section adjustment 73°
Trendelenburg adjustment (optional) max. 12°
Castors Ø125 mm (twin castors optional)
Safe working load (SWL) 210 kg
Electric system 24V
CE-marking Yes
Warranty 2 years
Country of Manufacture Finland
