Supports & Straps


Supports & Straps

Supports and straps help support the patient in the correct, safe, anatomical position and spread the pressure from skin contact on tissue to avoid possible further complications. A wide variety of supports is needed to be able to construct a safe, optimal operating position; our range therefore includes various types, sizes and shapes of lateral supports, support belts and support cushions. Our range also includes various body and limb straps to ensure that limbs stay safely on the operating table.

All our lateral supports and straps can be cleaned using common cleaning agents and solutions. The padded parts of straps and supports are water resistant and all materials are skin-friendly.

Lojer’s durable, easy to use gel cushions and paddings have been designed for operating theatre environments and offer quality positioning and pressure relief care without forgetting patient safety. The cushions are balanced and stay in place, making it easy for nursing staff to handle and adjust them when preparing for and during surgery. Gel cushions and paddings are latex-free and skin-friendly. Cushions are available with two kinds of filling material: gel-foam and gel.

SUPPORTS


SS1010
Lateral support, fixed
- fixed arthroscopy lateral support
- padding (50 mm) designed to prevent pressure and nerve
injuries
- height adjustment range 150 mm
- pad size 100x200 mm
Recommended clamps: CL2010/ CL2110


SS1020
Lateral support, adjustable narrow
- user-friendly lateral support
- padding (50 mm) designed to prevent pressure and nerve
injuries
- antimicrobial tightening lever
- height adjustment range 270 mm
- pad size 100x200 mm
Recommended clamps: CL2010/ CL2110

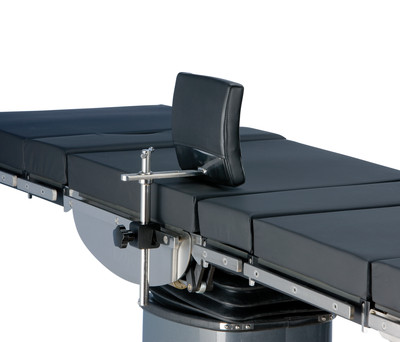

SS1030
Lateral support, adjustable wide
- user-friendly lateral support
- padding (50 mm) designed to prevent pressure and nerve
injuries
- antimicrobial tightening lever
- height adjustment range 270 mm
- pad size 200x200 mm
Recommended clamps: CL2010/ CL2110

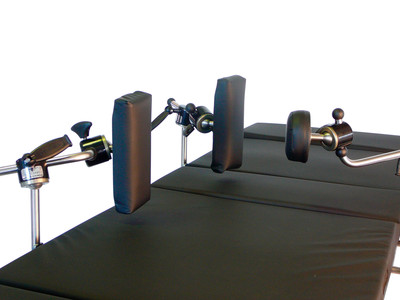

SS1040
Multi lateral support, narrow
- multi-adjustable lateral support for optimum positioning
- padding (50 mm) designed to prevent pressure and nerve
injuries
- antimicrobial tightening levers
- height adjustment range 200 mm
- pad size 100x200 mm
Recommended clamps: CL2010/ CL2110


SS1050
Multi lateral support, wide
- multi-adjustable lateral support for optimum positioning
- padding (50 mm) designed to prevent pressure and nerve
injuries
- antimicrobial tightening levers
- height adjustment range 200 mm
- pad size 200x200 mm
Recommended clamps: CL2010/ CL2110


SS1060
Multi lateral support, circular

- multi-adjustable lateral support for optimum positioning
- padding (50 mm) designed to prevent pressure and nerve
injuries
- antimicrobial tightening levers
- height adjustment range 200 mm
- pad diameter 150 mm
Recommended clamps: CL2010/ CL2110


SS1070
Support for shoulder module
- separate side support for shoulder module (OT1030)
- provides support to patient from the side
- viscoelastic pad size 60x240x50 mm


SS2010
Supporting roll, vertical
- easy to use adjustable support roll
- pad diameter 110 mm, length 270 mm
Recommended clamps: CL2010/ CL2110


SS2030
Tibia support
- horizontal leg support for knee and leg operations
- pad diameter 110 mm, length 270 mm
- flat rod 6x25 mm
Recommended clamp: CL1310


SS2040
Knee support
- support roll for knee and leg surgery treatment
- suitable also with orthopaedic traction device
- height adjustment range 600 mm
- pad diameter 100 mm, length 380 mm
Recommended clamp: CL2110


SS3010
Foot support, pair
- supports patient in different positions
- attached to accessory rail on both sides of table
- pad size 220x270 mm
Recommended clamp: CL1010


SS3020
Knee arthroscopy holder
- arthroscopic knee holder keeps leg in fixed position during
surgery
- stepless adjustment with crank
Recommended clamps: CL1010/ CL2010

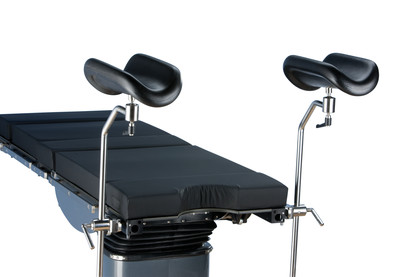

SS3030
Leg support with integral cushion, pair
- light, user-friendly leg support
- ball joint allows optimum position for leg
- soft edges for comfort
- requires support strap (SS5030) to keep leg in position
Recommended clamp: CL2110

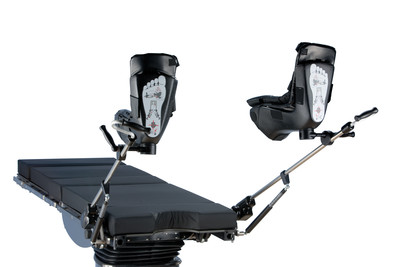

SS3040
Gas spring assisted stirrups, pair
- Easy to clean durable silicone straps
- Boots sized to fit today’s larger patient anatomy
- More pressure reducing padding
- Lightweight
Recommended clamp: CL2210 (2 pcs)


SS4010
Lateral arm support, multi adjustable
- multi-adjustable arm support with ball joint
- antimicrobial tightening lever
- height adjustment range 490 mm
- viscoelastic cushion 160x500x30 mm with velcro fastening
Recommended clamp: CL2110


SS4040
Shoulder support, pair
- support keeps patient safely on operating table in
Trendelenburg position
- soft, comfortable cushions prevent pressure and nerve
injuries
- shoulder support attaches to the accessory rails
Recommended clamp: CL2110

STRAPS

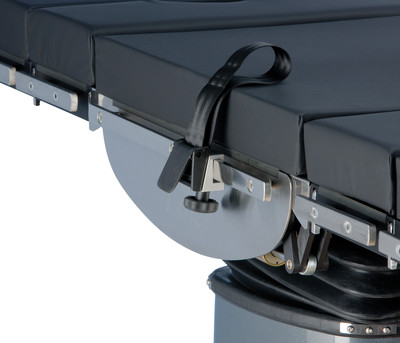

SS5010
Wrist strap
- premium padded wrist strap with velcro fastening
- provides support and safety for patients
- comfort pad minimises abrasions
- pad size 60x380 mm, total strap length 500 mm
Recommended clamp: CL1210


SS5020
Armboard strap
- premium padded armboard strap with velcro fastening
- provides support and safety for patients
- comfort pad minimises abrasions
- pad size 60x200 mm, total strap length 700 mm

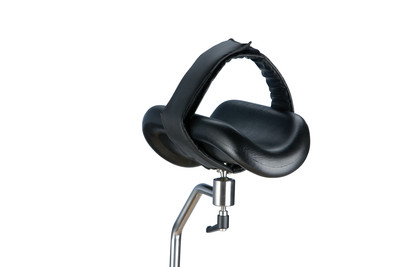

SS5030
Strap for leg support
- premium padded leg support strap with velcro fastening
- provides support and safety for patients
- comfort pad minimises abrasions
- pad size 80x300 mm, total strap length 950 mm


SS5040
Strap for leg section
- premium padded leg section strap with velcro fastening
- provides support and safety for patients
- comfort pad minimises abrasions
- pad size 80x400 mm, total strap length 1400 mm


SS5050
Leg and body strap
- premium padded leg and body strap with velcro and hook
fastening
- provides support and safety for patients
- comfort pad minimises abrasions
- removable pad, size 110x550 mm, total strap length
2200 mm

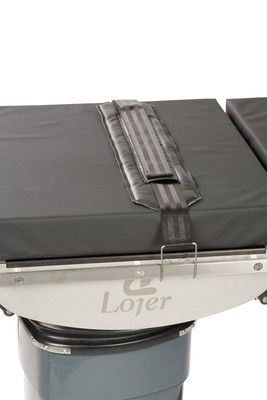

SS5055
Leg and body strap, wide
- premium padded leg and body strap with velcro and hook
fastening
- provides support and safety for patients
- comfort pad minimises abrasions
- removable pad, size 140x650 mm, total strap length
2200 mm


SS5070
Strap for shoulder module
- designed to be used with shoulder module OT1030
- provides support and safety for patients
Recommended clamps: CL1110/ CL3010

GEL CUSHIONS AND PADDINGS

Operating Room Gel Positioners provide superior pressure relief, patient safety and – protection. Gel pads are extremely durable, easy to use, designed to be stable and easy to handle before and during the operations. Pads are reusable and durable because those are coated with polyurethane film, it protects the pad also from moisture and from external damage or foreign material. Material of gel positioners is also latex free and biocompatible.

Position pads and cushions is available in different sizes and shapes, those are used during different types of surgery to support the parts of the body of the patient. Cushions must hold the patient in the right position and must expand correctly the pressure in order to avoid for example pressure ulcers.

We have two different type of Gel Positioners available; filled with gel-foam or gel.

Gel-Foam Posiotoner

  • gel on top in contact skin and foam offers effective pressure relief
  • foam base at the bottom reduces the weight of the positioner
  • stable foam base maintain the shape of the positioner and the lightness of the product makes it easy to use

Gel Pad

  • 100% polyurethane gel is soft like skin and underlying tissue
  • reduces the pressure on tissues during the operation
  • MRI compatible and X-ray translucent

SS6010
Ankle and knee cushion
- a semi-circular support pillow for use under ankles and
knees to create an ergonomic surgery position for the
patient
- easy to clean
- size 550x200x100 mm


SS6020 Tube pillow Ø 100 mm
SS6030 Tube pillow Ø 150 mm
- creates an ergonomic surgery position for the patient
- helps in surgery preparation
- easy to clean
- length 500 mm


SS6040
Wedge pillow, small
- supports the patient in position during surgery
- easy to clean
- size 300x250x140 mm


SS6050
Wedge pillow, large
- supports the patient in position during surgery
- helps in surgery preparation
- easy to clean
- size 400x350x230 mm


SS6110 Closed head ring (child), gel-foam
SS6111 Closed head ring (child), gel
- for supine position
- protects head, face, neck and ears during all types of
surgery
- relieves pressure
- size 140x60x35 mm


SS6120 Closed head ring (adult), gel-foam
SS6121 Closed head ring (adult), gel
- for supine position
- protects head, face, neck and ears during all types of
surgery
- relieves pressure
- size 200x75x45 mm


SS6130 Open head ring (child), gel-foam
SS6131 Open head ring (child), gel
- for prone position
- designed to support patient´s head and face during
surgery
- easy access for surgical intubation
- size 140x60x35 mm


SS6140 Open head ring (adult), gel-foam
SS6141 Open head ring (adult), gel
- for prone position
- designed to support patient´s head and face during
surgery
- easy access for surgical intubation
- size 200x75x45 mm


SS6150
Prone head rest, gel-foam SS6151
Prone head rest, gel
- for prone position
- provides excellent comfort, stability and support during
surgery
- size 280x230x145 mm


SS6160
Head pad, gel-foam SS6161
Head pad, gel
- for supine position
- protects head, face, neck and ears
- provides comfort and stable positioning during all kind
of surgery
- size 270x230x70 mm


SS6211
Armboard pad, gel
- protects arm and hand on armboard and operating table
- provides excellent pressure relief during various surgical
procedures
- recommended for use with moulded armboard cushion
- size 600x125x20 mm


SS6220 Armboard pad contoured, gel-foam
SS6221 Armboard pad contoured, gel
- protects arm and hand on armboard
- designed to provide added support and stability
- size 520x150x55 mm


SS6230
Heel support cushion with cover, gel-foam
- protects patient´s heel
- ergonomic design with velcro strap
- wrap around ankle and heel offers stable position
- interior foam, gel and air provide excellent pressure relief
- includes one cushion with cover
- size 390x260x50 mm


SS6240 Heel support pad set, gel-foam
SS6241 Heel support pad set, gel
- protects patient´s heel
- lightweight heel pad provides maximum comfort and
support
- includes two pads
- size 200x110x70 mm


SS6251
Crutch stirrup pad set, gel
- protects patient´s legs in lithotomy position
- designed for use with integral leg support cushion
- includes two pads
- size 400x250x10 mm


SS6310 Chest roll (short), gel-foam
SS6311 Chest roll (short), gel
- for prone position
- provides pressure relief and prevention of pressure sores
- size 300x150x100 mm


SS6320 Chest roll (long), gel-foam
SS6321 Chest roll (long), gel
- for prone position
- provides pressure relief and prevention of pressure sores
- size 500x150x100 mm


SS6330
Operating table pad, gel-mesh
- made of soft gel and cushioning 3D air mesh fabric
- thousands of fibres prevent body contact to the table
surface
- soft gel on top protects skin during long time surgery
- provides pressure relief and comfort
- size 500x500x20 mm


SS6331
Operating table pad, gel
- various uses in positioning the patient
- soft, flexible and comfortable
- provides high pressure relief on all surfaces
- size 500x500x10 mm
